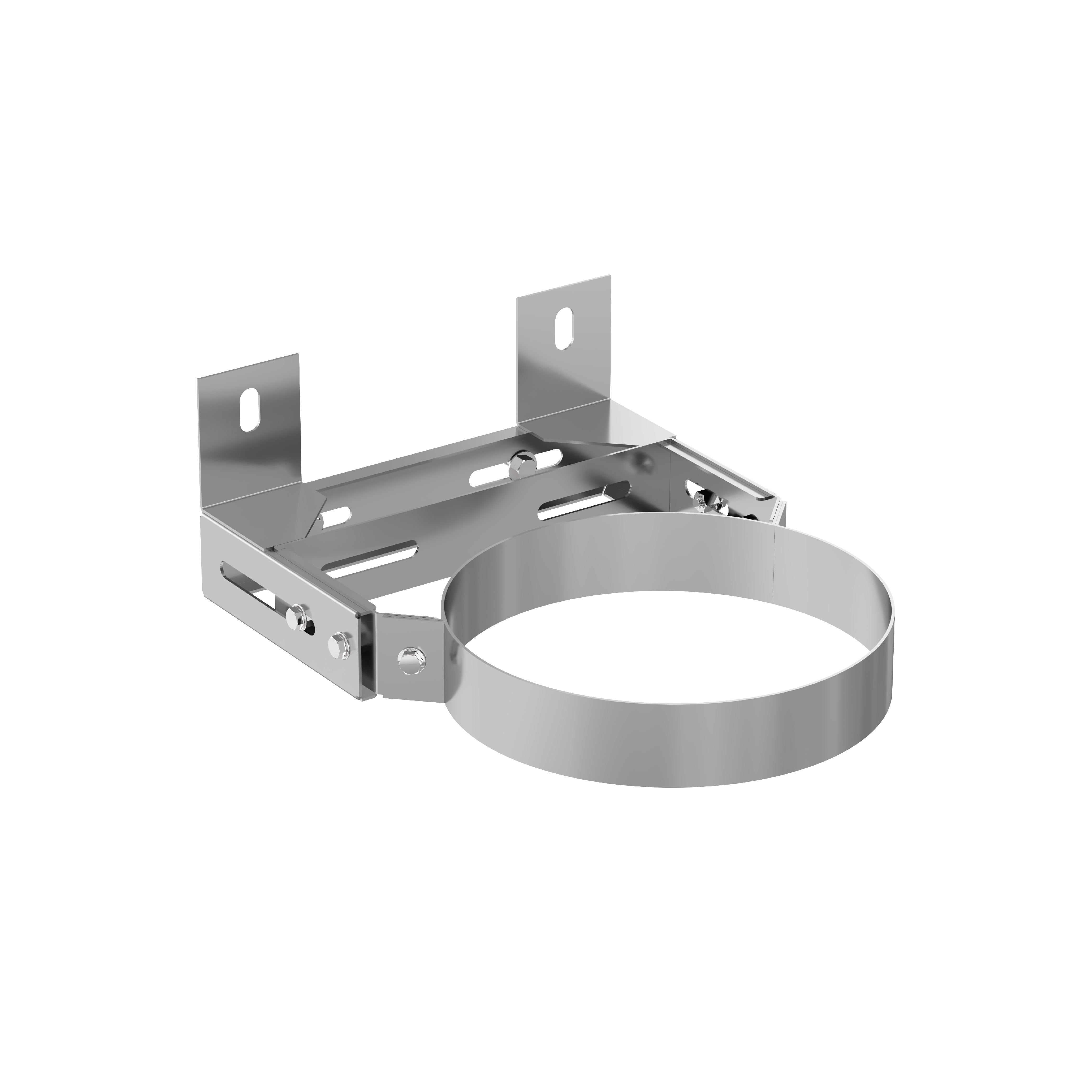

AKSLXADSK11 - Wall Bracket 11
Clamp that enables the lateral load to be carried in chimney systems. The Wall Fixing Clamp is 1.50 mm thick and is used for lengths up to 11 cm.
Technical Specifications
| d | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| D | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| A | 166 | 178 | 208 | 228 | 258 | 279 | 283 | 303 | 332 | 383 | 433 | 483 | 511 | 539 | - |
| X | 70 -- 110 mm | ||||||||||||||
