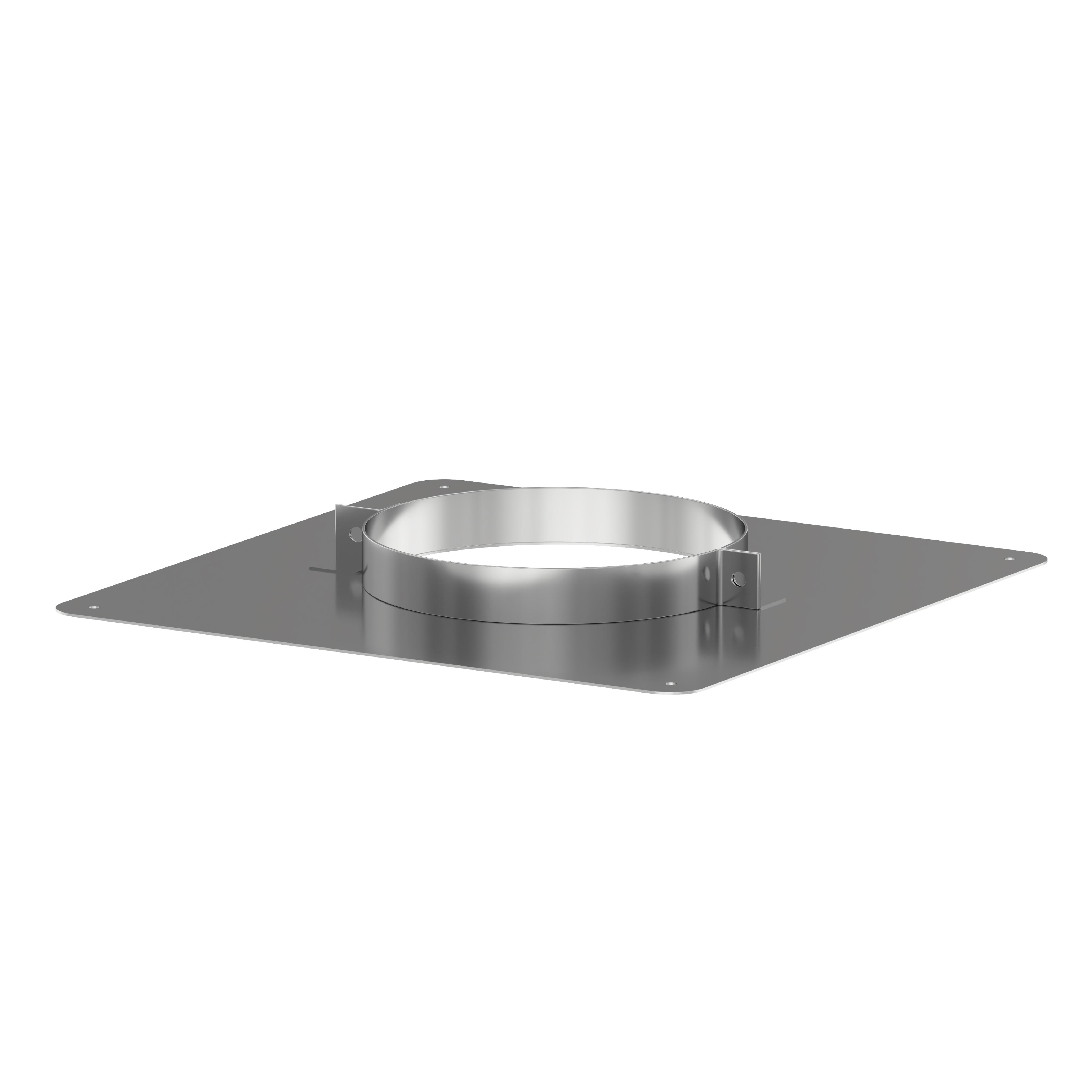

AKSLXAKD - Tile Plate
In accessories used in the chimney system, transition element with Clamp on the upper part.
Technical Specifications
| d | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| D | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| A | 320 | 340 | 370 | 390 | 420 | 440 | 470 | 490 | 540 | 590 | - | - | - | - | - |
| A | 320 | 340 | 370 | 390 | 420 | 440 | 470 | 490 | 540 | 590 | - | - | - | - | - |
