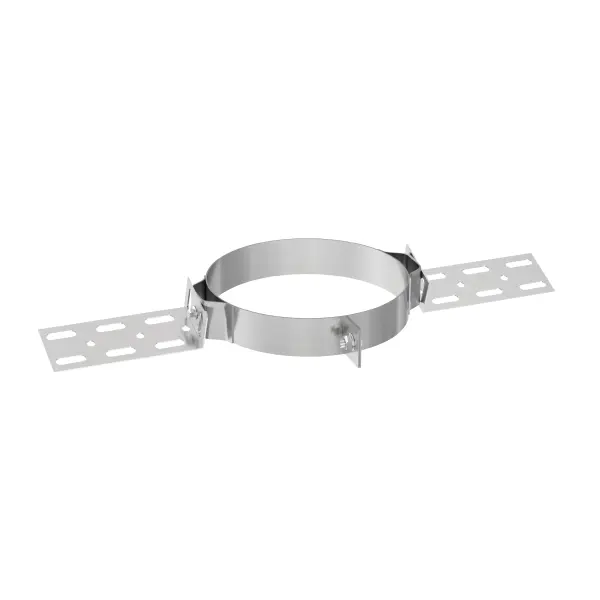

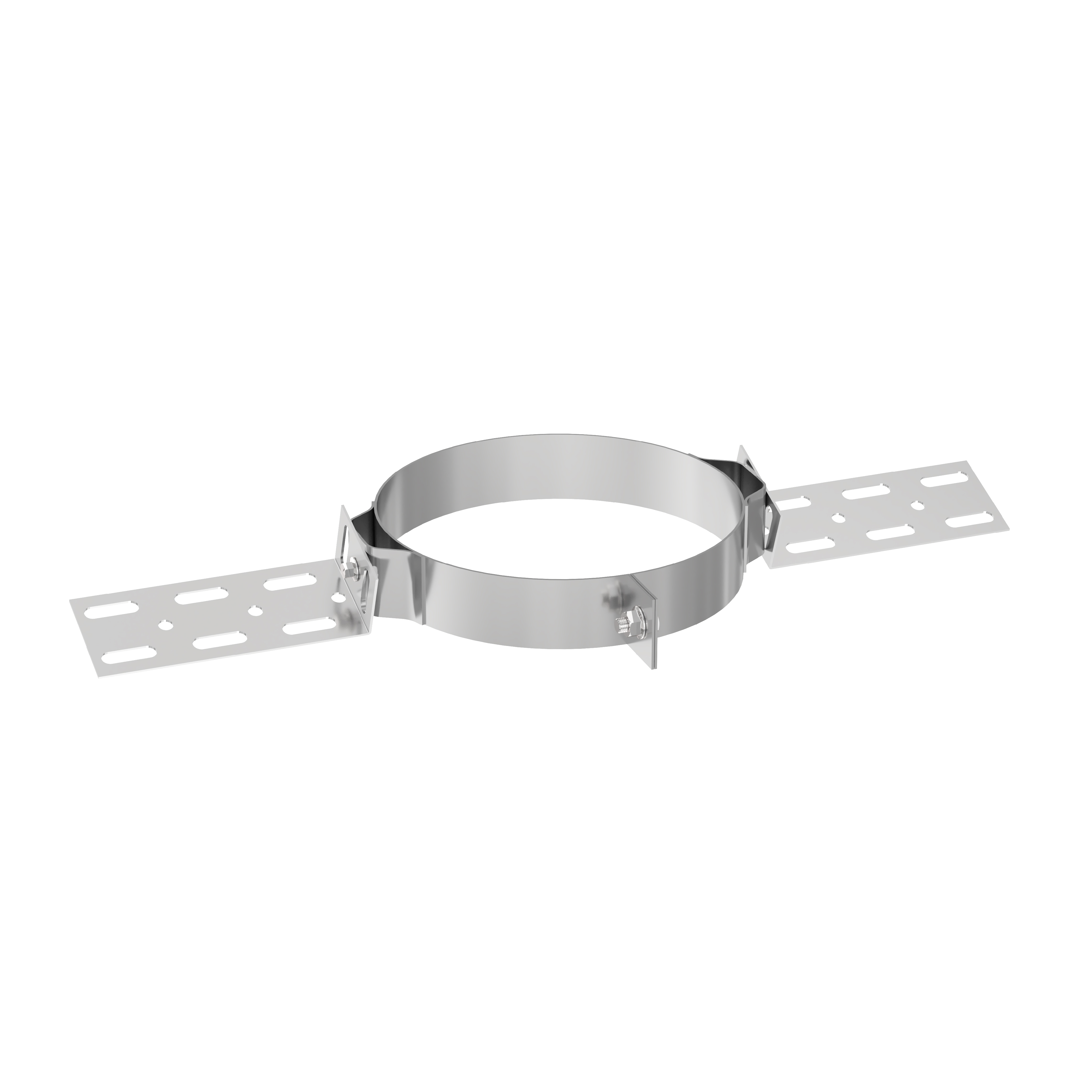

AKSLXAUK - Rafter Support
It is the part used to fix the chimneys in the roof passages. It is 1.50 mm thick.
Technical Specifications
| d | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| D | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| A | 155 mm | ||||||||||||||
| H | 60 mm | ||||||||||||||
