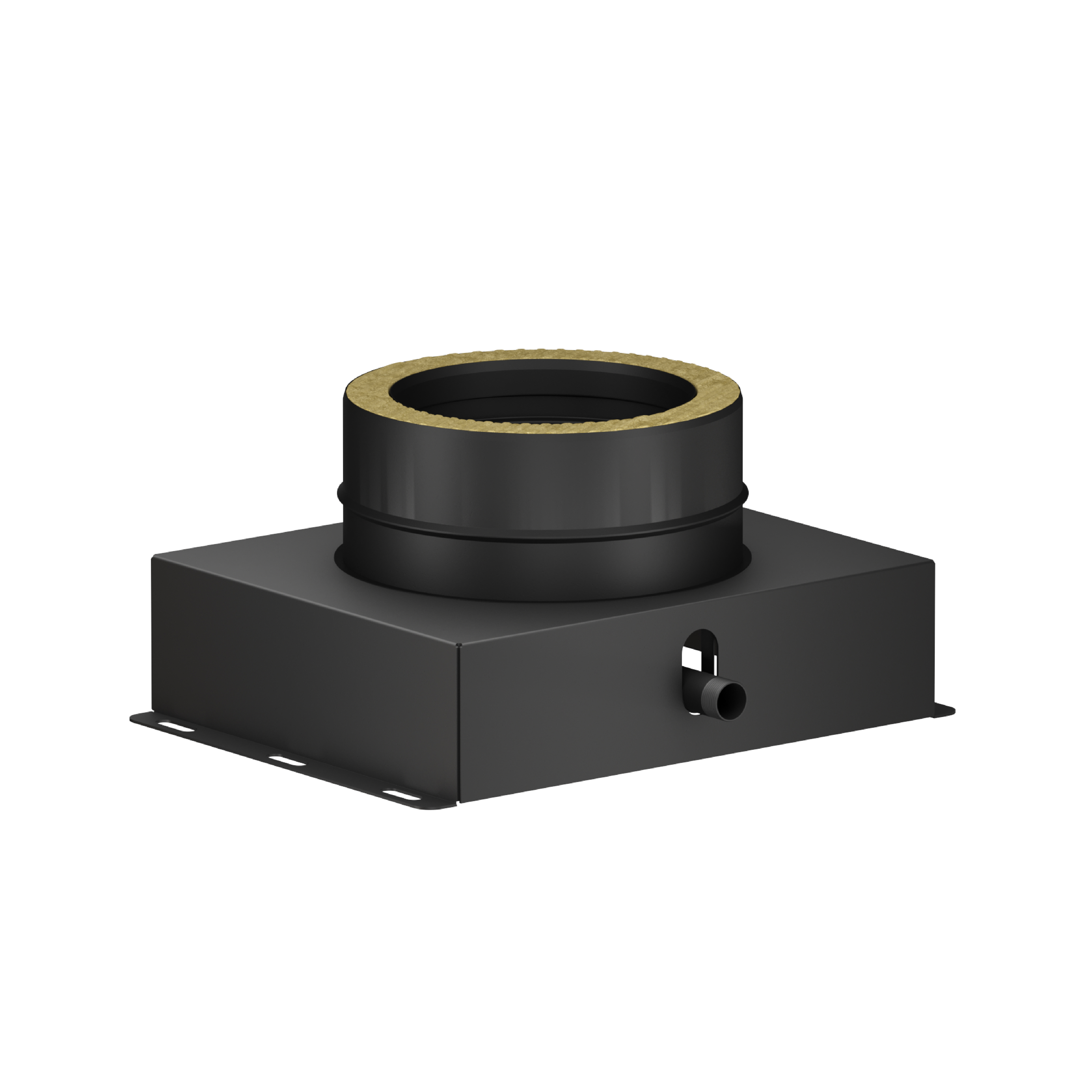

PSLXAYTT - Base Support With Drain
These are the modules that allow the condensation water to be discharged in chimney systems.
Technical Specifications
| d | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| D | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| A | 230 | 250 | 280 | 300 | 330 | 350 | 380 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 |
| B | 180 | 200 | 230 | 250 | 280 | 300 | 330 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| H | 80 mm | ||||||||||||||
