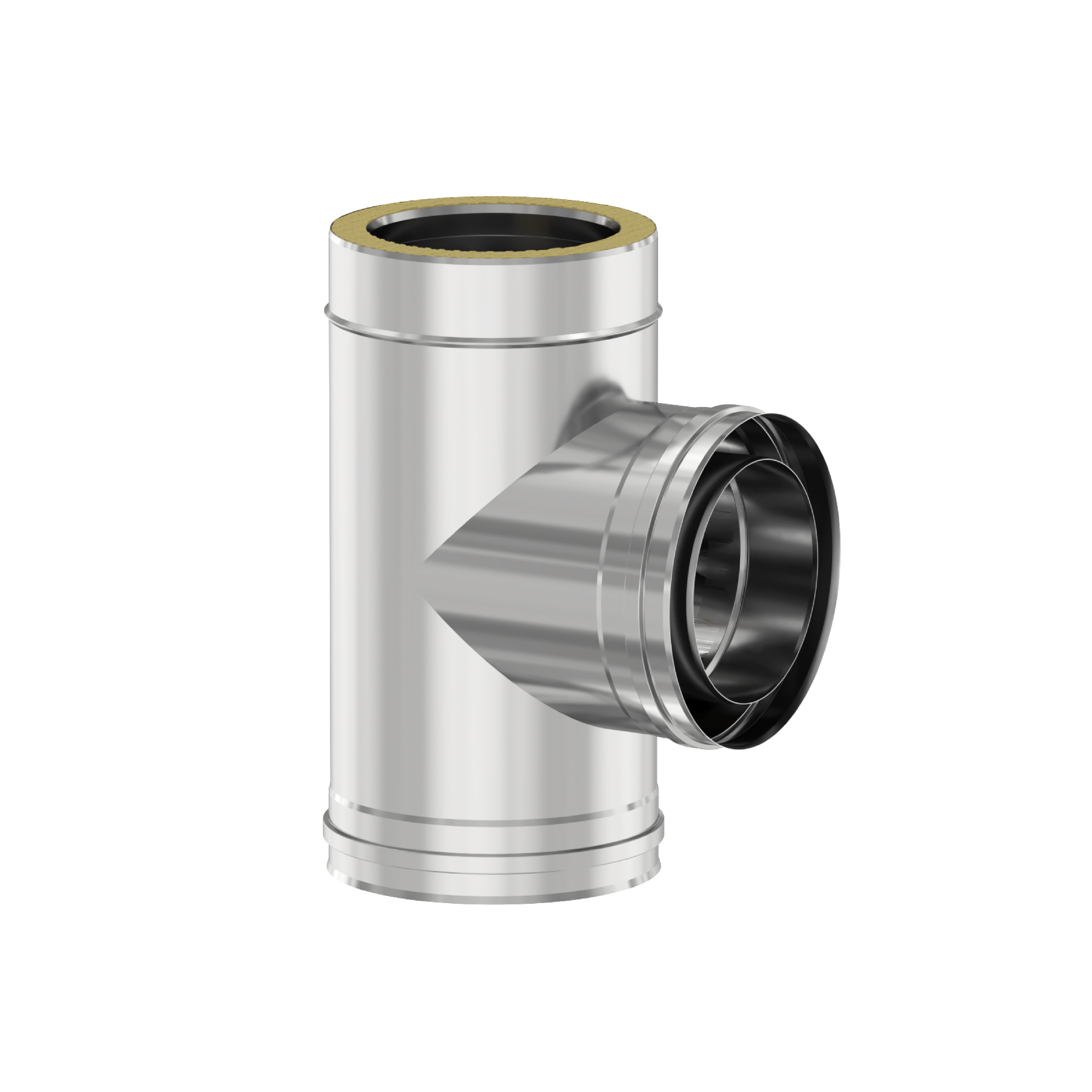

SLXAT90 - Tee 90º
A module that connects the smoke channel and the chimney line in chimney systems.
Technical Specifications
| d | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| D | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| H | 283 | 350 | 350 | 450 | 450 | 450 | 450 | 450 | 550 | 550 | 650 | 700 | 700 | 950 | 950 |
| B | 150 | 160 | 175 | 185 | 200 | 210 | 225 | 235 | 260 | 295 | 320 | 345 | 370 | 420 | 445 |
| m | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
