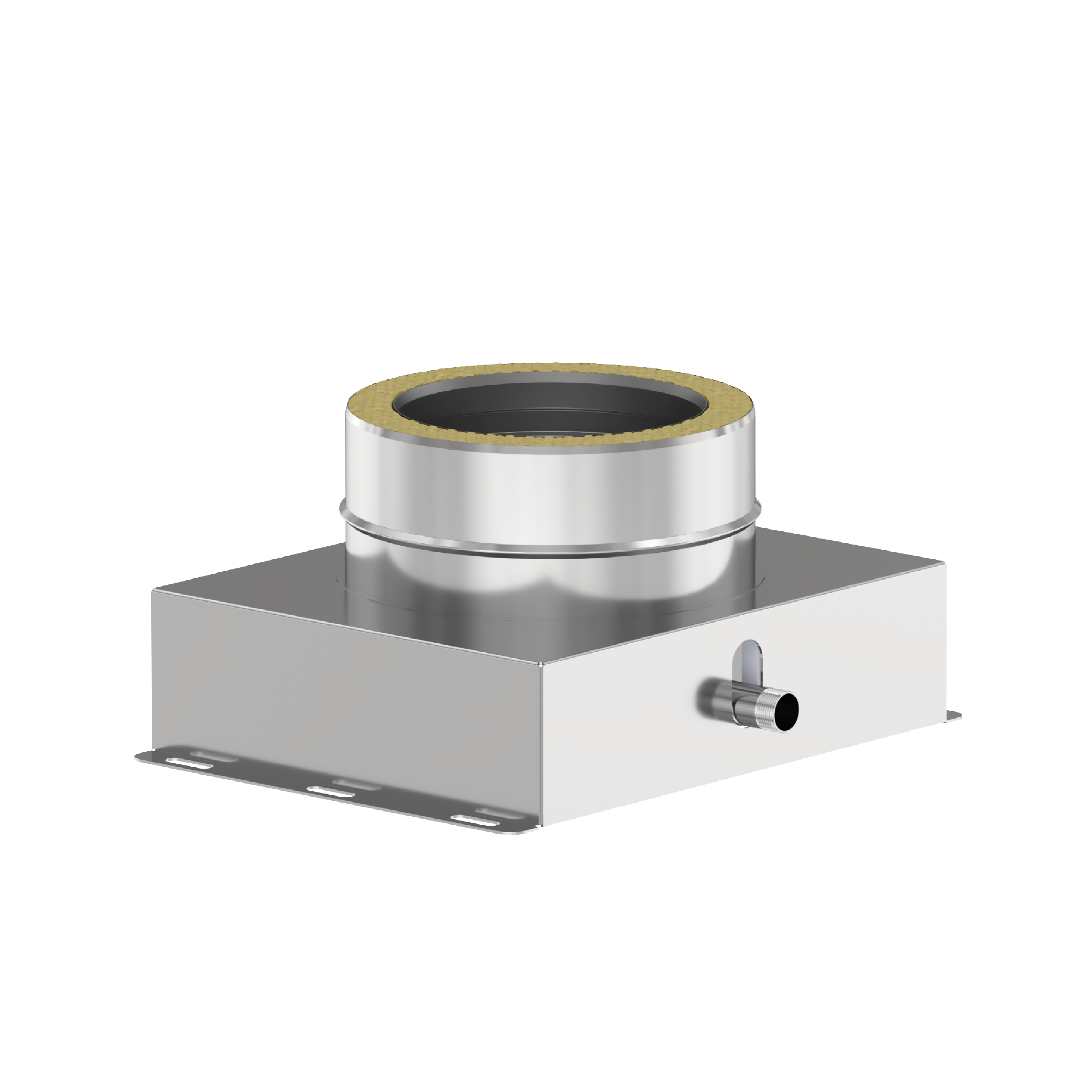

The SLXAYTT Base Support with Drain is a specially designed component used in double wall chimney systems to ensure safe and efficient installation. Solinox Chimney Systems manufactures this product to the highest standards, providing maximum safety and durability for all types of installations. This base support offers reliable load-bearing capacity for vertical chimney sections while collecting and draining condensate to prevent moisture buildup inside the chimney.
Made of high-quality stainless steel, the SLXAYTT Base Support with Drain delivers excellent durability and corrosion resistance, even under harsh weather and demanding operating conditions. The integrated drain outlet allows safe discharge of condensate, which is especially important in condensing appliances and wet operating environments. With its robust construction, this component enhances the overall performance of Solinox Chimney Systems.
d | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
D | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
A | 230 | 250 | 280 | 300 | 330 | 350 | 380 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 |
B | 180 | 200 | 230 | 250 | 280 | 300 | 330 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
H | 80 mm |
