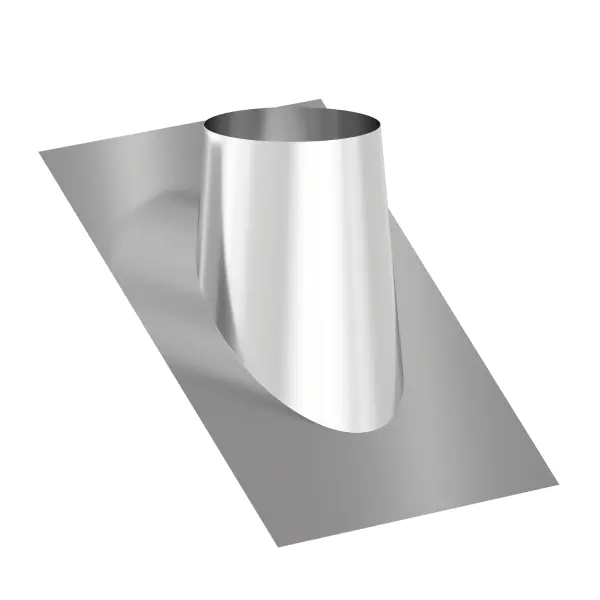

AKSLXCO45 - Flashing. ( 30° - 45° )

Home Page
Single Wall Chimney Systems
AKSLXCO45 - Flashing. ( 30° - 45° )

AKSLXCO45 - Flashing. ( 30° - 45° )

AKSLXCO45 - Flashing. ( 30° - 45° )

AKSLXCO45 - Flashing. ( 30° - 45° )

It is the part of the installed chimney systems used for insulation purposes in roof passages. ( 30° - 45° )

Technical Specifications

D	80	100	130	150	180	200	230	250	280	300	350	400	450	500	550	600
A	-	555	595	640	680	710	750	780	825	850	920	960	1000	1100	-	-
B	-	535	575	620	660	690	730	760	805	830	900	940	980	1080	-	-
H	-	150	150	150	150	150	150	150	150	150	150	150	150	150	-	-
C	-	155	195	240	280	310	350	380	425	450	520	590	665	735	-	-
