AKSLXDSKE - Wall Bracket Eko

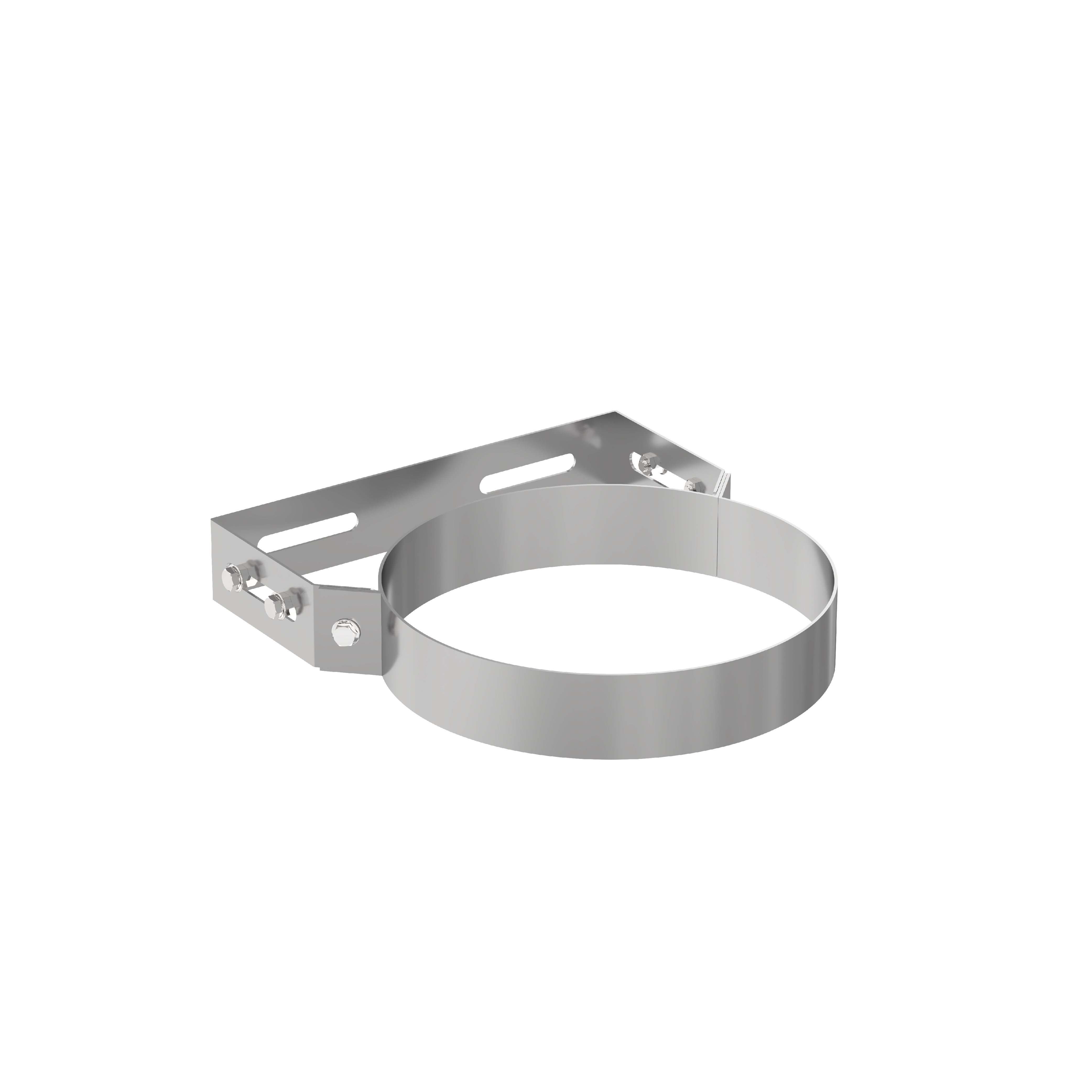

It is the clamp that allows the lateral load to be carried in the chimney systems. The Wall Fixing Clamp is 1.00 mm thick and is used for lengths up to 5 cm.

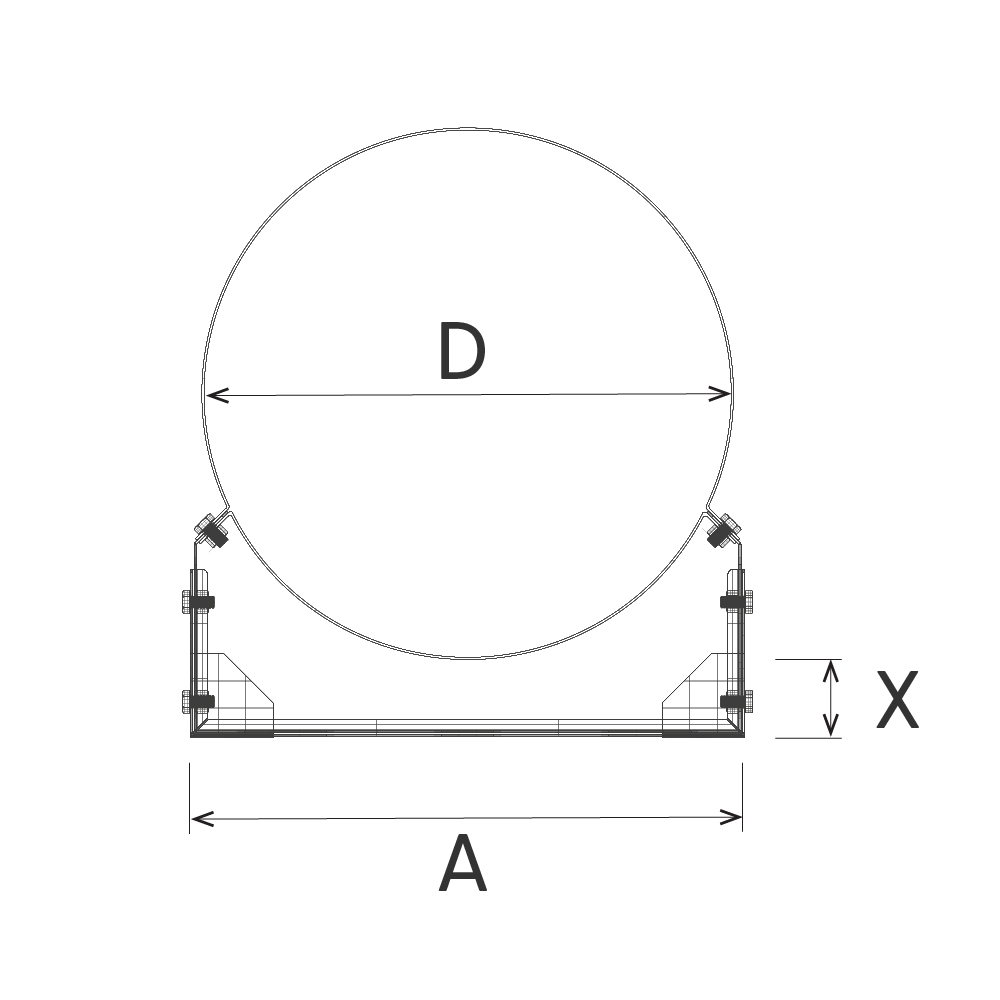

Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| A | 105 | 130 | 160 | 175 | 205 | 225 | 255 | 279 | 280 | 300 | 329 | 380 | 430 | 480 | 508 | 536 |
| X | 55 - 75 mm | 60 mm | ||||||||||||||
