AKSLXDSKE21 - Wall Bracket Eko 21

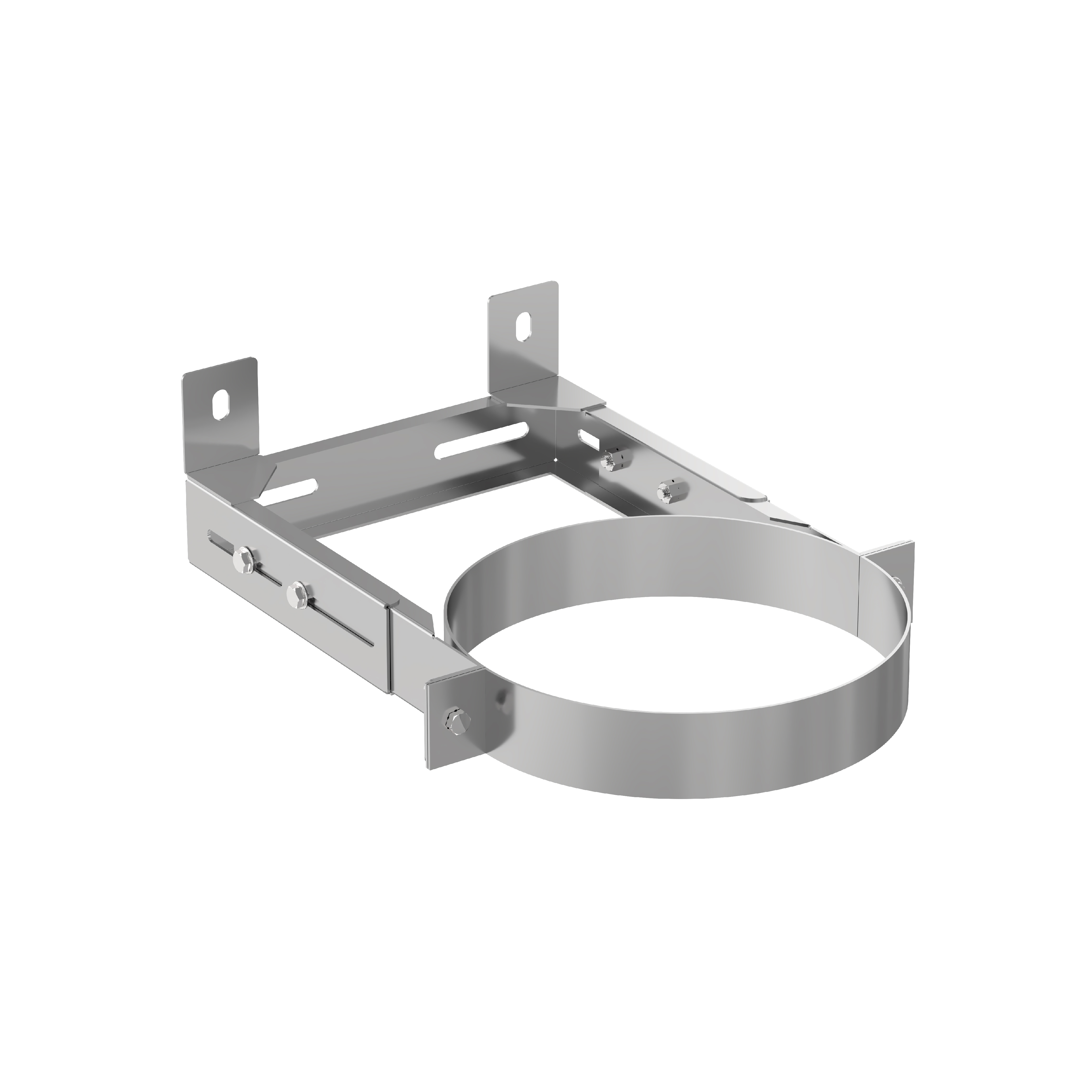

It is the clamp that enables the lateral load formed in chimney systems to be carried. The Wall Fixing Clamp is 1.00 mm thick and is used for lengths up to 21 cm.
Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| A | - | 133 | 163 | 178 | 208 | 228 | 258 | 279 | - | - | - | - | - | - | - | - |
| X | - | 120 -- 210 mm | ||||||||||||||
