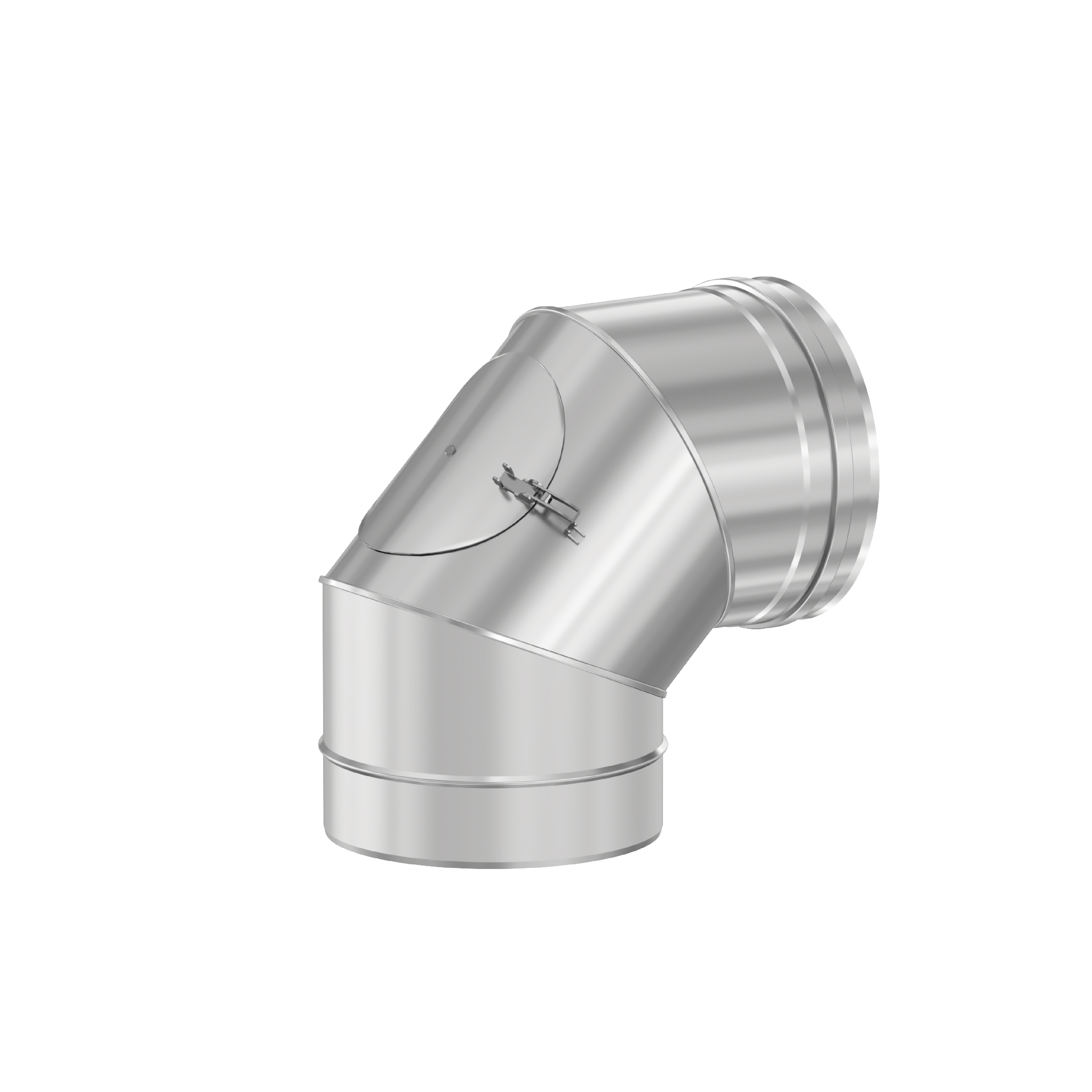

SLXDİ90 - 90º Elbow With Inspection
Return module used in chimney systems. With 90º Elbow Monitoring Cover.

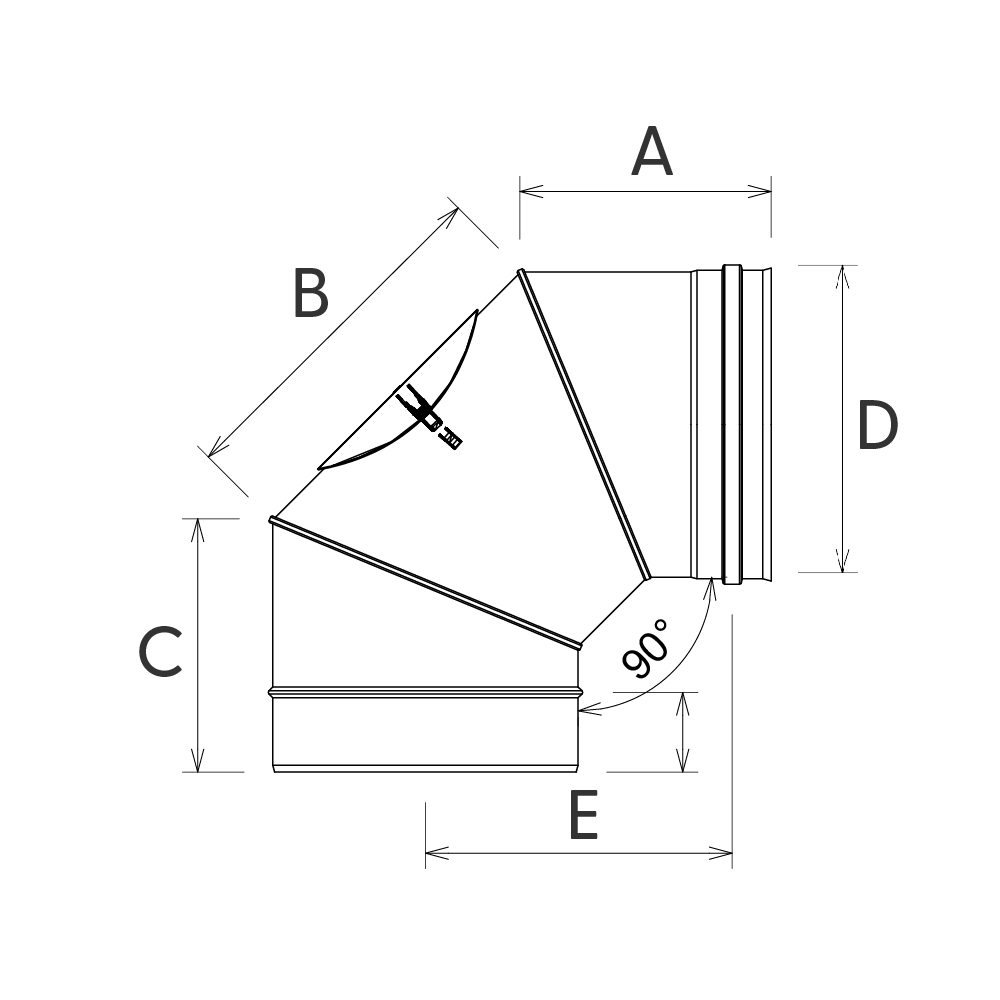

Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| A | - | 123 | 135 | 150 | 165 | 170 | 187 | 187 | 212 | 217 | 235 | 255 | 277 | 300 | 317 | 342 |
| B | - | 160 | 190 | 210 | 240 | 260 | 290 | 310 | 340 | 360 | 410 | 460 | 510 | 560 | 610 | 660 |
| C | - | 123 | 135 | 150 | 165 | 170 | 187 | 187 | 212 | 217 | 235 | 255 | 277 | 300 | 317 | 342 |
| m | - | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
