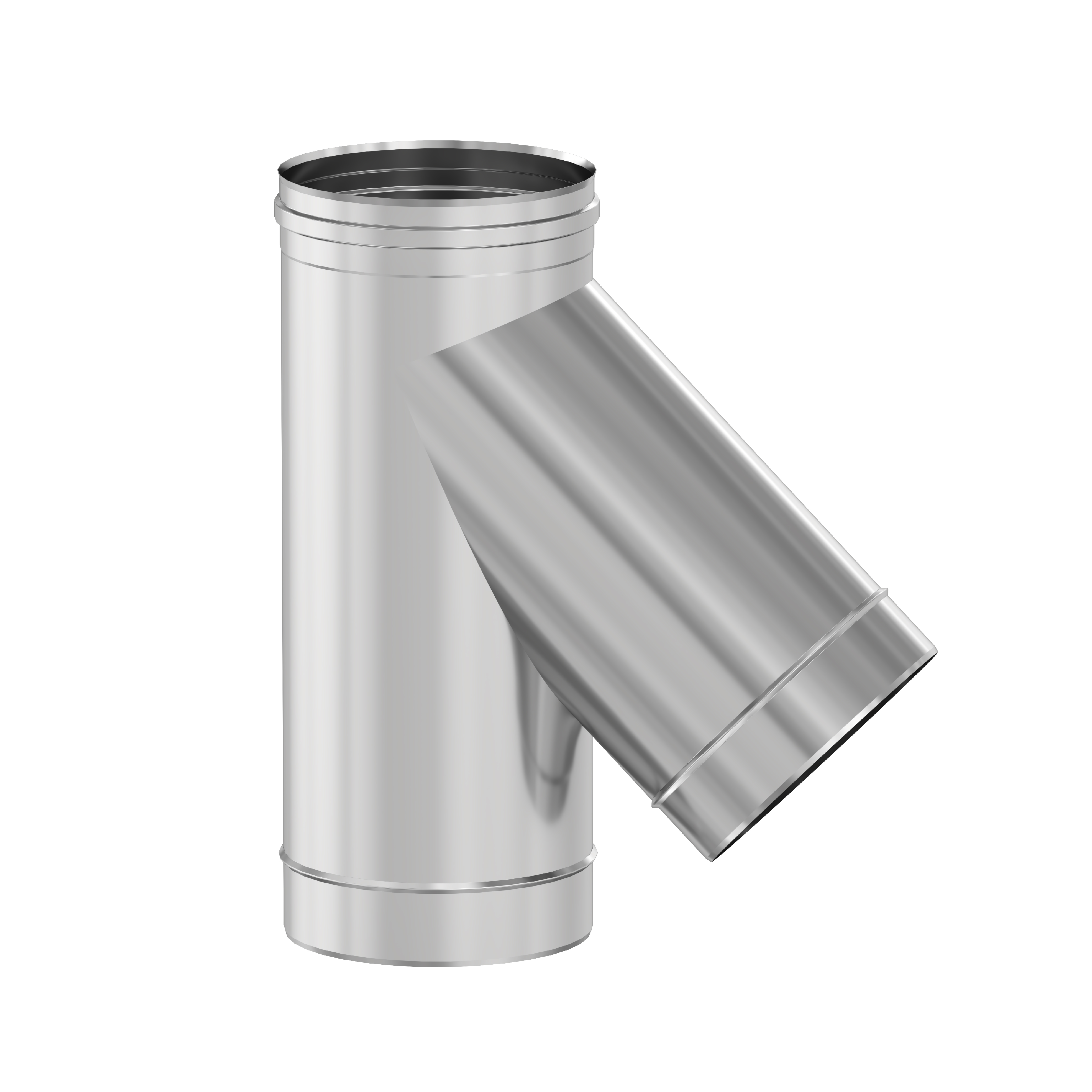

SLXT135 - Tee 135º
The module that connects the smoke channel and the chimney line in chimney systems.

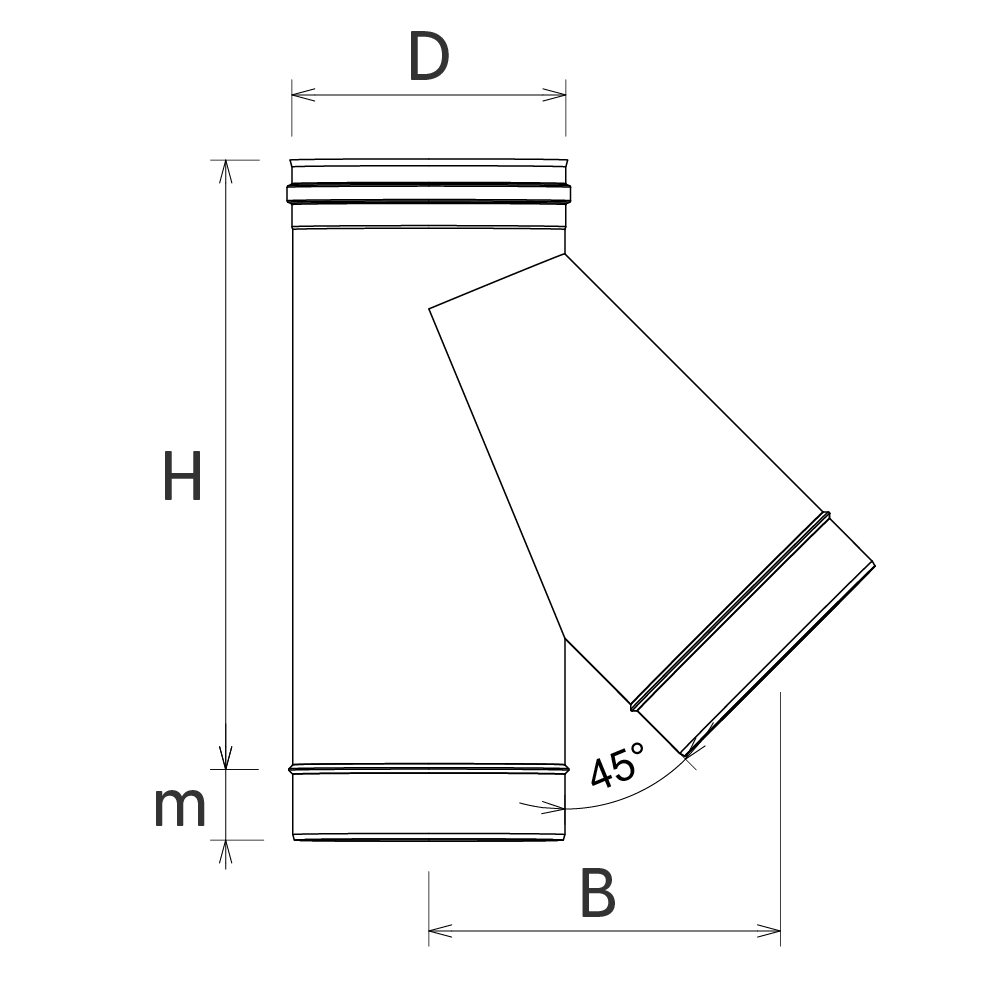

Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| H | - | 283 | 283 | 350 | 450 | 450 | 550 | 550 | 550 | 650 | 650 | 950 | 950 | 950 | 999 | 1247 |
| B | - | 175 | 180 | 215 | 275 | 275 | 330 | 330 | 330 | 390 | 400 | 555 | 565 | 570 | 580 | 700 |
| m | - | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
