DWP - Double Wall Chimney Systems (with gasket)
DWP - Double Wall Chimney Systems (with gasket)
DWP - Double Wall Chimney Systems (with gasket)

DWP - Double Wall Chimney Systems (with gasket)

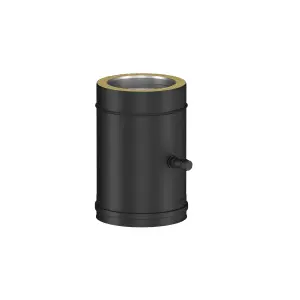

Solinox DW25 model double wall chimney systems feature an inner wall made of 316L (1.4404) and 304 (1.4301) quality materials, and an outer wall made of 304 (1.4301) and 430 (1.4016) quality materials. Thanks to its high-density insulation, heat loss is minimal in double wall chimney systems. These systems are suitable for wet working conditions and can be used in both positive and negative pressure systems. Additionally, they are compatible with solid, liquid, and gas-fueled devices. Gaskets are used at the connections. Optional black (matte) paint is available.

Advantages of Double Wall Chimney Systems

  • CE certified
  • Easy installation thanks to modular connection
  • No on-site fabrication and welding required
  • Stainless steel
  • Sealed and gas impermeable materials
  • Can be painted in desired colors

Usage areas of Double Wall Chimney Systems

  • In-shaft central heating and hot water systems
  • Industrial and commercial chimney systems
  • Bread ovens
  • Fireplaces
  • Ventilation

Features

Basic Specifications
Chimney Thicknesses 0.40 mm, 0.50 mm , 0.60 mm , 0.80 mm , 1.00 mm, 1.20 mm, 1.50 mm
Connection Type Male / Female Connections
Diameter Range From Ø 80 mm to Ø 1200 mm
Insulation Density 50 kğ/m3 - 170 kğ/m3
Insulation Thickness 25 mm - 50 mm
Muf 50 mm
Source Type Continuous Tig Welding
Technical Specifications
Certificate Number 1020 - CPR - 070045001
Chimney Inner Wall Material Properties L50 AISL 316L (1.4404)
L20 AISI 304 (1.4301)
Chimney Inner Wall Thickness 0.40, 0.50, 0.60, 0.80, 1.00, 1.20, 1.50 mm
Condensation Product Resistance Class D (Dry)
W (Wet)
Corrosion Resistance Class V2 (Natural Gas, Liquid Fuel, Wood)
Pressure N1 (40 Pa)
Product Classification EN 1856-1 T400-N1-D-V2-L50 (040-150)-G100/G400
EN 1856-1 T400-N1-W-V2-L50 (040-150)-O100/O400
EN 1856-1 T600-N1-D-V2-L50 (040-150)-G50
EN 1856-1 T600-N1-D-Vm-L20 (040-150)-G100
EN 1856-1 T600-N1-W-V2-L50 (040-150)-G50
Soot Flammability Resistance O - G
Standard Number EN 1856 - 1 : 2009
EN 1856 - 2 : 2009
Temperature Class T 400 - T 600
