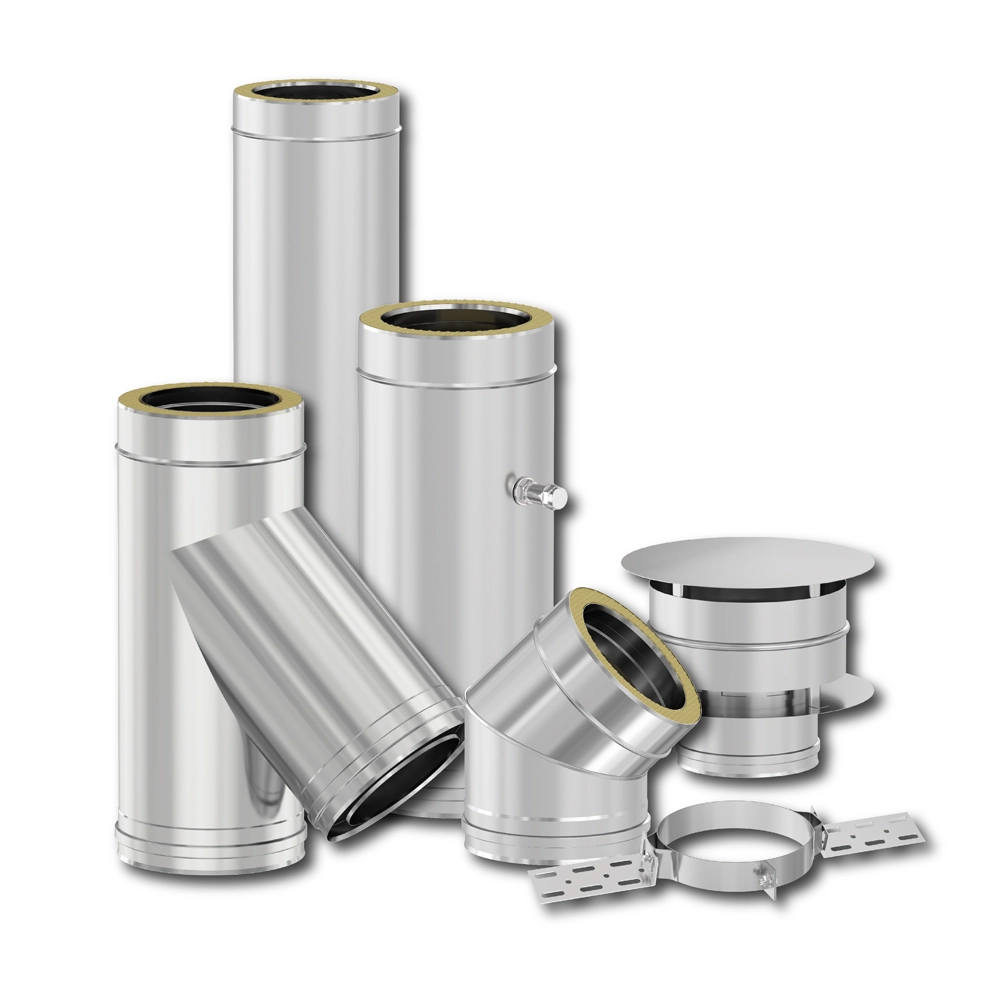

DW – Double Wall Chimney Systems
Double Wall Chimney Systems

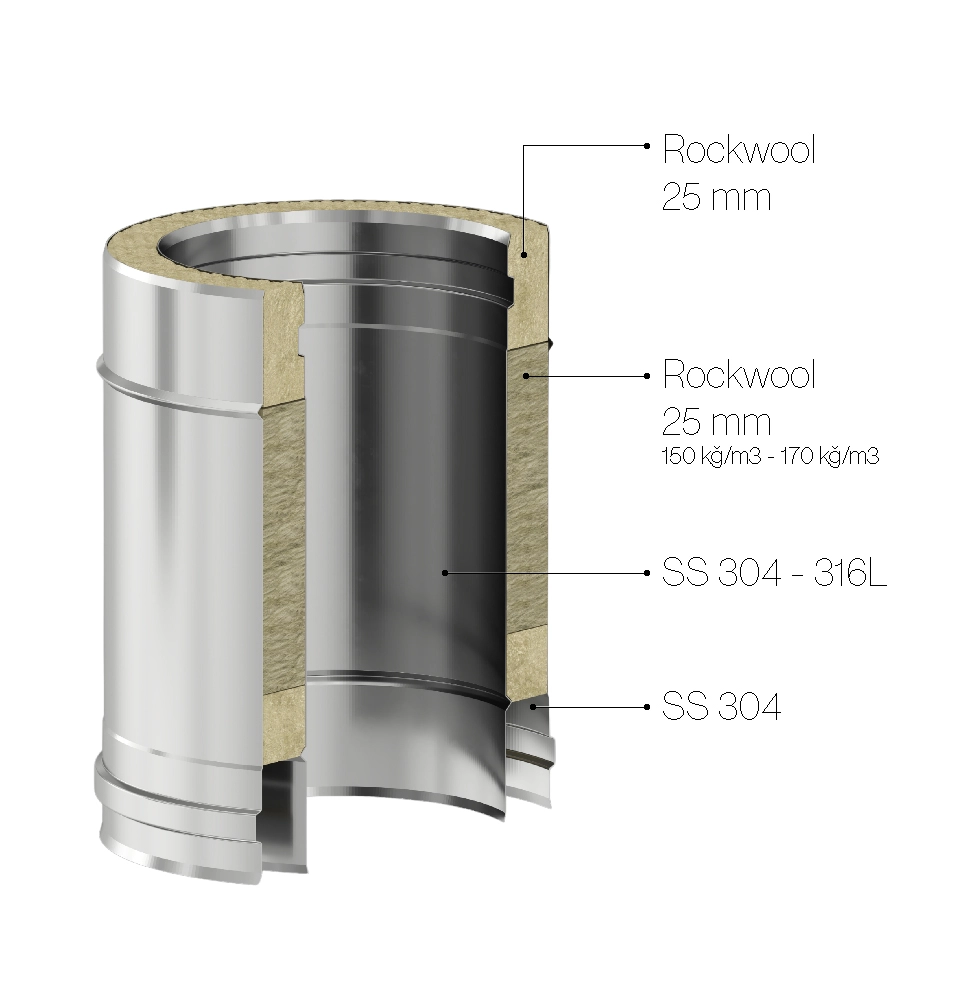

DW – Double Wall Chimney Systems
Features
| Basic Specifications | |
|---|---|
| Chimney Thicknesses | 0.40 mm, 0.50 mm , 0.60 mm , 0.80 mm , 1.00 mm, 1.20 mm, 1.50 mm |
| Connection Type | Male / Female Connections |
| Diameter Range | From Ø 80 mm to Ø 1200 mm |
| Insulation Density | 50 kğ/m3 – 170 kğ/m3 |
| Insulation Thickness | 25 mm – 50 mm |
| Muf | 50 mm |
| Source Type | Continuous Tig Welding |
| Technical Specifications | |
| Certificate Number | 1020 – CPR – 070045001 |
| Chimney Inner Wall Material Properties | L50 AISL 316L (1.4404) L20 AISI 304 (1.4301) |
| Chimney Inner Wall Thickness | 0.40, 0.50, 0.60, 0.80, 1.00, 1.20, 1.50 mm |
| Condensation Product Resistance Class | D (Dry) W (Wet) |
| Pressure | N1 (40 Pa) |
| Product Classification | EN 1856-1 T400-N1-D-V2-L50 (040-150)-G100/G400 EN 1856-1 T400-N1-W-V2-L50 (040-150)-O100/O400 EN 1856-1 T600-N1-D-V2-L50 (040-150)-G50 EN 1856-1 T600-N1-D-Vm-L20 (040-150)-G100 EN 1856-1 T600-N1-W-V2-L50 (040-150)-G50 |
| Soot Flammability Resistance | O – G |
| Standard Number | EN 1856 – 1 : 2009 EN 1856 – 2 : 2009 |
| Temperature Class | T 400 – T 600 |
Products

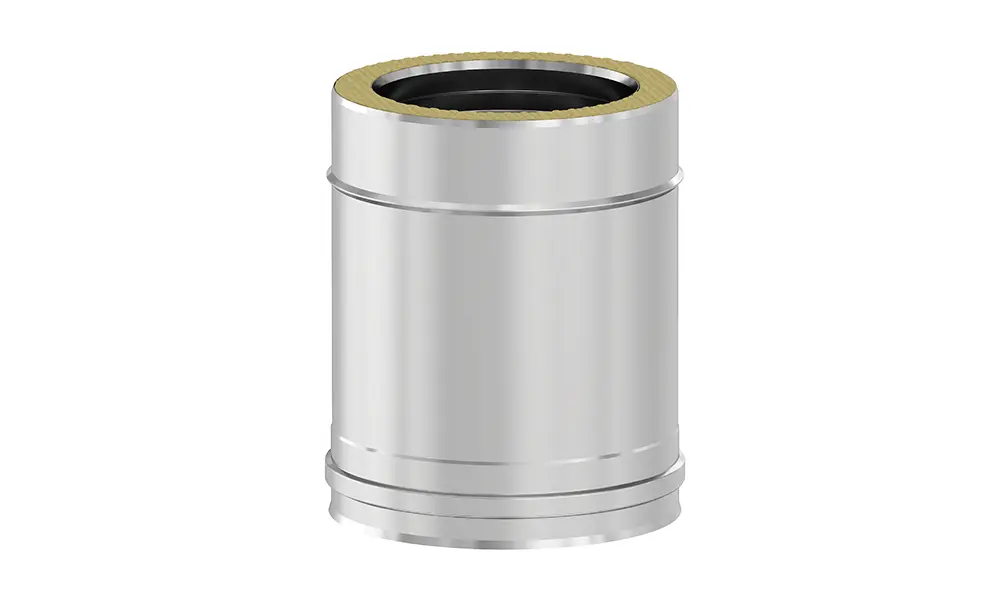

SLXAB250 – Pipe 250 mm
SLXAB250 - Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXAB500 – Pipe 500 mm
SLXAB500 - Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

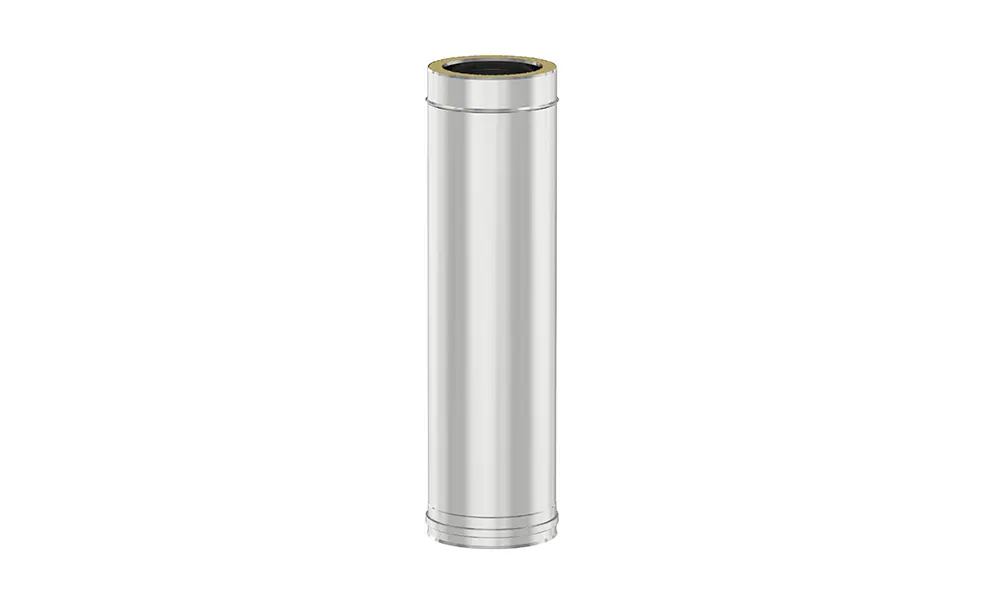

SLXAB1000 – Pipe 1000 mm
SLXAB1000 - Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

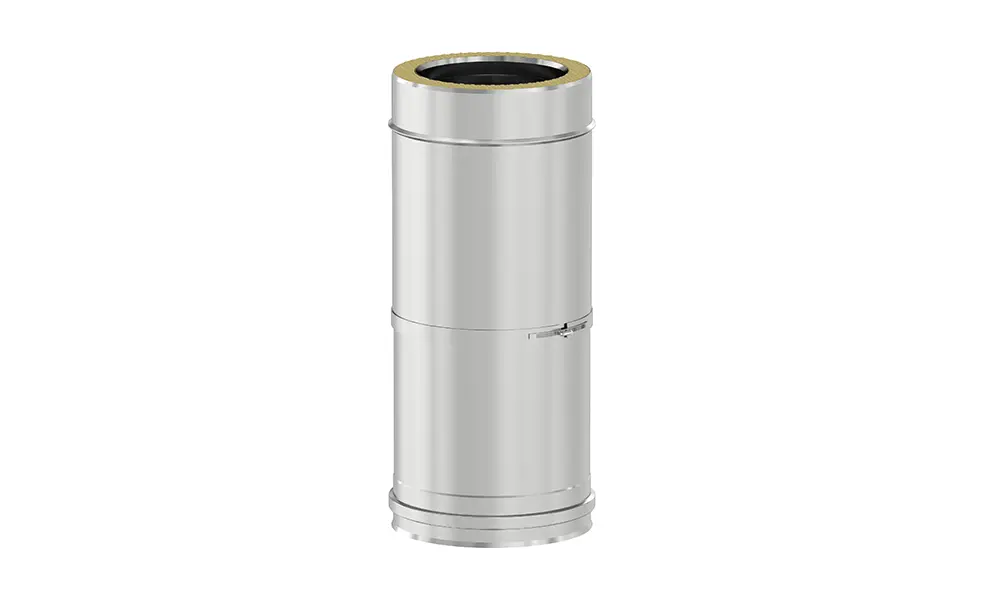

SLXAUB47 – Adjustable Pipe (270mm – 470 mm)
SLXAUB47 - Adjustable Pipe (270mm - 470 mm)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

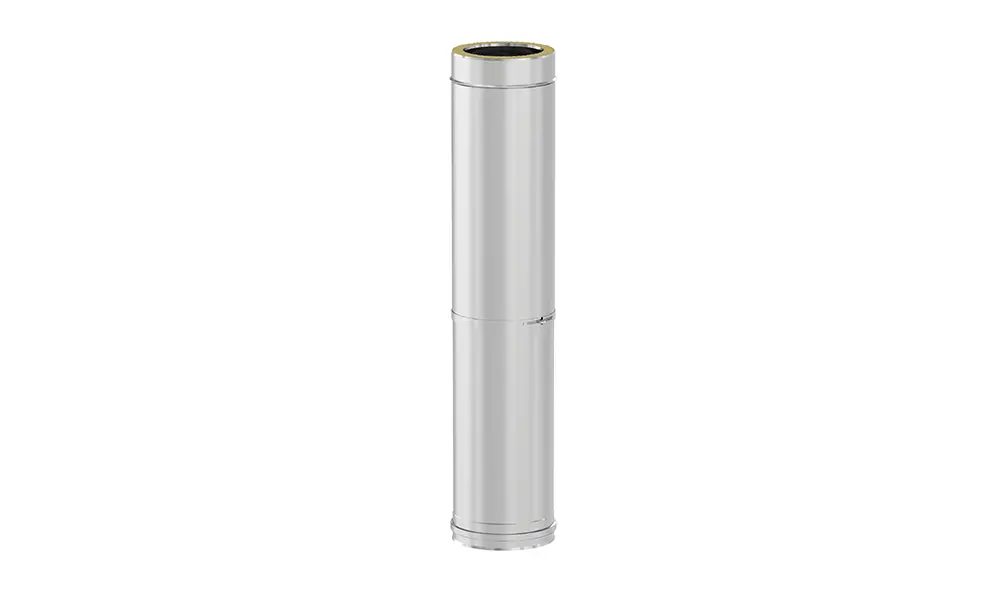

SLXAUB90 – Adjustable Pipe (550mm – 900 mm)
SLXAUB90 - Adjustable Pipe (550mm - 900 mm)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

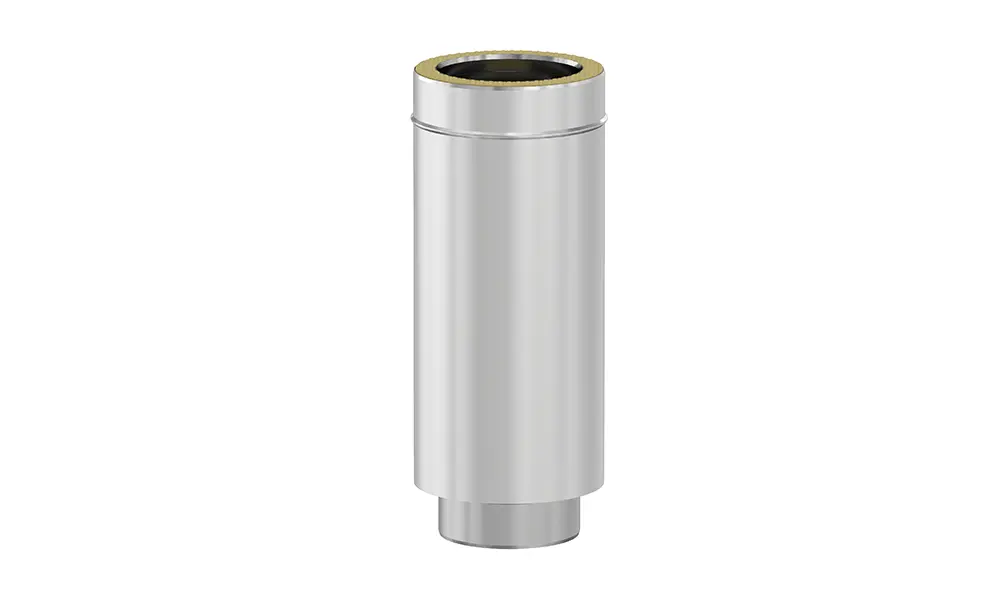

SLXABB500 – Starter Pipe 500 mm
SLXABB500 - Starter Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXABB1000 – Starter Pipe 1000 mm
SLXABB1000 - Starter Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

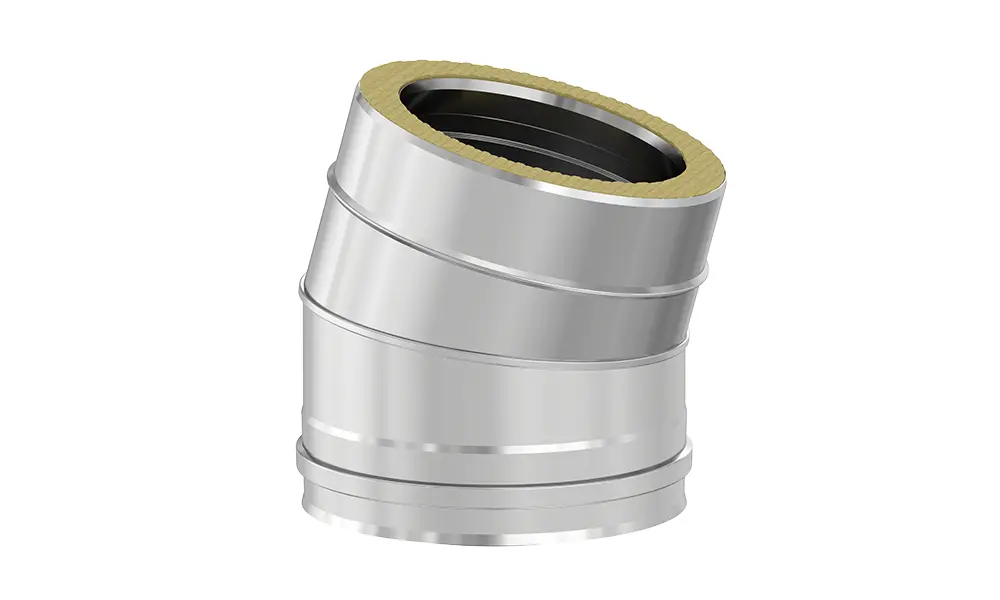

SLXAD15 – 15º Elbow
SLXAD15 - 15º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

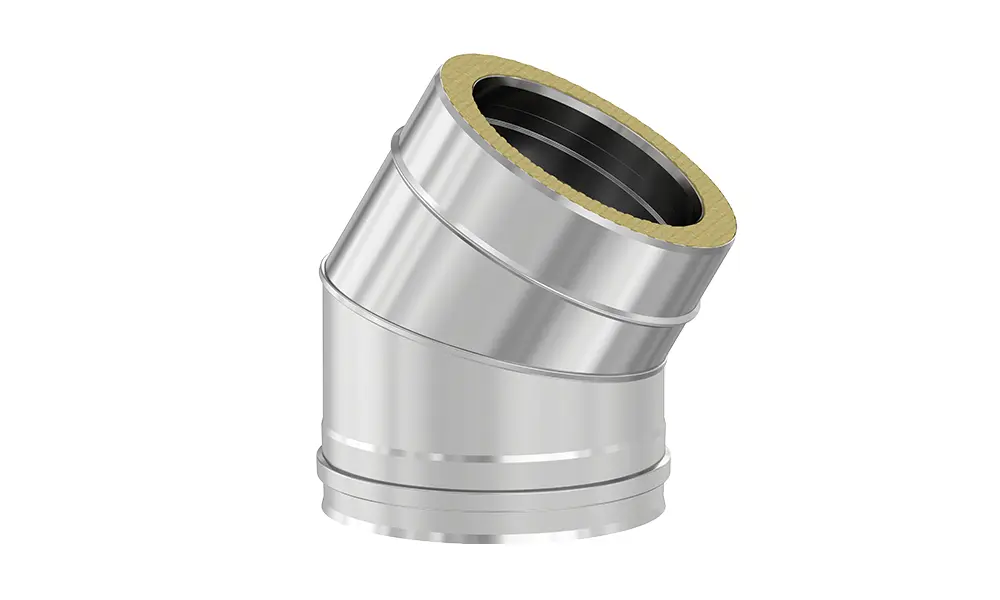

SLXAD30 – 30º Elbow
SLXAD30 - 30º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

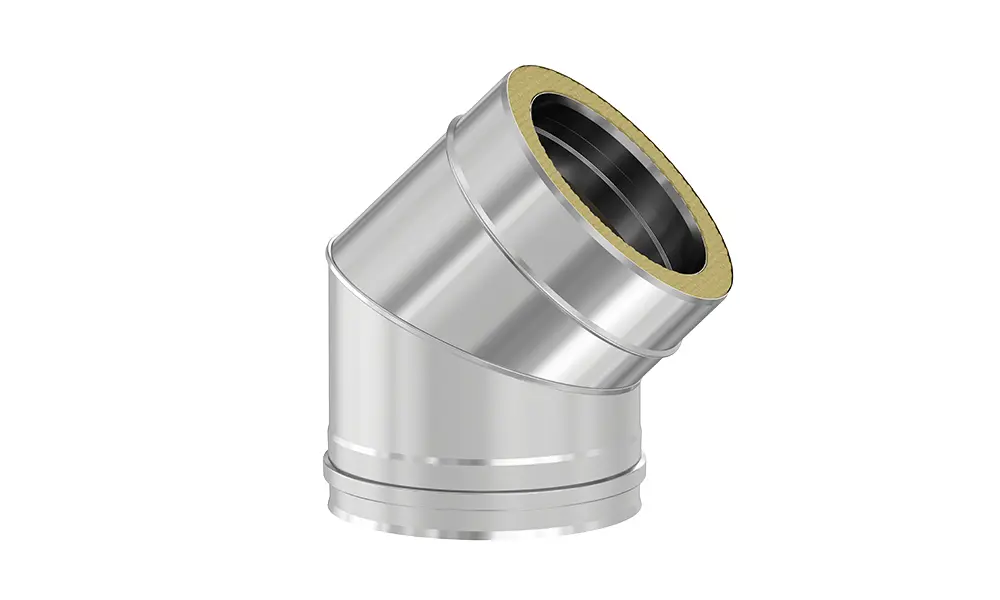

SLXAD45 – 45º Elbow
SLXAD45 - 45º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

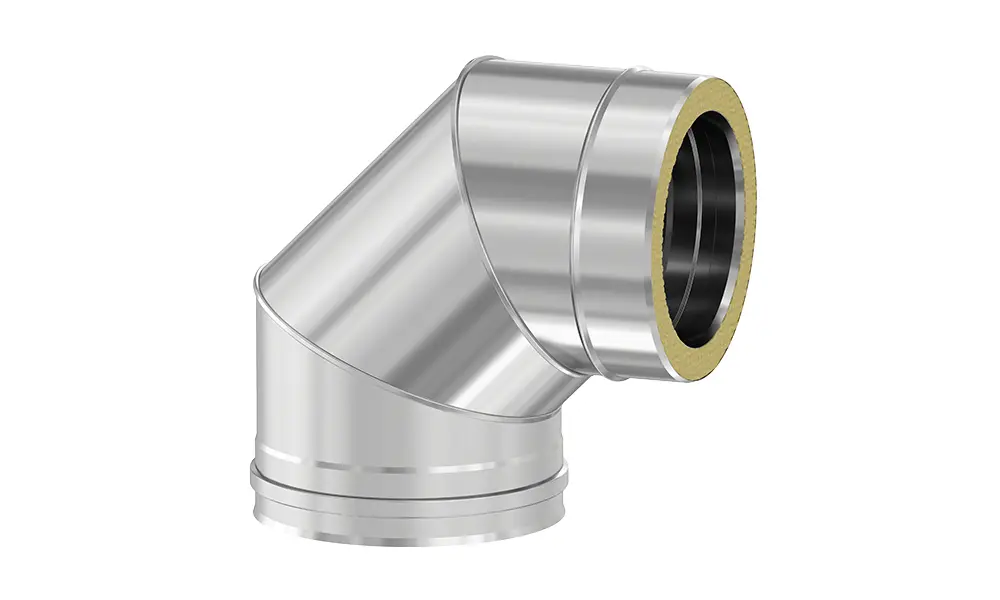

SLXAD87 – 87º Elbow
SLXAD87 - 87º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

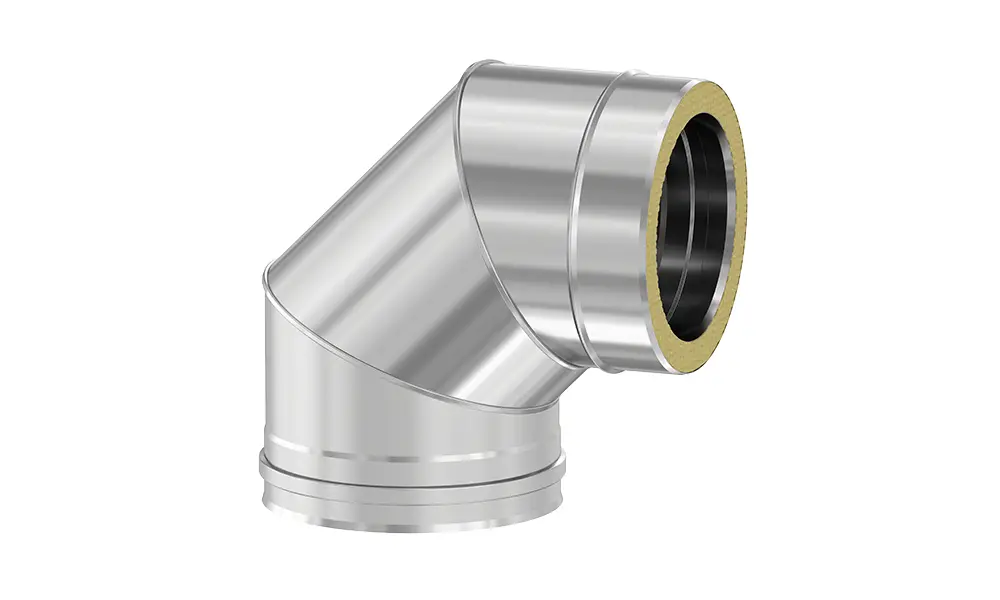

SLXAD90 – 90º Elbow
SLXAD90 - 90º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXAT87 – Tee 87º
SLXAT87 - Tee 87º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

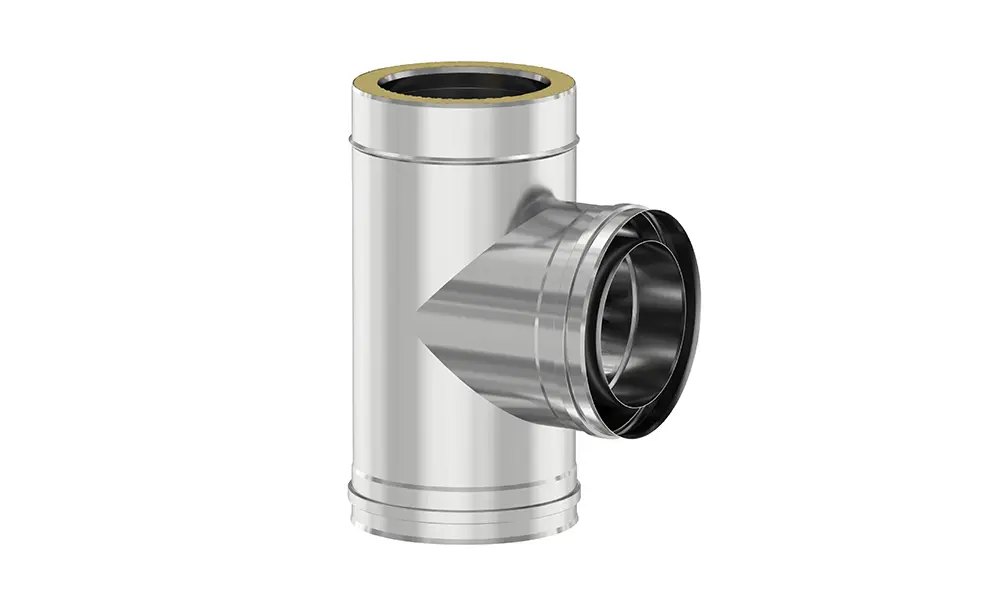

SLXAT90 – Tee 90º
SLXAT90 - Tee 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

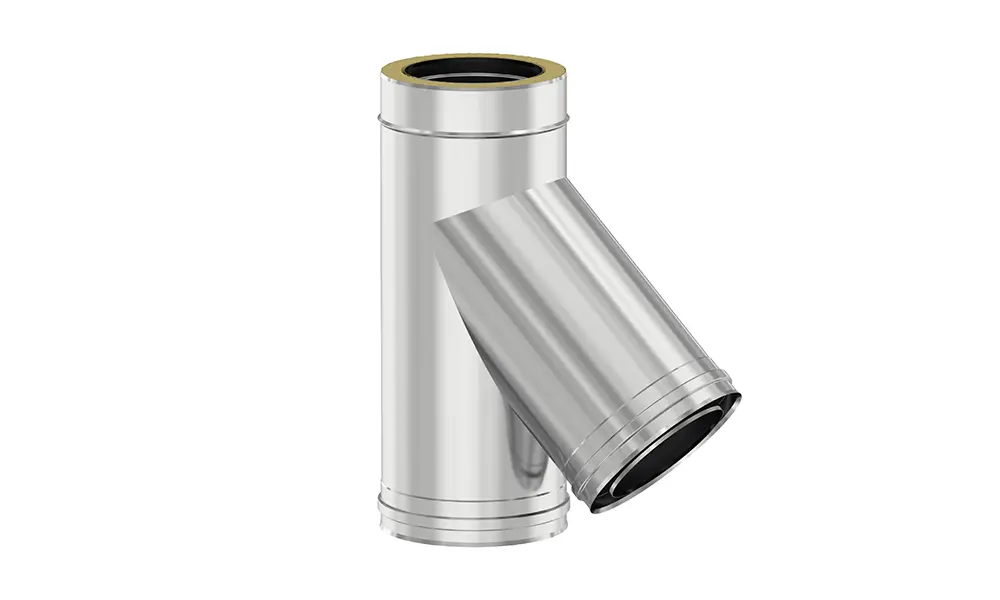

SLXAT135 – Tee 135º
SLXAT135 - Tee 135º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

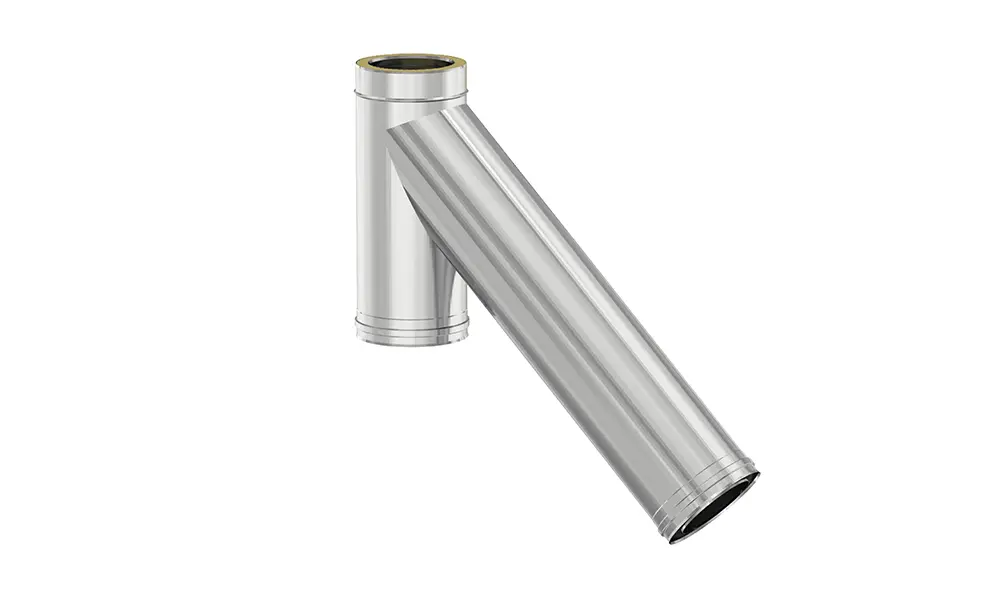

SLXAT135L – Tee 135º L
SLXAT135L - Tee 135º L[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

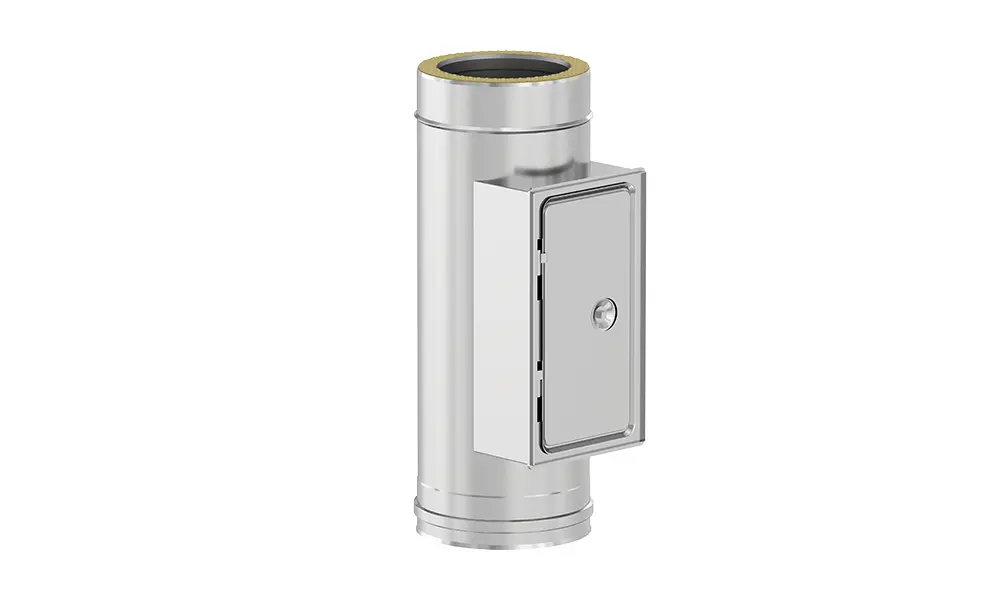

SLXATKB – Pipe With Inspection Door
SLXATKB - Pipe With Inspection Door[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

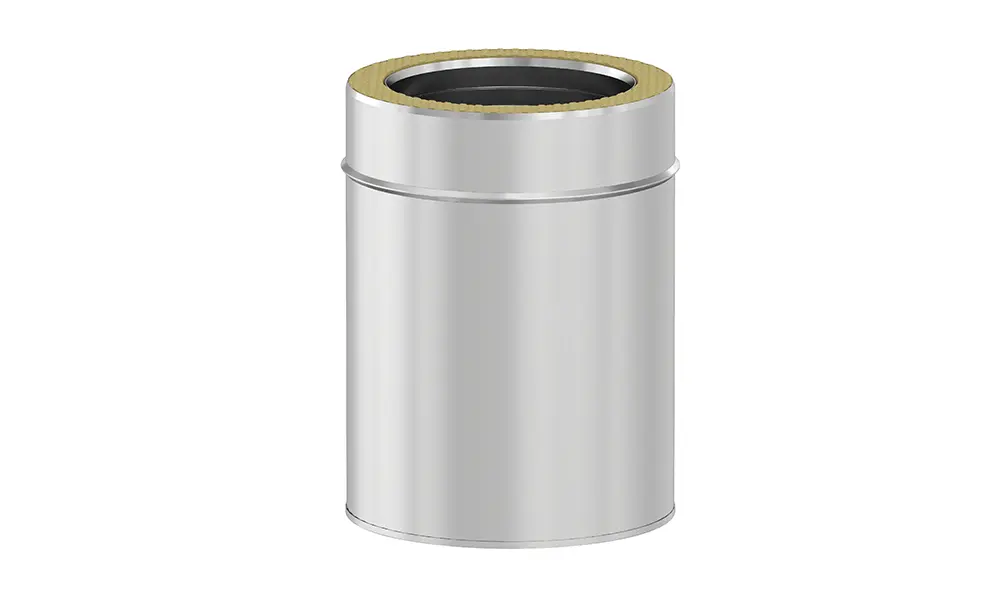

SLXANB250 – Nisbus
SLXANB250 - Nisbus[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

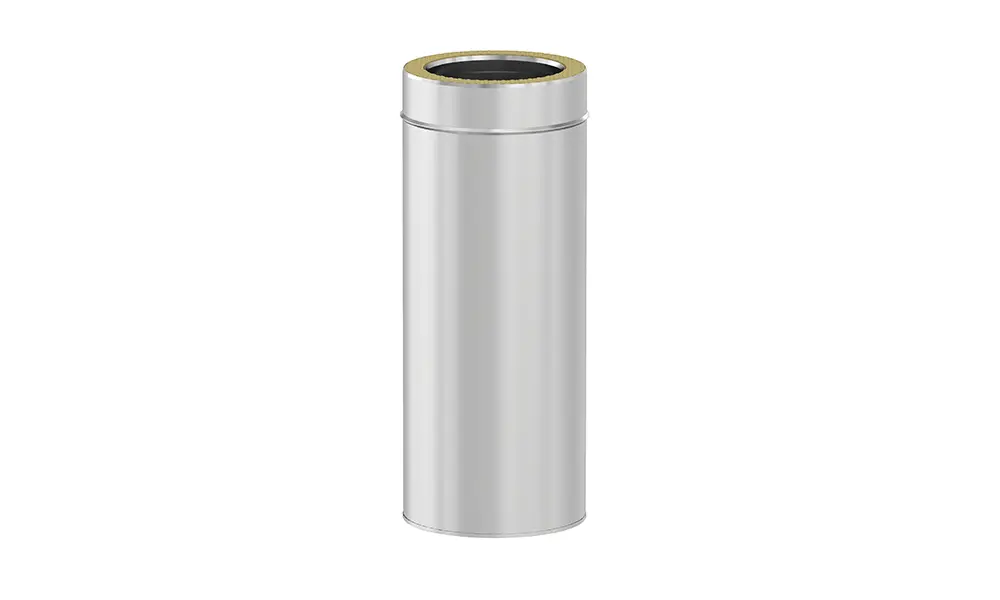

SLXANB500 – Nisbus
SLXANB500 - Nisbus[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

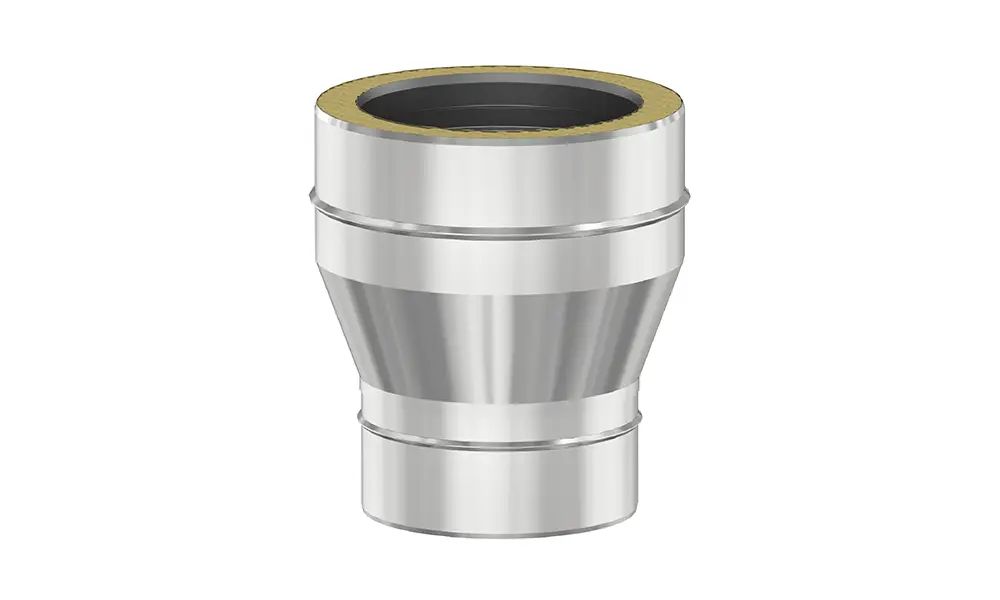

SLXATCR – Adaptor (SW – DW)
SLXATCR - Adaptor (SW - DW)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

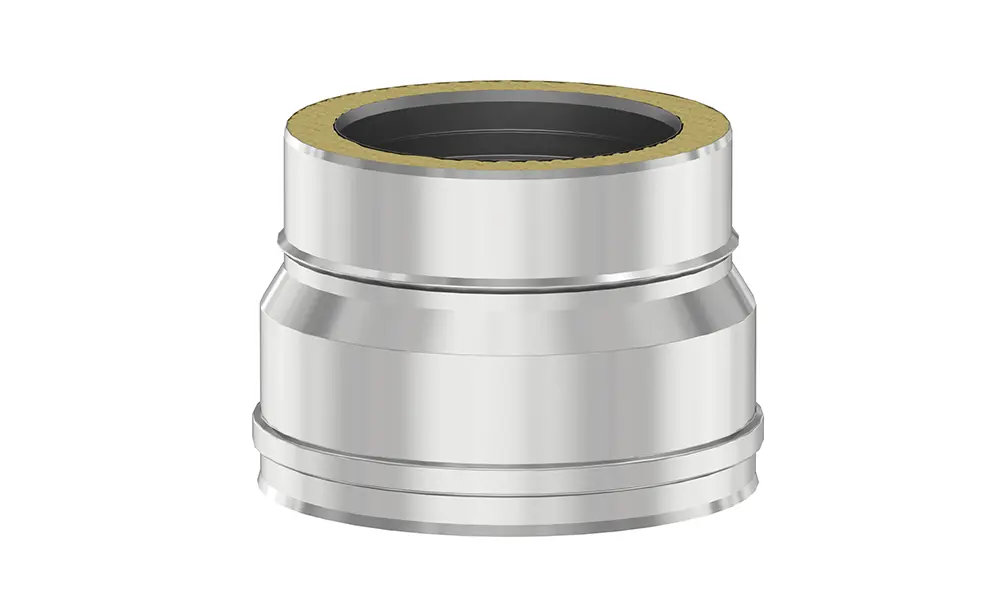

SLXACCR – Adaptor (DW – DW)
SLXACCR - Adaptor (DW - DW)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

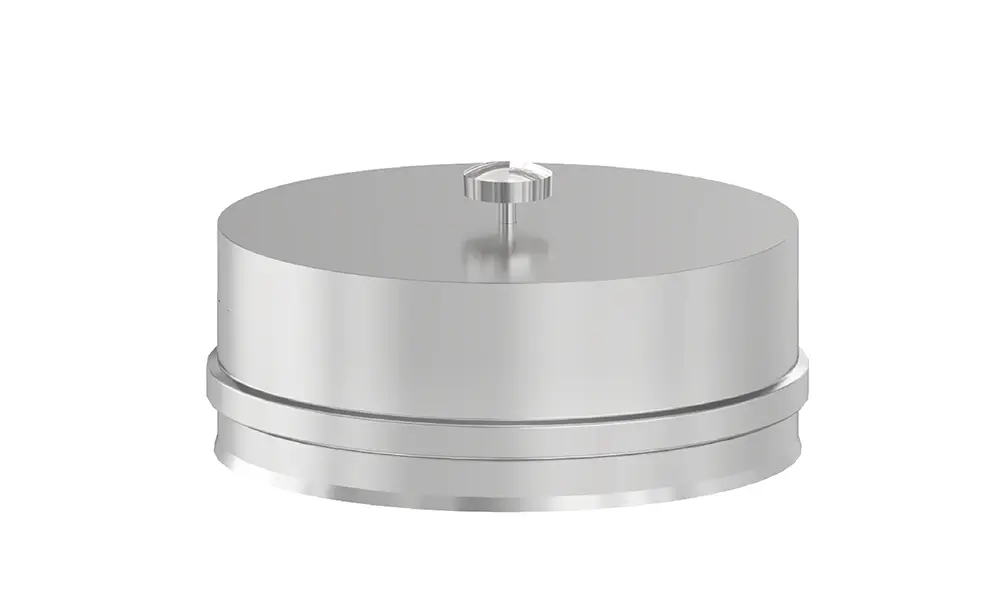

SLXADTK – Tee Cap
SLXADTK - Tee Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

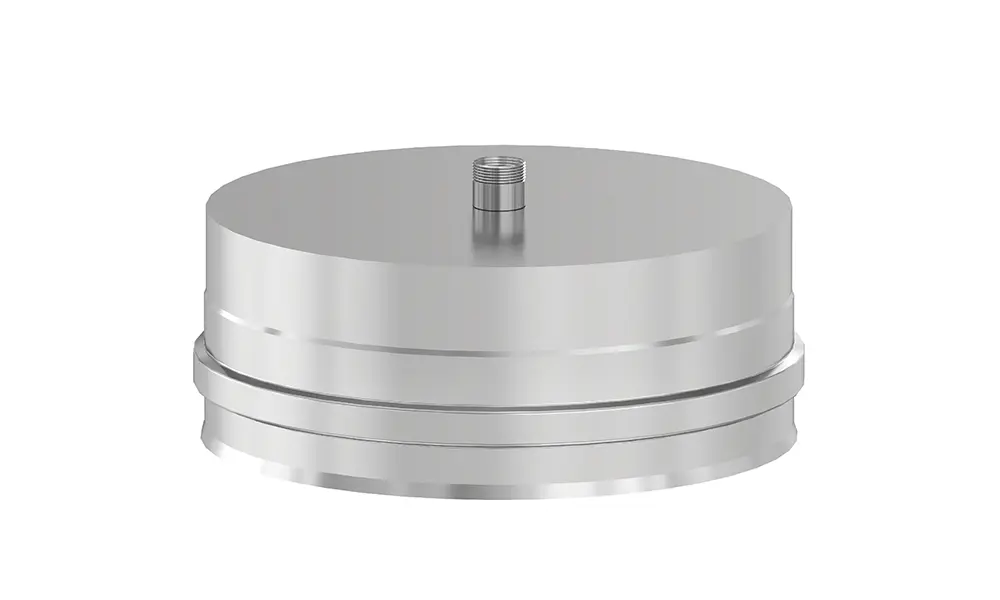

SLXAYT – Tee Cap With Drain
SLXAYT - Tee Cap With Drain[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

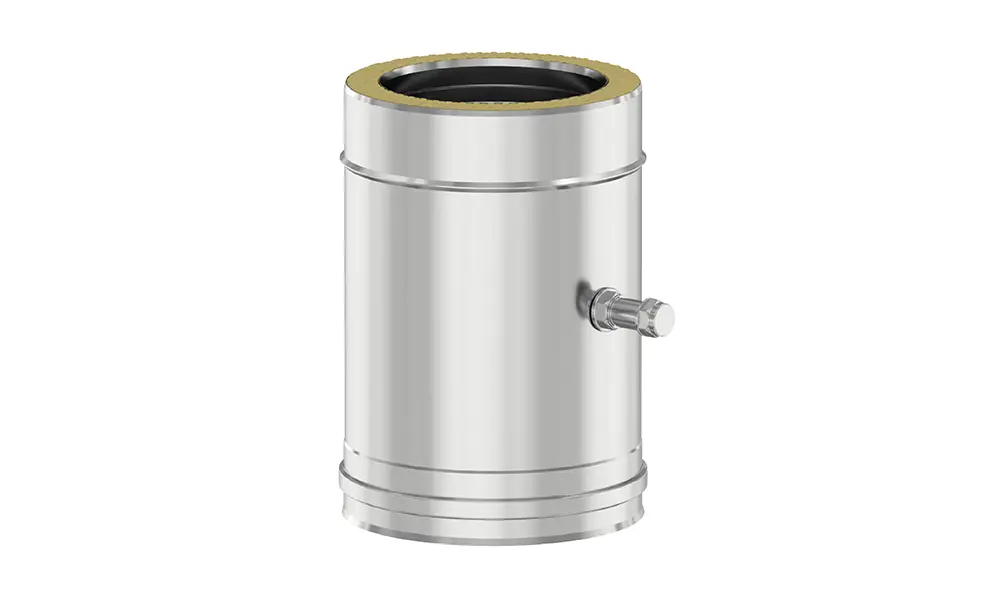

SLXAOB250 – Test Unit 250 mm
SLXAOB250 - Test Unit 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

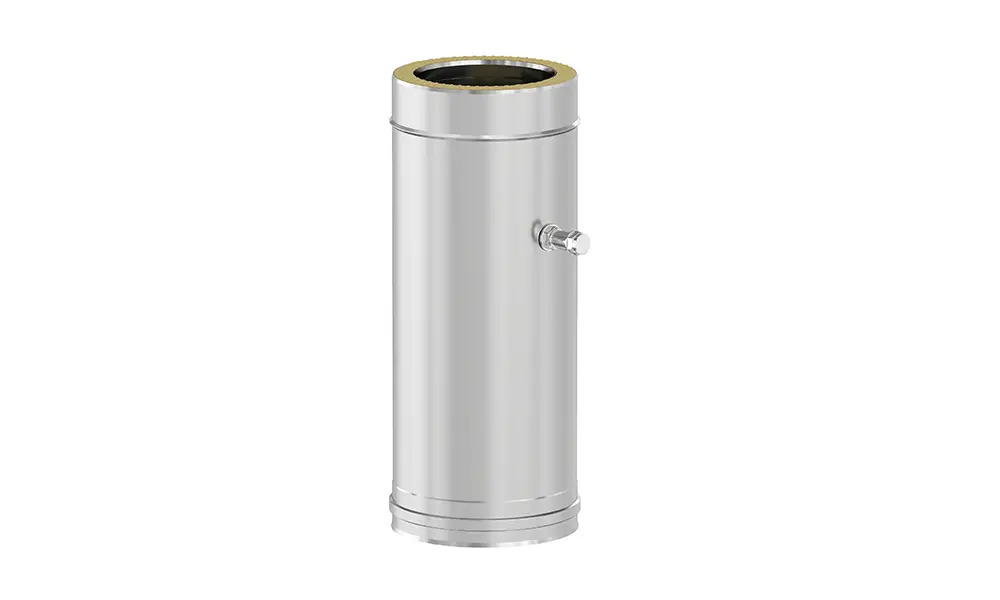

SLXAOB500 – Test Unit 500 mm
SLXAOB500 - Test Unit 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

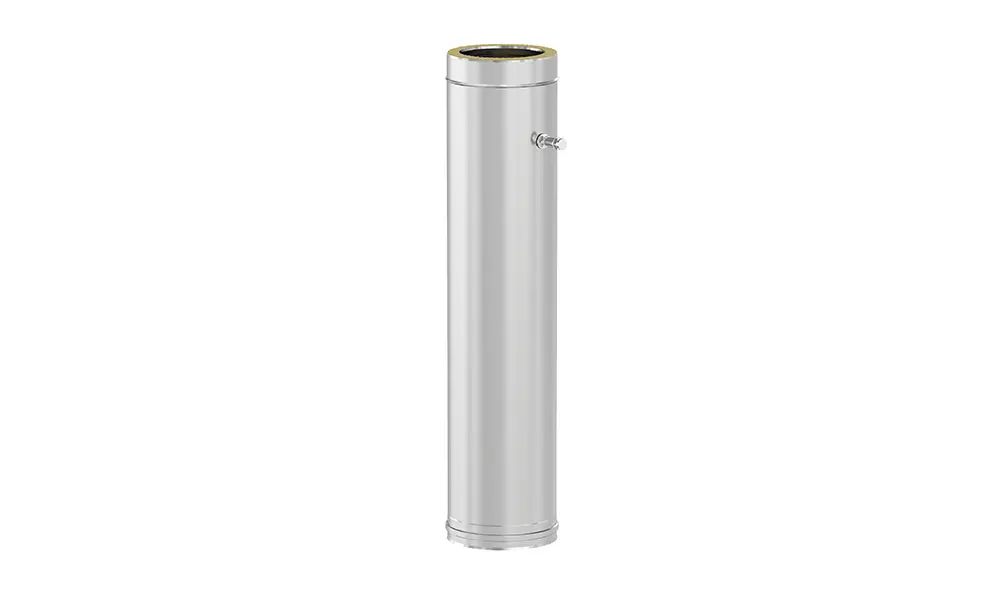

SLXAOB1000 – Test Unit 1000 mm
SLXAOB1000 - Test Unit 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

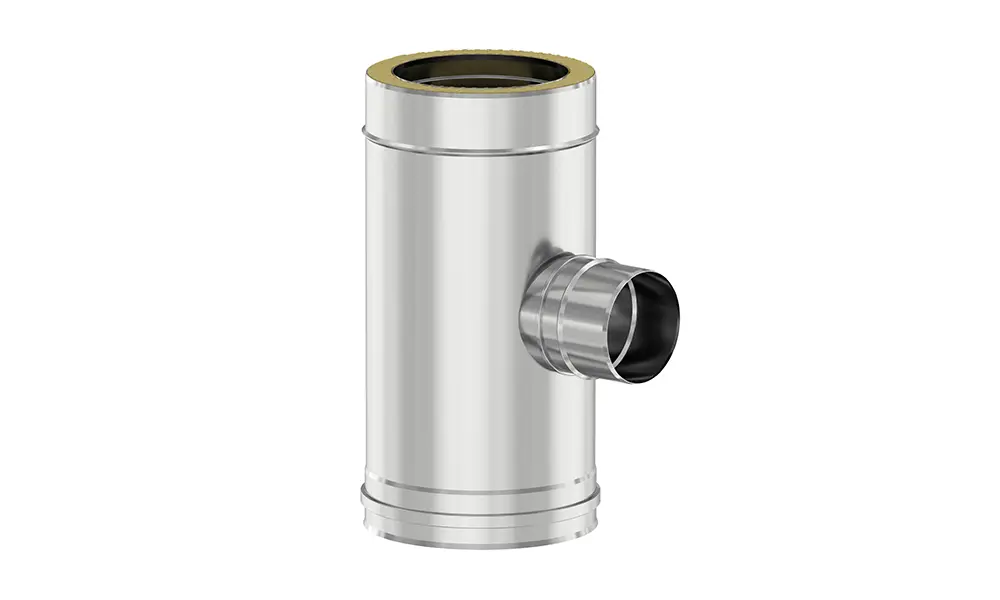

SLXACOB250 – Test Pipe 250 mm With 2” Hole
SLXACOB250 - Test Pipe 250 mm With 2'' Hole[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

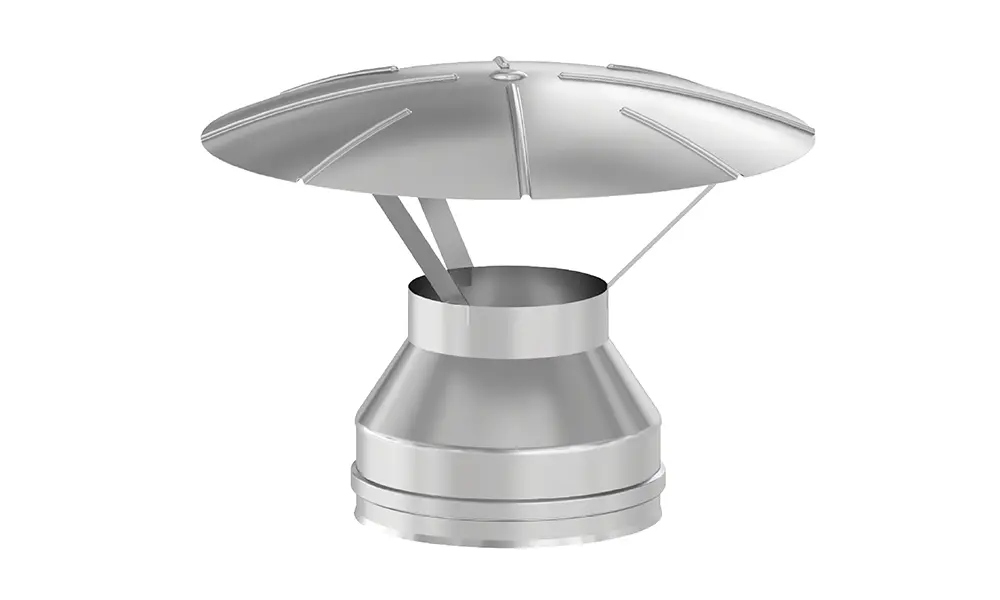

SLXAYKS – Rain Cap
SLXAYKS - Rain Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

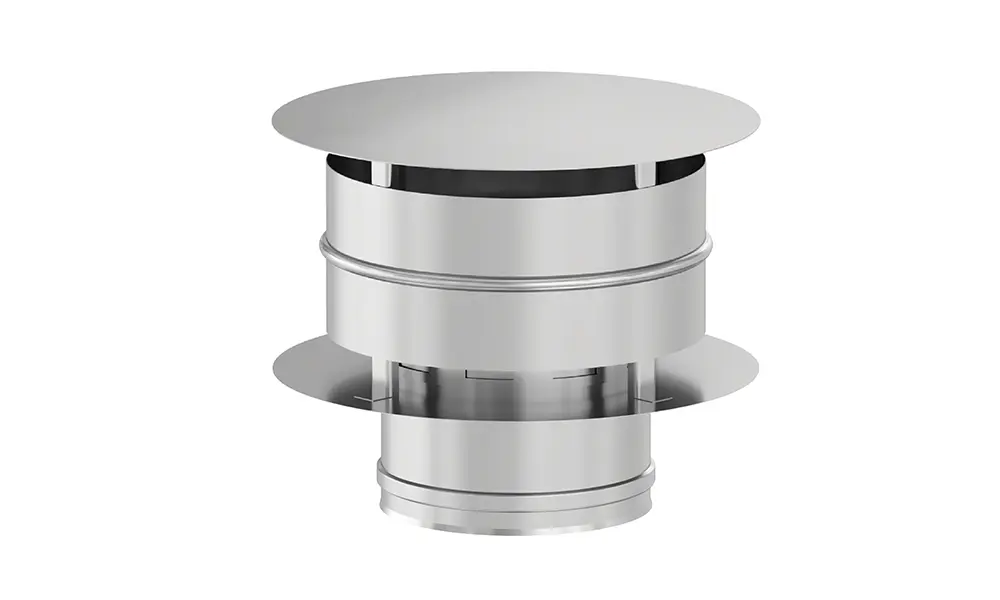

SLXARKS – Wind Cowl
SLXARKS - Wind Cowl[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

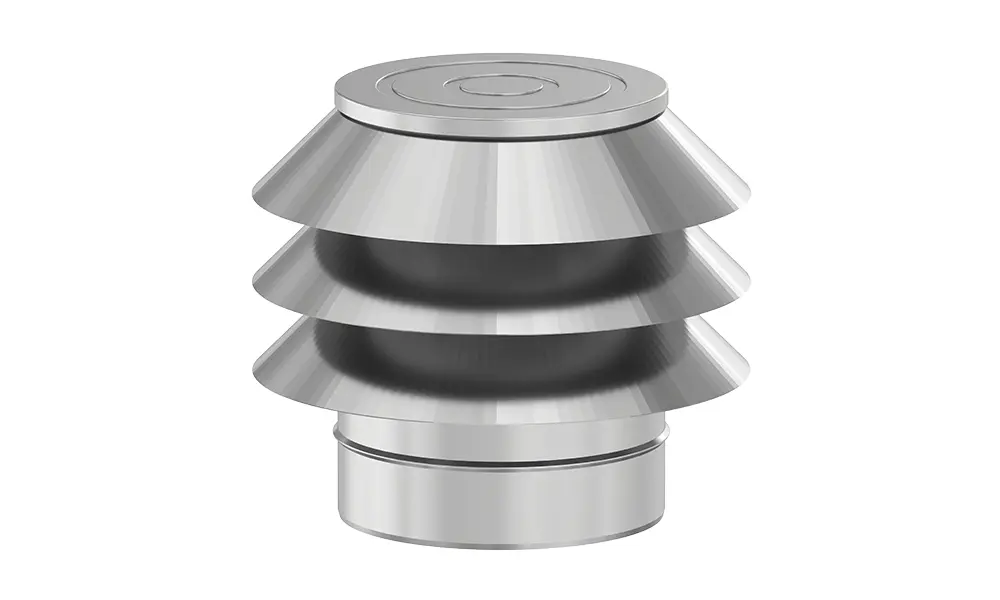

SLXARKSL – Anti-Wind Cowl L
SLXARKSL - Anti-Wind Cowl L[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

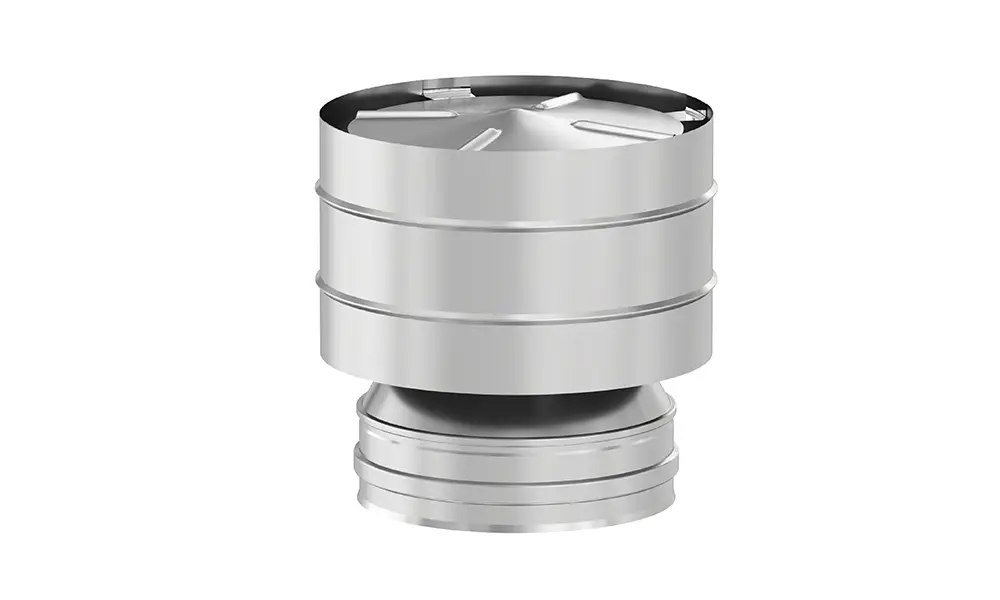

SLXARKSS – Wind Cowl S
SLXARKSS - Wind Cowl S[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

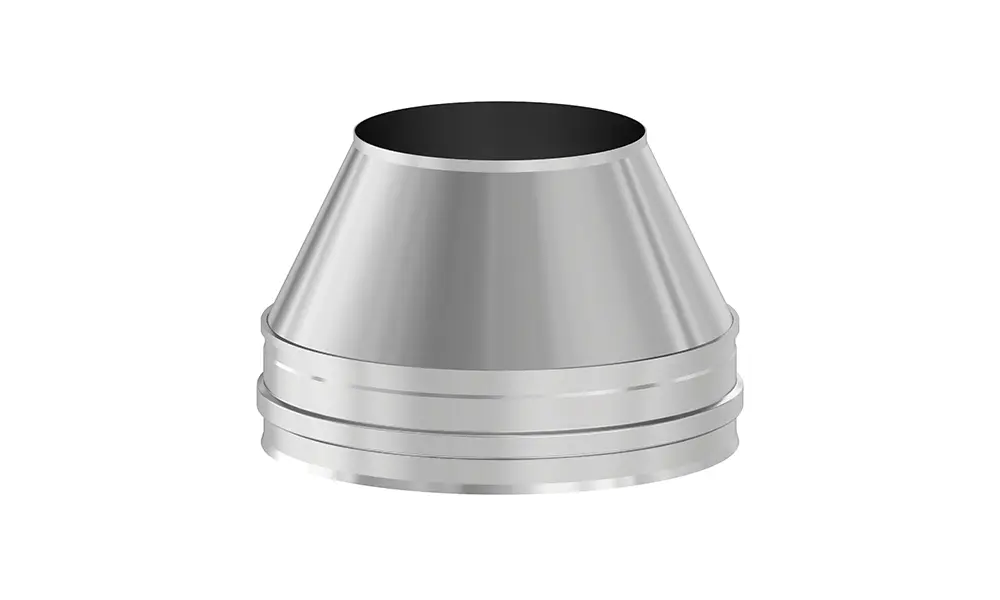

SLXAKS – Open Terminal
SLXAKS - Open Terminal[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

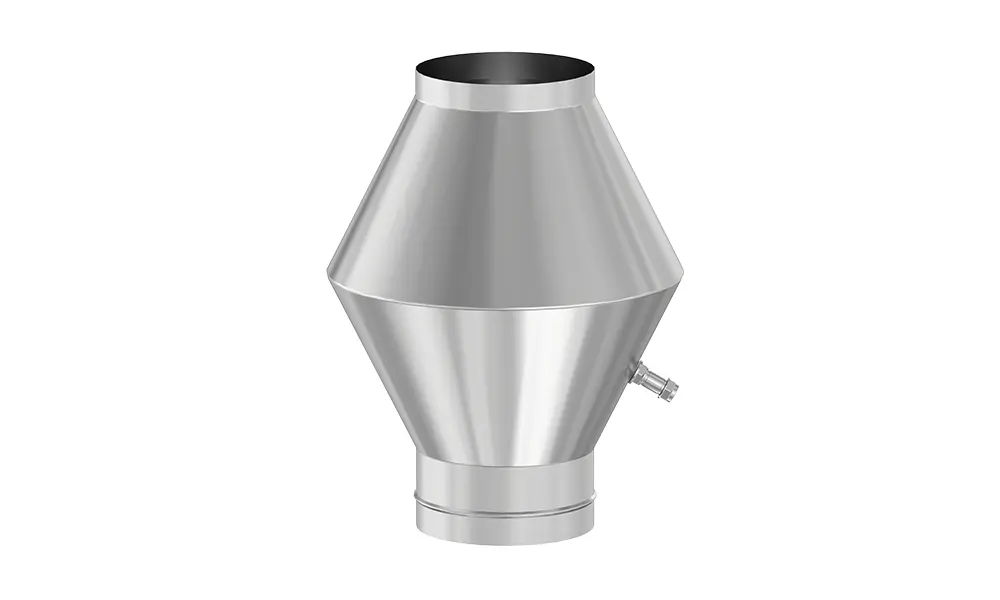

SLXAJC – Deflector Cap
SLXAJC - Deflector Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXAB800 – Pipe 800 mm
SLXAB800 - Pipe 800 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXADİ90 – 90º Elbow With Inspection
SLXADİ90 - 90º Elbow With Inspection[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

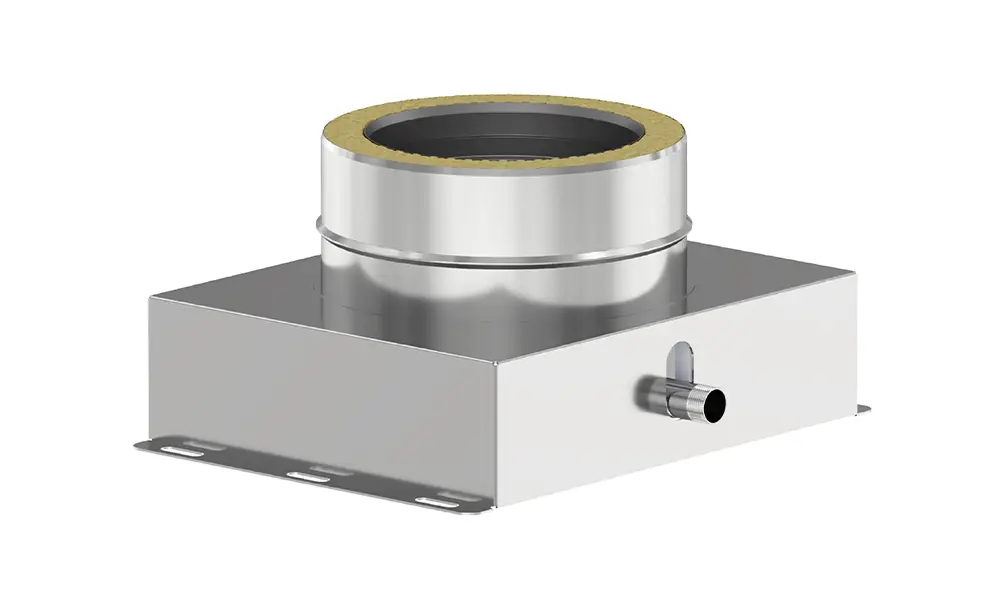

SLXAYTT – Base Support With Drain
SLXAYTT - Base Support With Drain[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
Accessories

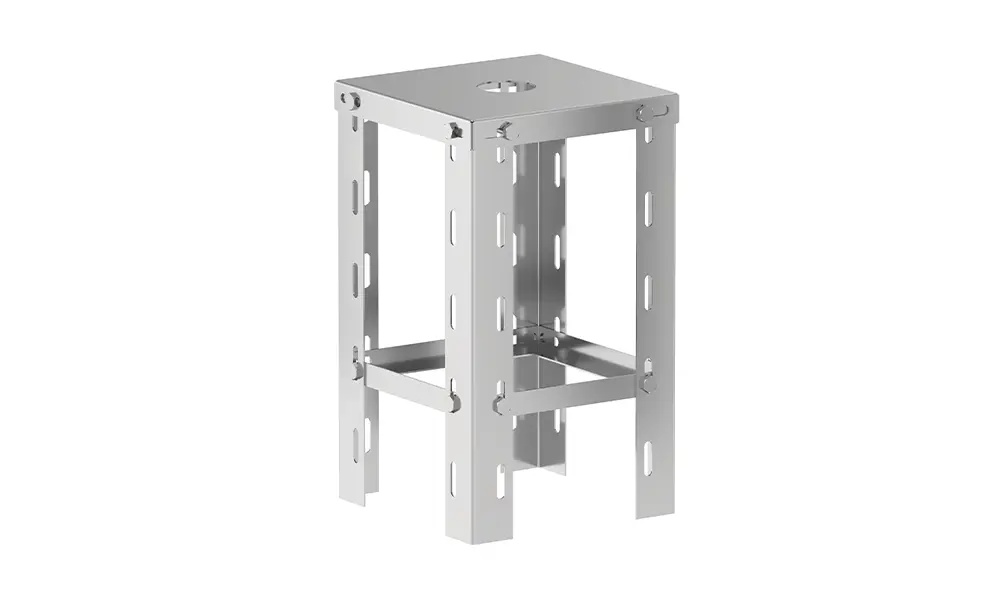

AKSLXATT – Base Support
AKSLXATT - Base Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

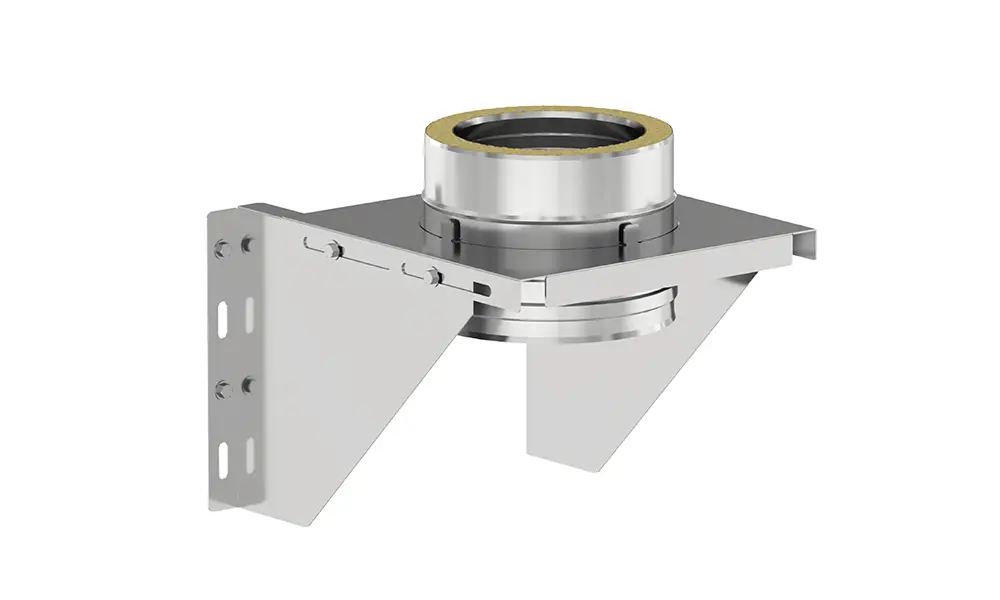

AKSLXABTS – Wall Support
AKSLXABTS - Wall Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

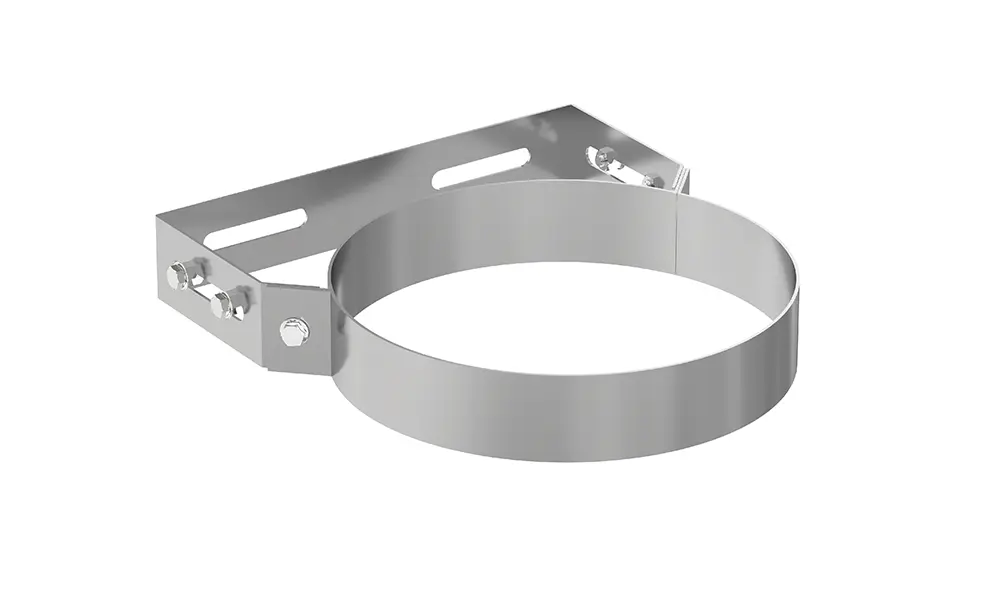

AKSLXADSK – Wall Bracket
AKSLXADSK - Wall Bracket[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

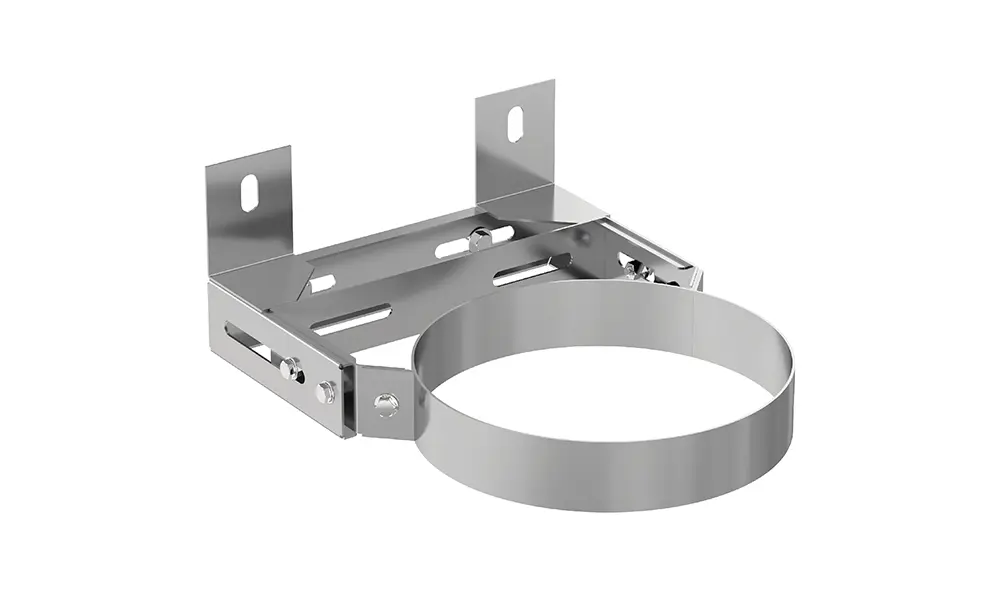

AKSLXADSK11 – Wall Bracket 11
AKSLXADSK11 - Wall Bracket 11[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

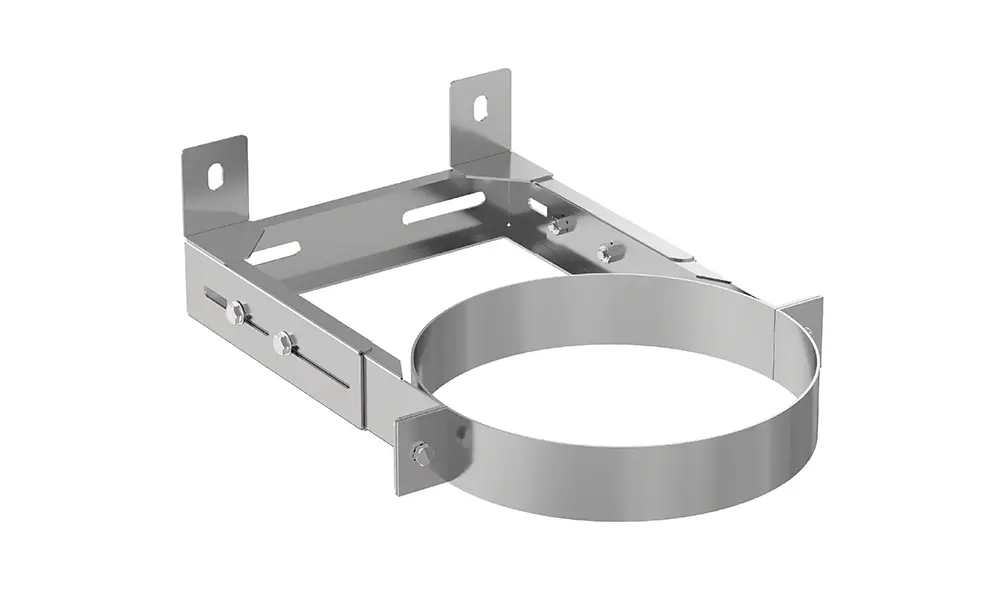

AKSLXADSK21 – Wall Bracket 21
AKSLXADSK21 - Wall Bracket 21[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

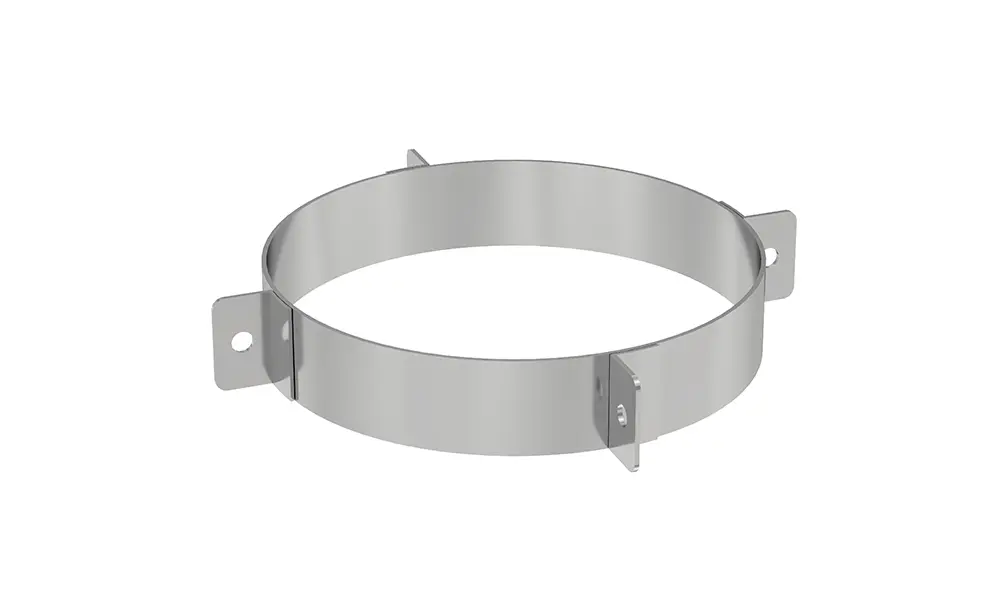

AKSLXAGK – Guy Wire Bracket
AKSLXAGK - Guy Wire Bracket[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

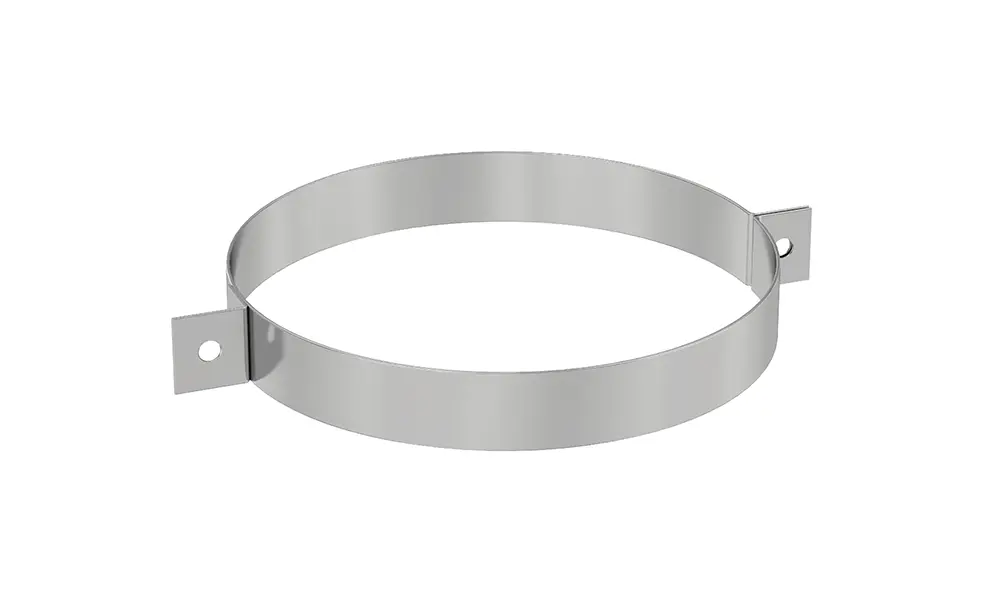

AKSLXAAK – Hold-Down Clamp
AKSLXAAK - Hold-Down Clamp[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

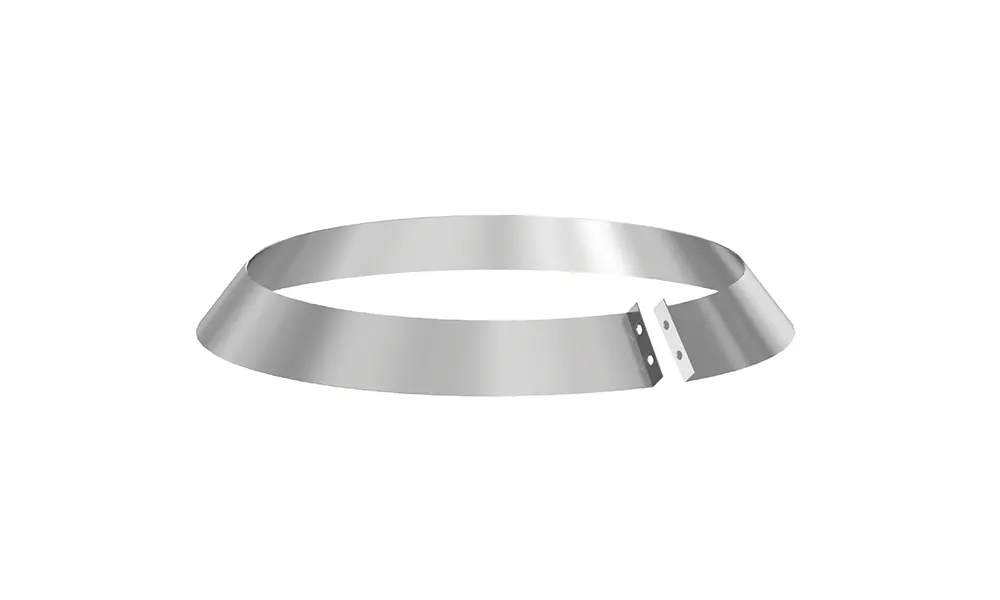

AKSLXACOB – Storm Collar
AKSLXACOB - Storm Collar[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

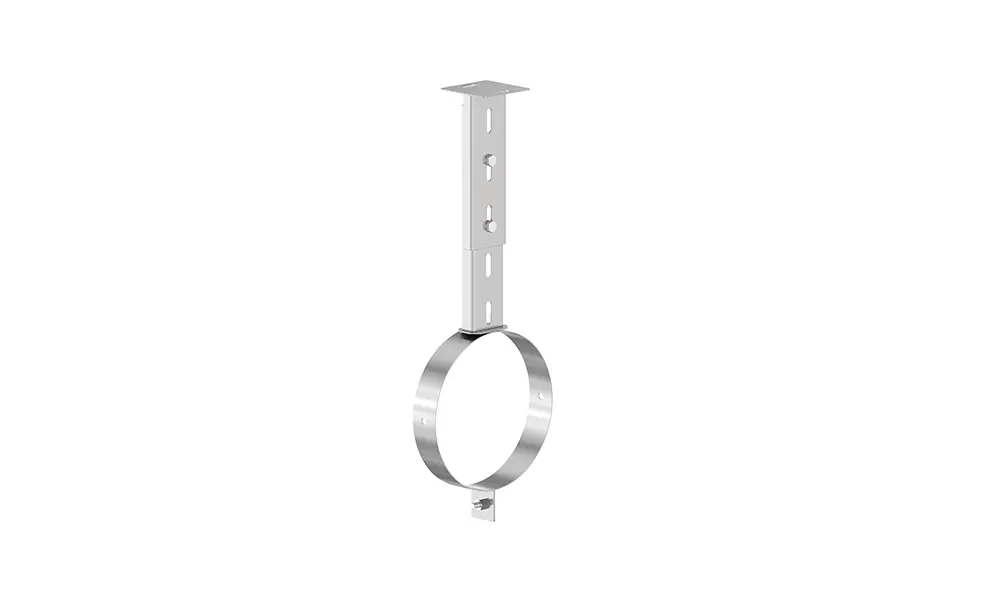

AKSLXAHT – Adjustable Support
AKSLXAHT - Adjustable Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

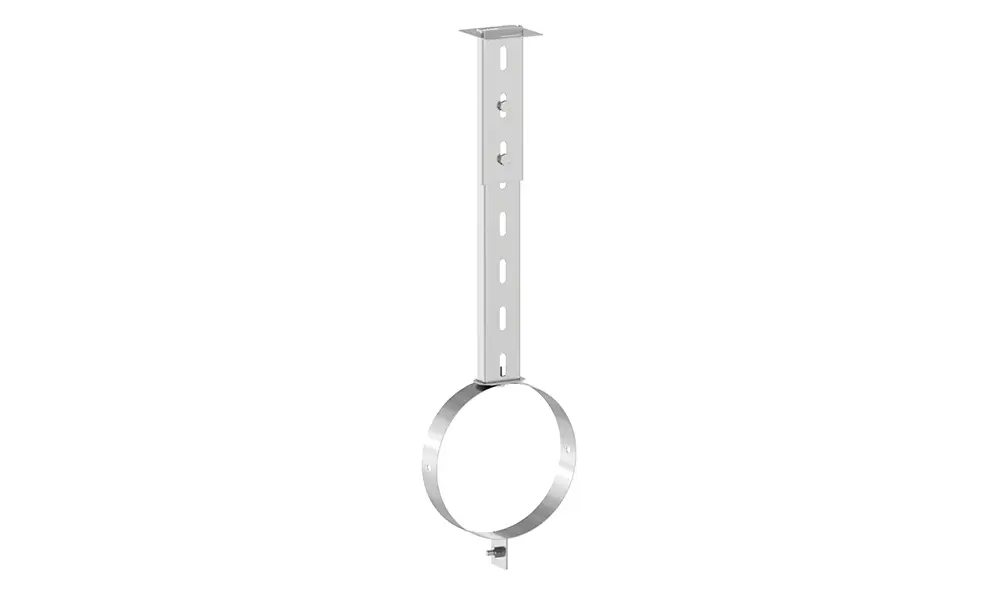

AKSLXAHTU – Long Adjustable Support
AKSLXAHTU - Long Adjustable Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

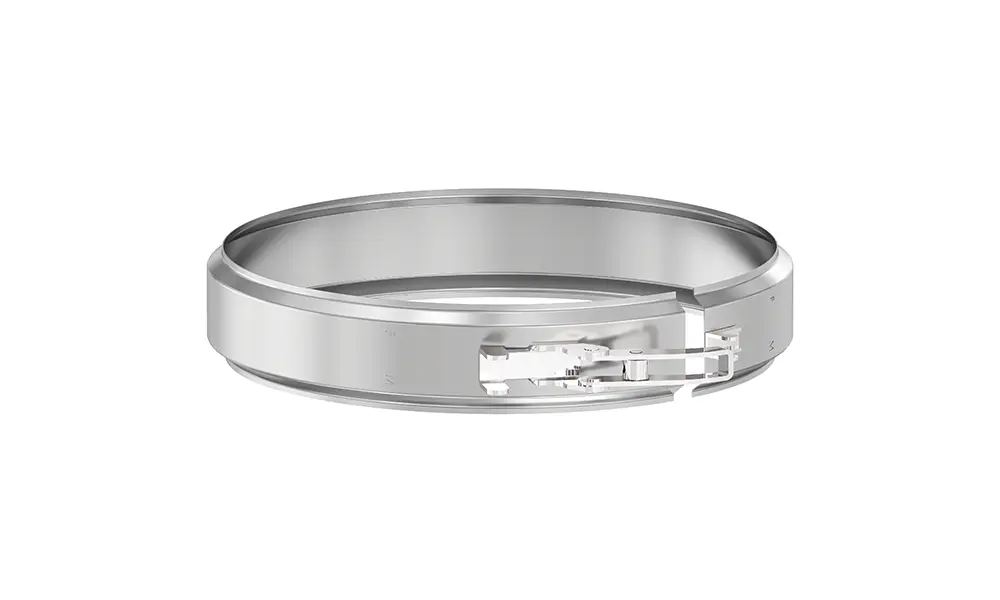

AKSLXABK – Locking Band
AKSLXABK - Locking Band[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

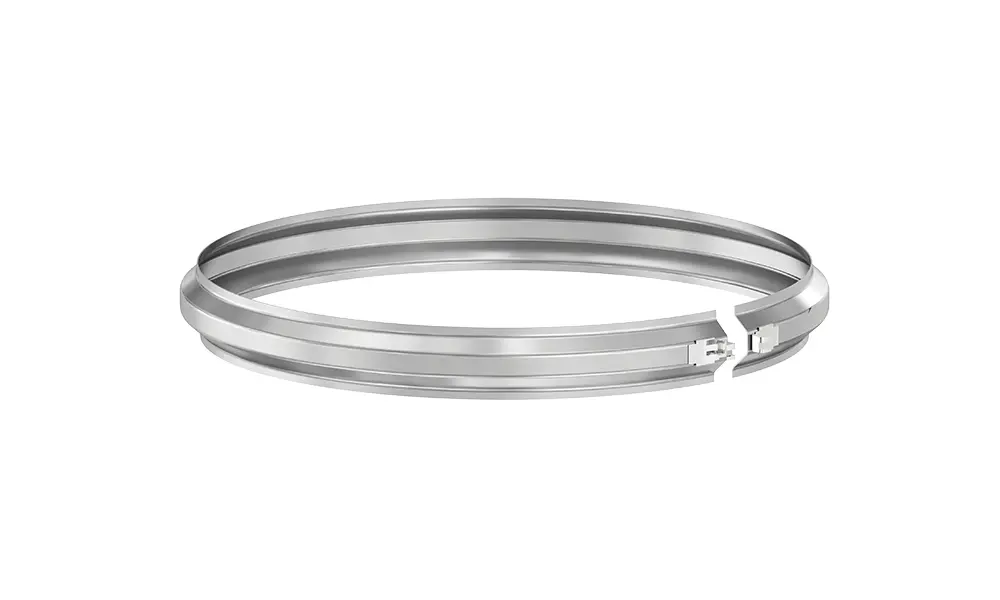

AKSLXABKİ – Locking Band Nerraw
AKSLXABKİ - Locking Band Nerraw[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

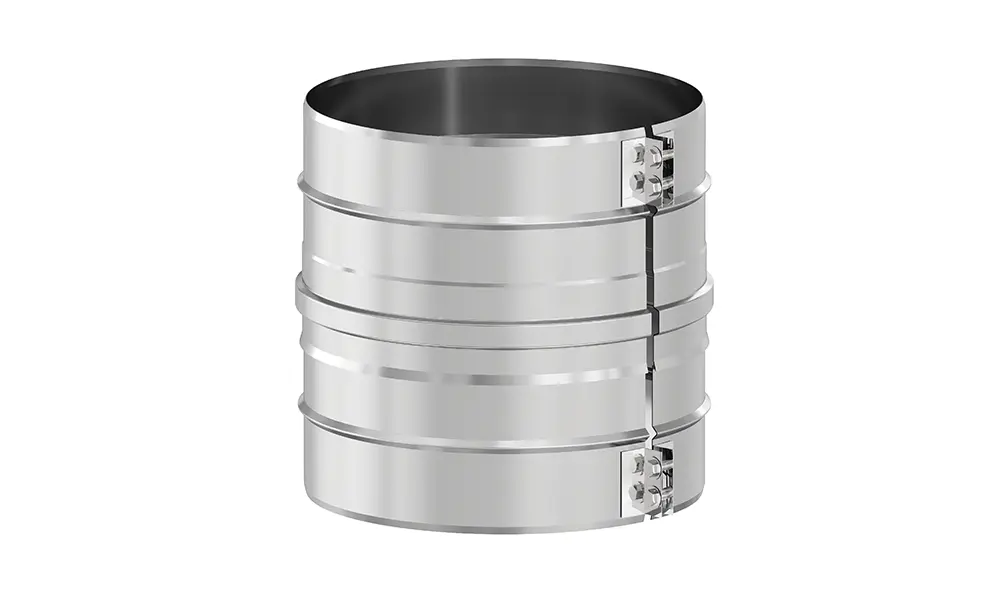

AKSLXABKT – Structural Locking Band
AKSLXABKT - Structural Locking Band[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

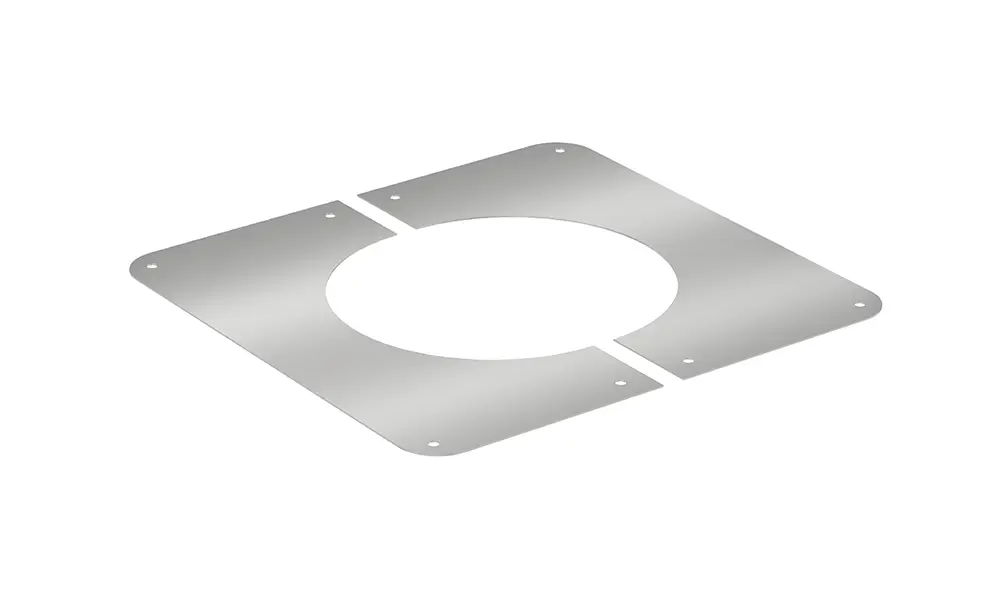

AKSLXADK45 – Wall Plate 45°
AKSLXADK45 - Wall Plate 45°[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

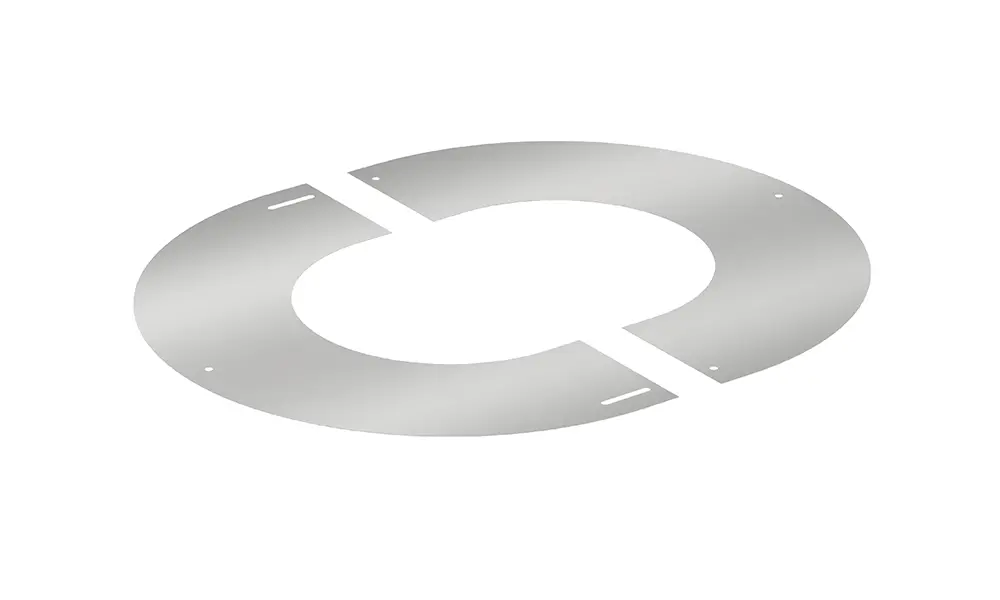

AKSLXAOK45 – Oval Wall Plate 45°
AKSLXAOK45 - Oval Wall Plate 45°[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

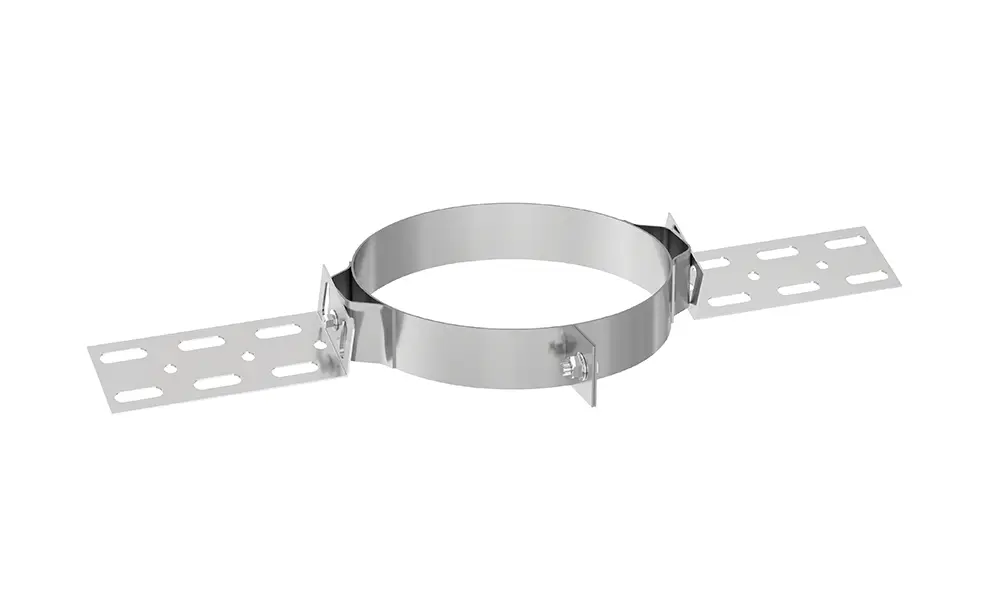

AKSLXAUK – Rafter Support
AKSLXAUK - Rafter Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

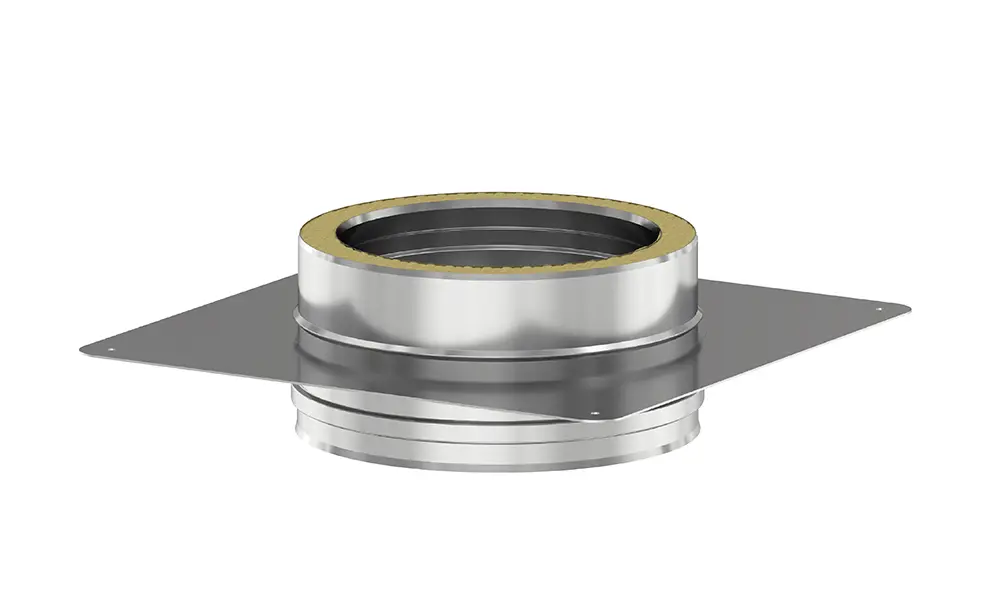

AKSLXAOD – Anchor Plate
AKSLXAOD - Anchor Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

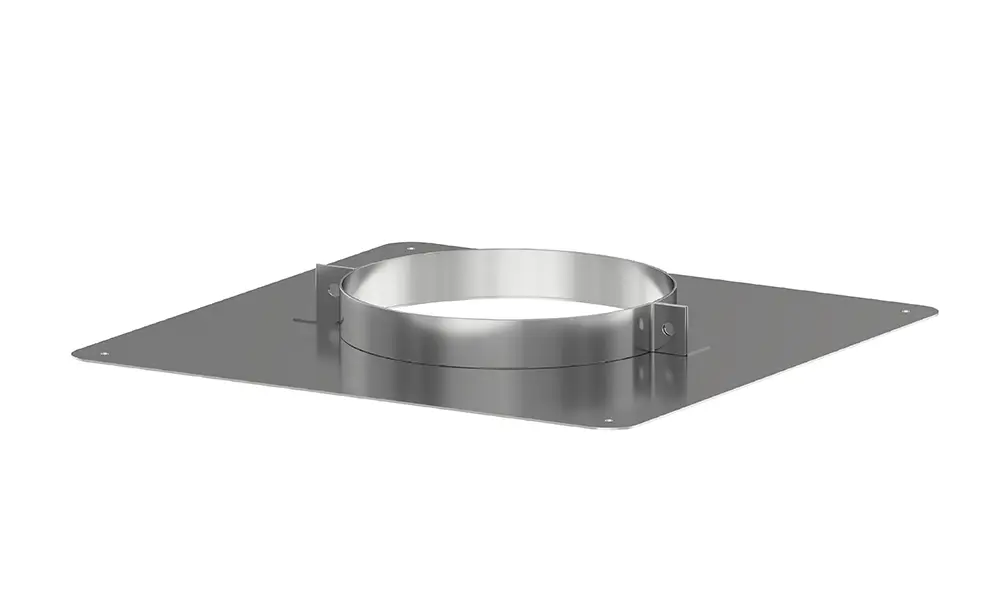

AKSLXAKD – Tile Plate
AKSLXAKD - Tile Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

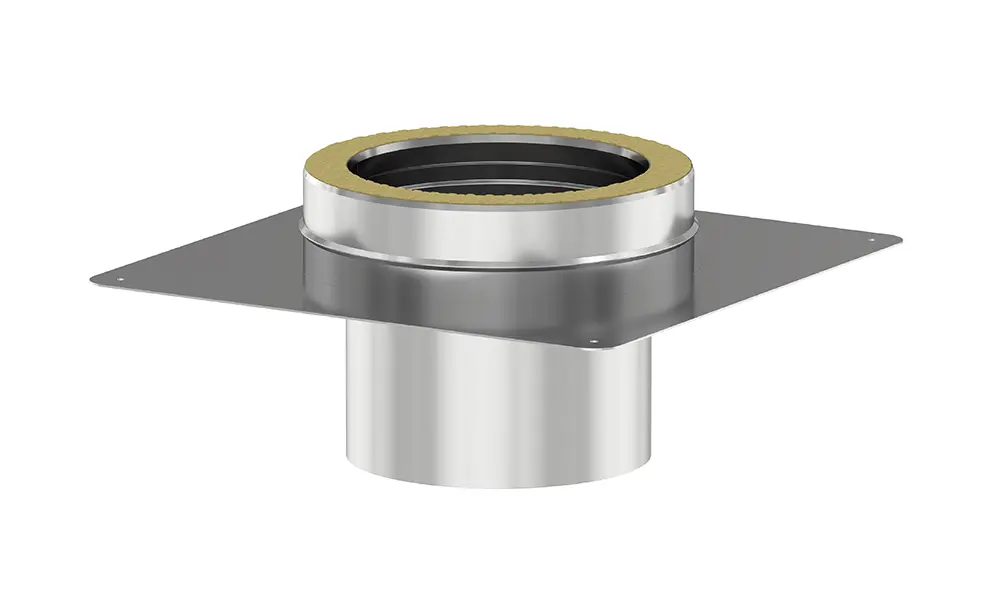

AKSLXAUD – Outlet Plate
AKSLXAUD - Outlet Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

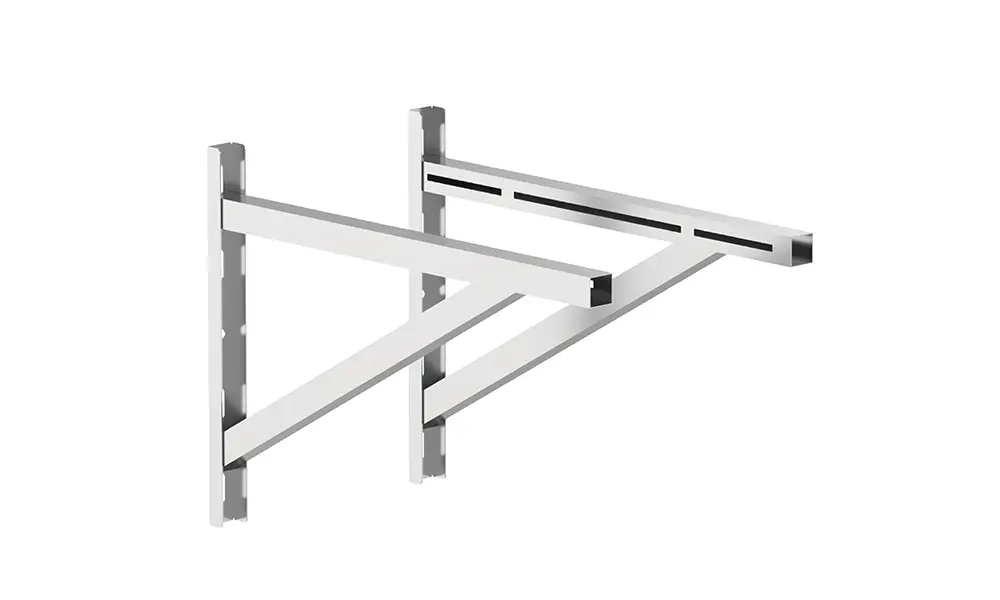

AKSLXATA40 – Extension Bracket Set 40
AKSLXATA40 - Extension Bracket Set 40[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

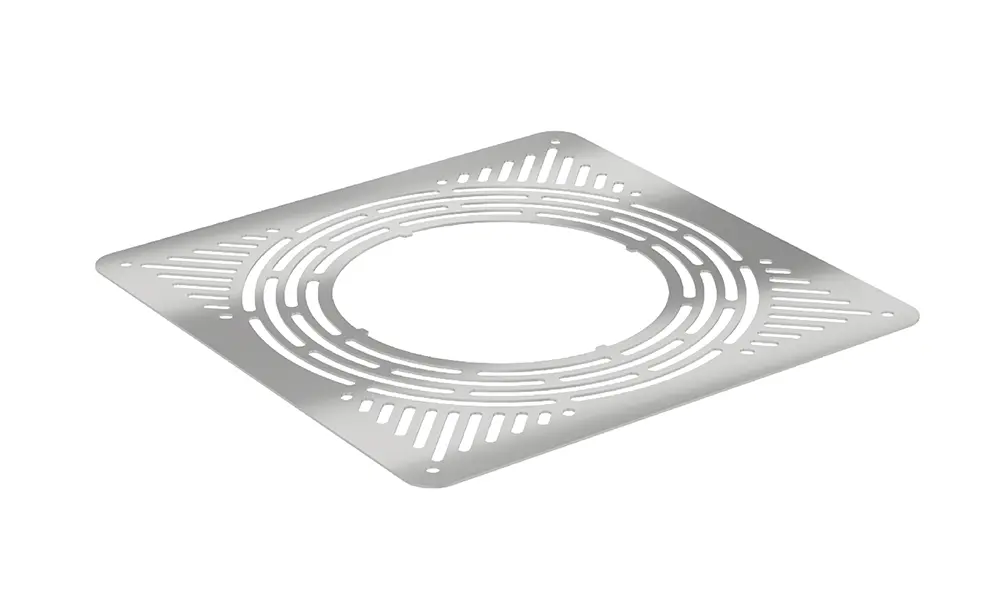

AKSLXAYKPE – Fire Stop Plate (Eko)
AKSLXAYKPE - Fire Stop Plate (Eko)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

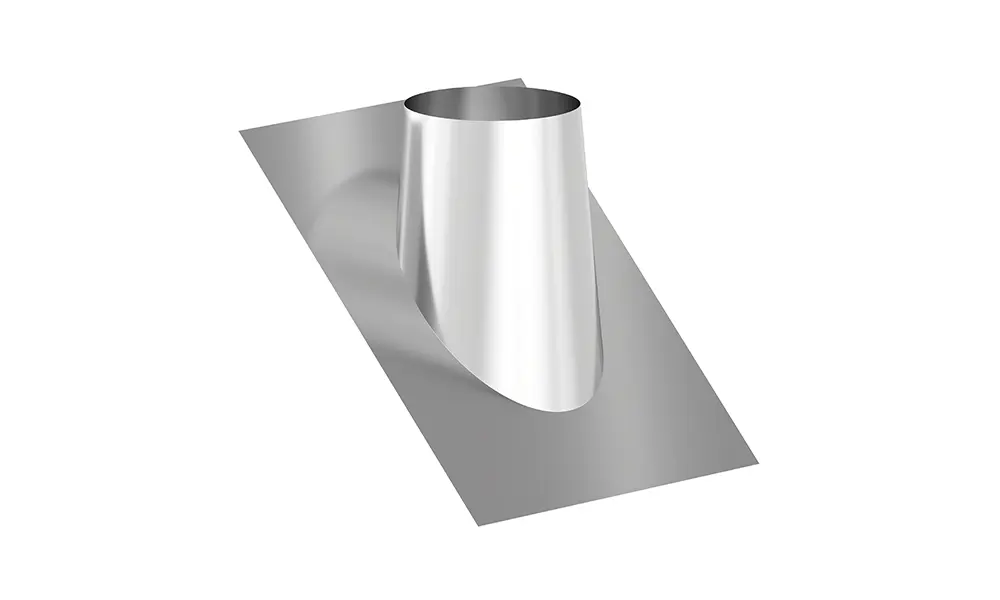

AKSLXACO90 – Flashing 90º
AKSLXACO90 - Flashing 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

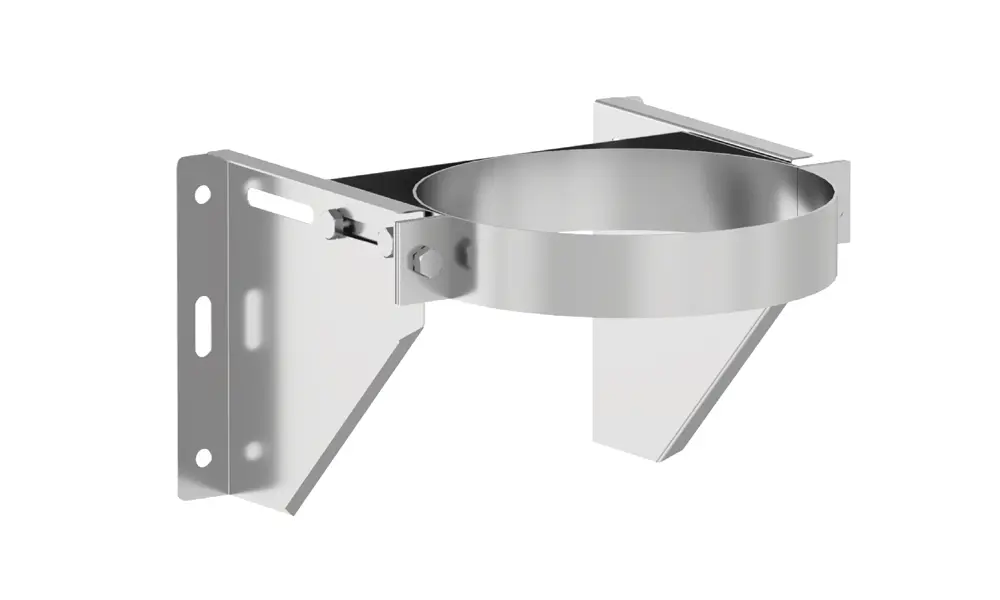

AKSLXADSKT – Wall Bracket (T)
AKSLXADSKT - Wall Bracket (T)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

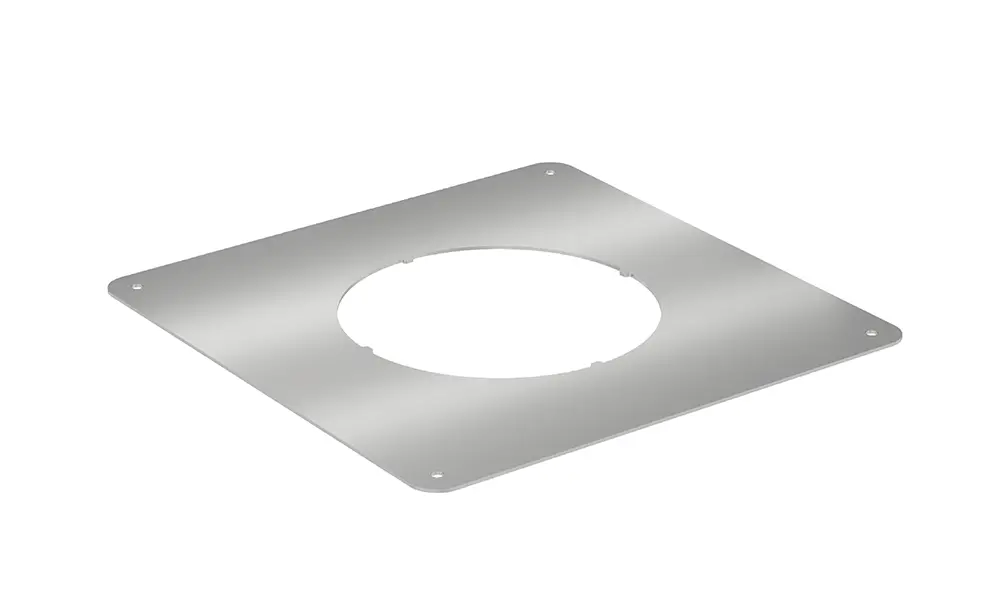

AKSLXAYKPD – Fire Stop Plate (Straight)
AKSLXAYKPD - Fire Stop Plate (Straight)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

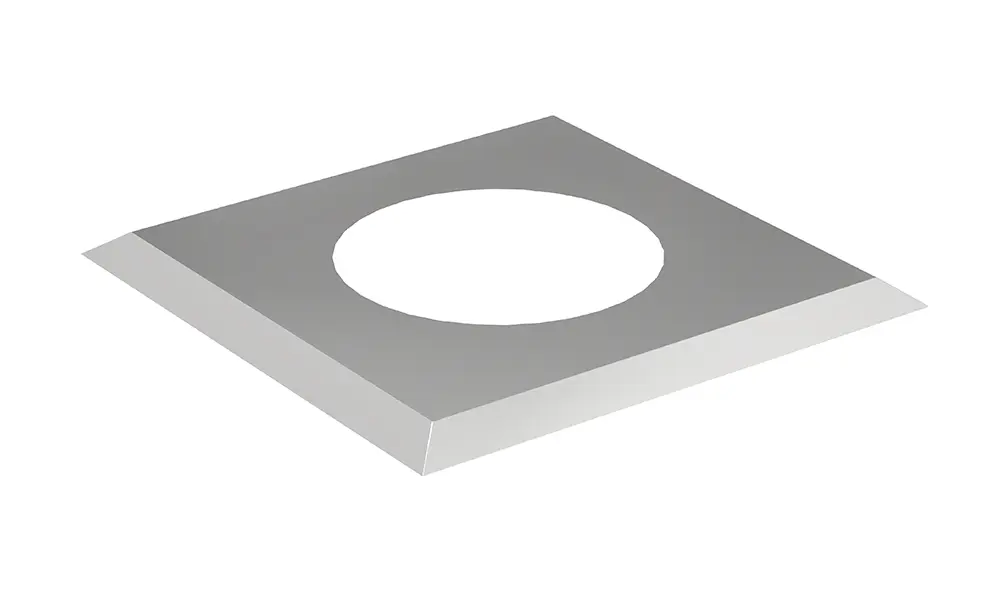

AKSLXAYKPK – Fire Stop Plate
AKSLXAYKPK - Fire Stop Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

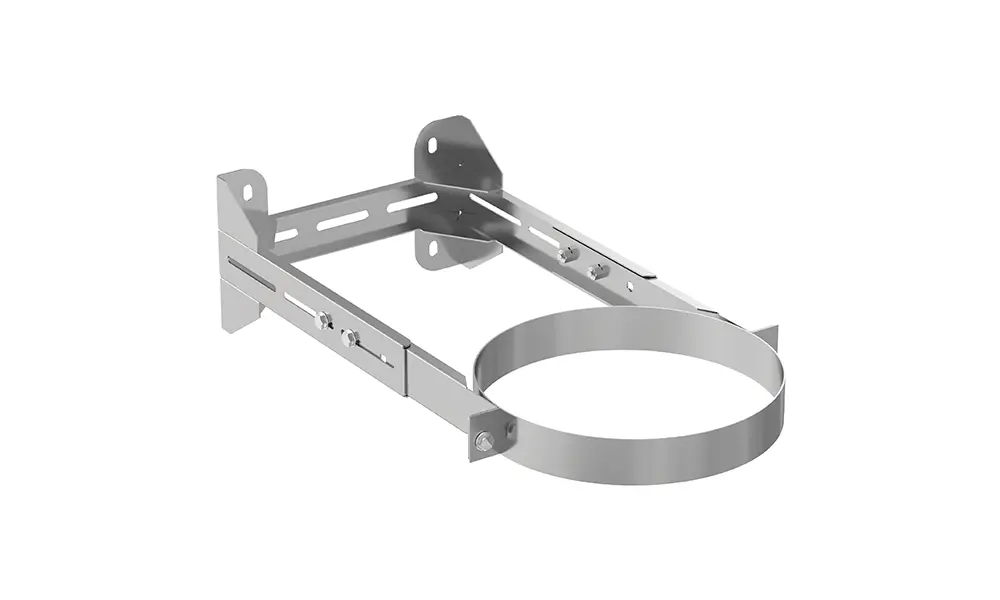

AKSLXADSK35 – Wall Bracket 35
AKSLXADSK35 - Wall Bracket 35[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact
DW – Double Wall Chimney Systems
Solinox chimney systems feature advanced Double Wall Chimney technology and are designed for superior performance and durability. The inner wall is made of high-quality 316L (1.4404) or 304 (1.4301) stainless steel for excellent corrosion resistance, and the outer wall is made of 304 (1.4301) or 430 (1.4016) stainless steel for robust protection and a sleek appearance. Thanks to their high-density insulation, Solinox Double Wall Chimney systems minimise heat loss, delivering exceptional energy efficiency for residential and commercial applications.
Advantages of Solinox Double Wall Chimney
- CE certified
- Easy installation thanks to modular connection
- No on-site fabrication and welding required
- Stainless steel
- Sealed and gas impermeable materials
- Can be dyed in desired colors

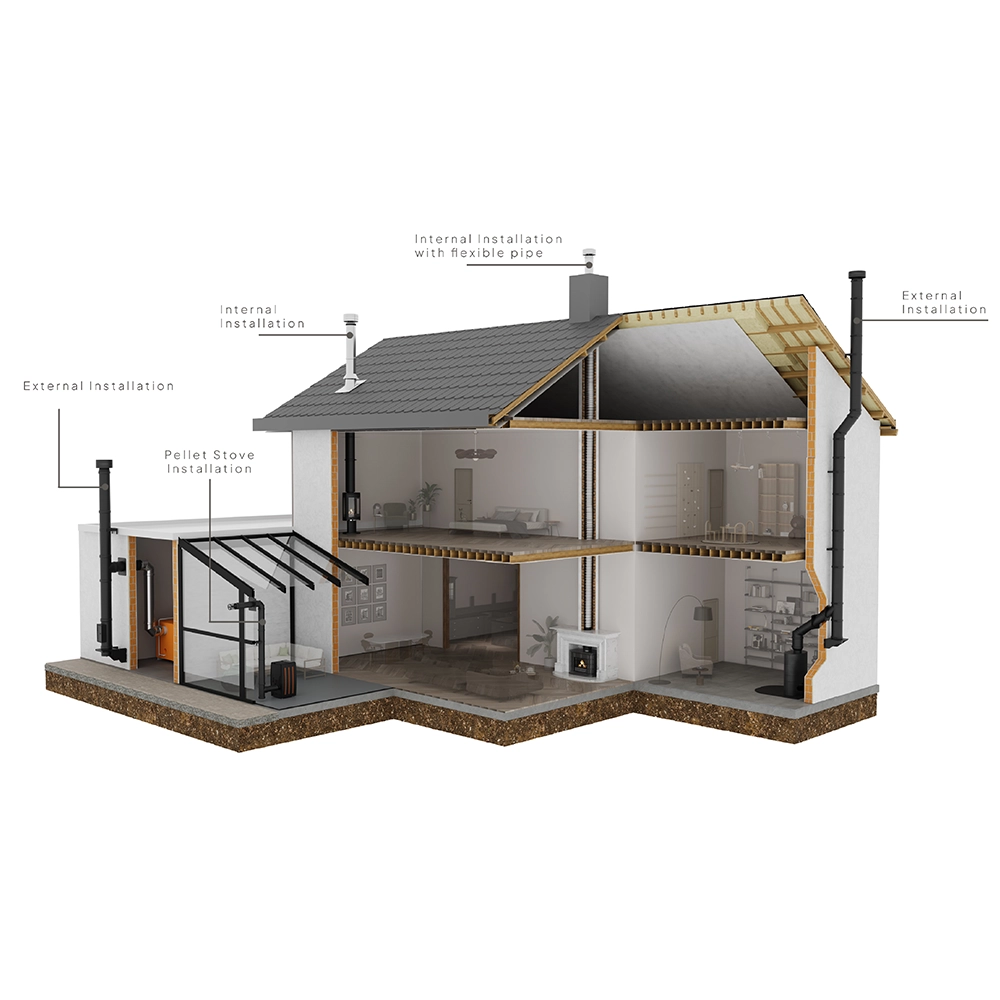

Usage Areas of Double Wall Chimney Systems
- In-shaft central heating and hot water systems
- Industrial and commercial chimney systems
- bread ovens
- fireplaces
- Vents
What Are Solinox Chimney Systems?
Solinox chimney systems are high-performance chimney solutions designed for durability and efficiency. Featuring double wall chimney technology, they are constructed with inner walls of 316L (1.4404) or 304 (1.4301) stainless steel and outer walls of 304 (1.4301) or 430 (1.4016) materials. These systems are ideal for residential and commercial applications, offering minimal heat loss due to high-density insulation.
Why Should I Shoose Solinox Chimney Systems For My Home Or Business?
Solinox Double Wall Chimney systems are designed to be versatile and high-performing. Their double-wall design provides excellent corrosion resistance and energy efficiency, ensuring compatibility with both positive and negative pressure systems. Solinox Double Wall Chimney solutions deliver reliable and long-lasting performance for heating and industrial applications.
How Do Double Wall Chimneys İmprove Energy Efficiency?
Double-wall chimneys, such as those found in Solinox chimney systems, have high-density insulation between the inner and outer walls. This minimises heat loss, maintaining optimal flue gas temperatures and reducing energy waste. This can lower your home or business’s heating costs.
