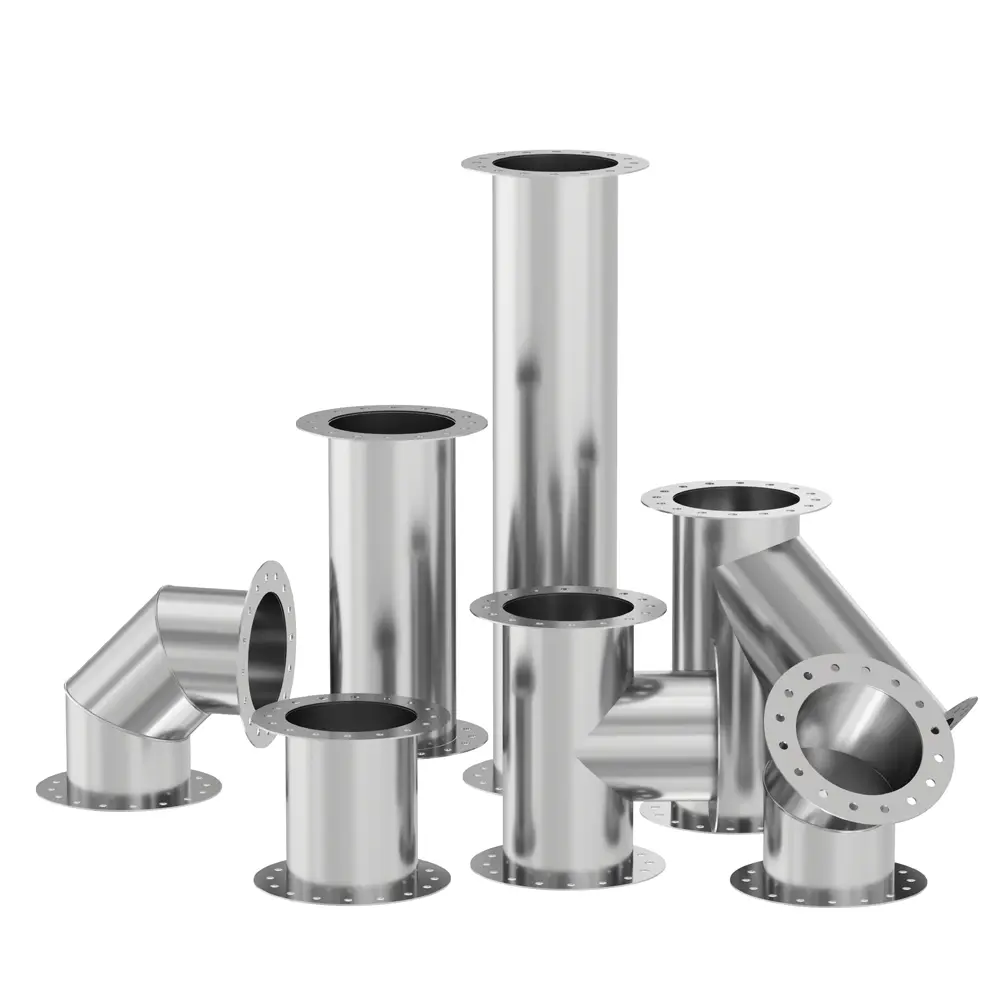

ESW – Industrial Single Wall Chimney Systems
Industrial Single Walle Chimney Systems
ESW – Industrial Single Wall Chimney Systems
Industrial Steel Chimney Features
| Basic Specifications | |
|---|---|
| Chimney Thicknesses | 0,6 mm – 1,5 mm |
| Connection Type | Flanged Connection |
| Diameter Range | From Ø 80 mm to Ø 1200 mm |
| Insulation Density | 50 kğ/m3 – 170 kğ/m3 |
| Insulation Thickness | 25 mm – 50 mm |
| Muf | Flanged |
| Source Type | Continuous Tig Welding |
| Technical Specifications | |
| Certificate Number | 1020 – CPR – 070057059 |
| Chimney Inner Wall Material Properties | L50 AISL 316L (1.4404) L20 AISI 304 (1.43) |
| Chimney Inner Wall Thickness | 0.40, 0.50, 0.60, 0.80, 1.00, 1.20, 1.50 mm |
| Condensation Product Resistance Class | D (Dry) W (Wet) |
| Pressure Class | HO |
| Product Classification | EN 13084-7-2012 |
| Soot Flammability Resistance | O |
| Standard Number | EN 1856 – 1 : 2009 EN 1856 -2 : 2009 |
| Temperature Class | T200 – T 400 |

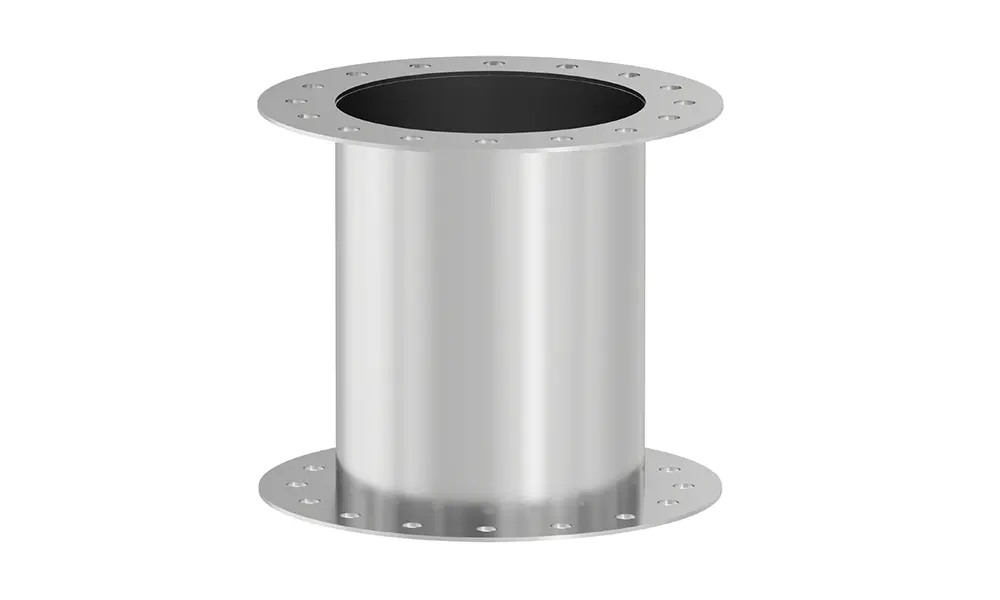

SLXFB250 – Pipe 250 mm
SLXFB250 - Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

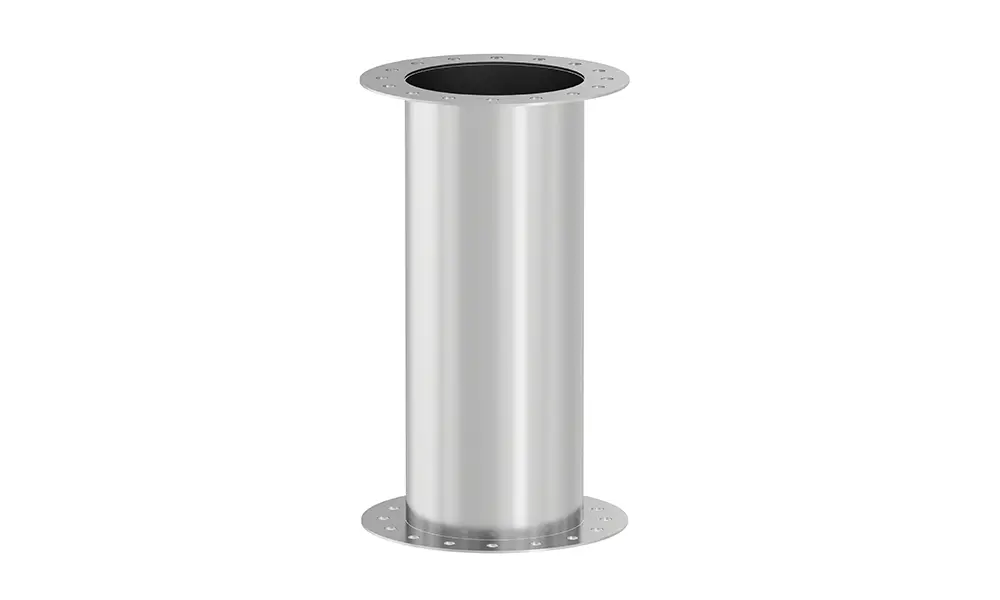

SLXFB500 – Pipe 500 mm
SLXFB500 - Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

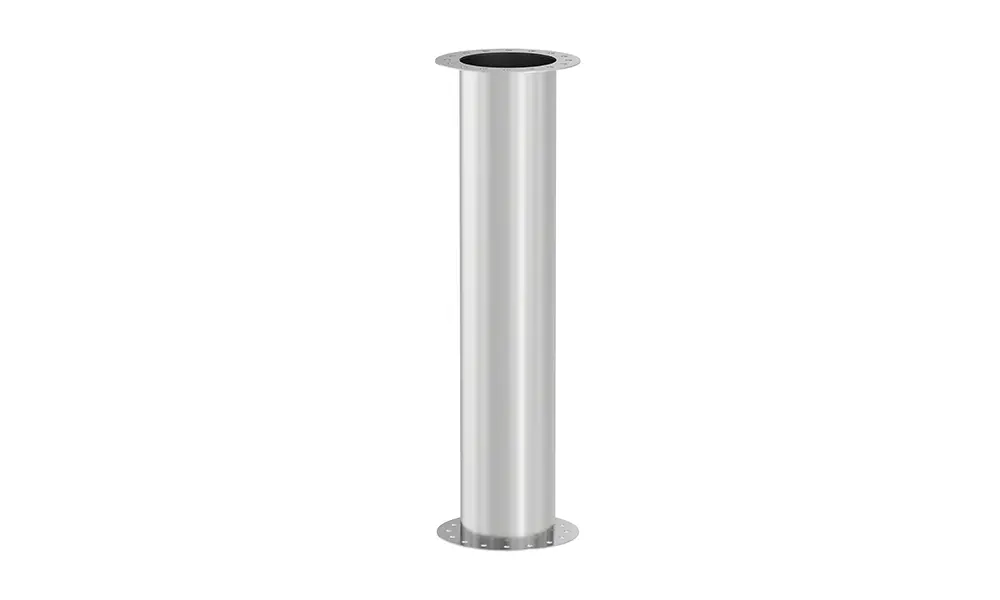

SLXFB1000 – Pipe 1000 mm
SLXFB1000 - Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

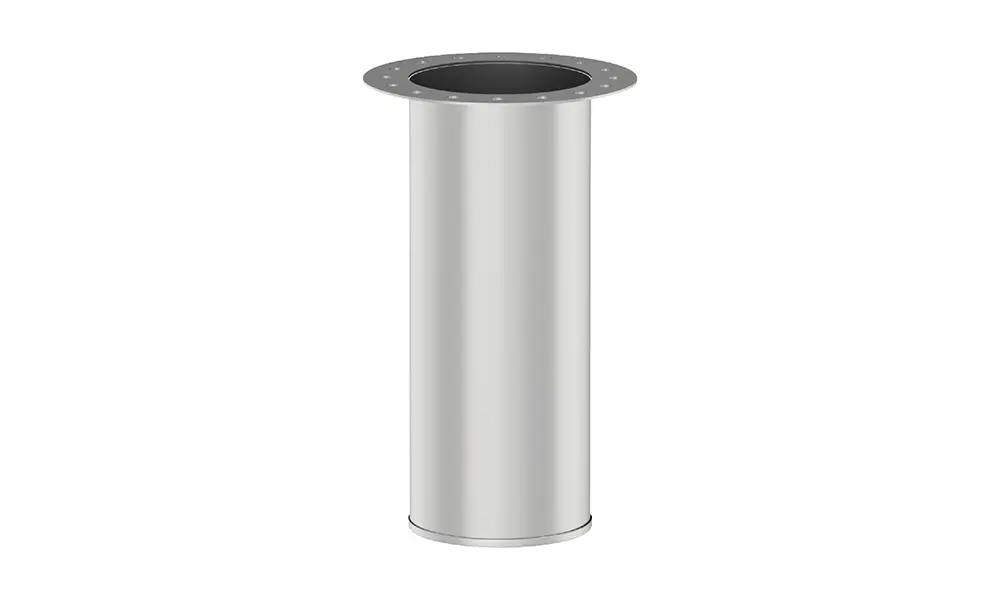

SLXFBB500 – Starter Pipe 500 mm
SLXFBB500 - Starter Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

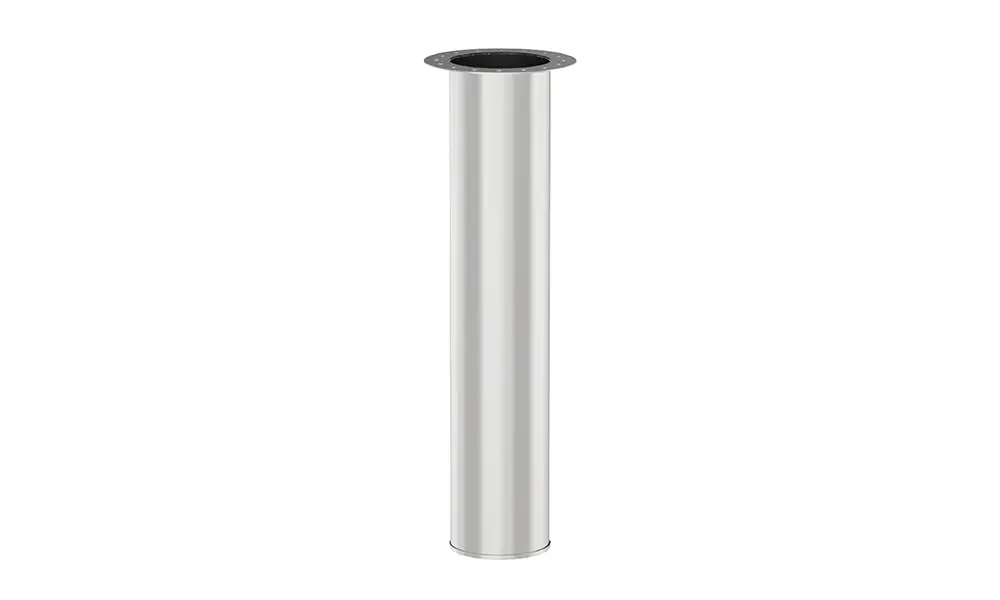

SLXFBB1000 – Starter Pipe 1000 mm
SLXFBB1000 - Starter Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

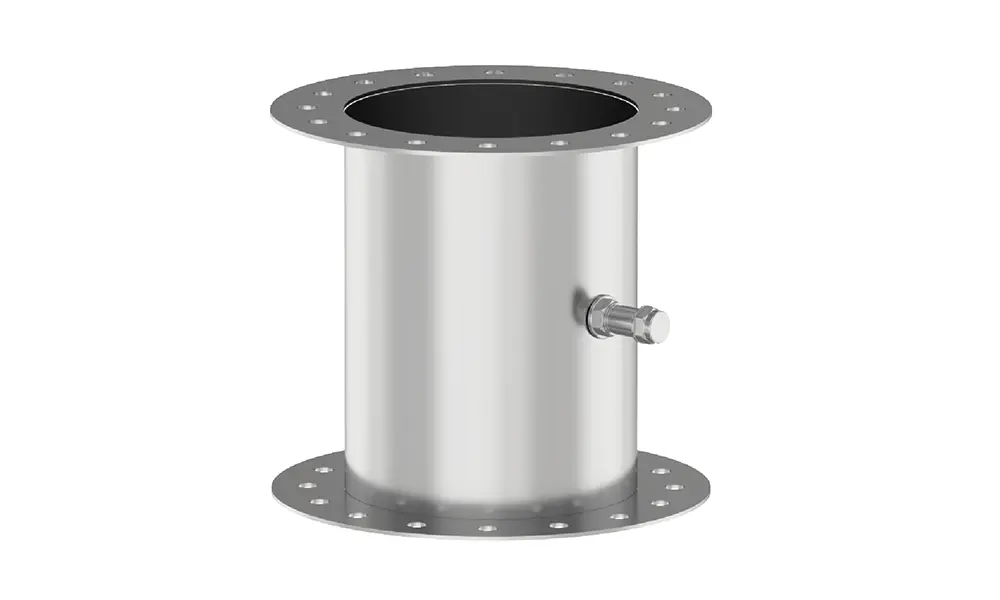

SLXFOB250 – Test Unit 250 mm
SLXFOB250 - Test Unit 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

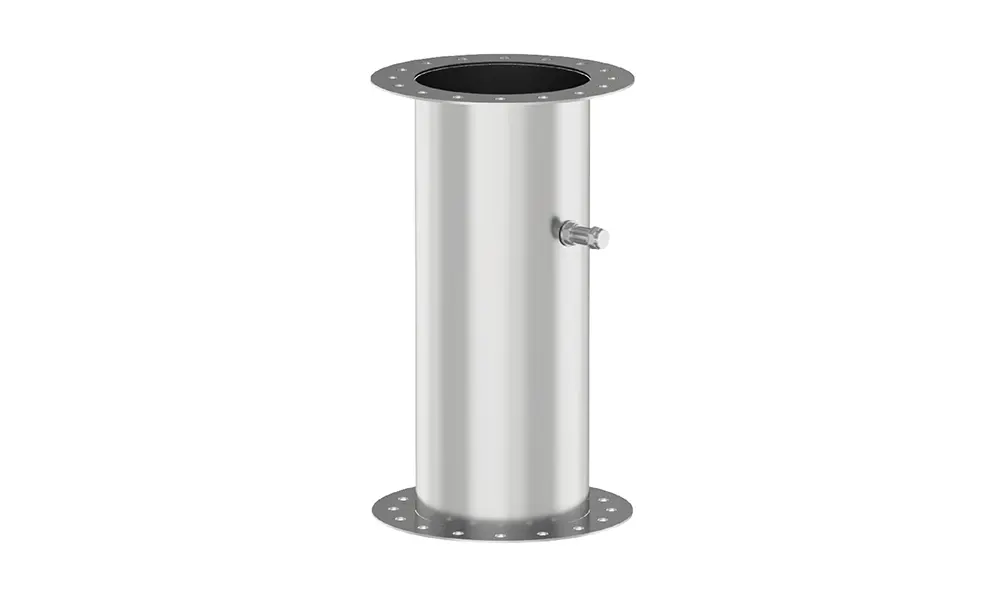

SLXFOB500 – Test Unit 500 mm
SLXFOB500 - Test Unit 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

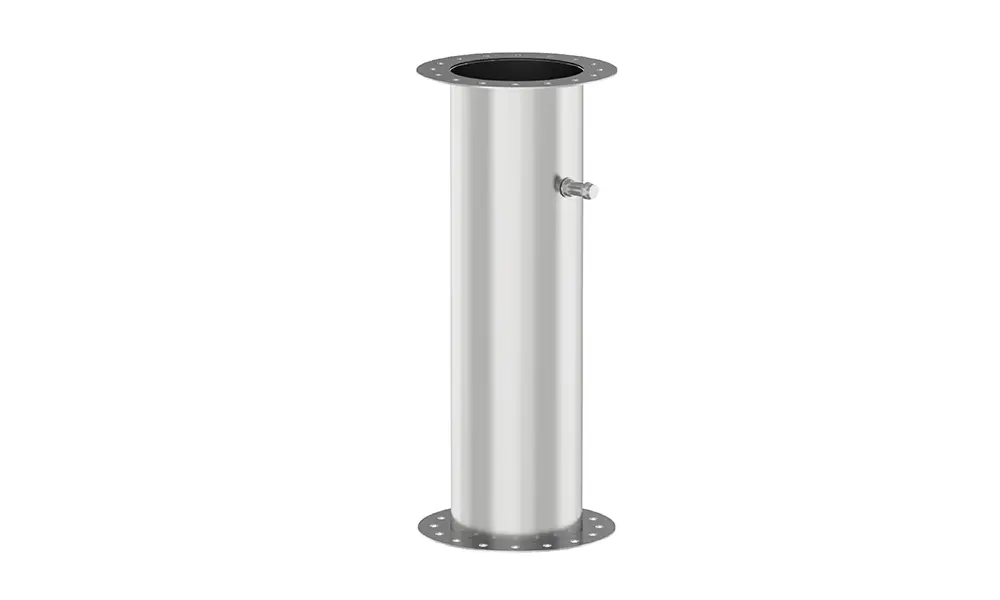

SLXFOB1000 – Test Unit 1000 mm
SLXFOB1000 - Test Unit 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

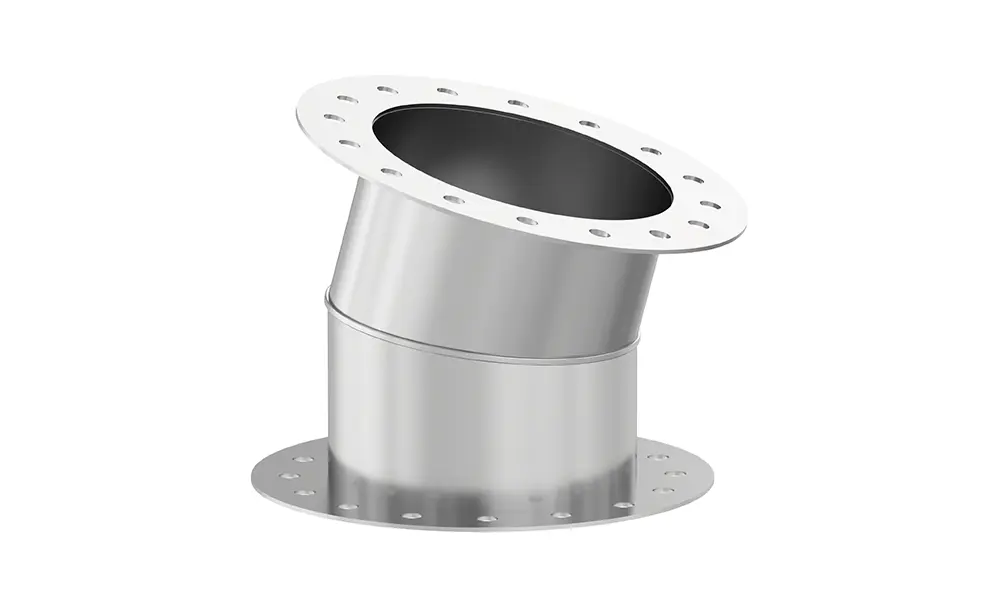

SLXFD15 – 15º Elbow
SLXFD15 - 15º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

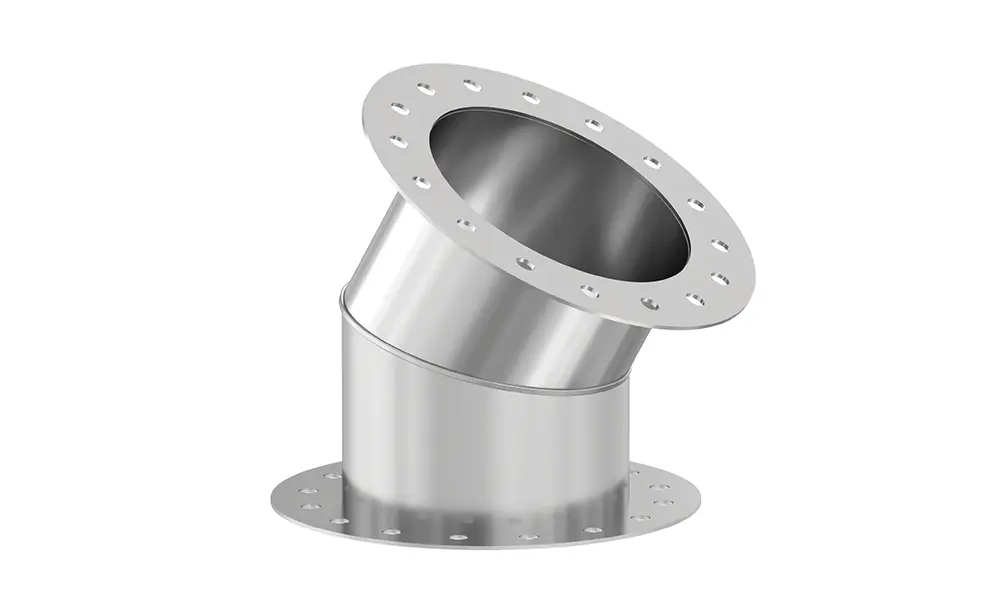

SLXFD30 – 30º Elbow
SLXFD30 - 30º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

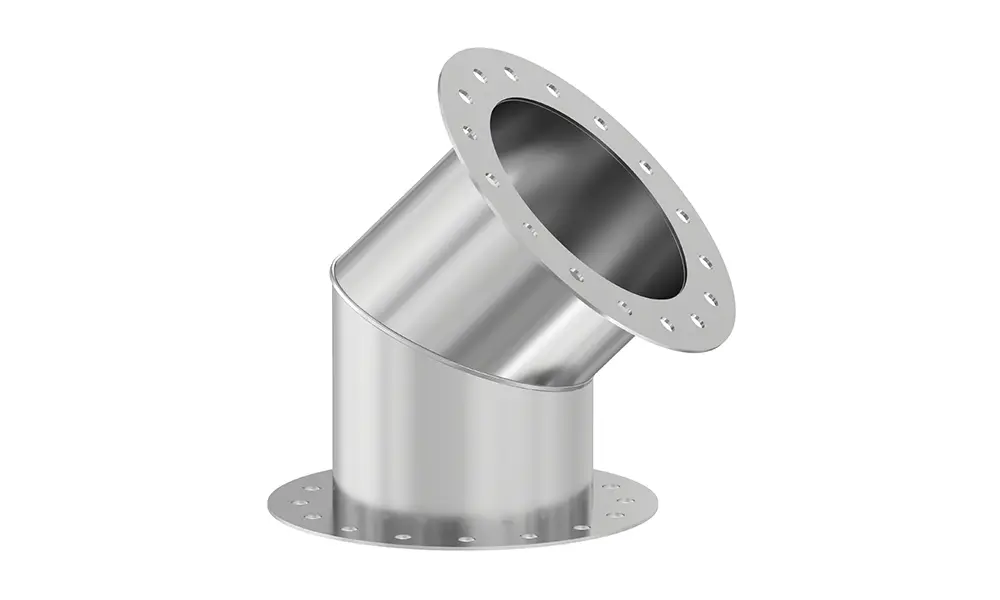

SLXFD45 – 45º Elbow
SLXFD45 - 45º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

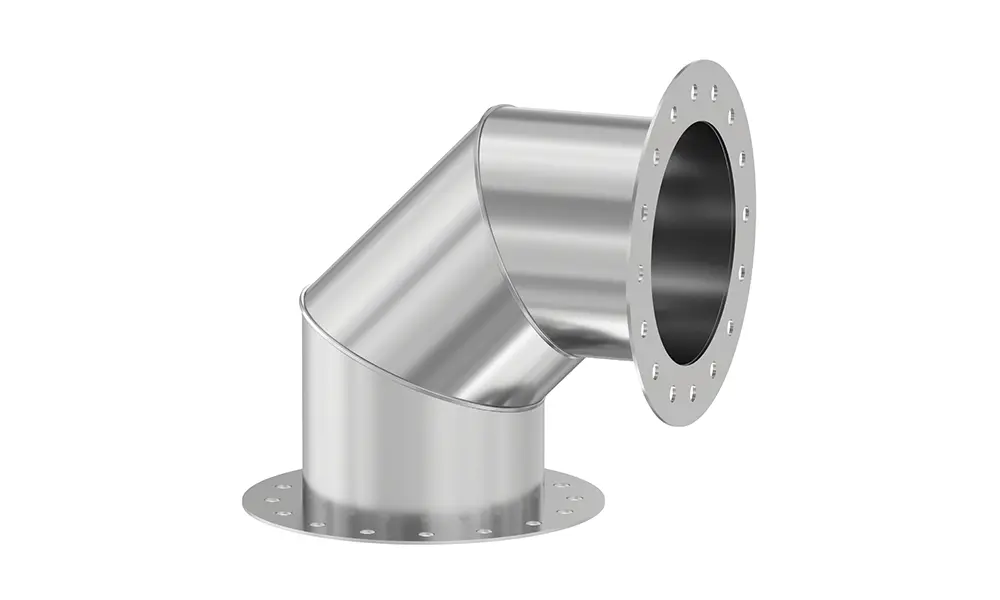

SLXFD90 – 90º Elbow
SLXFD90 - 90º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

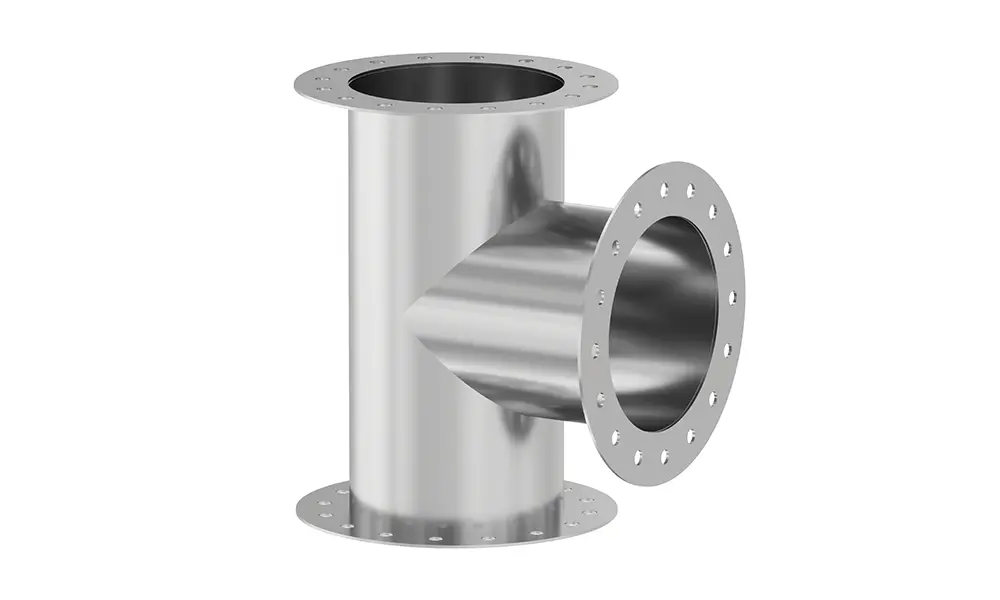

SLXFT90 – Tee 90º
SLXFT90 - Tee 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

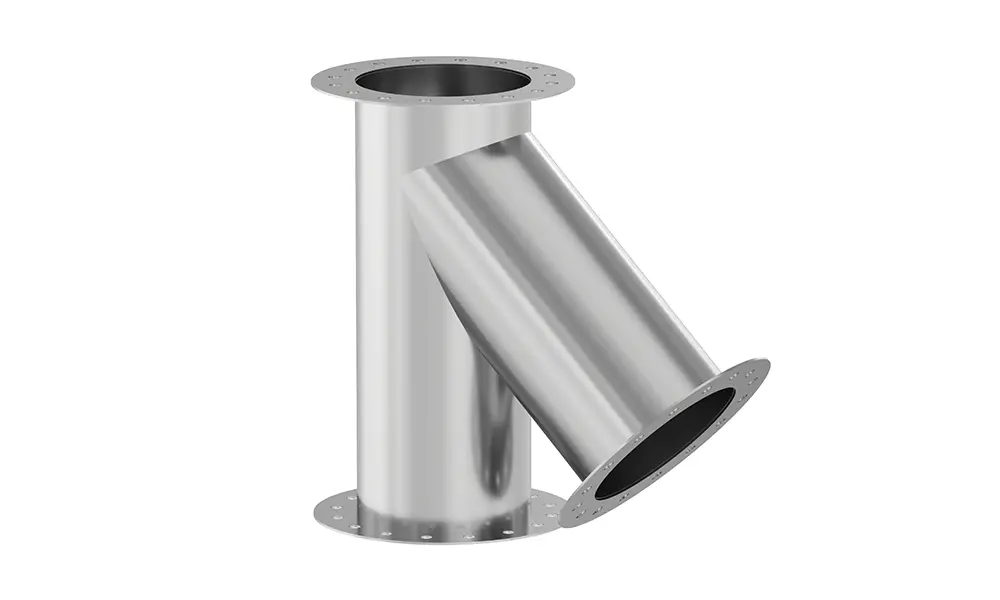

SLXFT135 – Tee 135º
SLXFT135 - Tee 135º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

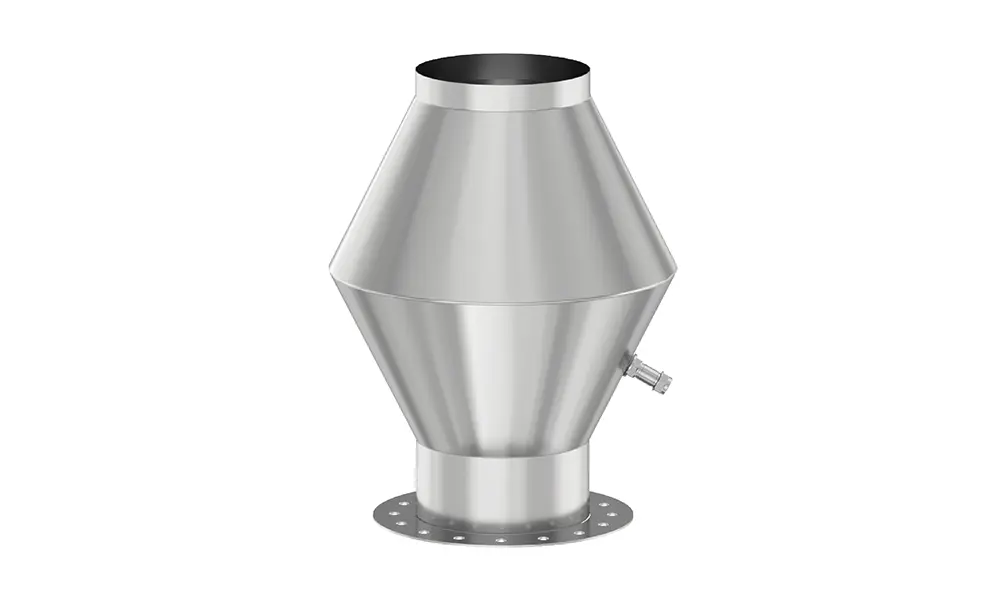

SLXFJC – Deflector Cap
SLXFJC - Deflector Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

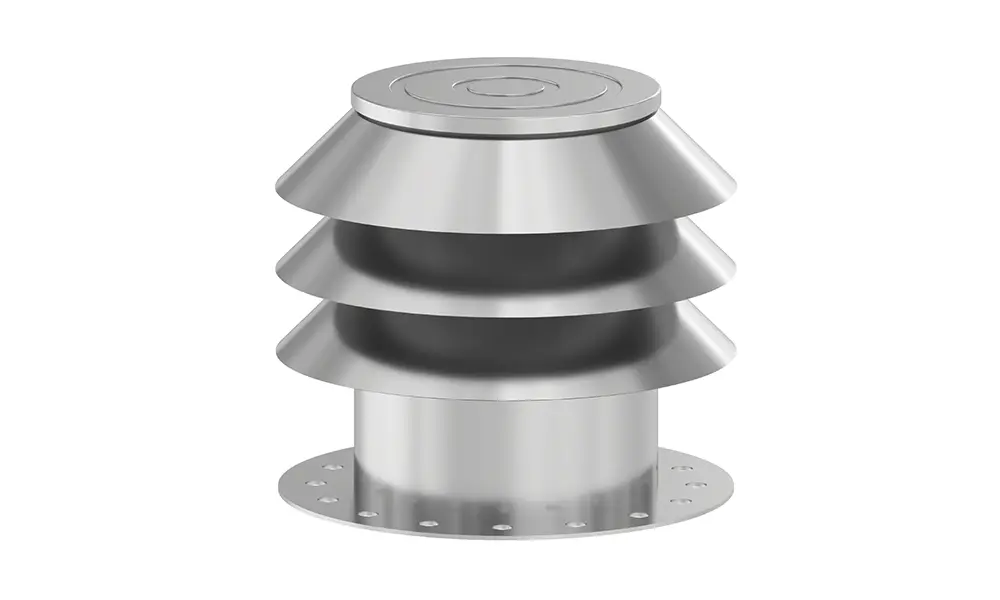

SLXFRKSL – Anti-Wind Cowl L
SLXFRKSL - Anti-Wind Cowl L[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

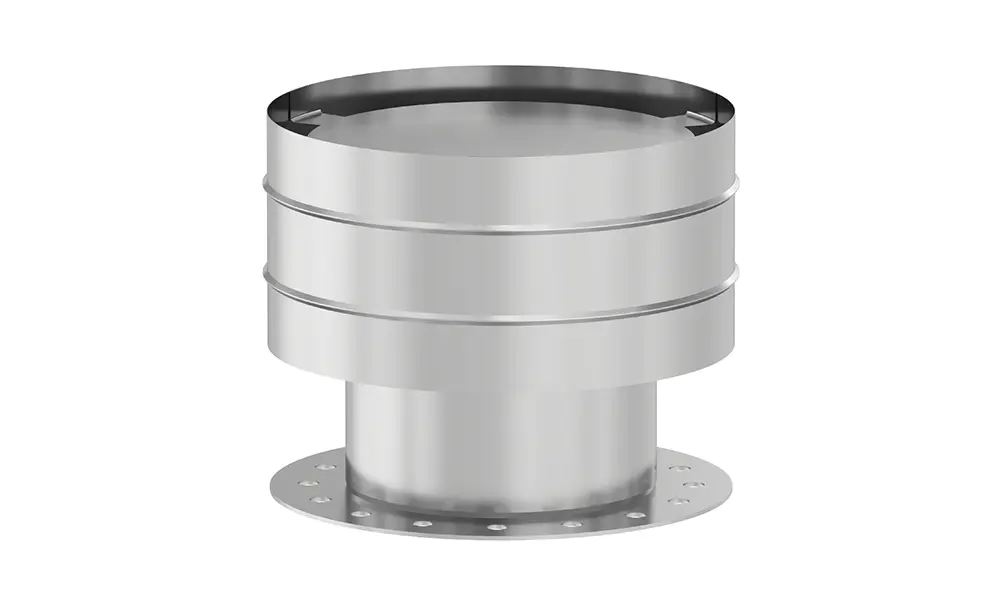

SLXFRKSS – Wind Cowl S
SLXFRKSS - Wind Cowl S[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact
High Performance Steel Chimney Systems
Solinox ESW is engineered as an industrial steel chimney solution for demanding industrial applications. These stainless steel chimney systems comply with TS EN 13084-7 standards and provide reliable exhaust performance even under high-pressure conditions. With its modular flange connections, this industrial steel chimney system ensures durability, fast installation, and long-term operational safety.
- CE-certified production standards
- Modular structure, no on-site welding required
- Condensate and gas-tight design
- Suitable for high-pressure systems
- Long-life fastening components
Why Choose Solinox ESW Industrial Steel Chimney?
The Solinox ESW industrial steel chimney is manufactured using AISI 316L or AISI 304 materials for long-term durability. These stainless steel chimney systems provide strong structural performance while maintaining lightweight advantages. This solution stands out among steel chimney systems for its reliability and ease of installation.
- Continuous TIG welding for seamless joints
- Self-standing or steel platform-supported options
- Resistant to dry and wet condensation
- Designed for industrial exhaust efficiency
Applications of Industrial Steel Chimney Systems
The Solinox ESW industrial steel chimney is suitable for generator, gas engine, and biomass boiler exhaust systems. These stainless steel chimney systems are ideal for facilities requiring high-performance and safe exhaust discharge. Within the Solinox chimney systems range, ESW offers flexible integration for various industrial setups.
- High-pressure chimneys
- Generator chimneys
- Gas engine exhaust systems
- Biomass boiler chimneys
- Ram line chimneys
- Industrial chimneys with fan discharge
Benefits of Stainless Steel Chimney Systems
These steel chimney systems are designed to simplify installation and reduce operational downtime. The industrial steel chimney structure eliminates fabrication on site and ensures long-term performance. Compared to insulated alternatives, this industrial steel chimney solution provides cost-effective efficiency without compromising safety.
- Modular flange connections
- No on-site fabrication
- Gas-tight materials
- Customizable painting options
- Durable stainless construction
Solinox Chimney Systems Quality Standards
All Solinox chimney systems are developed according to strict European quality standards. These stainless steel chimney systems combine advanced engineering with long service life performance. The Solinox ESW industrial steel chimney represents a reliable solution within modern steel chimney systems technology.
- TS EN 13084-7 compliant
- CE certified
- High structural strength
- Designed for industrial durability
Why Choose Stainless Steel Chimney Systems For Industrial Projects?
Stainless steel chimney systems offer durability, safety, and long-term operational efficiency. As part of Solinox chimney systems, the ESW model delivers reliable performance with minimal maintenance needs.
Where are Solinox Chimney Systems Typically Used?
Solinox chimney systems are widely used in industrial facilities requiring safe and efficient exhaust solutions. These steel chimney systems are ideal for generator rooms, gas engines, and biomass boiler installations.
Are stainless steel chimney systems resistant to corrosion?
Yes, high-quality stainless steel chimney systems manufactured with AISI 316L or AISI 304 provide excellent resistance against corrosion. The SOLINOX ESW industrial steel chimney performs reliably in both dry and wet condensation conditions.
How long does a industrial steel chimney last?
An industrial steel chimney typically lasts 25–40 years, depending on material quality, operating conditions, and maintenance. Chimneys made from high-grade stainless steel and designed for industrial exhaust systems can often reach the upper end of this range.
Where are industrial steel chimney systems used?
Industrial steel chimney systems are used in facilities where flue gases must be safely discharged from industrial processes. They are commonly installed in power plants, manufacturing factories, heating plants, and large commercial or industrial boiler systems.
How do you maintain an industrial steel chimney?
To maintain an industrial steel chimney, regular inspections should be carried out to check for corrosion, cracks, or loose fastenings. Cleaning the flue and removing soot or condensate buildup helps ensure safe and efficient operation. Proper maintenance also includes checking seals and connections to prevent gas or moisture leaks.
