Double Wall Chimney Systems

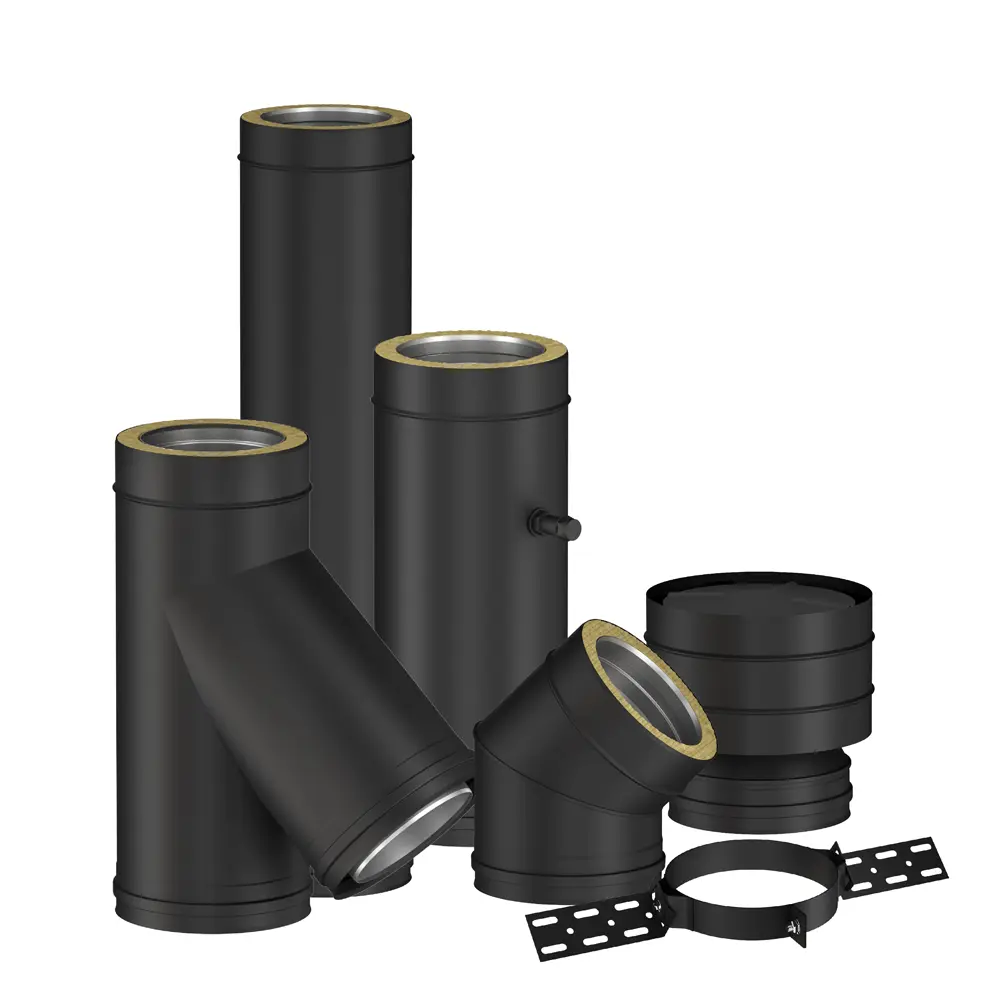

DWP – Double Wall Chimney Systems Black

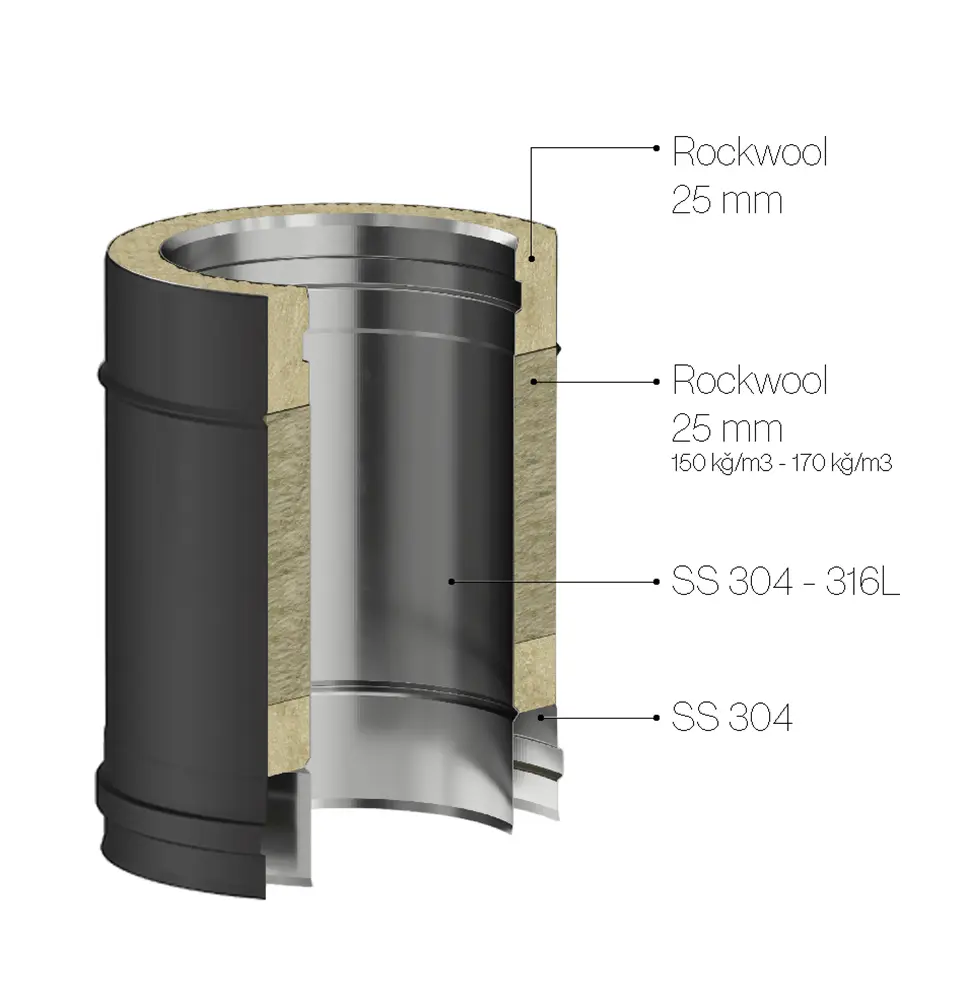

Features of Gasketed Double Wall Systems

Basic Specifications
Chimney Thicknesses	0.40 mm, 0.50 mm , 0.60 mm , 0.80 mm , 1.00 mm, 1.20 mm, 1.50 mm
Connection Type	Male / Female Connections
Diameter Range	From Ø 80 mm to Ø 1200 mm
Insulation Density	50 kğ/m3 – 170 kğ/m3
Insulation Thickness	25 mm – 50 mm
Muf	50 mm
Source Type	Continuous Tig Welding
Technical Specifications
Certificate Number	1020 – CPR – 070045001
Chimney Inner Wall Material Properties	L50 AISL 316L (1.4404) L20 AISI 304 (1.4301)
Chimney Inner Wall Thickness	0.40, 0.50, 0.60, 0.80, 1.00, 1.20, 1.50 mm
Condensation Product Resistance Class	D (Dry) W (Wet)
Corrosion Resistance Class	V2 (Natural Gas, Liquid Fuel, Wood)
Pressure	N1 (40 Pa)
Product Classification	EN 1856-1 T400-N1-D-V2-L50 (040-150)-G100/G400 EN 1856-1 T400-N1-W-V2-L50 (040-150)-O100/O400 EN 1856-1 T600-N1-D-V2-L50 (040-150)-G50 EN 1856-1 T600-N1-D-Vm-L20 (040-150)-G100 EN 1856-1 T600-N1-W-V2-L50 (040-150)-G50
Soot Flammability Resistance	O – G
Standard Number	EN 1856 – 1 : 2009 EN 1856 – 2 : 2009
Temperature Class	T 400 – T 600

Double Wall System Products

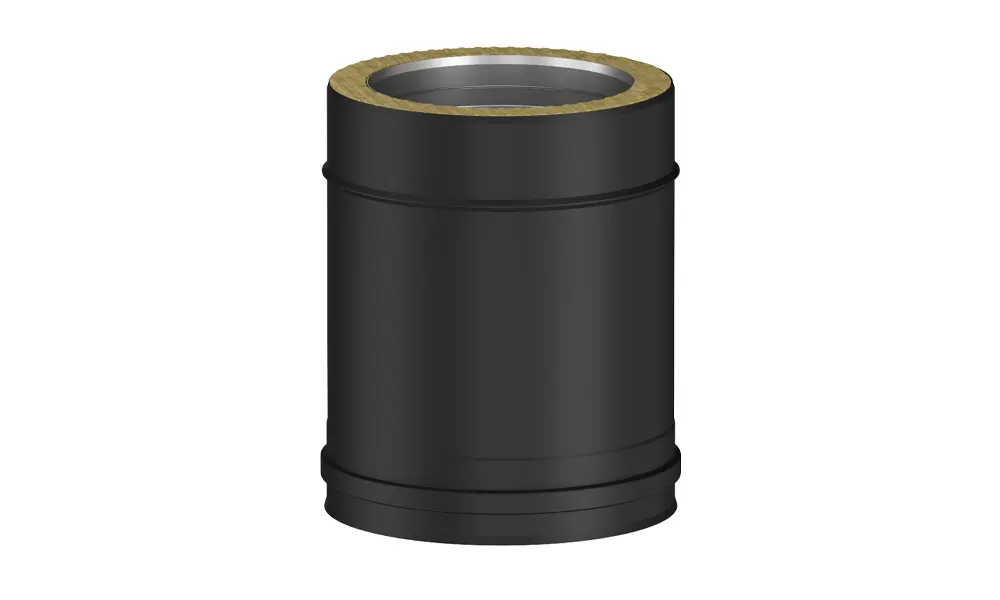

PSLXAB250 – Straight Pipe 250 mm

PSLXAB250 - Straight Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

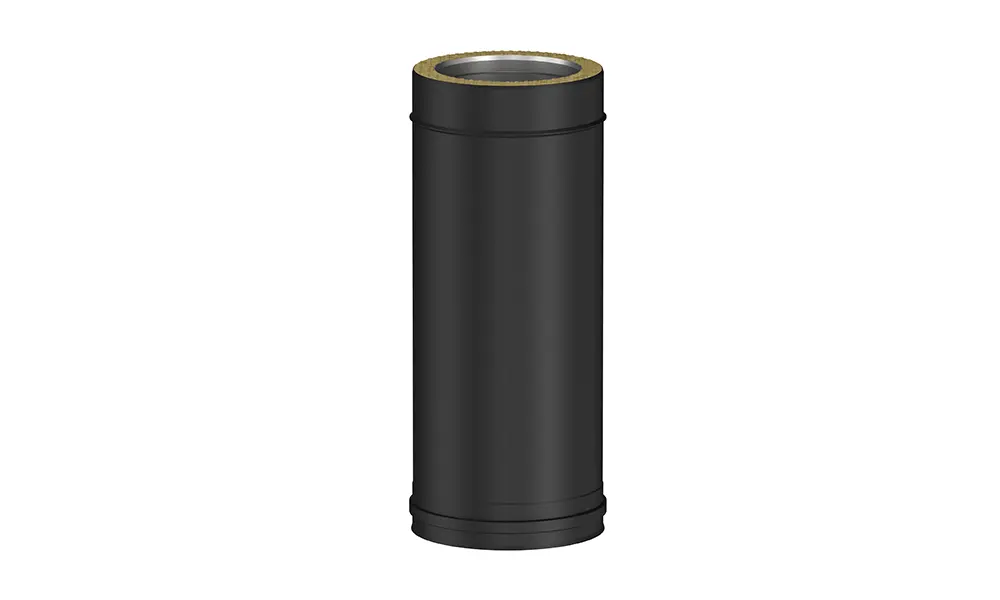

PSLXAB500 – Straight Pipe 500 mm

PSLXAB500 - Straight Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

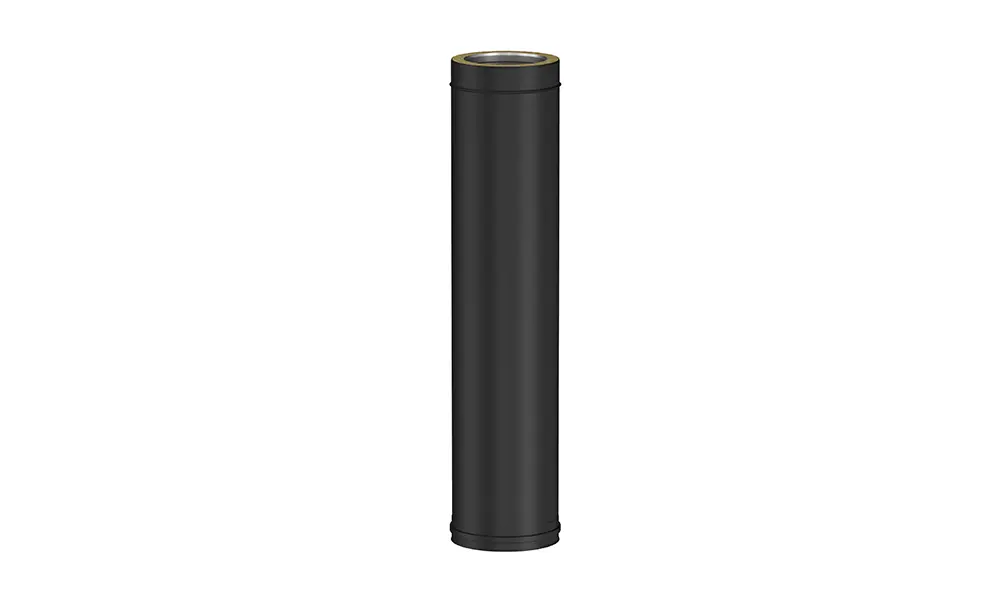

PSLXAB1000 – Straight Pipe 1000 mm

PSLXAB1000 - Straight Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

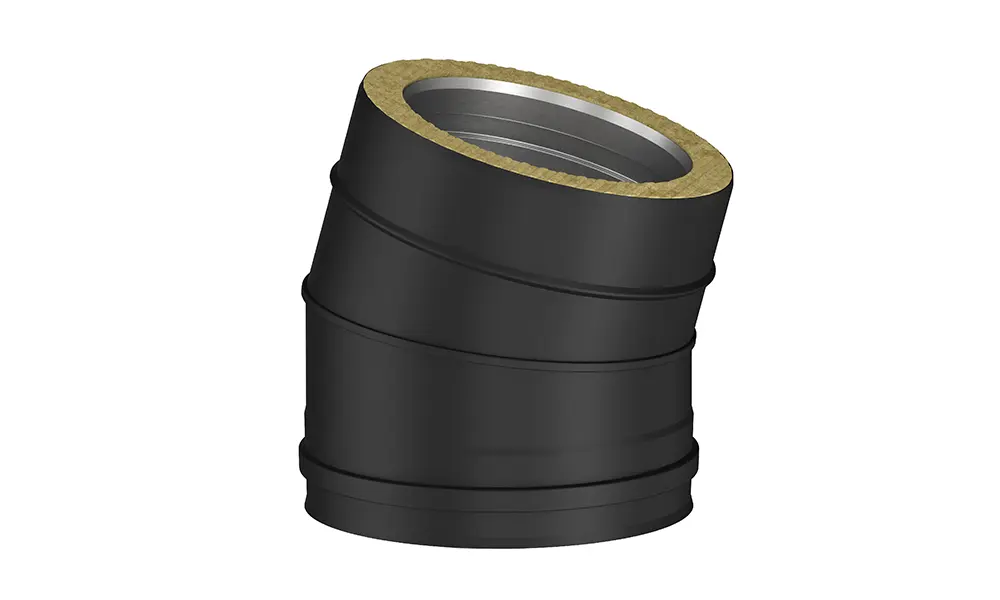

PSLXAD15 – 15º Elbow

PSLXAD15 - 15º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

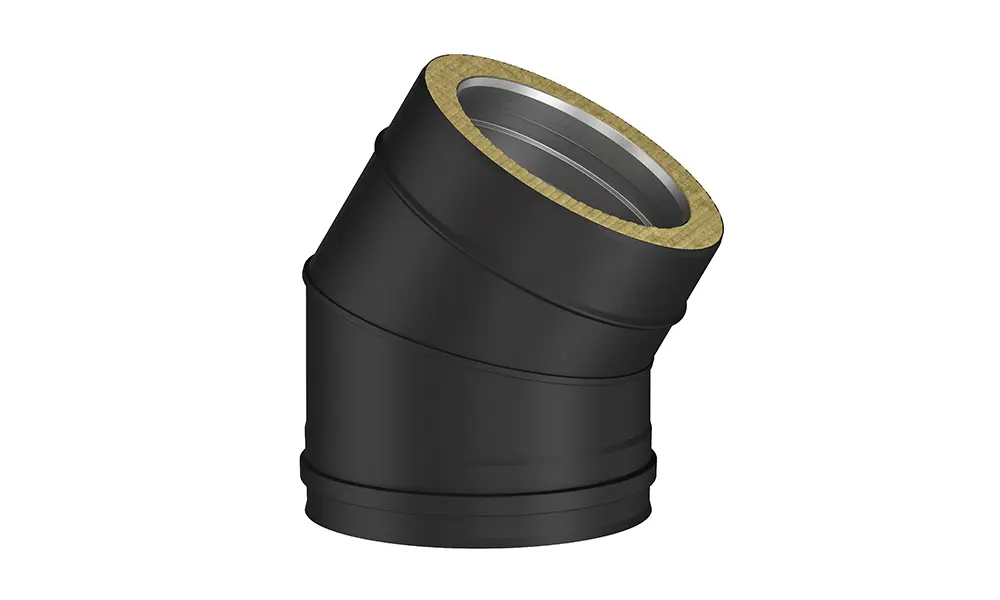

PSLXAD30 – 30º Elbow

PSLXAD30 - 30º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

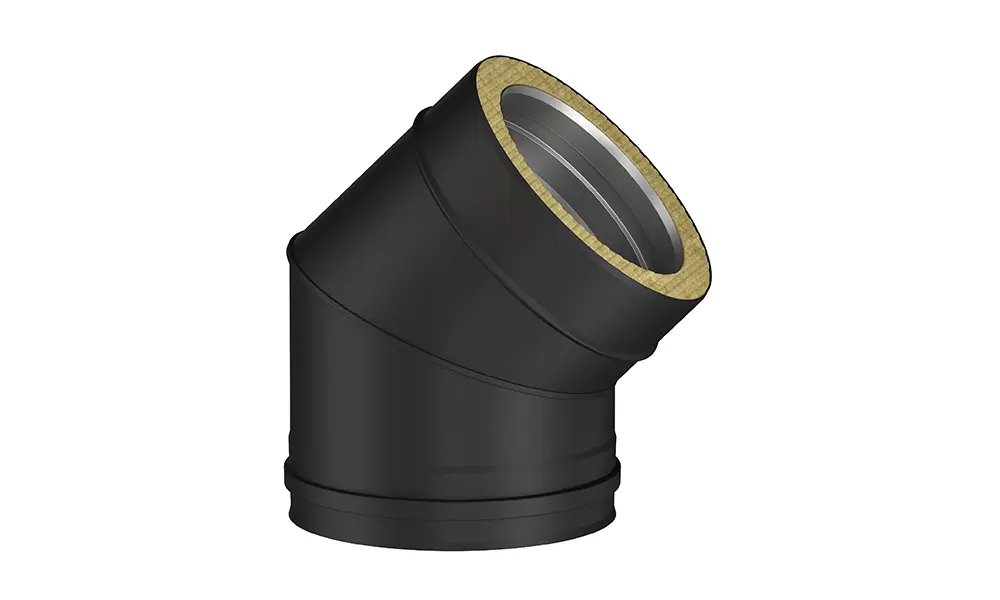

PSLXAD45 – 45º Elbow

PSLXAD45 - 45º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

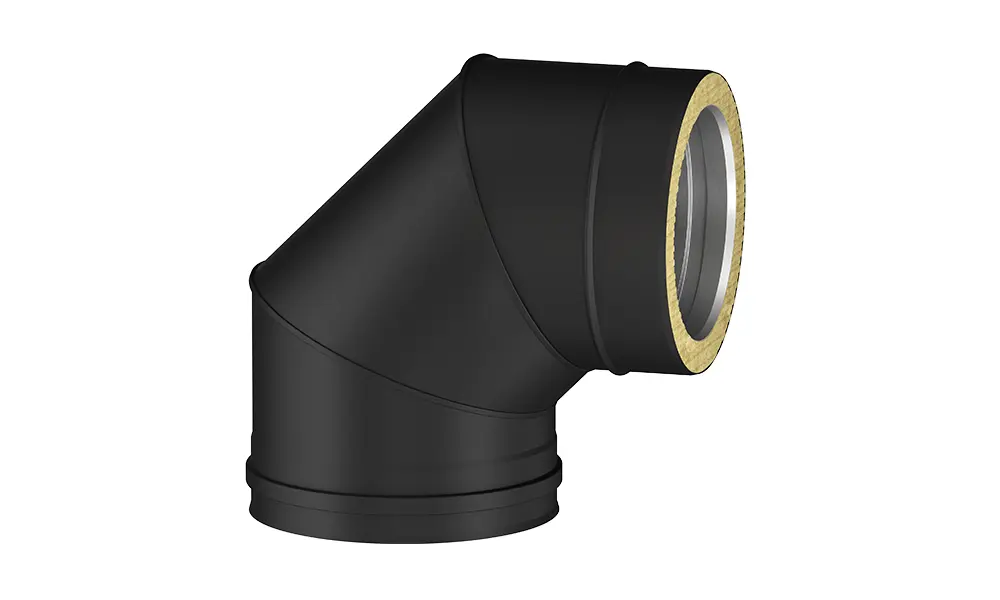

PSLXAD87 – 87º Elbow

PSLXAD87 - 87º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

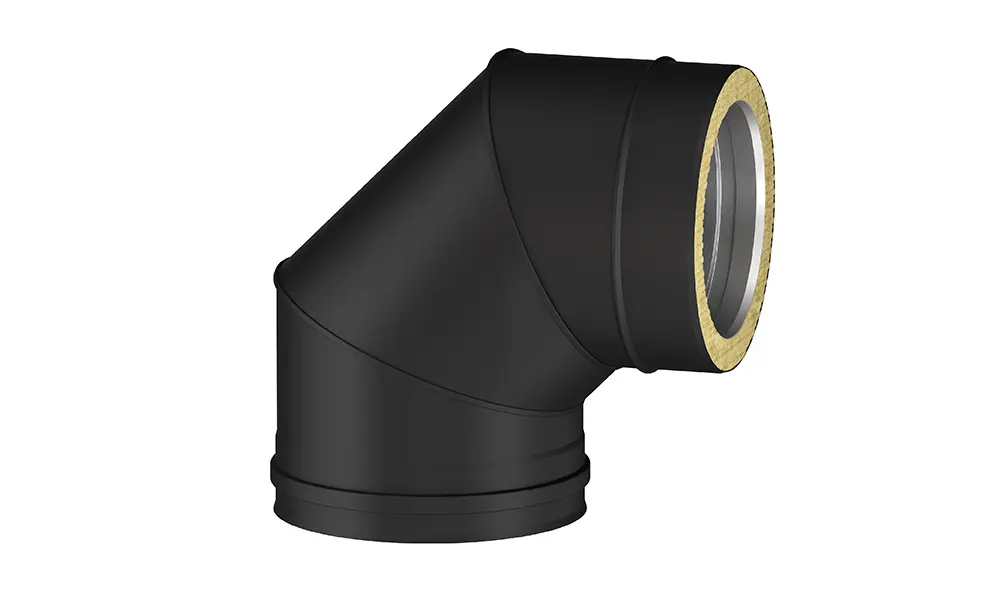

PSLXAD90 – 90º Elbow

PSLXAD90 - 90º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

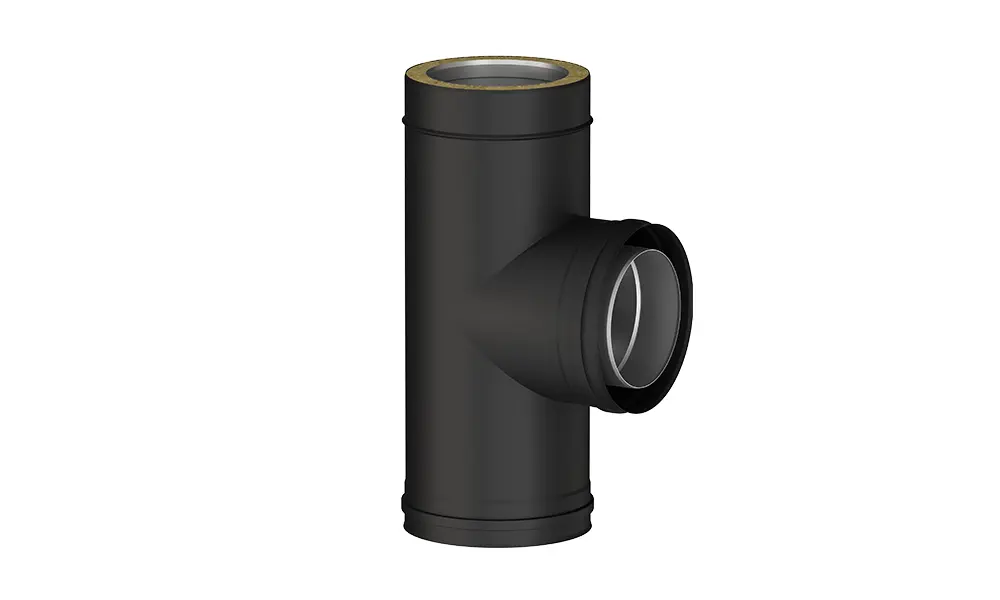

PSLXAT87 – T Piece 87º

PSLXAT87 - T Piece 87º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

PSLXAT90 – T Piece 90º

PSLXAT90 - T Piece 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

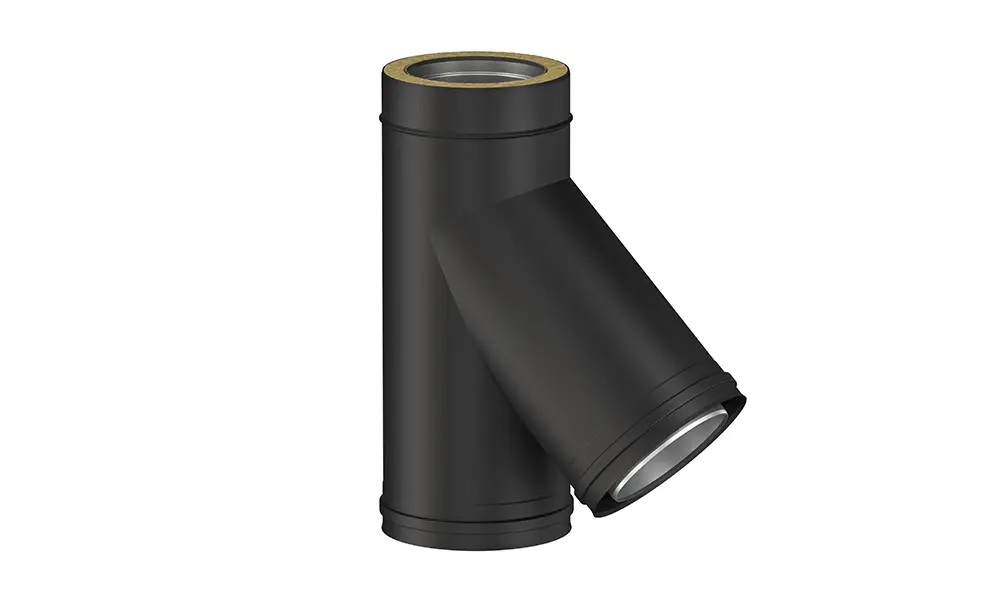

PSLXAT135 – T Piece 135º

PSLXAT135 - T Piece 135º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

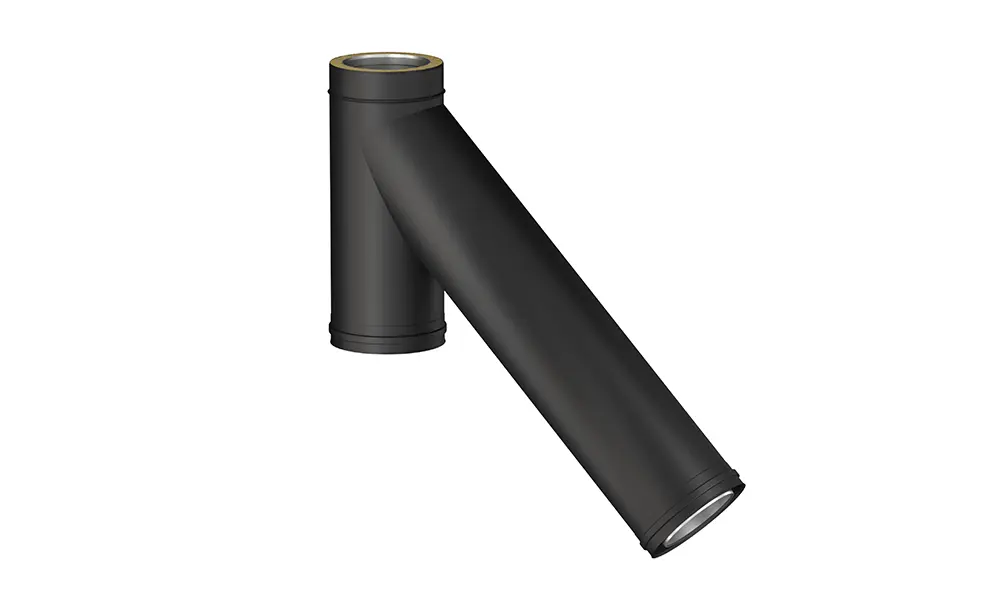

PSLXAT135L – T Piece 135º L

PSLXAT135L - T Piece 135º L[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

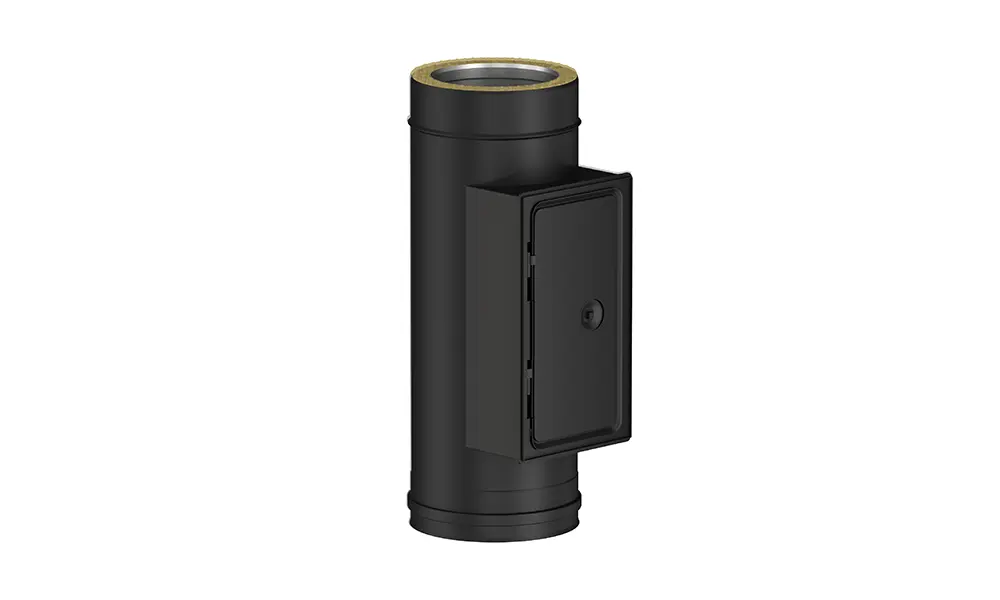

PSLXATKB -Pipe with Cleaning Door

PSLXATKB -Pipe with Cleaning Door[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

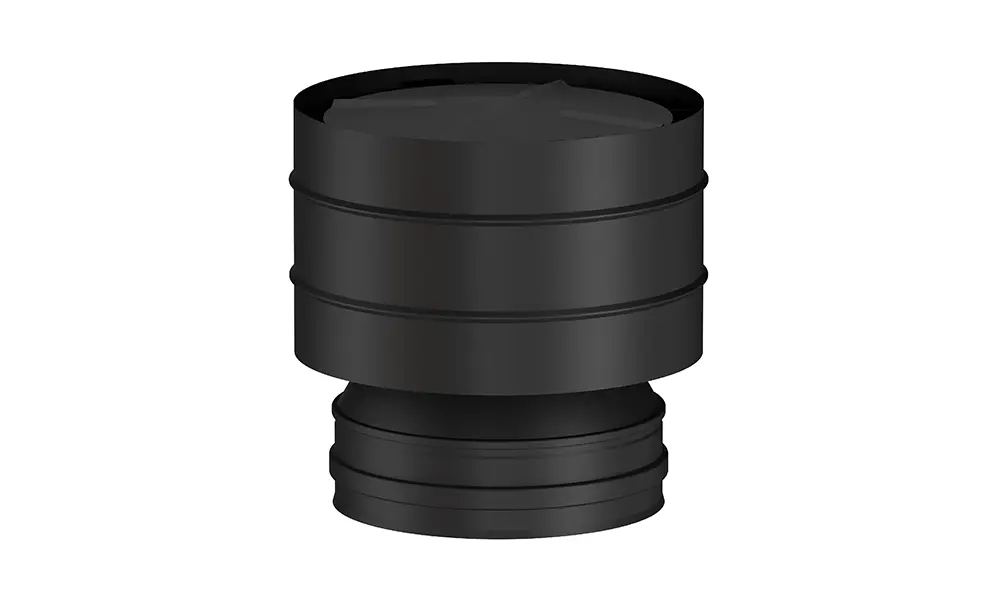

PSLXARKSS – Wind-Protected Hat S

PSLXARKSS - Wind-Protected Hat S[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

PSLXAKS – Cone Hat

PSLXAKS - Cone Hat[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

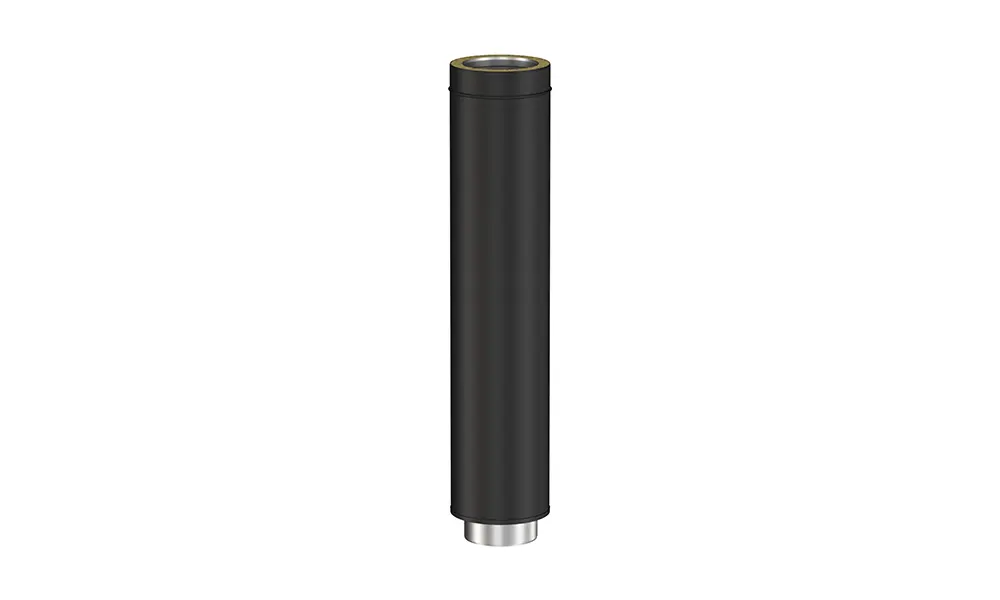

PSLXABB1000 – Start Pipe 1000 mm

PSLXABB1000 - Start Pipe1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

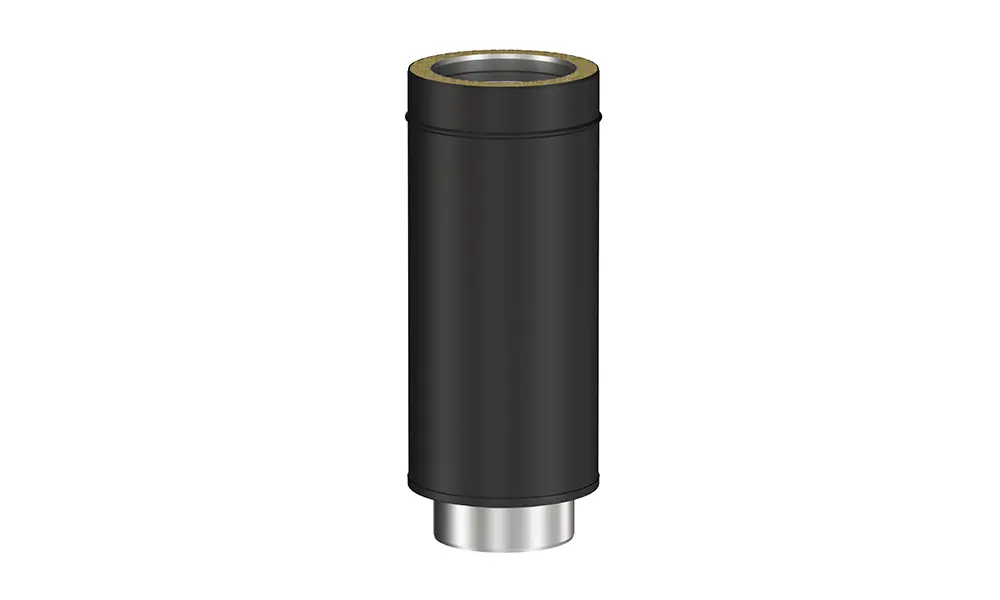

PSLXABB500 – Start Pipe 500 mm

PSLXABB500 - Start Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

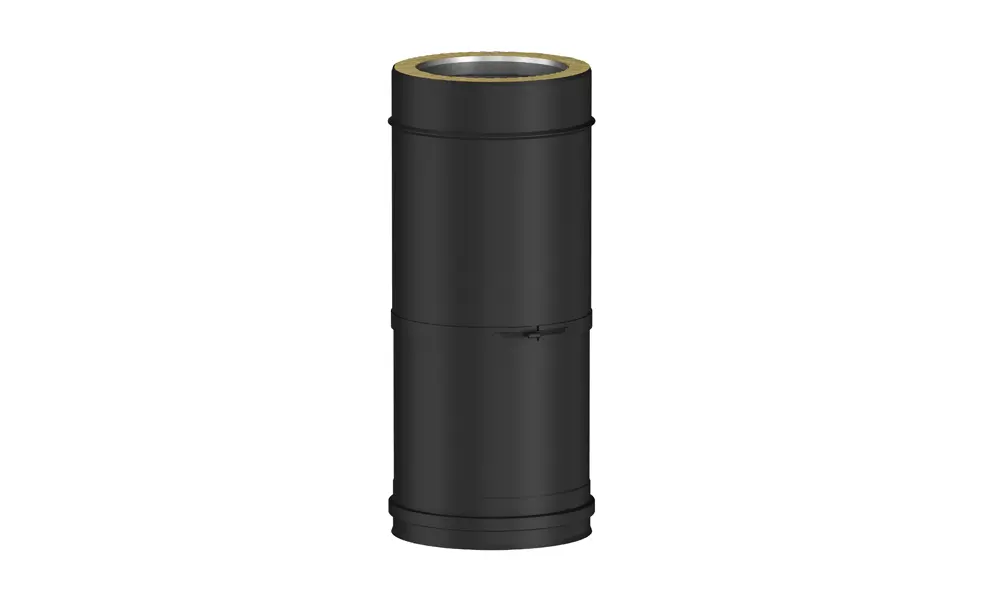

PSLXAUB47 -Insulated Telescopic Pipe Quarter (270 mm – 470 mm)

PSLXAUB47 -Insulated Telescopic Pipe Quarter (270 mm - 470 mm)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

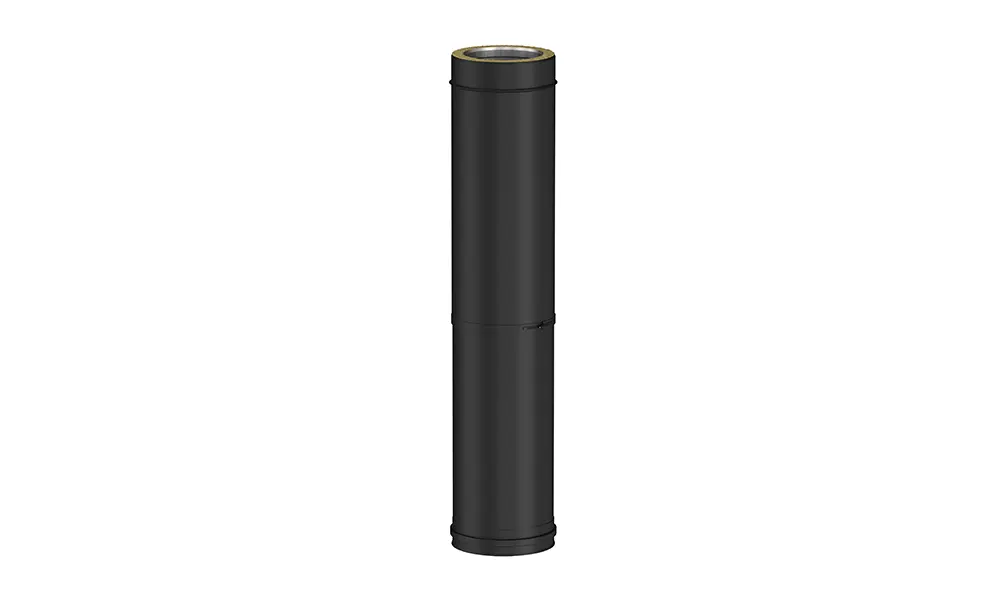

PSLXAUB90 – Insulated Telescopic Pipe Half (550 mm – 900 mm)

PSLXAUB90 - Insulated Telescopic Pipe Half (550 mm - 900 mm)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

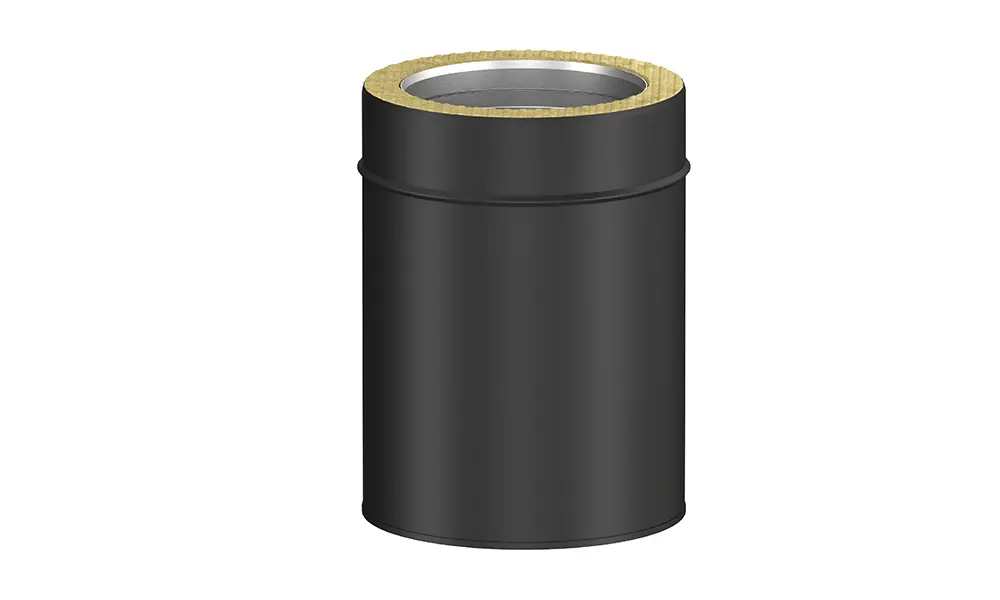

PSLXANB250 – Nisbus

PSLXANB250 - Nisbus [lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

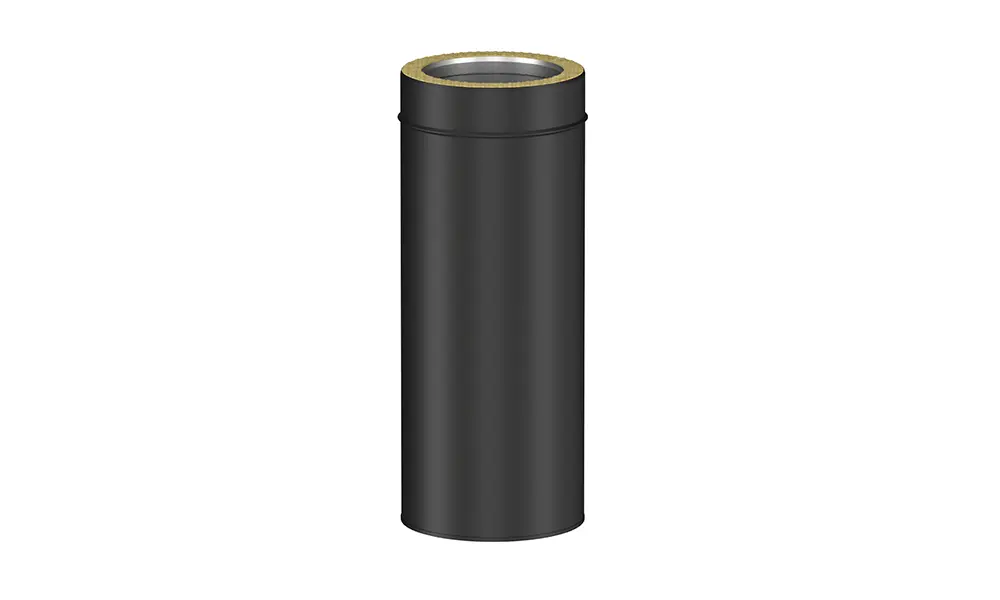

PSLXANB500 – Nisbus

PSLXANB500 - Nisbus[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

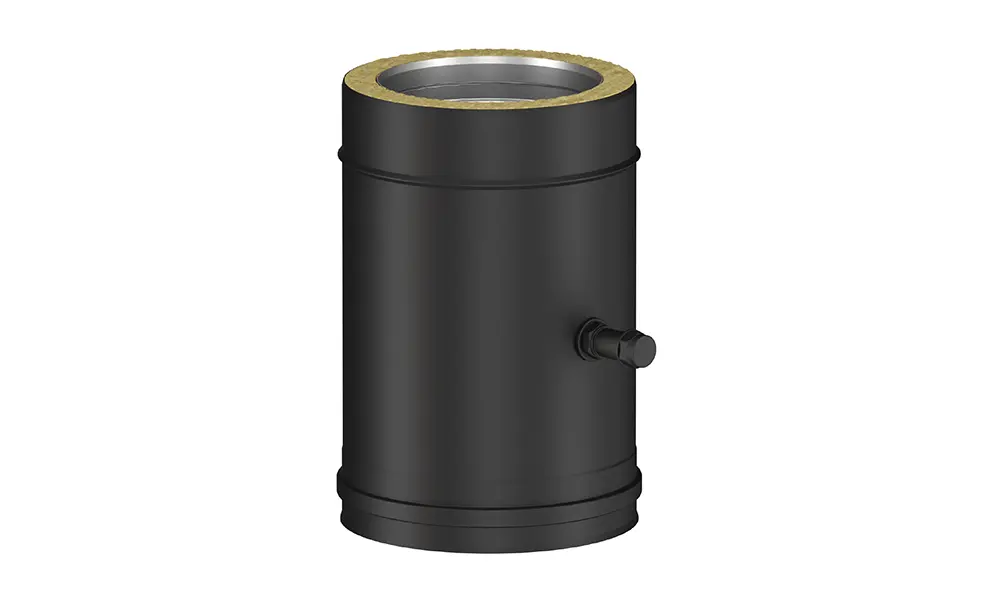

PSLXAOB250 – Measurement Pipe 250 mm

PSLXAOB250 - Measurement Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

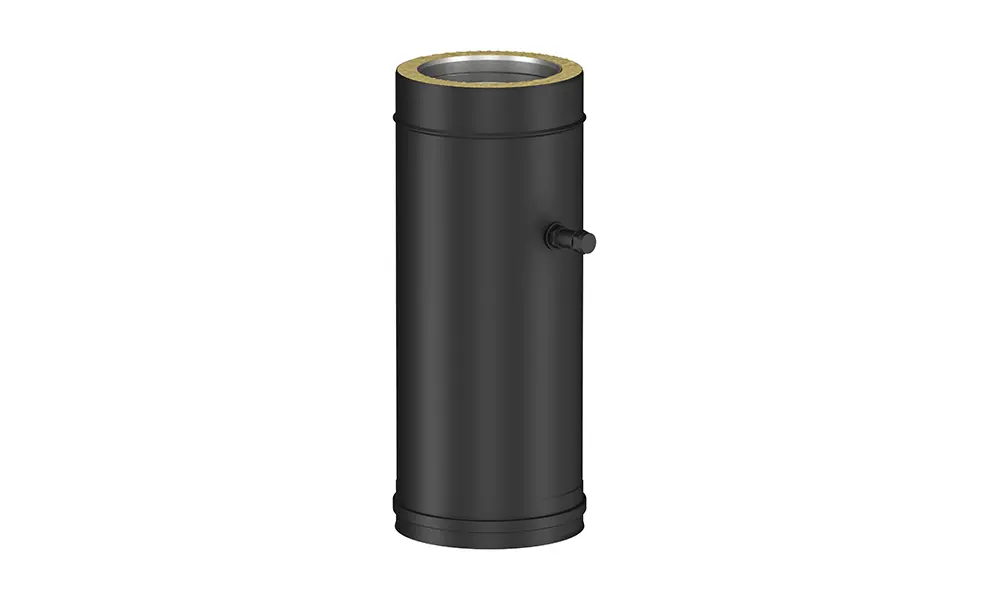

PSLXAOB500 – Measurement Pipe 500 mm

PSLXAOB500 - Measurement Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

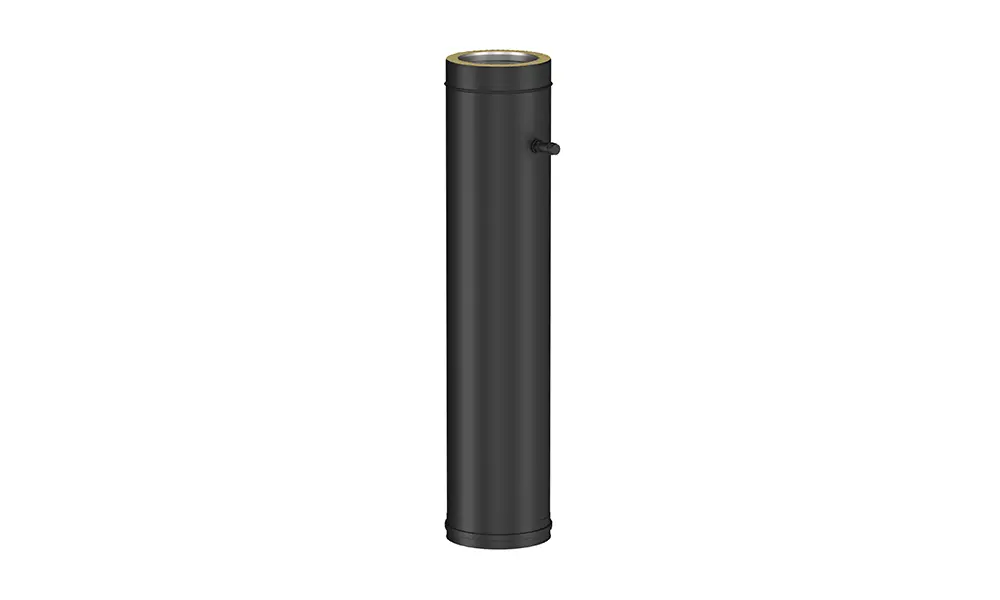

PSLXAOB1000 – Measurement Pipe 1000 mm

PSLXAOB1000 - Measurement Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

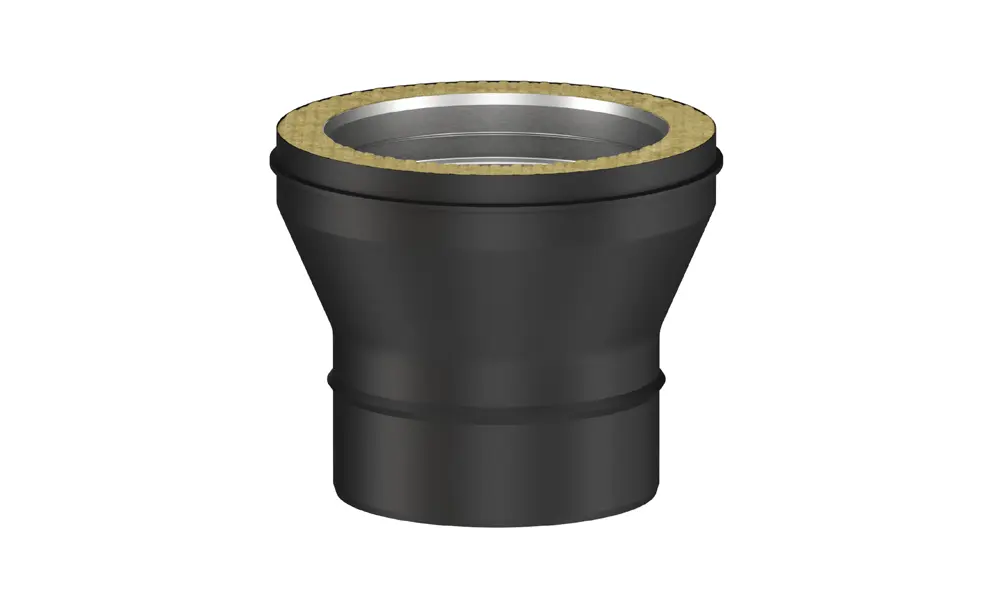

PSLXATCR – Reduction (Single to Double)

PSLXATCR - Reduction (Single to Double)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

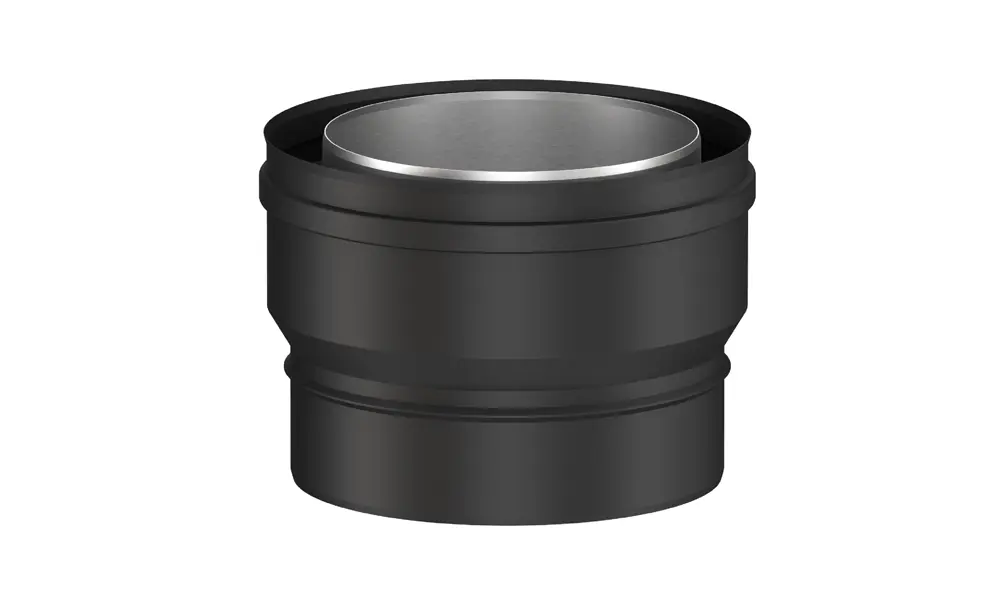

PSLXACCR – Reduction (Double to Double)

PSLXACCR - Reduction (Double to Double)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

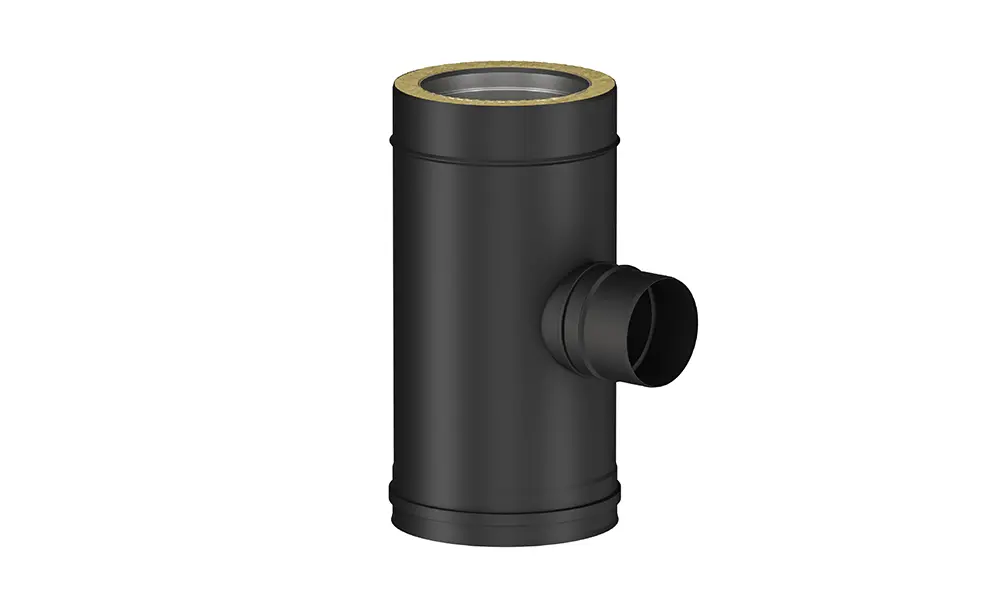

PSLXACOB250 – 2” Roof Measurement Pipe 250 mm

PSLXACOB250 - 2'' Roof Measurement Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

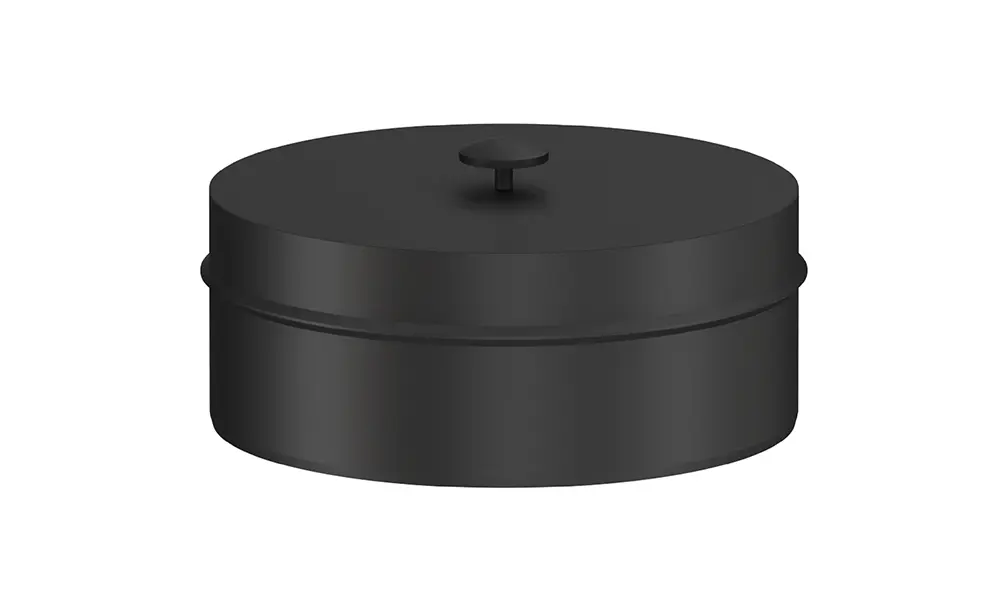

PSLXADTK – Circular Cleaning Cap

PSLXADTK - Circular Cleaning Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

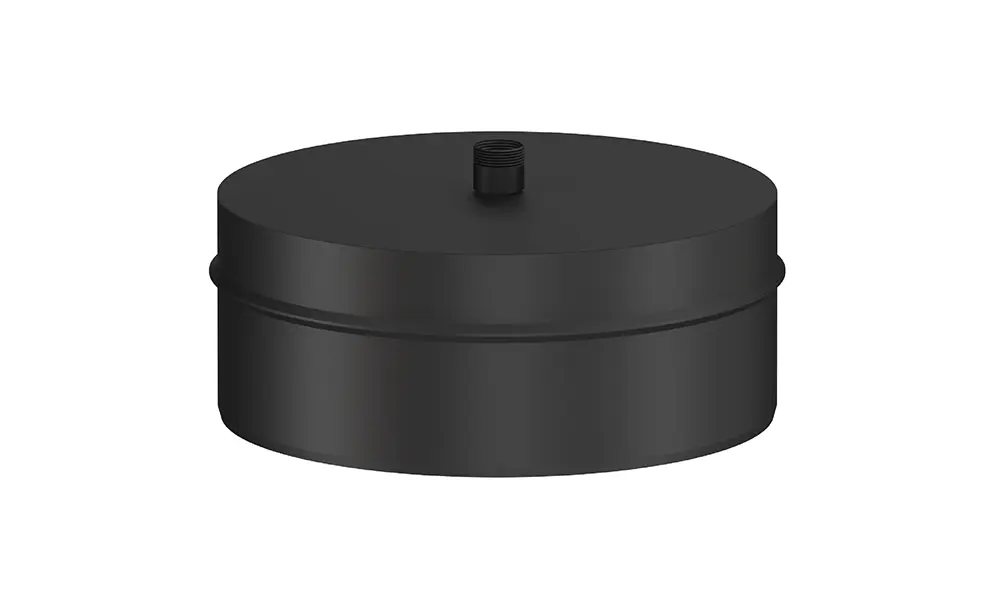

PSLXAYT – Condensation Collector

PSLXAYT - Condensation Collector[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

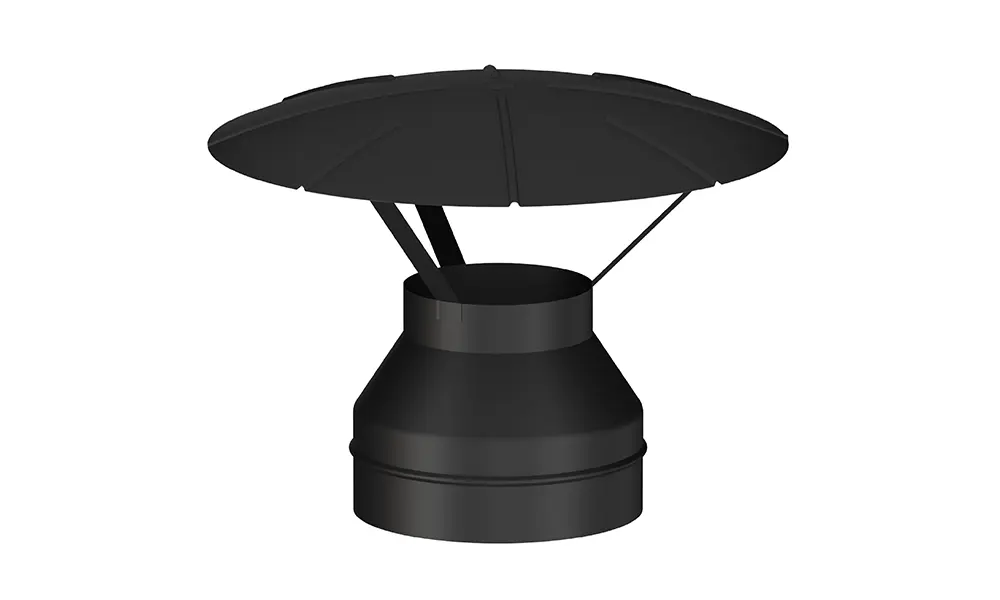

PSLXAYKS – Rain-Protected Hat

PSLXAYKS - Rain-Protected Hat[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

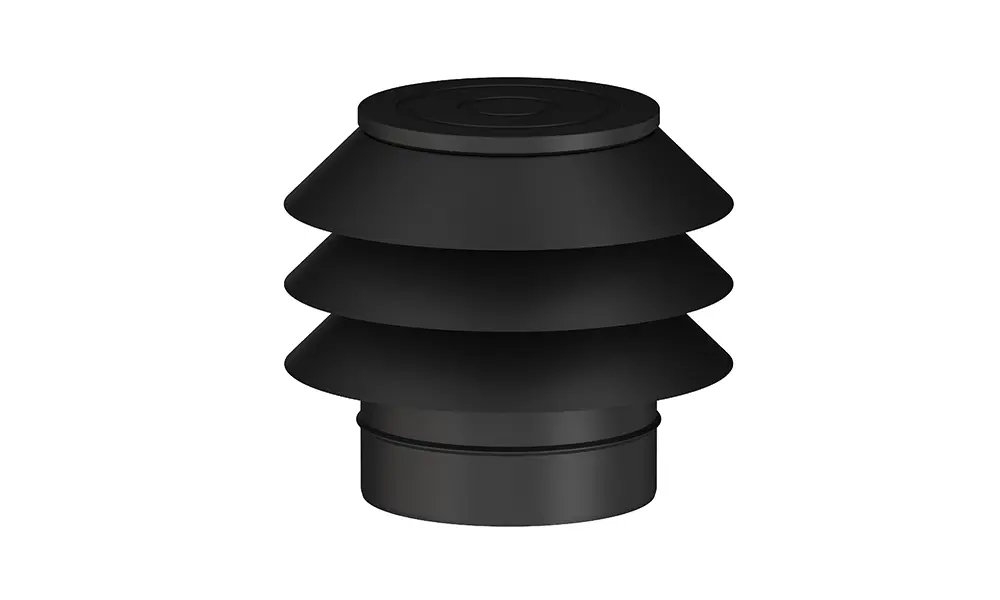

PSLXARKSL – Wind-Protected Hat L

PSLXARKSS - Wind-Protected Hat[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

PSLXARKSS – Wind-Protected Hat

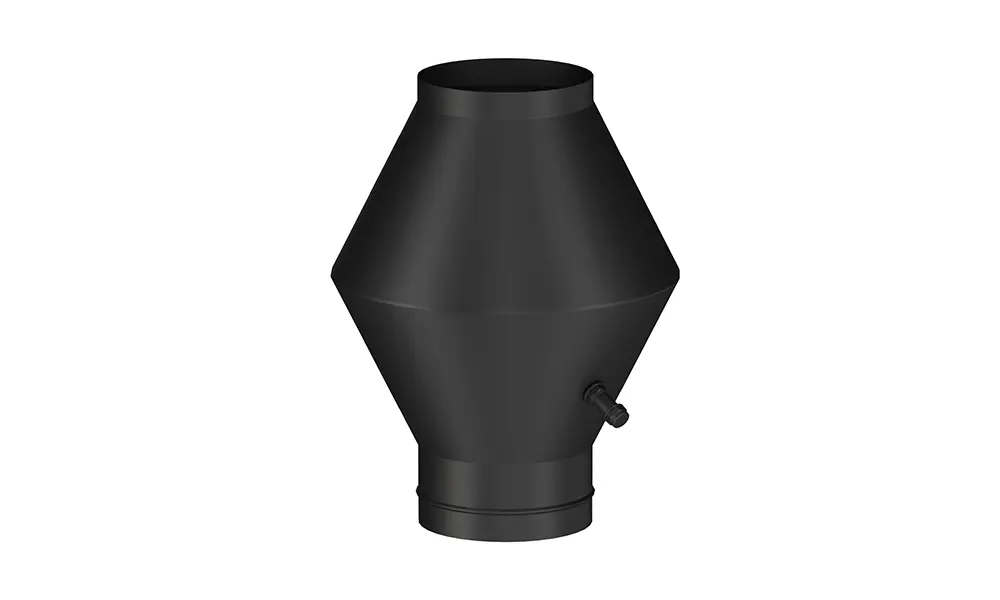

PSLXAJC – Jet Cap

PSLXAJC - Jet Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

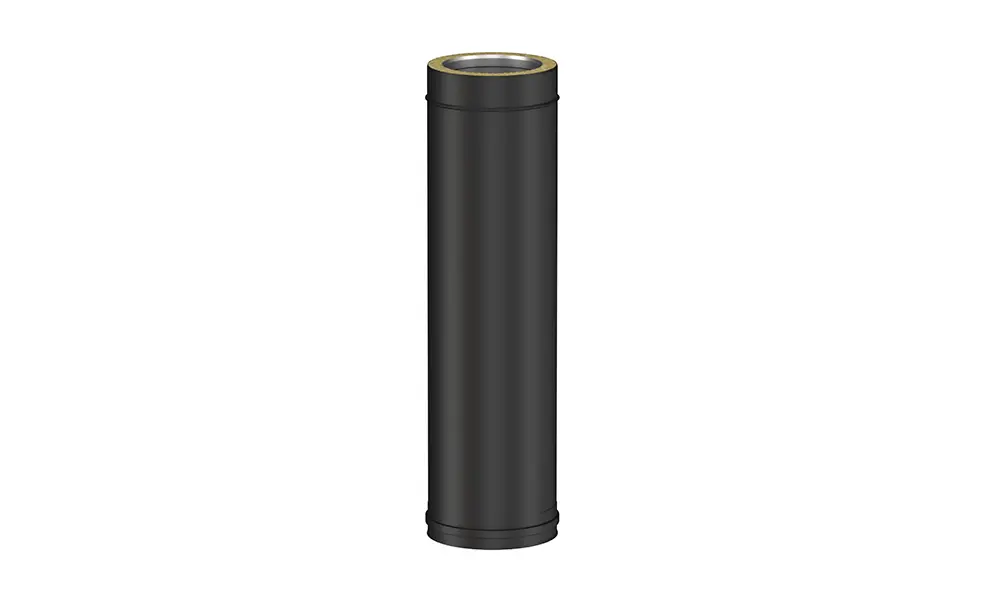

PSLXAB800 – Pipe 800 mm

PSLXAB800 - Pipe 800 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

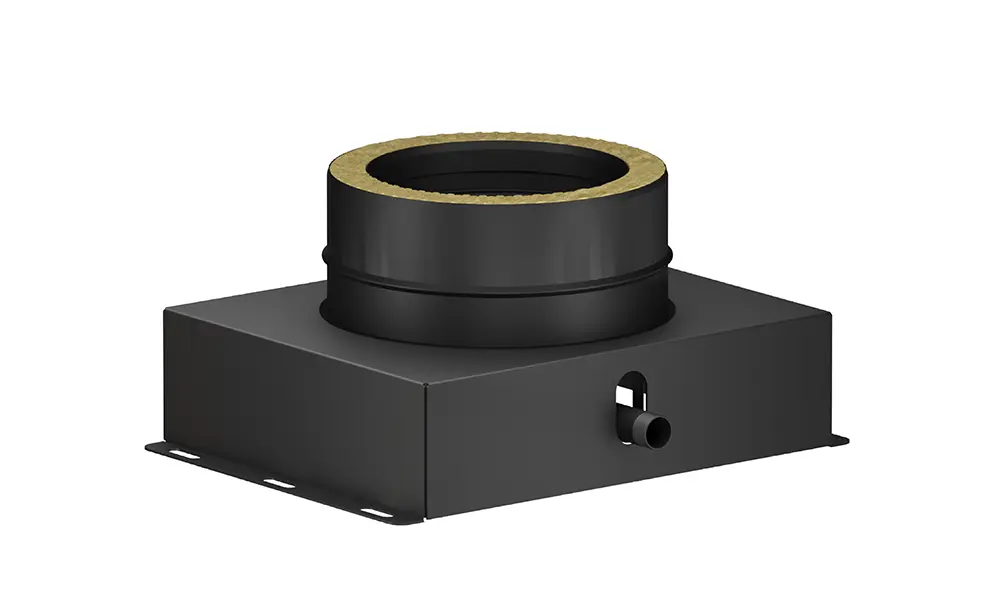

PSLXAYTT – Base Support With Drain

PSLXAYTT - Base Support With Drain[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

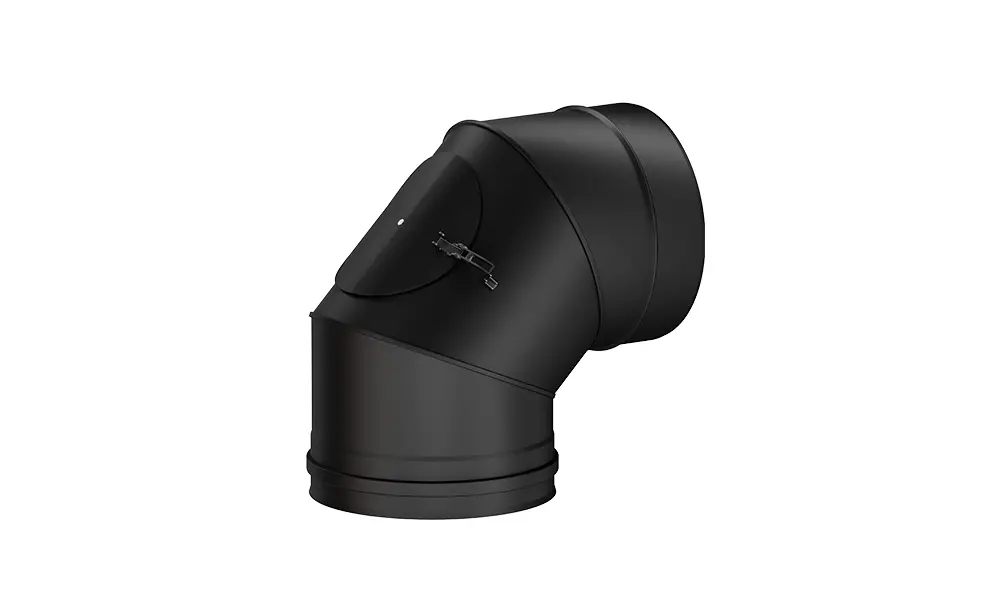

PSLXADİ90 – 90º Elbow With Inspection

PSLXADİ90 - 90º Elbow With Inspection[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

Accessories for Double Wall Chimney Systems

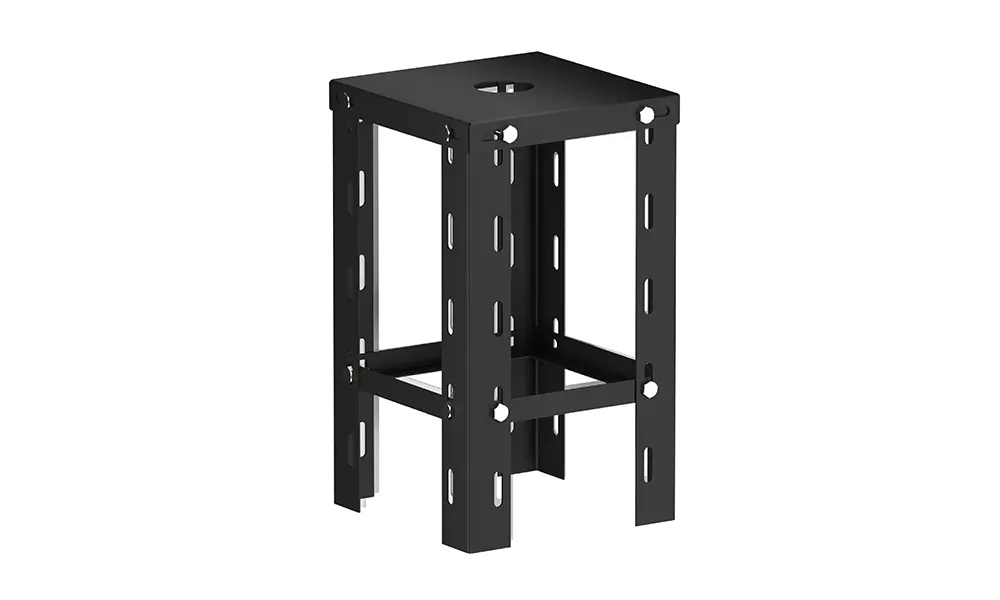

PAKSLXATT – Base Support

PAKSLXATT - Base Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

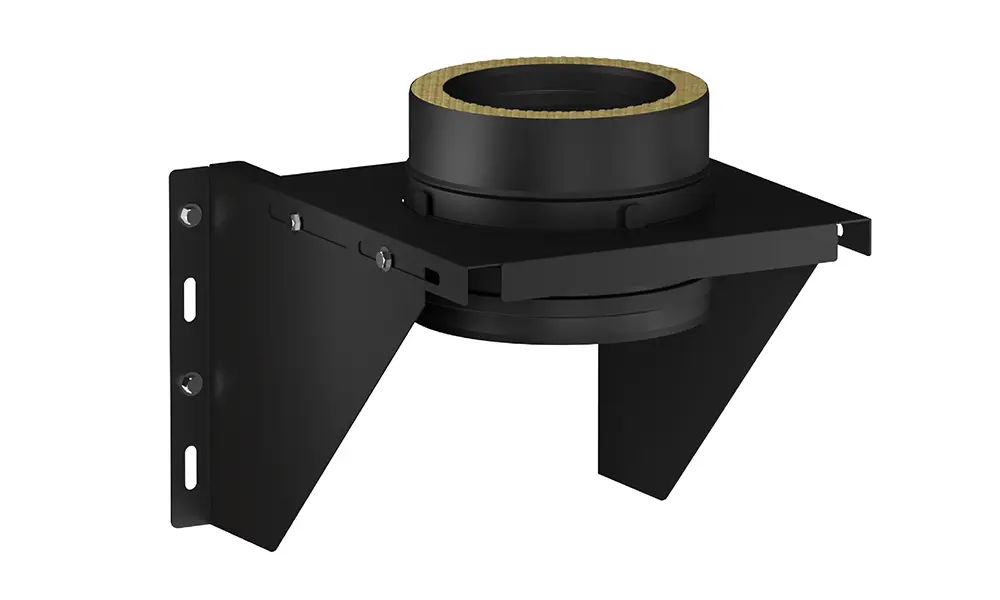

PAKSLXABTS – Wall Support

PAKSLXABTS – Wall Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

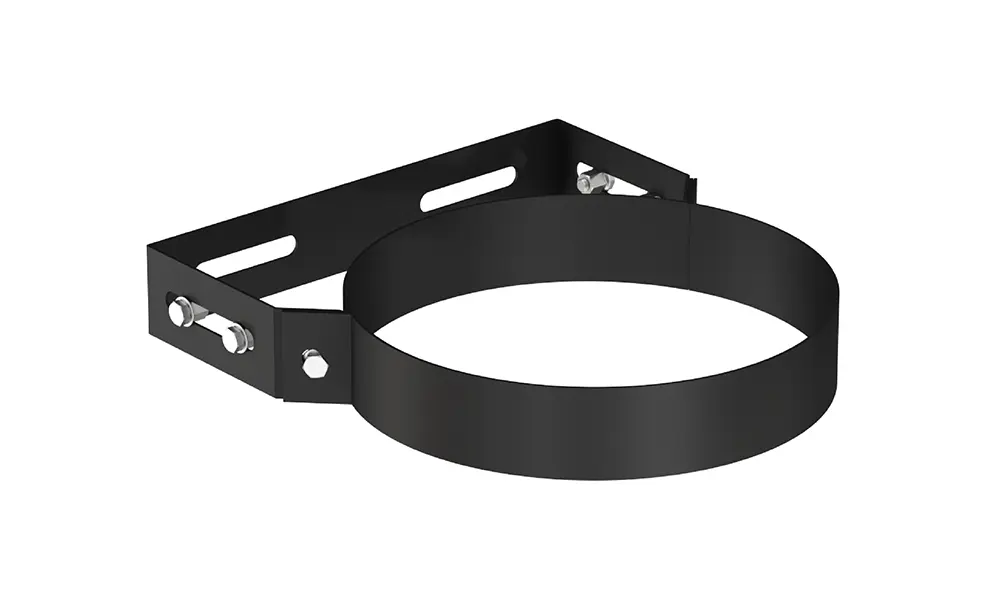

PAKSLXADSK – Wall Bracket

PAKSLXADSK - Wall Bracket[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

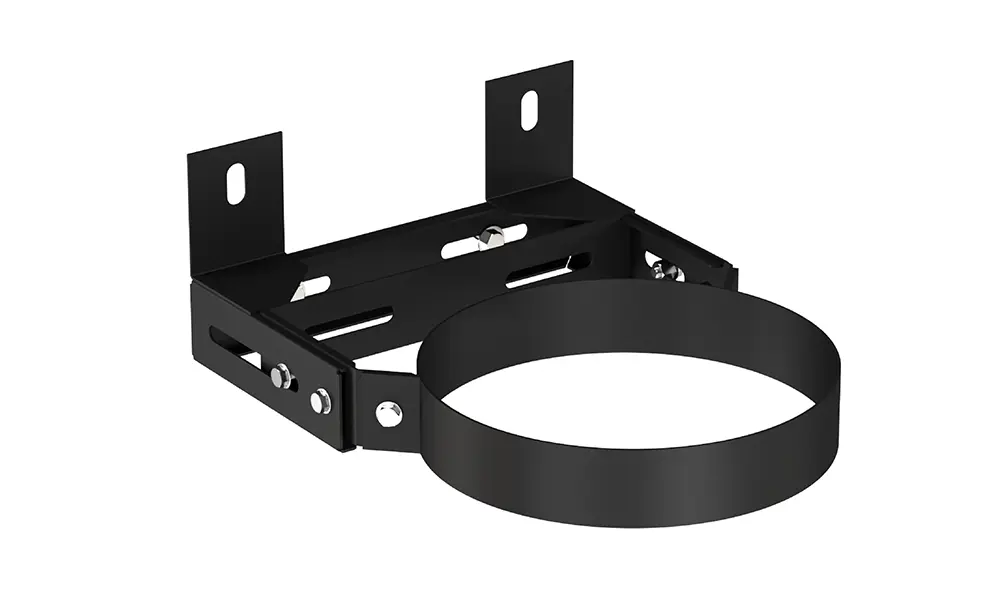

PAKSLXADSK11 – Wall Bracket 11

PAKSLXADSK11 - Wall Bracket 11[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

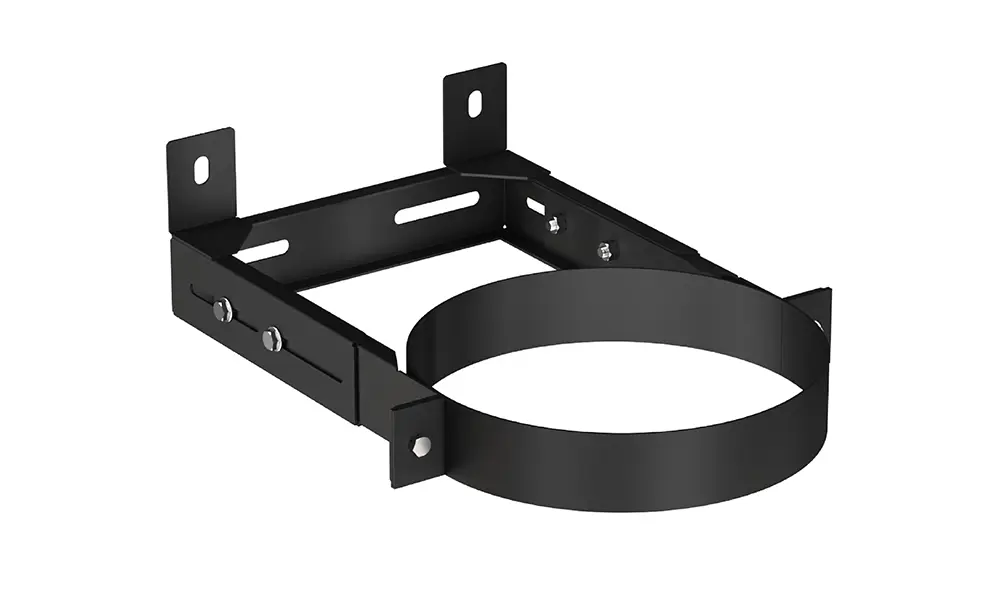

PAKSLXADSK21 – Wall Bracket 21

PAKSLXADSK21 - Duvara Sabitleme Kelepçesi 21[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

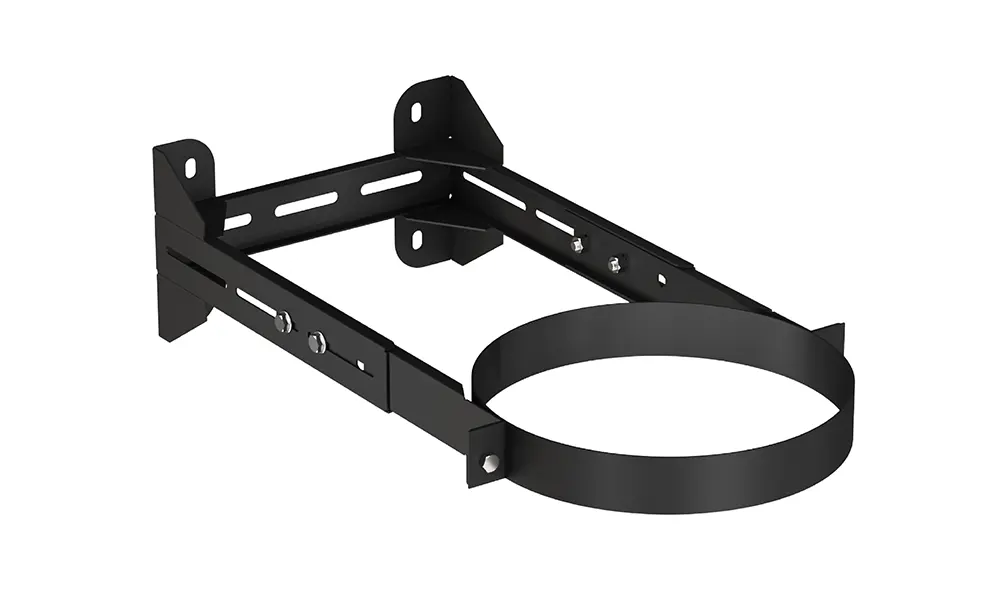

PAKSLXADSK35 – Wall Bracket 35

PAKSLXADSK35 - Wall Bracket 35[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

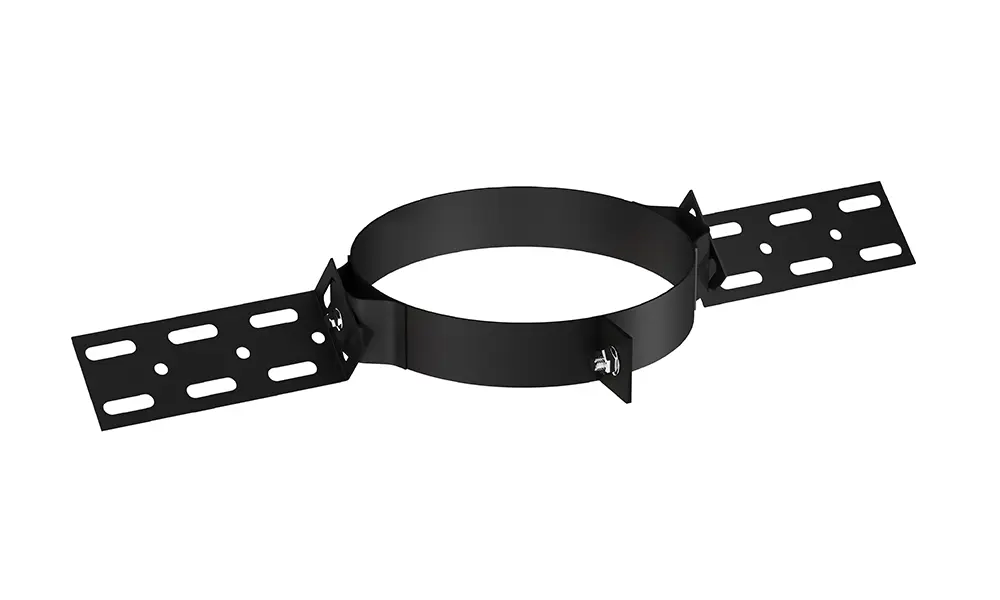

PAKSLXAUK – Top Clamp

PAKSLXAUK - Top Clamp[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

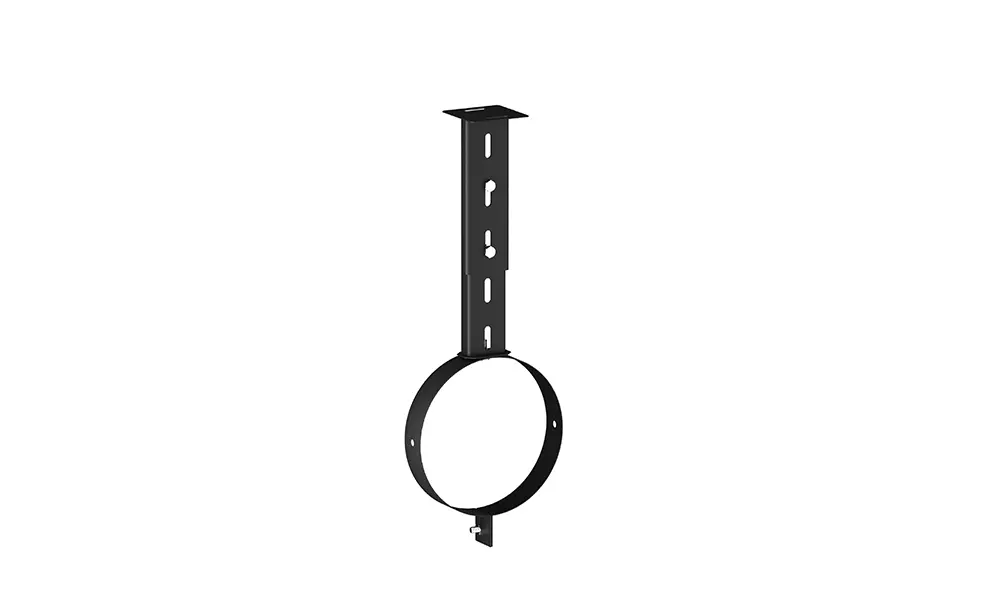

PAKSLXAHT – Long Crescent Carrier

PAKSLXAHT - Long Crescent Carrier[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

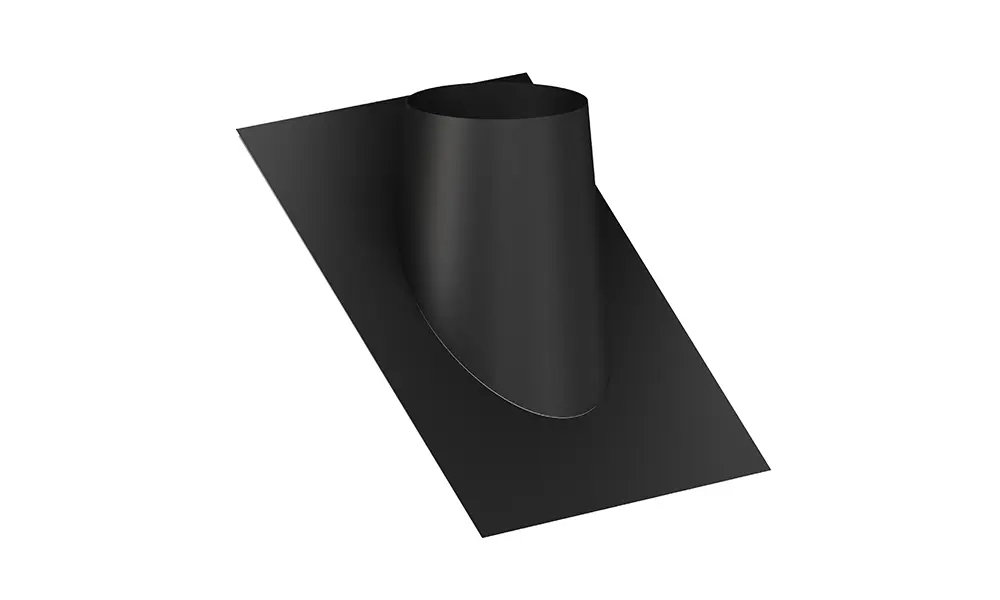

PAKSLXACO90 – Roof Covering Coating 90º

PAKSLXACO90 - Roof Covering Coating 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

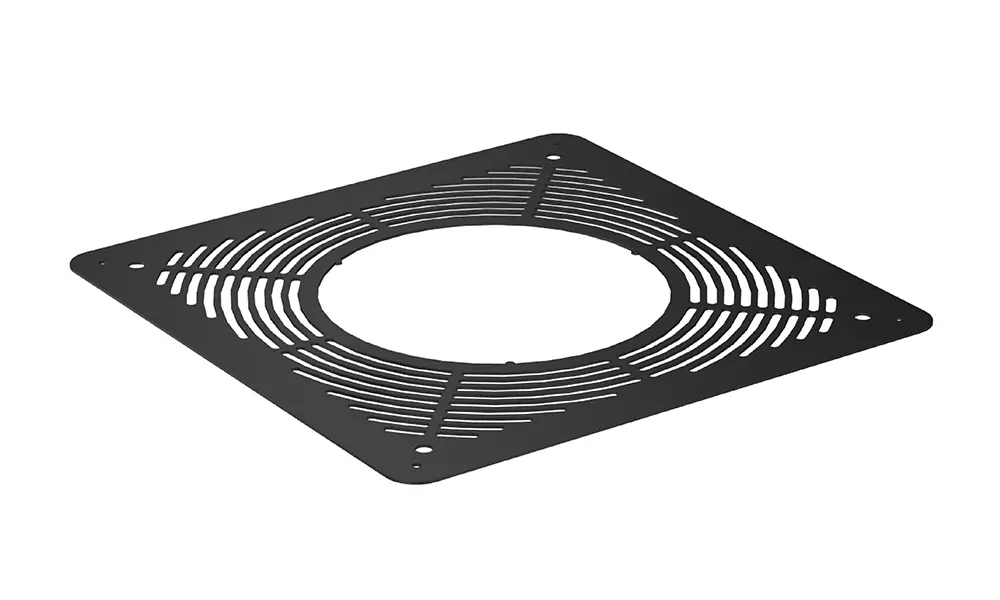

PAKSLXAYKP – Fire Protection Plate

PAKSLXAYKP - Fire Protection Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

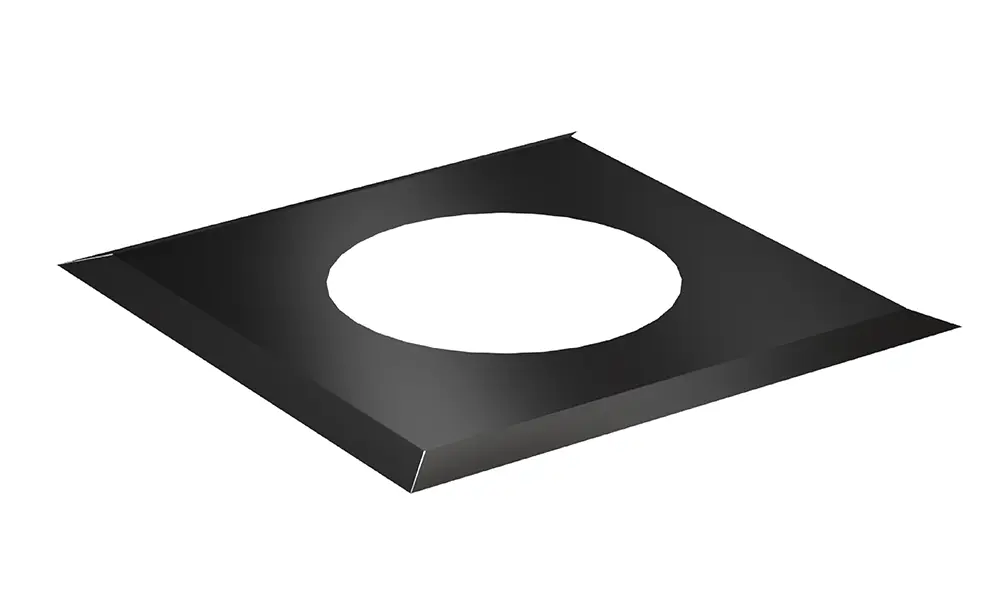

PAKSLXAYKPK – Fire Protection Plate Cover

PAKSLXAYKPK - Fire Protection Plate Cover[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

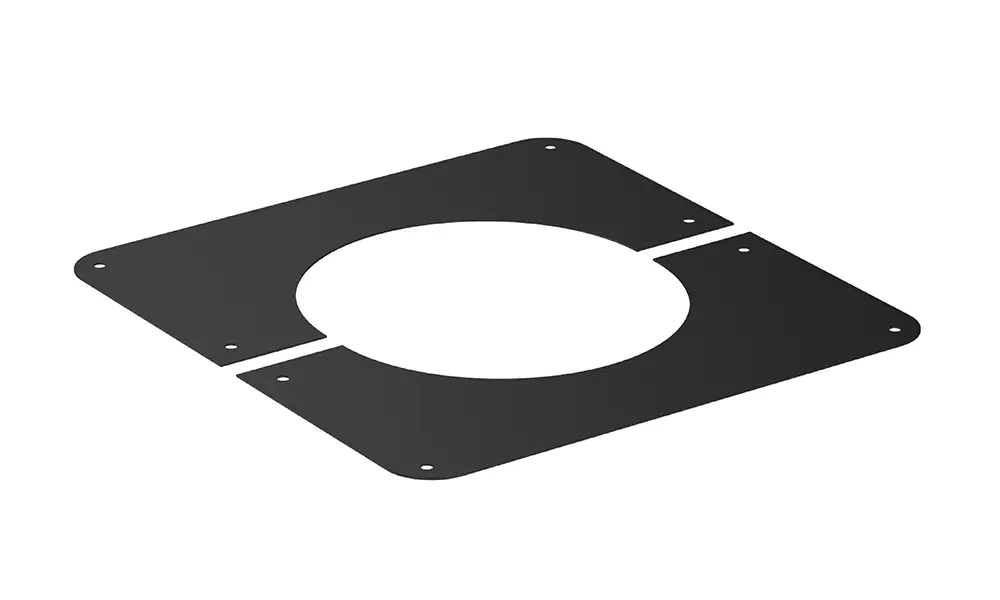

PAKSLXADK45 – Wall Covering 45°

PAKSLXADK45 - Wall Covering 45°[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

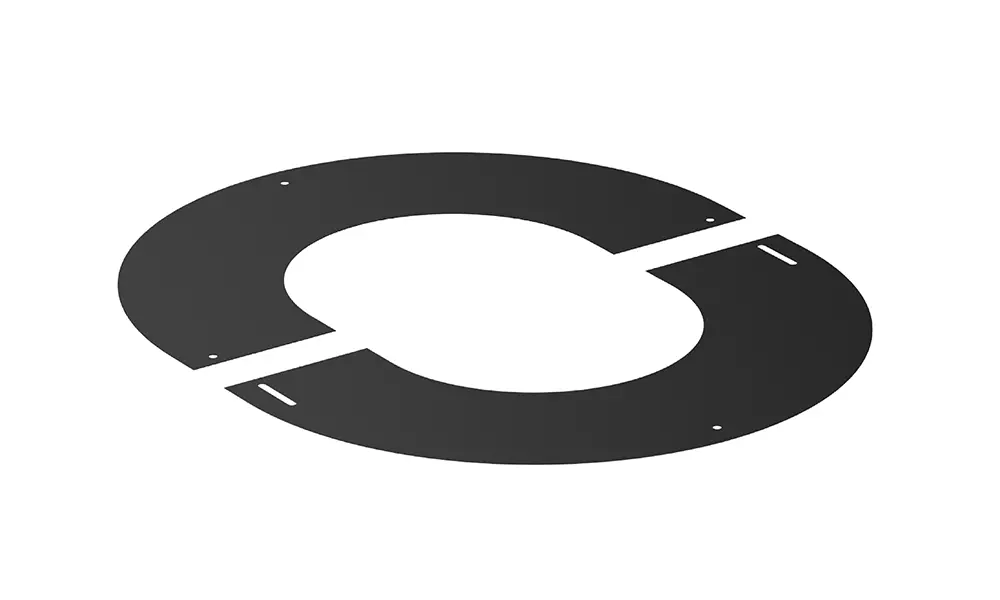

PAKSLXAOK45 – Oval Wall Plate 45°

PAKSLXAOK45 - Oval Wall Plate 45°[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

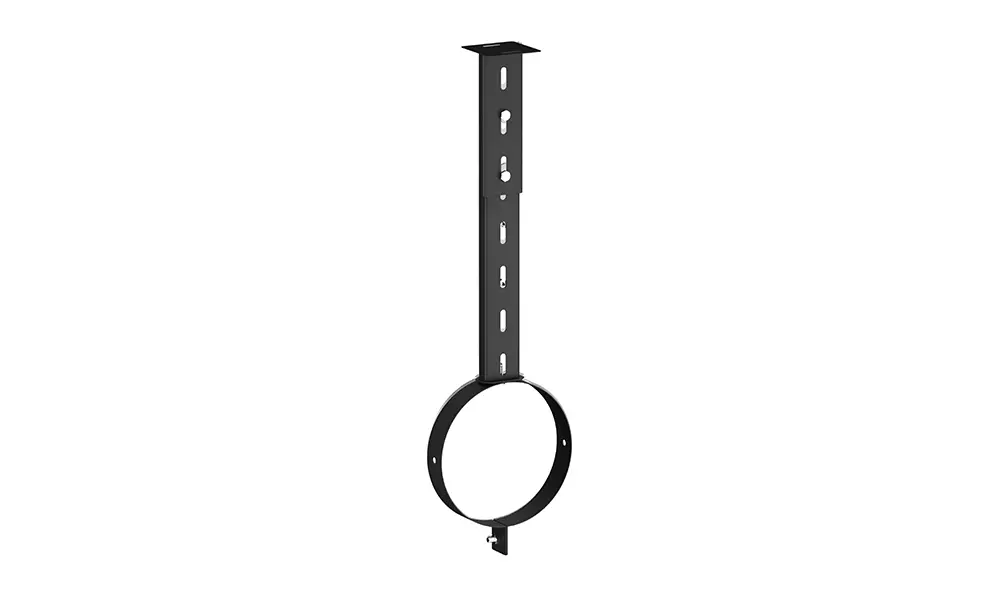

PAKSLXAHTU – Long Crescent Carrier

PAKSLXAHTU - Long Crescent Carrier[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

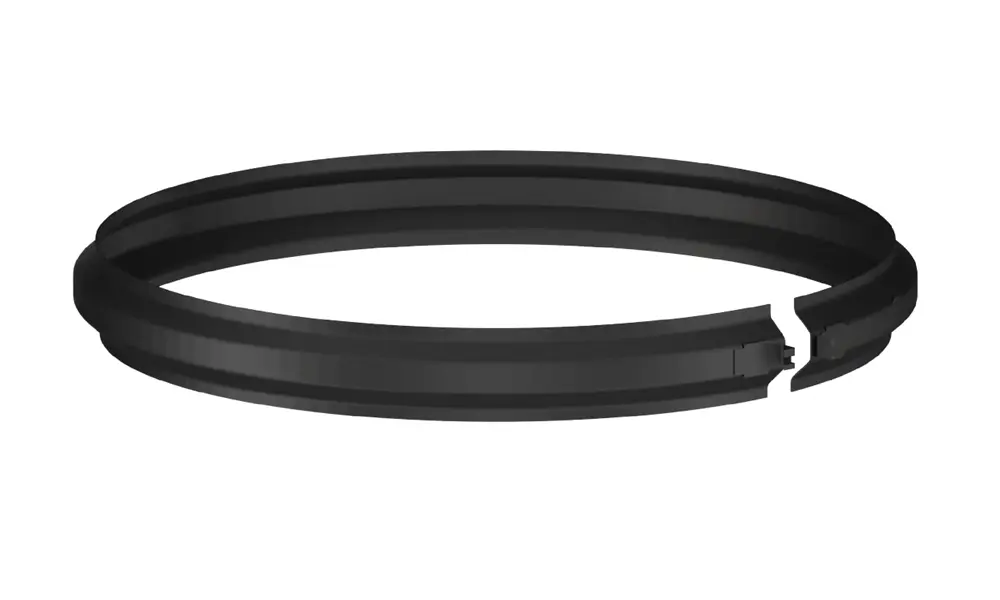

PAKSLXABKİ – Thin Coupling Clamp

PAKSLXABKİ - Thin Coupling Clamp[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

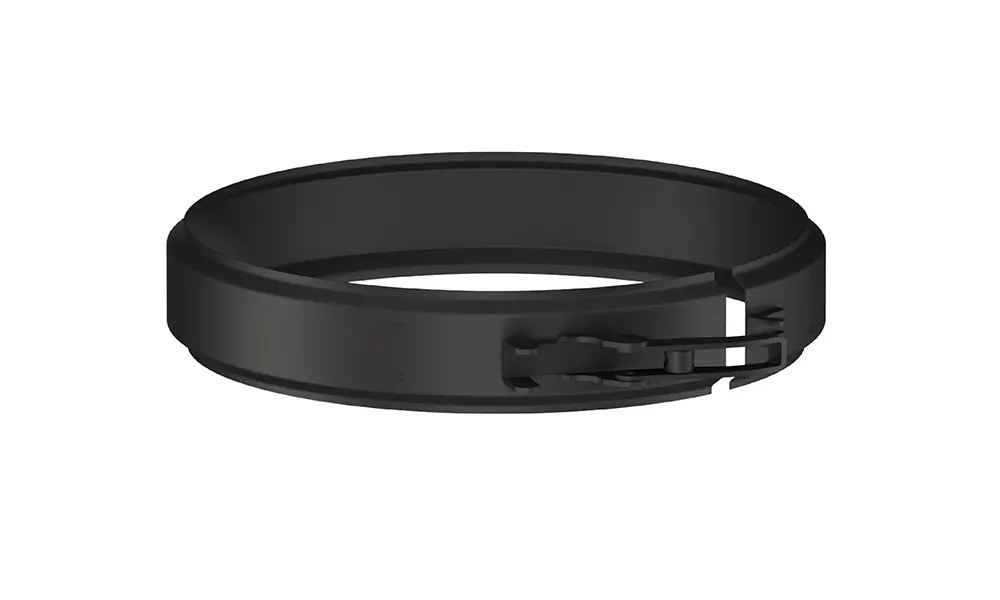

PAKSLXABK – Coupling Clamp

PAKSLXABK - Coupling Clamp[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

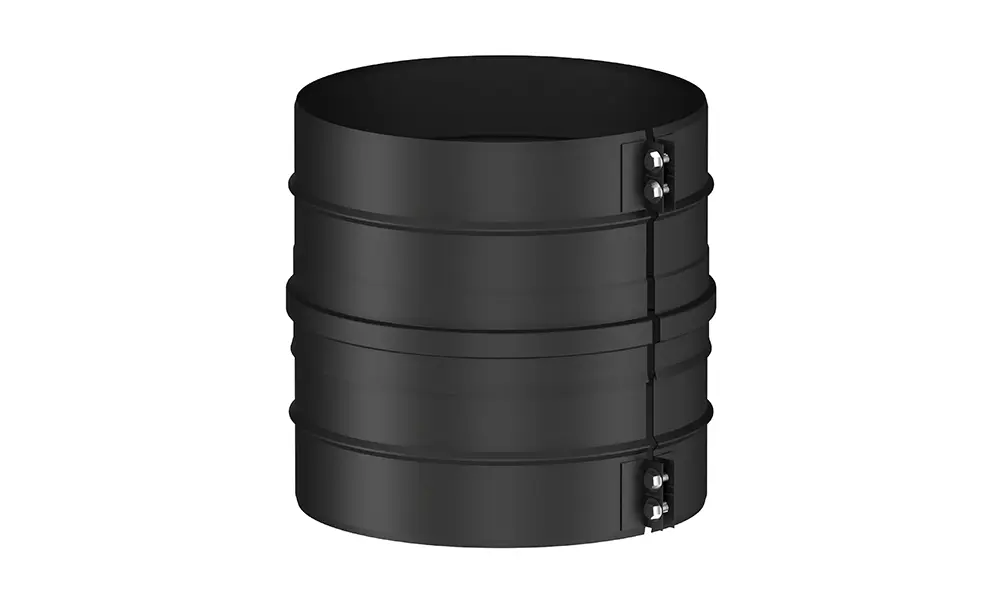

PAKSLXABKT – Coupling Clamp Carrier

PAKSLXABKT - Coupling Clamp Carrier[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

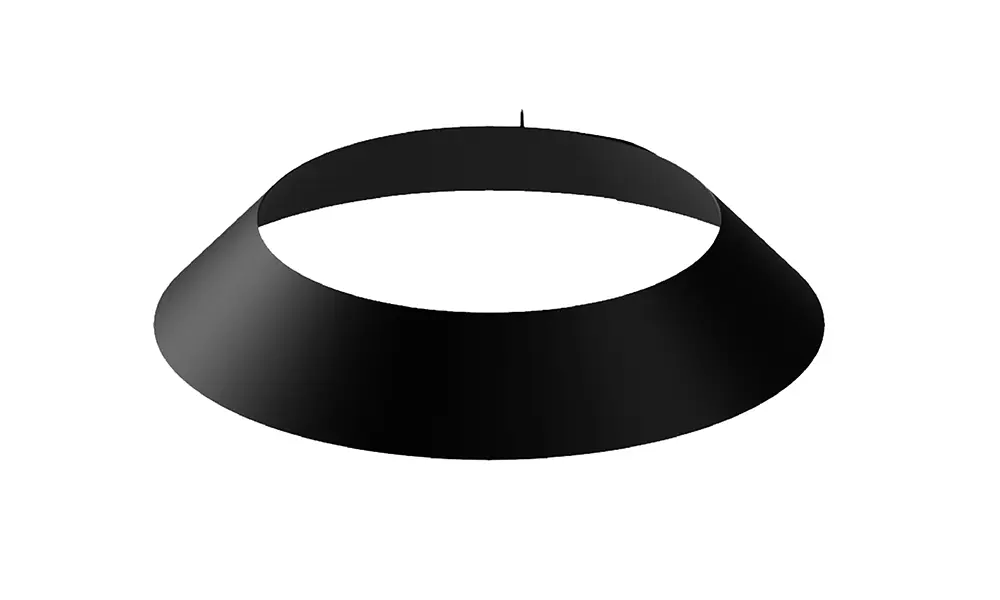

PAKSLXACOB – Roof Covering Brace

PAKSLXACOB - Roof Covering Brace[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

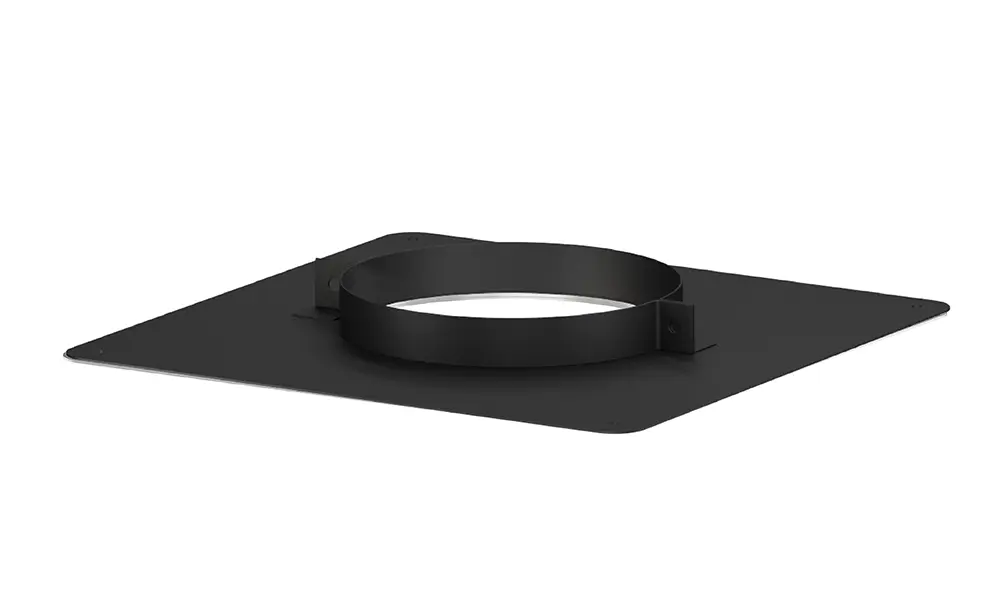

PAKSLXAKD – Tile Plate

PAKSLXAKD - Tile Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

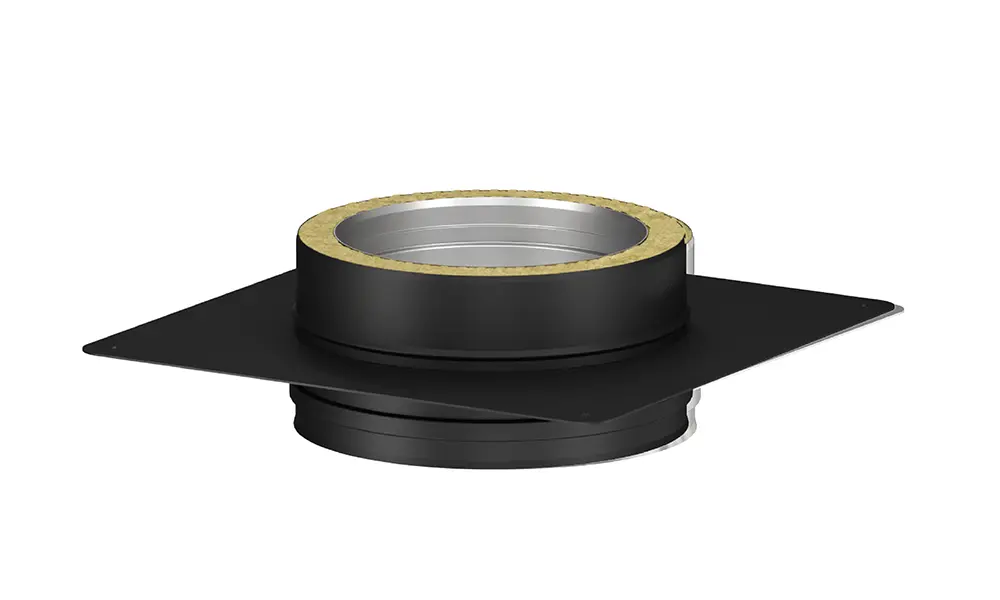

PAKSLXAOD – Anchor Plate

PAKSLXAOD - Anchor Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

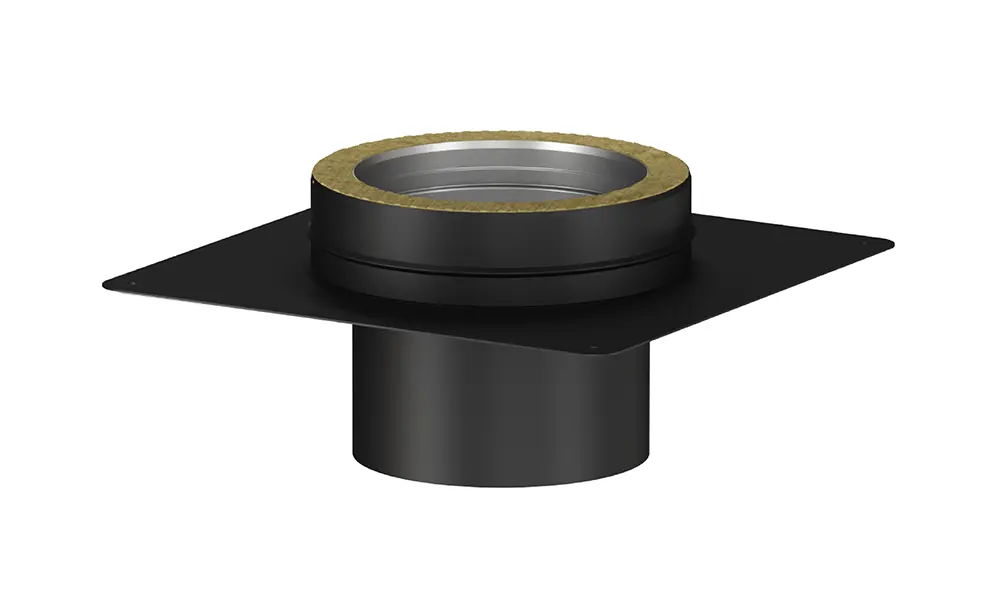

PAKSLXAUD – Outlet Plate

PAKSLXAUD - Outlet Plate[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

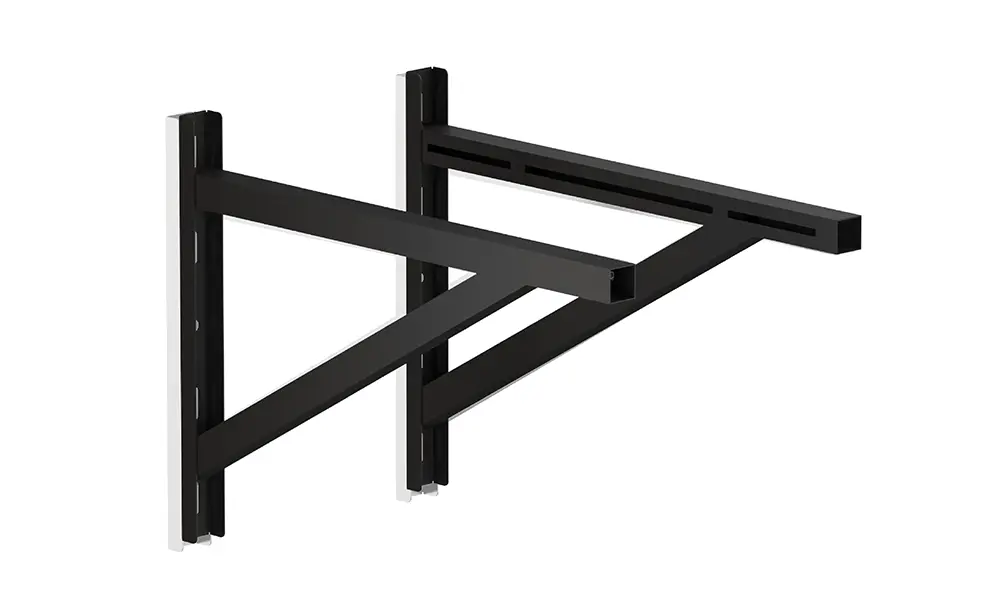

PAKSLXATA – Carrier Foot

PAKSLXATA - Carrier Foot[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

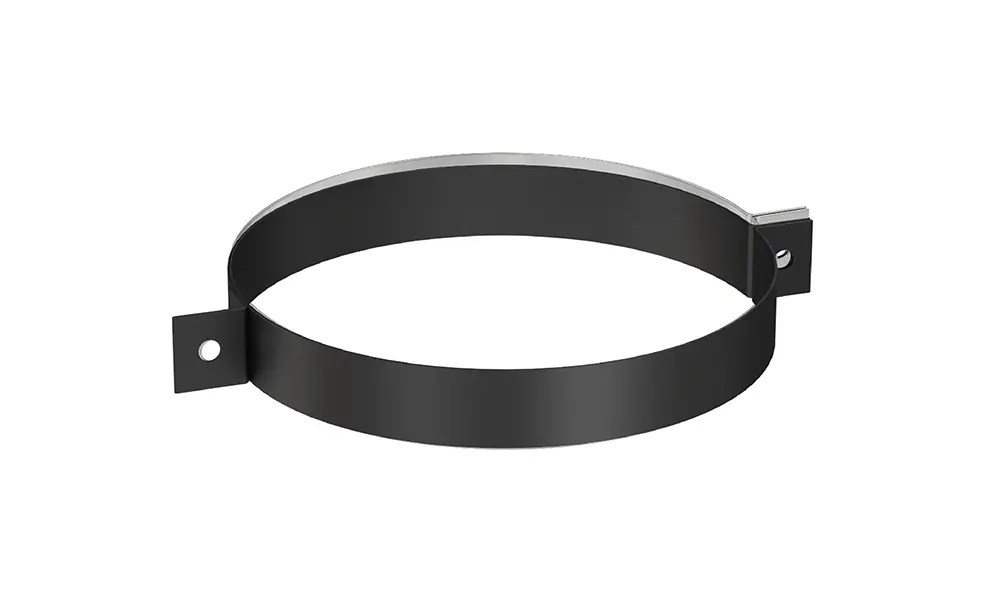

PAKSLXAK – Hold-Down Clamp

PAKSLXAK - Hold-Down Clamp[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

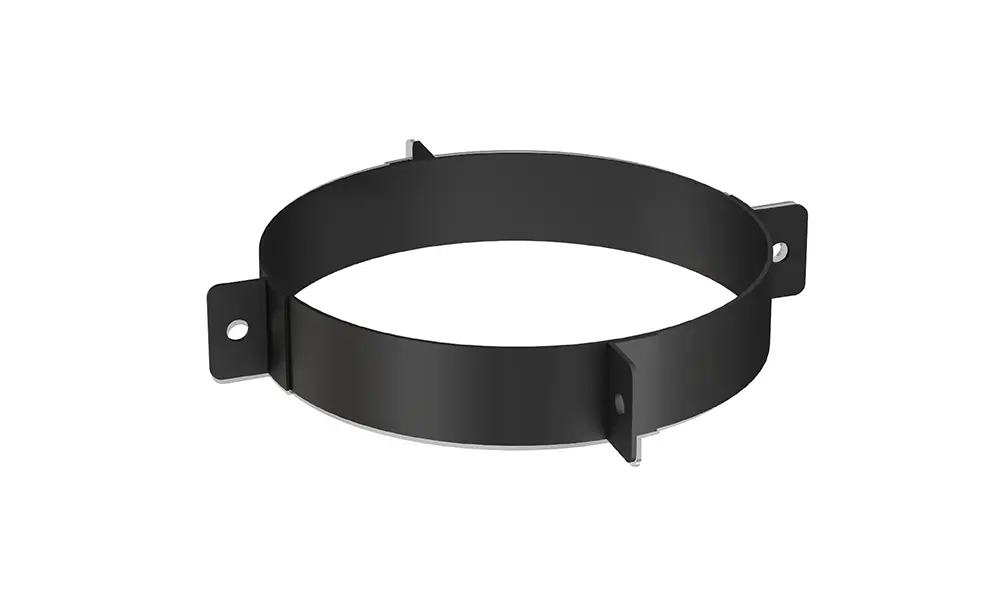

PAKSLXAGK – Guy Wire Bracket

PAKSLXAGK - Guy Wire Bracket[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

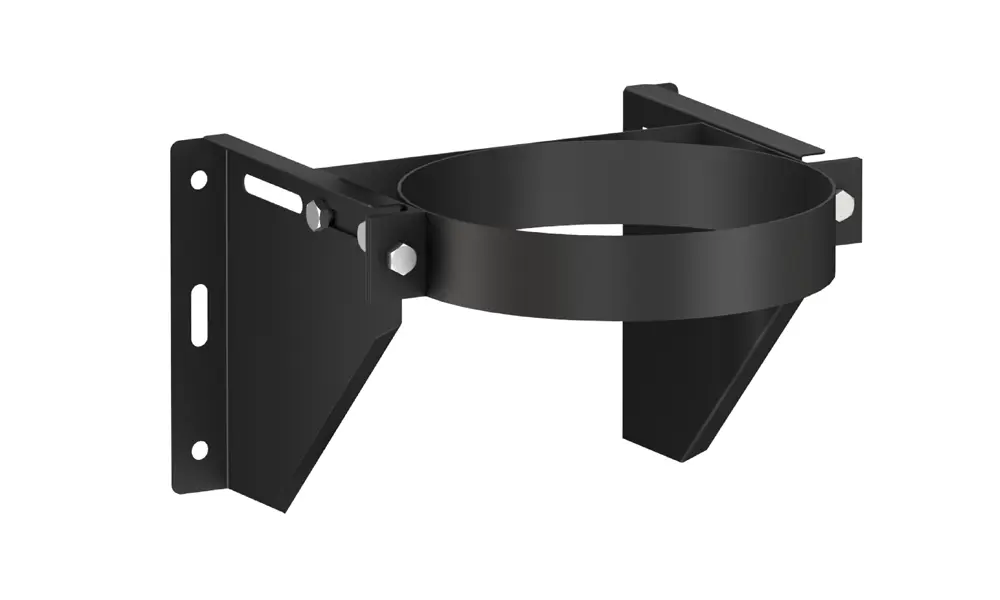

PAKSLXADSKT – Wall Bracket (T)

PAKSLXADSKT - Wall Bracket (T)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

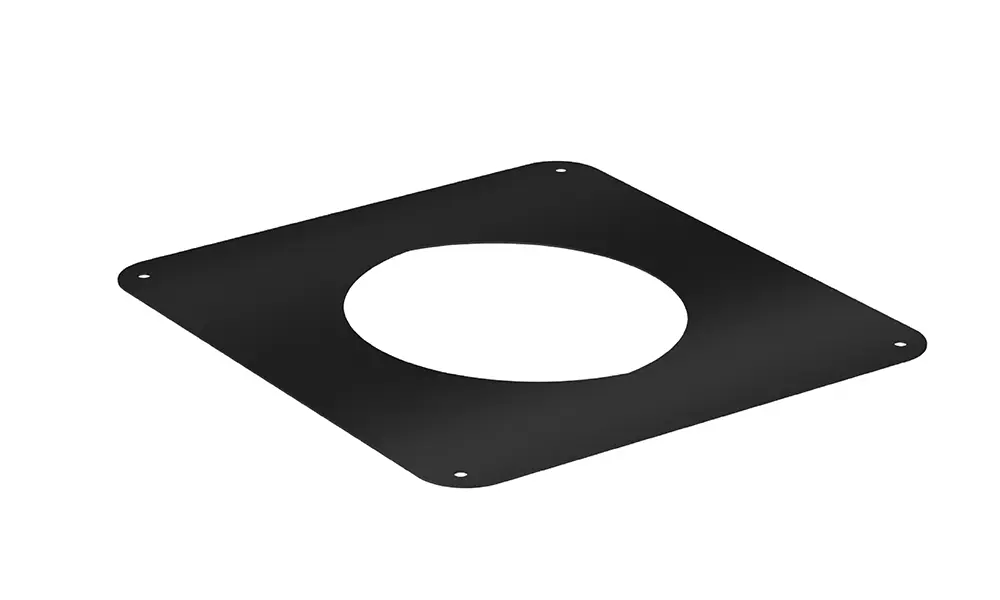

PAKSLXAYKPD – Fire Stop Plate (Straight)

PAKSLXAYKPD - Fire Stop Plate (Straight)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...



Solinox Product Catalog



Technical Module



Certificates



Installation Video



Can’t find what you’re looking for?

Contact

DWP Double Wall Chimney System with Gasket for Reliable Solutions

Double Wall Chimney Systems are engineered to ensure safe flue gas discharge in demanding industrial environments. These systems provide high thermal insulation and long-term durability for various applications. As part of Solinox chimney systems, they are produced with strict quality standards and modern manufacturing techniques. Each Double Wall System is designed to minimize heat loss while maximizing operational safety.

What Makes a Double Wall System Reliable for Industrial Use?

A Double Wall System is built with an inner and outer layer that work together to control temperature and prevent condensation.With gasket-sealed connections, the system ensures gas-tight performance and minimizes leakage risks.

Strong insulation between inner and outer walls
High resistance to thermal stress
Reduced external surface temperature
Long service life in industrial settings

Why Is Insulation Critical in a Double Wall System?

Insulation is a core component of every Double Wall System, directly affecting safety and efficiency. A properly insulated Double Wall System prevents heat transfer to surrounding areas and protects building structures. The integrated stainless steel chimney design also helps maintain optimal flue gas temperatures. This approach reflects the engineering standards of Solinox chimney systems.

Improved energy efficiency
Enhanced fire safety
Stable draft performance
Protection of surrounding structures

Where Are Double Wall Chimney Systems Commonly Used?

Double Wall Chimney Systems are widely preferred in industrial plants, commercial buildings, and large-scale facilities. A well-designed Double Wall System adapts easily to different project requirements and installation conditions. Another advantage of a Double Wall System is its compatibility with various heating appliances. These systems support safe operation across multiple industries.

Industrial production facilities
Commercial heating systems
Power and energy plants
Large-scale mechanical rooms

Are Double Wall Systems suitable for residential buildings?

Double Wall Systems are primarily designed for industrial and commercial applications. Within Solinox chimney systems, these solutions focus on high-capacity operation and continuous performance. Due to their technical structure, alternative chimney solutions are generally preferred for residential buildings.

How long is the service life of a Double Wall System?

The service life of a Double Wall System depends on operating conditions and maintenance routines. Products developed under Solinox chimney systems are manufactured with high-quality materials to ensure long-term durability. With proper installation and regular inspections, these systems deliver reliable performance for many years.

Does the Double Wall System Require Regular Maintenance?

Yes, Solinox chimney systems using a Double Wall System require periodic inspections to maintain safe operation. Regular maintenance helps identify wear, soot accumulation, or connection issues at an early stage. This process ensures consistent performance and operational safety over time.
