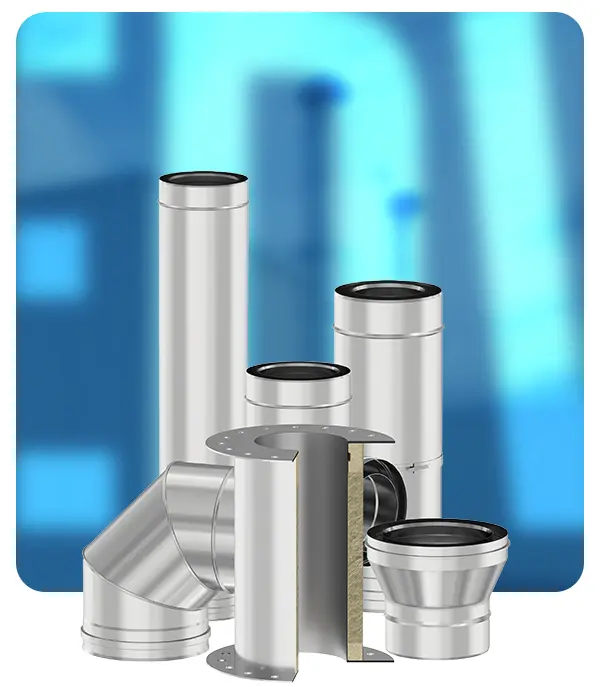

Flanged Chimney Systems

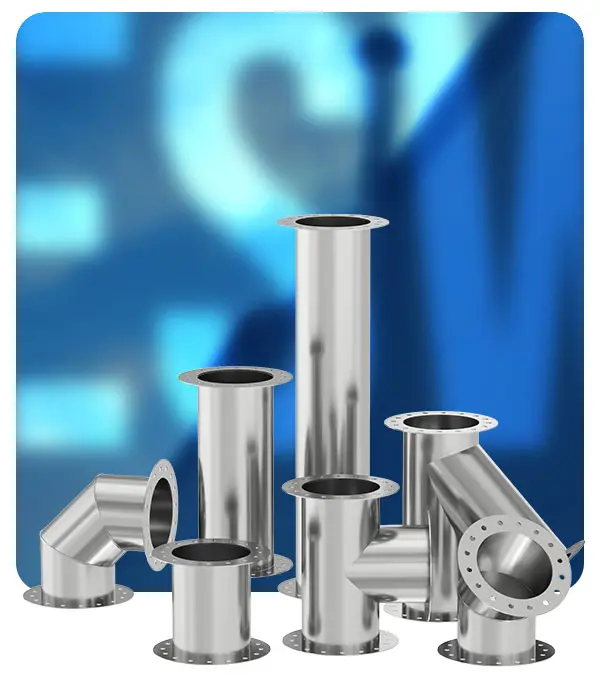

Single Wall Chimney Systems

High-Performance Flanged Chimney Systems for Industrial Applications

Large-scale commercial and industrial facilities require exhaust infrastructure that can withstand extreme thermal load, high pressure, and corrosive flue gases. Standard modular connections often fall short under these demanding conditions. Advanced flanged chimney systems provide the precise, gas-tight, and structurally sound engineering required for heavy-duty energy plants, manufacturing facilities, and large commercial boiler integrations.

When managing high-temperature emissions, the choice of exhaust infrastructure directly impacts operational safety and thermal efficiency. Solinox engineers high-capacity flanged chimney systems that meet rigorous international safety standards while optimizing fluid dynamics. This ensures your facility maintains peak performance with minimal maintenance overhead.

What is a Flanged Chimney System?

A flanged chimney system is a specialized heavy-duty exhaust assembly designed for high-pressure and high-temperature applications. Unlike standard chimney systems that utilize simple plug-in or click connections, flanged configurations feature welded structural rings (flanges) at the ends of each pipe segment. These segments are securely bolted together face-to-face, utilizing specialized high-temperature gaskets to form a completely gas-tight and liquid-tight seal.

This structural design is critical for an industrial chimney operating under positive pressure (P1 or H1 classifications), where any leakage of toxic or superheated flue gases could compromise facility safety. The mechanical rigidity of the bolted flange connections also provides superior resistance against lateral wind loads and seismic forces, making them the preferred choice for tall, self-supporting exterior exhaust stacks.

Technical Specifications of Flanged Chimney Systems

Solinox manufactures flanged chimney systems using precise automated laser welding technology and premium materials to ensure absolute reliability.

• Material Composition Inner liners are constructed from AISI 316L (1.4404) high-grade stainless steel for maximum acid and corrosion resistance. Outer jackets are fabricated from AISI 304 or galvanized steel to provide robust environmental protection.
• Insulation Core High-density, stone wool insulation with thicknesses ranging from 25mm to 50mm, ensuring minimal heat loss and maintaining outer surface temperatures within safe regulatory limits.
• Pressure Rating Engineered to operate safely under high positive pressure conditions up to 5000 Pa, effectively preventing flue gas leakage.
• Temperature Resistance Certified for continuous operating temperatures up to 600 degrees Celsius and soot fire resistance up to 1000 degrees Celsius.

The Solinox Advantage in Industrial Exhaust Engineering

Standard chimney systems cannot match the structural integrity required for large-scale energy production or heavy manufacturing. The Solinox flanged design addresses the specific pain points encountered by mechanical engineers and plant managers.

Absolute Gas and Condensate Tightness

Industrial flue gases often contain high concentrations of sulfur and nitrogen oxides. When temperatures drop, these gases condense into highly corrosive acids. The precise alignment of Solinox flanged connections, combined with custom-engineered elastomeric or graphite gaskets, guarantees that both hazardous gases and corrosive condensates remain entirely contained within the fluid channel.

Superior Mechanical Strength for Tall Stacks

An industrial chimney frequently must extend high above the building roofline to satisfy environmental emission regulations. This exposes the structure to significant wind shear. The bolted joint profile of our flanged chimney systems distributes mechanical stress evenly across the circumference of the pipe. This high structural rigidity minimizes the need for extensive external guy wires or heavy support lattices, saving space and reducing installation costs.

Thermal Expansion Accommodation

Continuous thermal cycling causes metals to expand and contract. Solinox incorporates precision-engineered expansion joints into our chimney systems to absorb this axial movement without placing stress on the flanged connection points or the building anchors. This safeguards the system against material fatigue and extends its operational lifespan to several decades.
