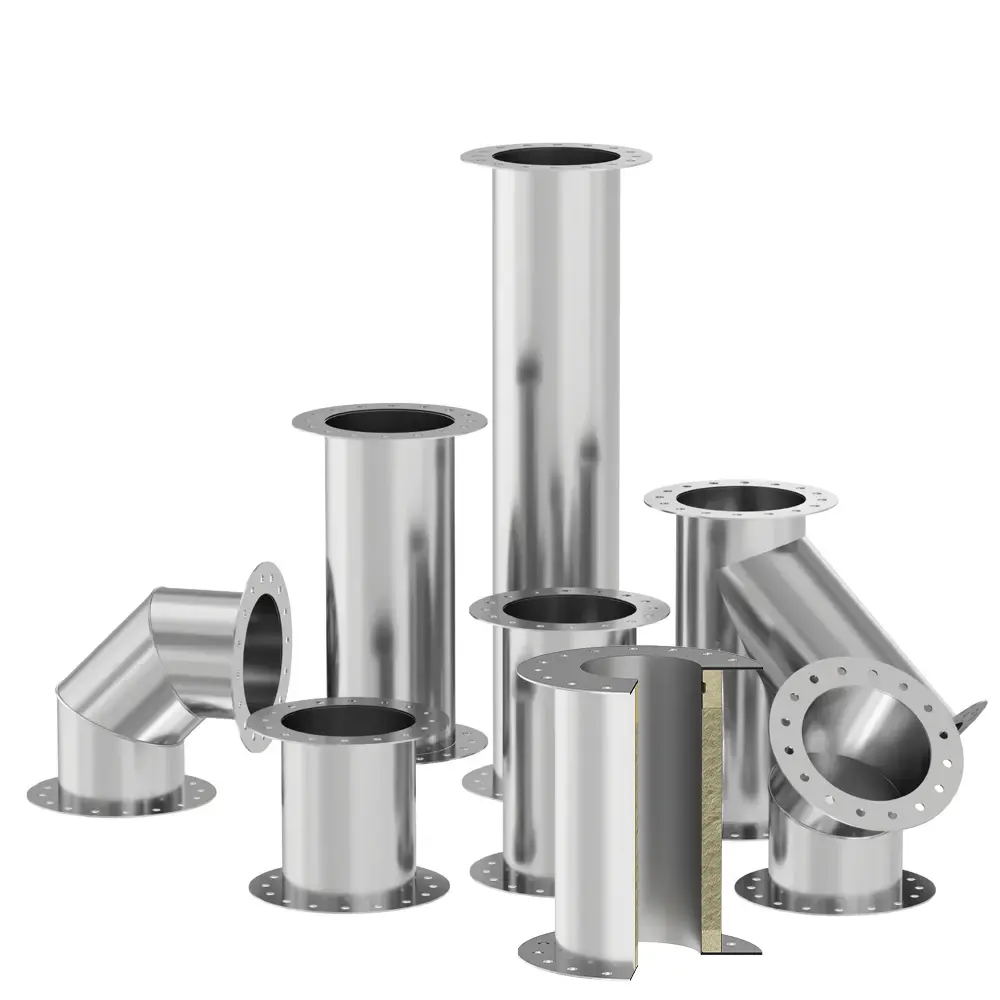

EDW – Industrial Double Wall Chimney Systems
Industrial Double Wall Chimney Systems
EDW – Industrial Double Wall Chimney Systems
Features
| Basic Specifications | |
|---|---|
| Chimney Thicknesses | 0,6 mm – 1,5 mm |
| Connection Type | Flanged Connection |
| Diameter Range | From Ø 80 mm to Ø 1200 mm |
| Insulation Density | 50 kğ/m3 – 170 kğ/m3 |
| Insulation Thickness | 25 mm – 50 mm |
| Muf | Flanged |
| Source Type | Continuous Tig Welding |
| Technical Specifications | |
| Certificate Number | 1020 – CPR – 070057059 |
| Chimney Inner Wall Material Properties | L50 AISL 316L (1.4404) L20 AISI 304 (1.43) |
| Chimney Inner Wall Thickness | 0.40, 0.50, 0.60, 0.80, 1.00, 1.20, 1.50 mm |
| Condensation Product Resistance Class | D (Dry) W (Wet) |
| Pressure Class | HO |
| Product Classification | EN 13084-7-2012 |
| Soot Flammability Resistance | O |
| Standard Number | EN 1856 – 1 : 2009 EN 1856 -2 : 2009 |
| Temperature Class | T 550 – T 750 |
Products
SLXFAB250 – Pipe 250 mm
SLXFAB250 - Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center" global_colors_info="{}"...
SLXFAB500 – Pipe 500 mm
SLXFAB500 - Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center" global_colors_info="{}"...
SLXFAB1000 – Pipe 1000 mm
SLXFAB1000 - Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFABB500 – Starter Pipe 500 mm
SLXFABB500 - Starter Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFABB1000 – Starter Pipe 1000 mm
SLXFABB1000 - Starter Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAOB250 – Test Unit 250 mm
SLXFAOB250 - Test Unit 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAOB500 – Test Unit 500 mm
SLXFAOB500 - Test Unit 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAOB1000 – Test Unit 1000 mm
SLXFAOB1000 - Test Unit 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAD15 – 15º Elbow
SLXFAD15 - 15º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAD30 – 30º Elbow
SLXFAD30 - 30º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFD45 – 45º Elbow
SLXFD45 - 45º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAD90 – 90º Elbow
SLXFAD90 - 90º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAT90 – Tee 90º
SLXFAT90 - Tee 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAT135 – Tee 135º
SLXFAT135 - Tee 135º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFAJC – Deflector Cap
SLXFAJC - Deflector Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFARKSL – Anti-Wind Cowl L
SLXFARKSL - Anti-Wind Cowl L[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
SLXFARKSS – Wind Cowl S
SLXFARKSS - Wind Cowl S[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact
Industrial Chimney Systems by Solinox
Industrial Chimney Systems are essential for safe and efficient exhaust management in high demand environments. Solinox Chimney Systems deliver CE certified Industrial Chimney Systems built with premium stainless steel for durability under extreme pressure and temperature. These Steel Chimney Systems ensure gas tight performance and long-term reliability in industrial applications.
- High-pressure resistant flanged connections
- Temperature rating up to T750
- Diameter range: Ø80 mm to Ø1200 mm
Stainless Steel Chimney Systems Overview
Steel Chimney Systems from Solinox feature AISI 316L or 304 inner walls with precise TIG welding. Industrial Chimney Systems in this range support both dry and wet condensation classes for versatile use. Solinox Chimney Systems provide modular Steel Chimney Systems that install quickly via flange or welding methods.
- Insulation thickness: 25–50 mm
- Density options: 50–170 kg/m³
- Soot fire resistance class O
Key Components of Industrial Chimney Systems
Industrial Chimney Systems include straight pipes in 250, 500, and 1000 mm lengths for flexible routing. Stainless Steel Chimney Systems offer elbows at 15°, 30°, 45°, and 90° angles to navigate complex layouts. Solinox Chimney Systems supply tees, starter pipes, and test units for complete Steel Chimney Systems assembly.
- SLXFAB250–1000: Standard pipes
- SLXFAD15–90: Precision elbows
- SLXFAT90–135: Branch tees
Applications of Steel Chimney Systems
Steel Chimney Systems excel in generator, biomass boiler, and gas engine exhausts. Industrial Chimney Systems handle fan discharge and free-standing configurations with ease. Solinox Chimney Systems adapt Stainless Steel Chimney Systems for ram lines and high pressure industrial chimneys.
- Biomass and gas engine compatible
- Self supporting or platform mounted
- Custom color painting available
Advantages of Solinox Chimney Systems
Solinox Chimney Systems guarantee condensate resistance and high quality fasteners in every Industrial Chimney Systems installation. Steel Chimney Systems maintain structural integrity at T550–T750 temperatures. Stainless Steel Chimney Systems deliver extended service life across diverse Industrial Chimney Systems scenarios.
- EN 1856-1/2 and EN 13084-7 compliant
- Certificate: 1020-CPR-070057059
- Full technical modules and videos provided
What are Industrial Chimney Systems and where are they used?
Industrial Chimney Systems are double wall exhaust solutions designed for high pressure and high-temperature gas discharge in industrial plants. Produced under the Solinox Chimney Systems brand, Industrial Chimney Systems are preferred in generators, biomass boilers, and gas engines. Steel Chimney Systems construction ensures long life and safety.
What material is Stainless Steel Chimney Systems made of?
Stainless Steel Chimney Systems are manufactured from AISI 316L (1.4404) or AISI 304 (1.4301) stainless steel. These materials in Industrial Chimney Systems resist corrosion and condensation. Solinox Chimney Systems quality ensures Stainless Steel Chimney Systems operate flawlessly for years.
What temperature can Steel Chimney Systems withstand?
Steel Chimney Systems are rated for temperatures between T550 and T750°C. These Industrial Chimney Systems are ideal for high-temperature processes. Solinox Chimney Systems support Steel Chimney Systems compliant with EN 1856 1/2 standards.
How is Solinox Chimney Systems installation performed?
Solinox Chimney Systems are easily assembled using flanged connection or welding methods. The modular design of Industrial Chimney Systems enables fast installation. Stainless Steel Chimney Systems components are backed by Solinox Chimney Systems technical modules and installation videos.
