PSLXT90 – Tee 90º
Solinox Chimney Systems

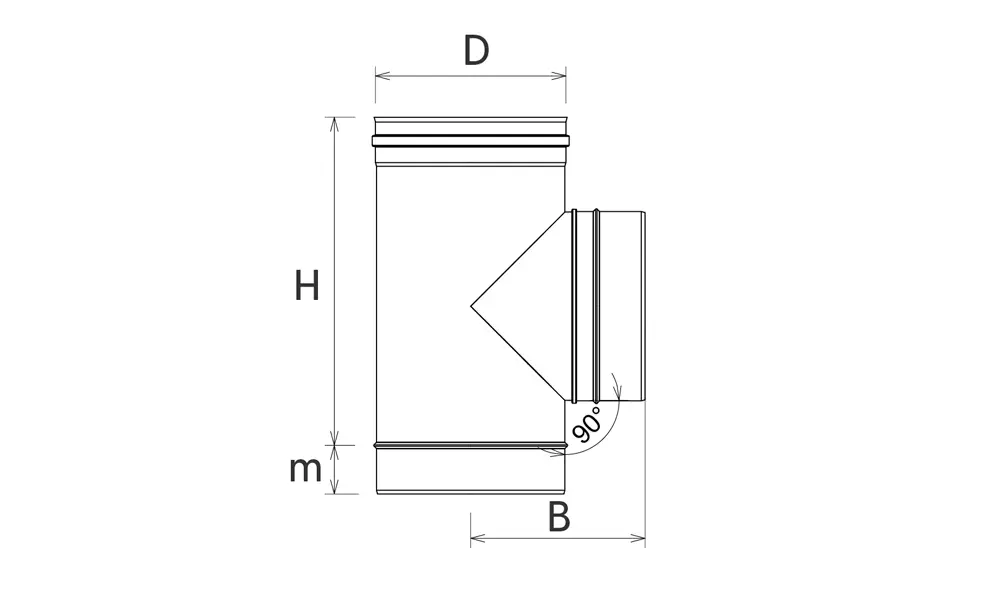

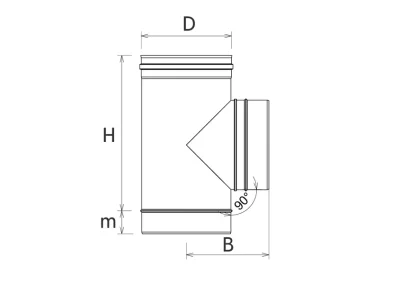

Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| H | 200 | 283 | 350 | 350 | 350 | 350 | 450 | 450 | 450 | 450 | 550 | 550 | 650 | 650 | 700 | 950 |
| B | 105 | 135 | 150 | 160 | 175 | 185 | 200 | 210 | 225 | 235 | 270 | 295 | 320 | 345 | 395 | 420 |
| m | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact
The module that connects the smoke channel and the chimney line in chimney systems.
