SLXD45 – 45º Elbow

Home E SW – Single Wall Products E SLXD45 – 45º Elbow

Solinox Chimney Systems

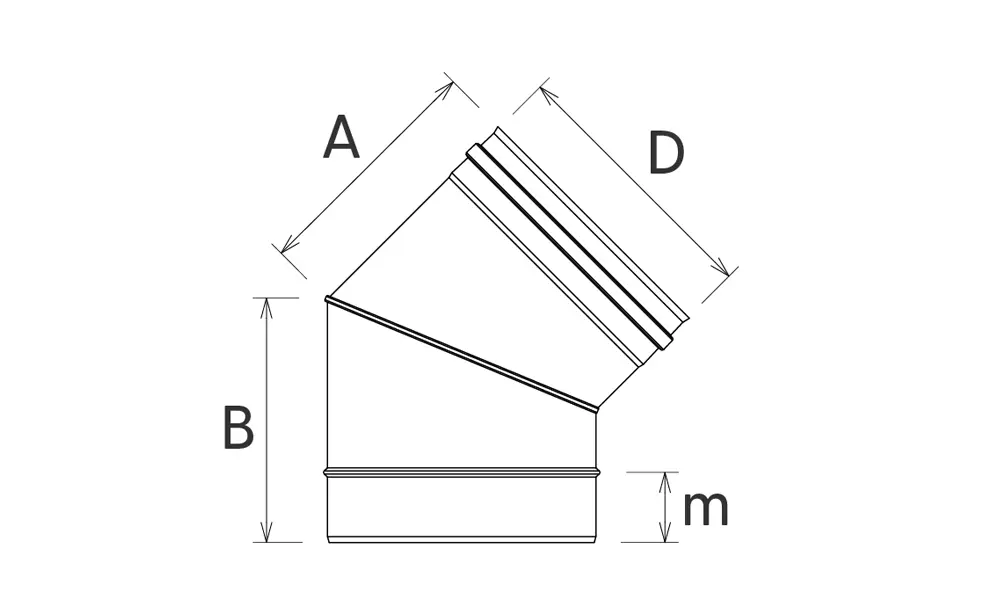

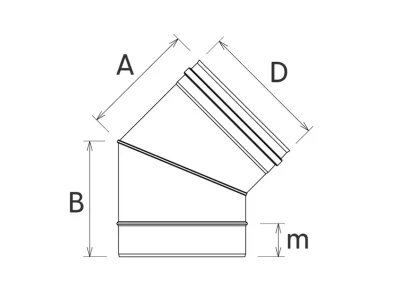

Chimney Elbow Technical Specifications

D 80 100 130 150 180 200 230 250 280 300 350 400 450 500 550 600
A 115 138 155 160 179 180 190 205 211 216 241 264 292 308 332 372
B 115 138 155 160 179 180 190 205 211 216 241 264 292 308 332 372
m 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50



Solinox Product Catalog

Technical Module

Certificates

Installation Video

Can’t find what you’re looking for?

Contact

Solinox Chimney Elbow SLXD45 45°

Solinox Chimney Systems presents the SLXD45 45° chimney elbow for single wall chimney systems. This chimney elbow changes direction perfectly in single wall chimney systems. It works seamlessly with single skin wall panel systems.

Why Choose SLXD45 Chimney Elbow?

Solinox Chimney Systems designs this chimney elbow specially for single wall chimney systems. It provides safe 45-degree turns in every project. Made of stainless steel, this chimney elbow lasts for years.

  • Perfect fit for single wall chimney systems
  • High sealing in every chimney elbow
  • 10-year warranty from Solinox Chimney Systems
  • 100% compatible with single skin wall panel systems

What Are the Technical Specs of SLXD45?

Solinox Chimney Systems offers this chimney elbow in 16 diameters from Ø80 to Ø600 mm. A and B dimensions are equal for each size. The 50 mm fixed socket ensures fast connection in single wall chimney systems.

  • Diameter range: Ø80 – Ø600 mm
  • Material: AISI 316L stainless steel
  • Socket length: 50 mm (fixed)
  • Works up to 600°C in single wall chimney systems
  • Ideal for single skin wall panel systems

Where to Use SLXD45 Chimney Elbow?

Solinox Chimney Systems recommends this chimney elbow for all single wall chimney systems. Use it between floors or at roof exits. It looks great with single skin wall panel systems.

  • Residential fireplaces and stoves
  • Industrial kitchen exhausts
  • Generator chimney elbow lines
  • Renovation of single wall chimney systems
  • Steel buildings with single skin wall panel systems

How to Install SLXD45 Chimney Elbow?

Solinox Chimney Systems makes this chimney elbow very easy to install in single wall chimney systems. Just push the 50 mm socket with silicone. No extra clamps needed for single skin wall panel systems.

  • Apply silicone to socket
  • Push into place
  • Check direction of chimney elbow
  • Test system in single wall chimney systems

Why Solinox Chimney Systems SLXD45?

Solinox Chimney Systems leads the single wall chimney systems market for over 20 years. Every chimney elbow passes 100% leak test. Perfect match for single skin wall panel systems.

  • Lifetime support from Solinox Chimney Systems
  • All 16 sizes in stock
  • Best price for single wall chimney systems
  • Special discounts for single skin wall panel systems projects
  • 24-hour delivery across Turkey

Choose Solinox Chimney Systems quality today! Order your SLXD45 45° chimney elbow now for single wall chimney systems and single skin wall panel systems. Experience the difference!
