PL – Pellet Stove Chimney Systems
Single Wall Chimney Systems
PL – Pellet Stove Chimney Systems
Features
| Key Features | |
|---|---|
| Chimney Thicknesses | 0.40 mm, 0.50 mm, 0.60 mm |
| Connection Type | Male / Female Connections |
| Diameter Range | Ø 80 – Ø 100 |
| Weld Type | Continuous Tig Welding |
| Muf | 50 mm |
| Temperature Class | T 160 – T 400 – T 450 |
| Technical Specifications | |
| Chimney Inner Wall Material Properties | L50 AISL 316L (1.4404) L20 AISI 304 (1.4301) |
| Pressure Class | N1 ( 40 Pa ) |
| Corrosion Resistance Class | V2 ( Pelet ) |
| Soot Ignition Resistance | O |
| Certificate Number | 1020 – CPR – 070045001 |
| Standard Number | EN 1856 – 1 : 2009 EN 1856 – 2 : 2009 |
| Product Classification | EN 1856-1 T160-N1-D-V2-L50 (040-150)-G300 EN 1856-1 T160-N1-W-V2-L50 (040-150)-O300 EN 1856-1 T400-N1-D-V2-L50 (040-150)-G250 EN 1856-1 T400-N1-W-V2-L50 (040-150)-O250 EN 1856-1 T450-N1-D-Vm-L20 (040-150)-G250 |
| Condensation Product Resistance Class | D ( Kuru ) W ( Islak ) |
Products

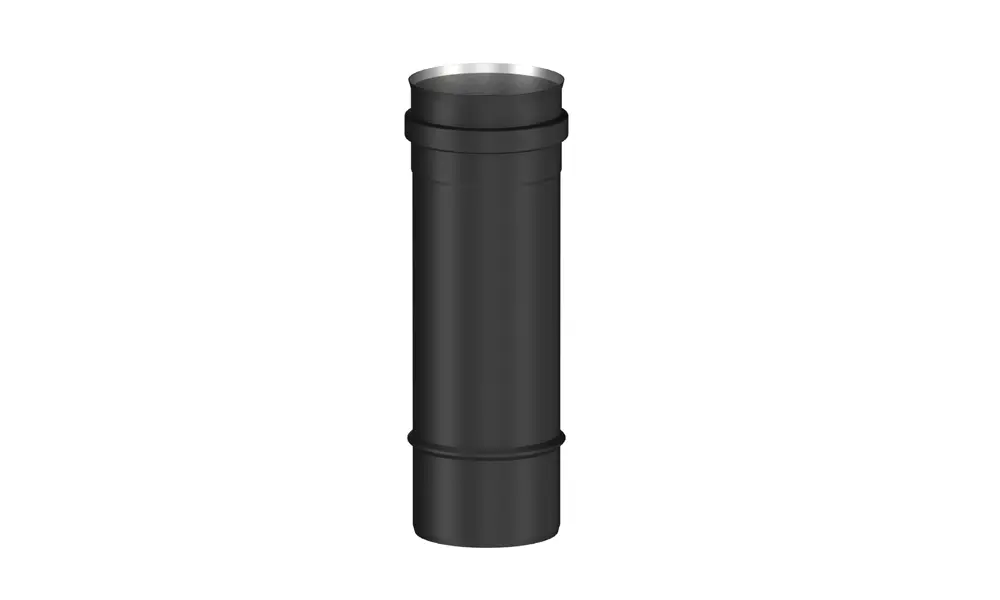

PSLXB250 – Pipe 250 mm
PSLXB250 - Pipe 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

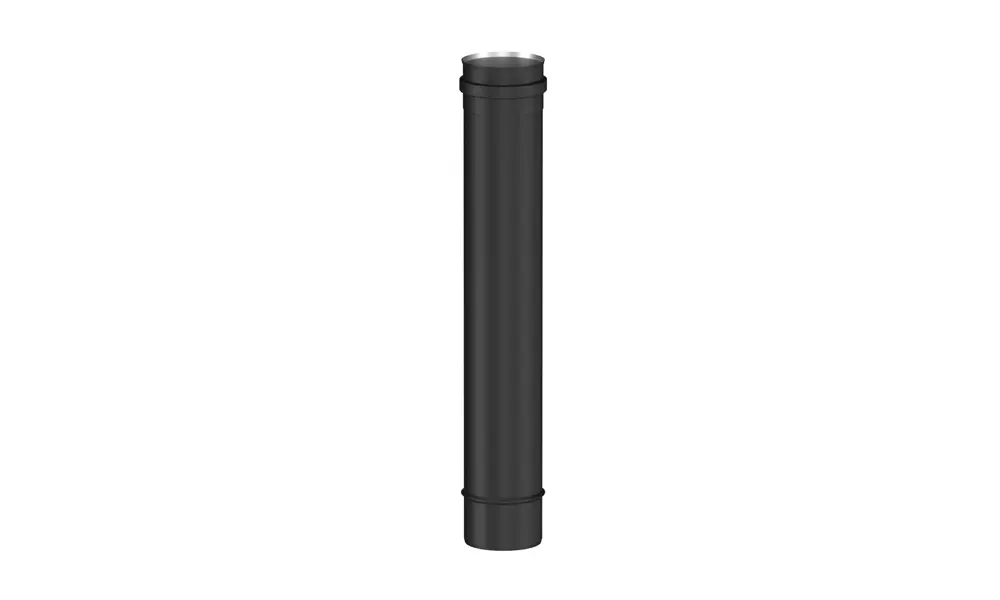

PSLXB500 – Pipe 500 mm
PSLXB500 - Pipe 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

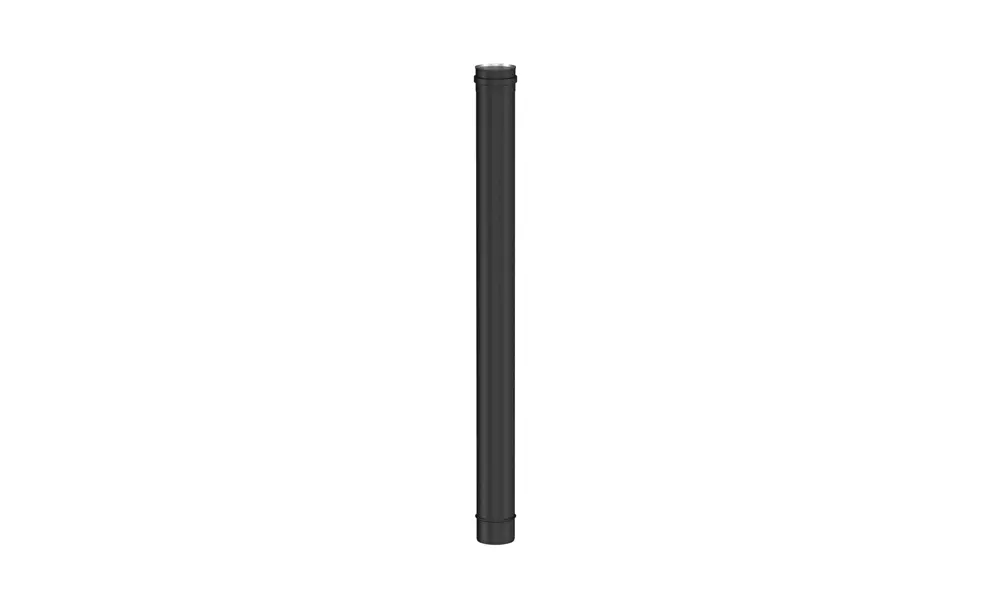

PSLXB1000 – Pipe 1000 mm
PSLXB1000 - Pipe 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

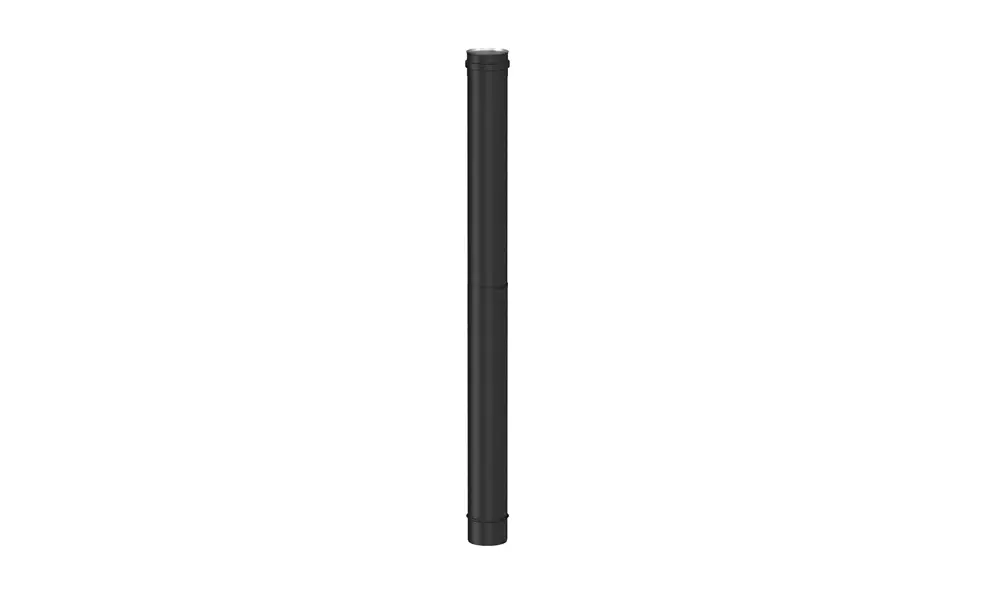

PSLXUB47 – Adjustable Pipe 270 mm – 470 mm
PSLXUB47 - Adjustable Pipe 270 mm - 470 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

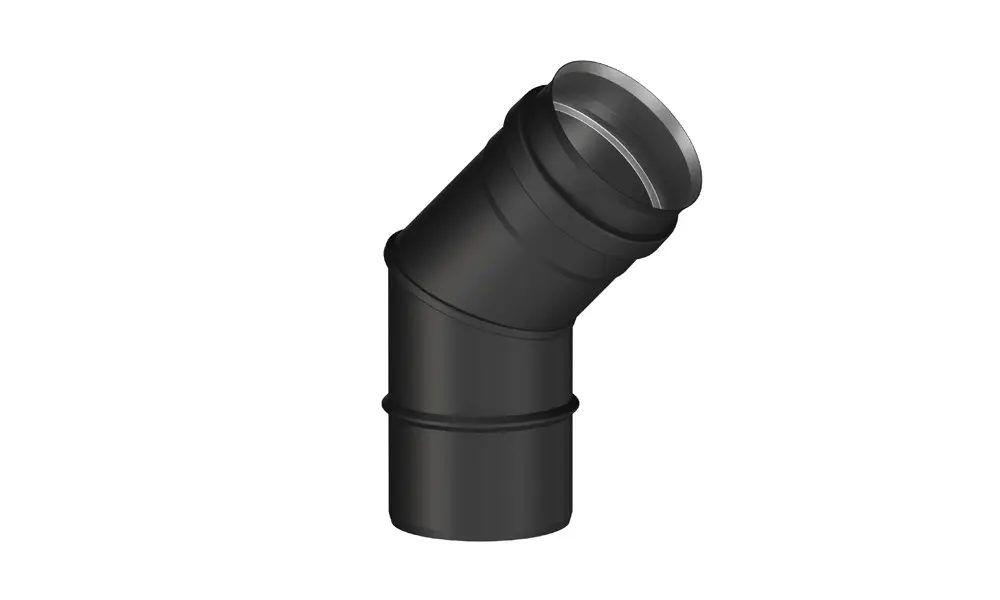

PSLXD45 – 45º Elbow
PSLXD45 - 45º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

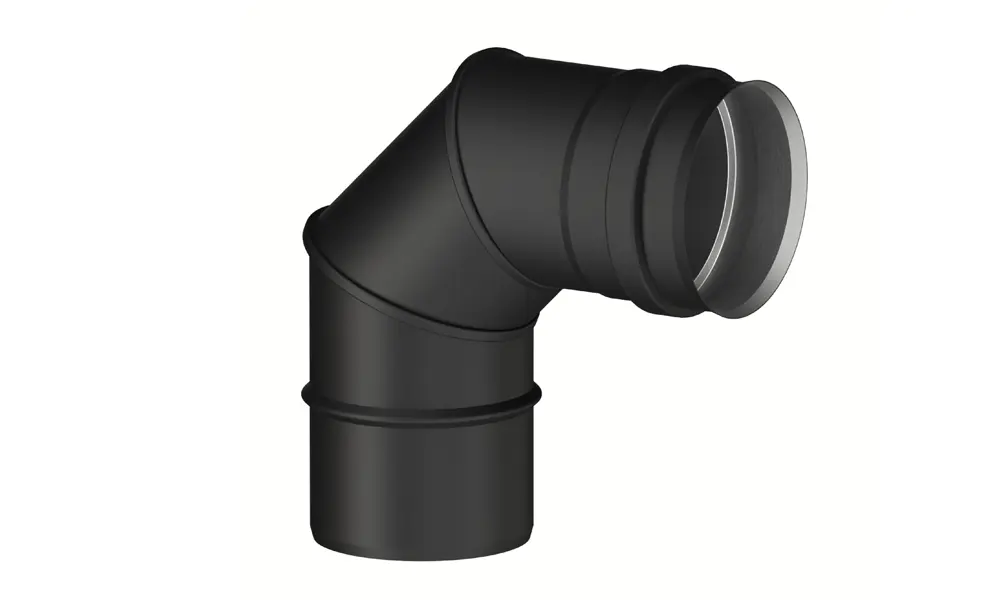

PSLXD90 – 90º Elbow
PSLXD90 - 90º Elbow[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

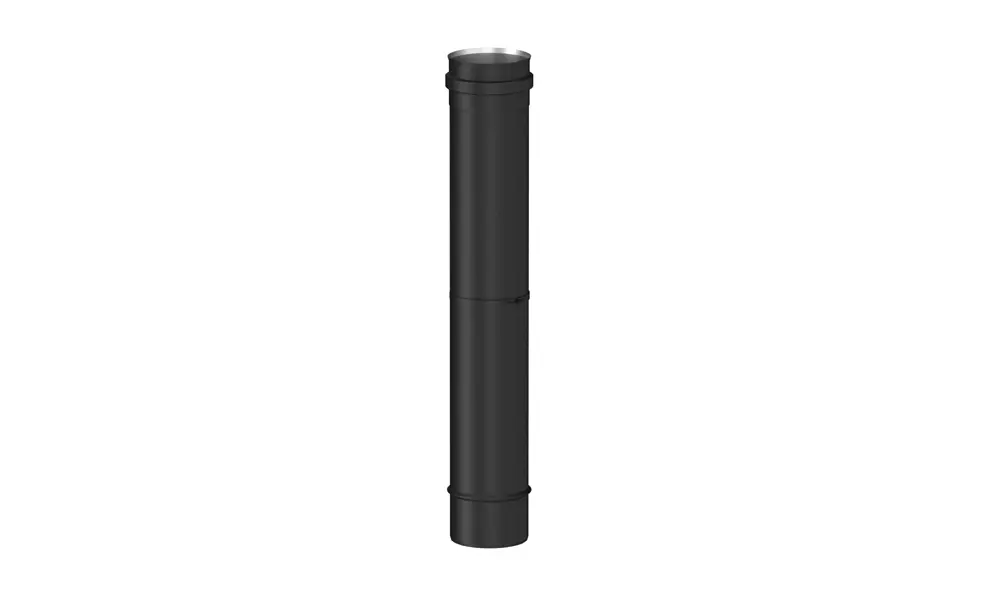

PSLXUB90 – Adjustable Pipe 550 mm – 900 mm
PSLXUB90 - Adjustable Pipe 550 mm - 900 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

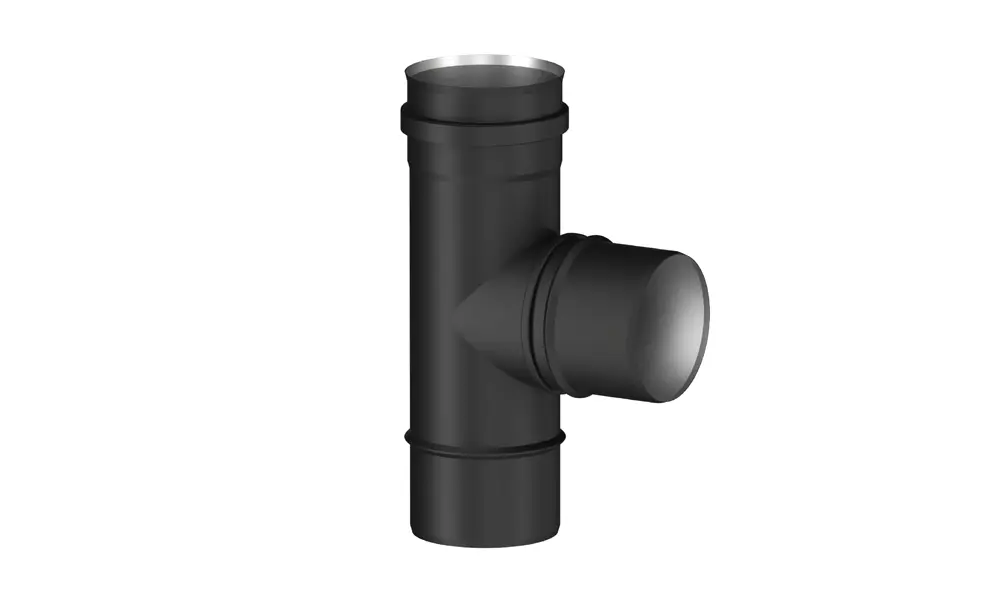

PSLXT90 – Tee 90º
PSLXT90 - Tee 90º[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

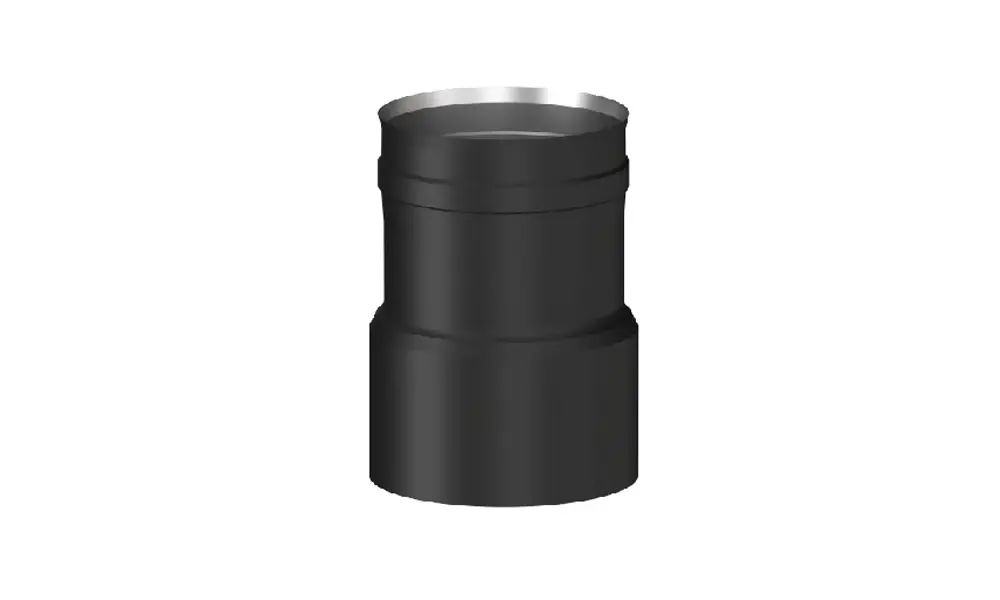

PSLXR – Adaptor
PSLXR - Adaptor[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

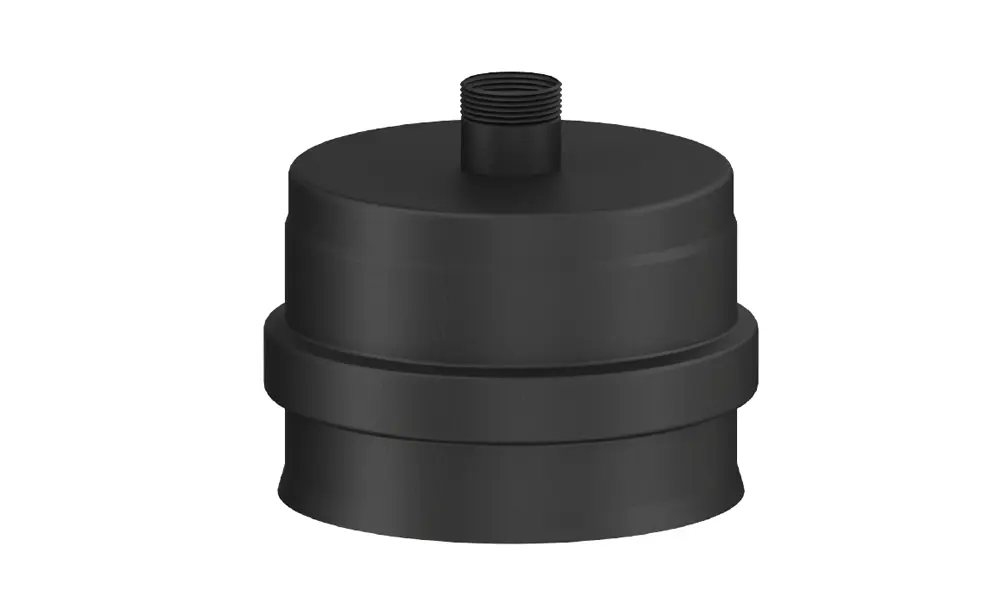

PSLXYT – Tee Cap With Drain
PSLXYT - Tee Cap With Drain[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
PSLXÖB250 – Test Unit 250 mm
PSLXÖB250 - Test Unit 250 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

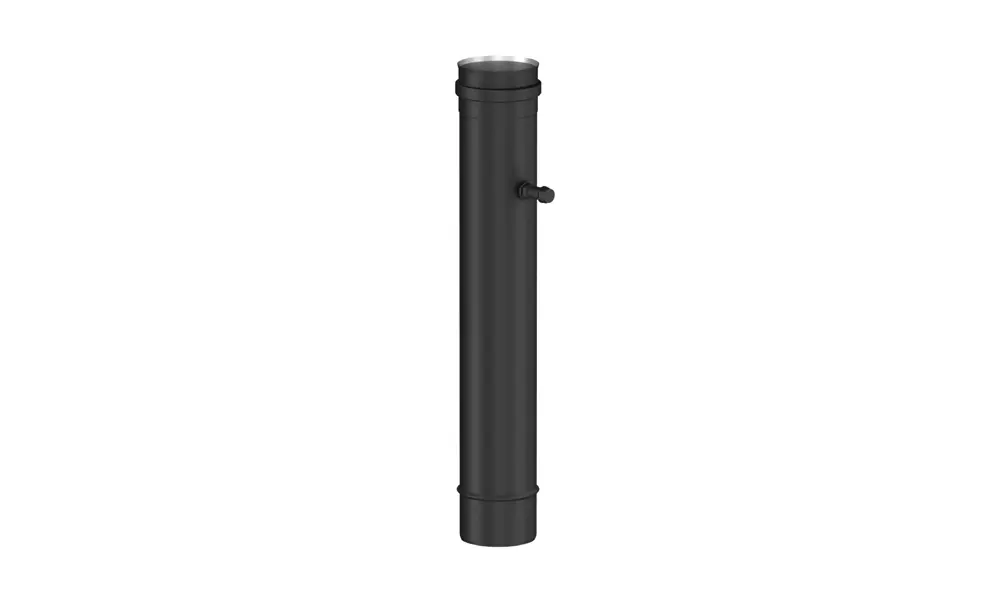

PSLXÖB500 – Test Unit 500 mm
PSLXÖB500 - Test Unit 500 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

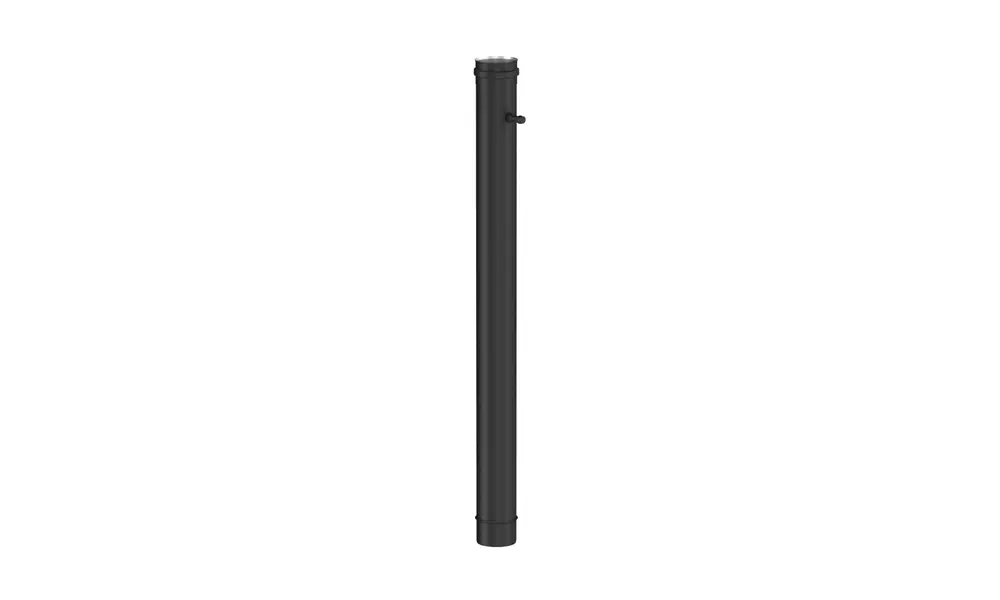

PSLXÖB1000 – Test Unit 1000 mm
PSLXÖB1000 - Test Unit 1000 mm[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

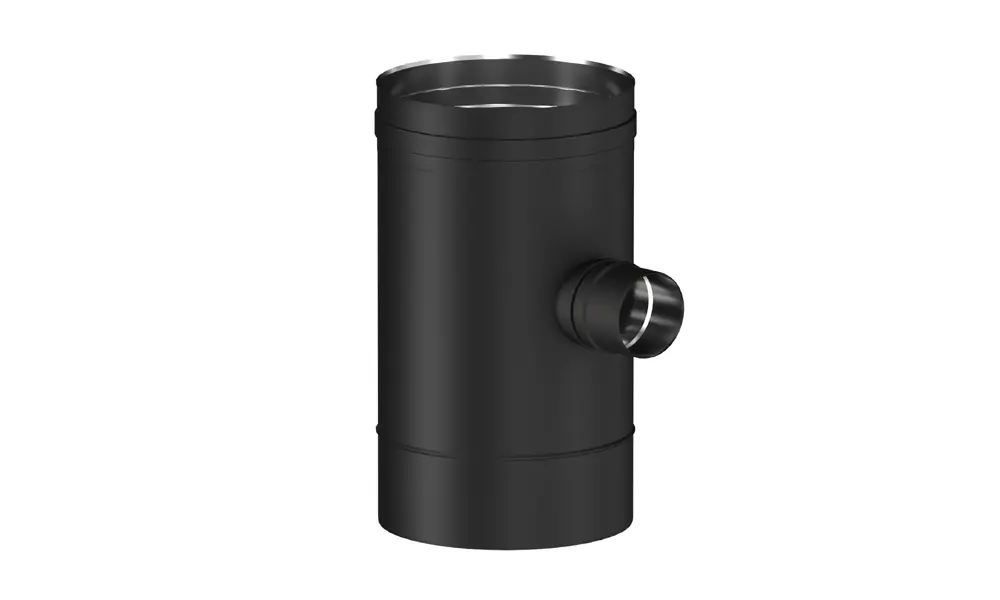

PSLXCÖB250 – Test Pipe 250 mm With 2” Hole
PSLXCÖB250 - Test Pipe 250 mm With 2'' Hole[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

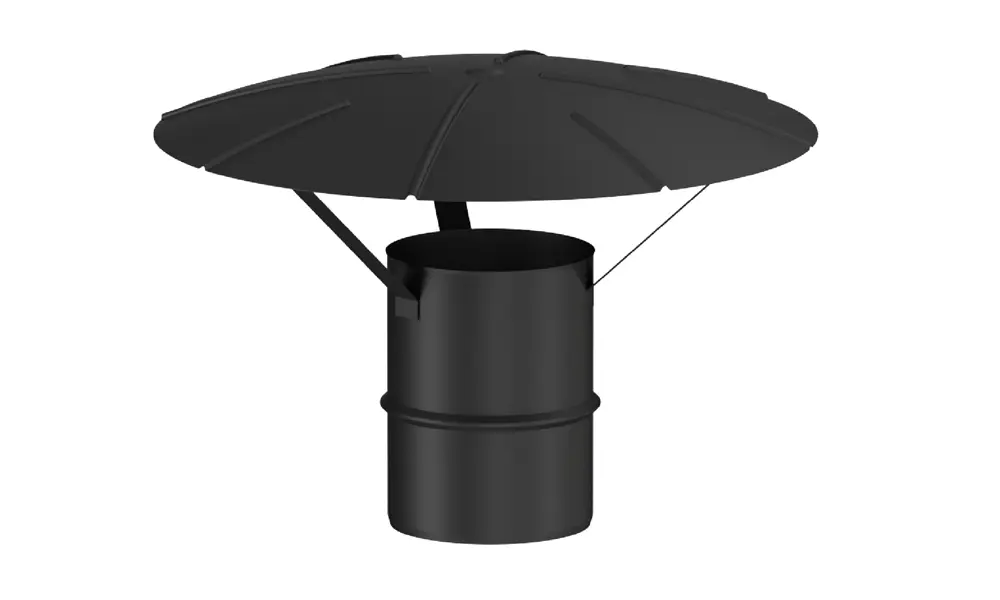

PSLXYKS – Rain Cap
PSLXYKS - Rain Cap[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

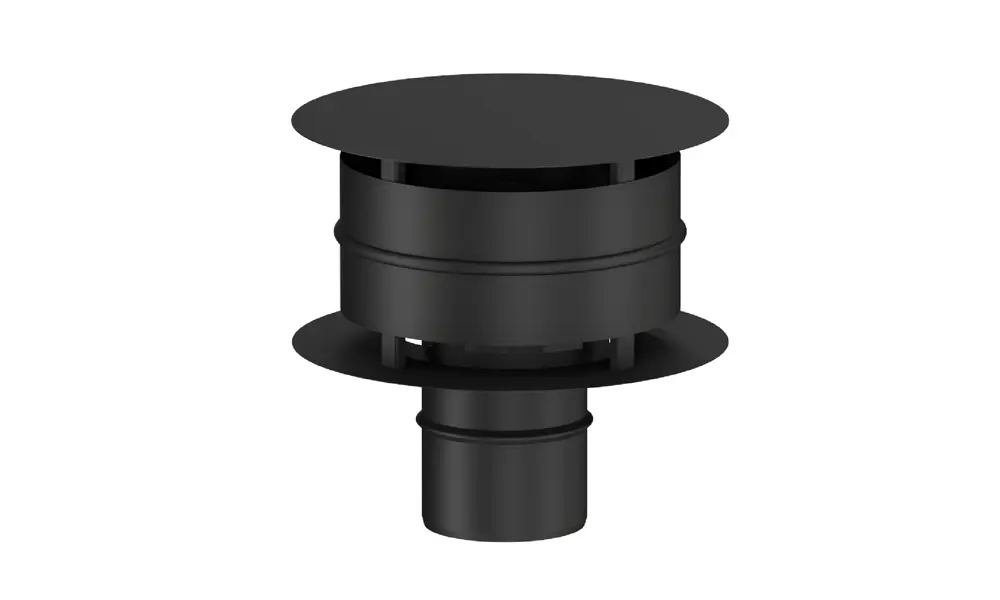

PSLXRKS – Wind Cowl
PSLXRKS - Wind Cowl[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

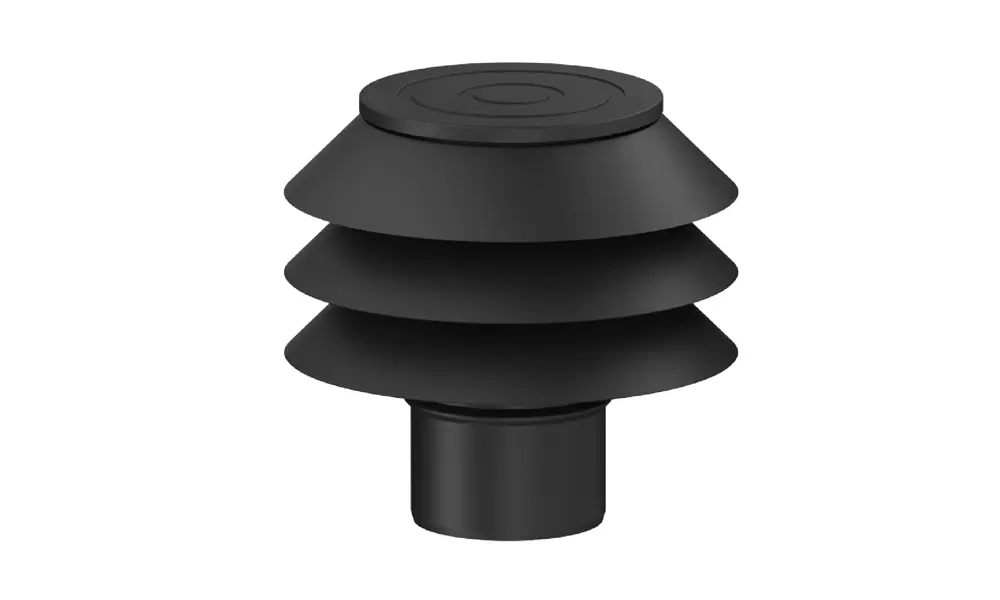

PSLXRKSL – Anti-Wind Cowl L
PSLXRKSL - Anti-Wind Cowl L[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

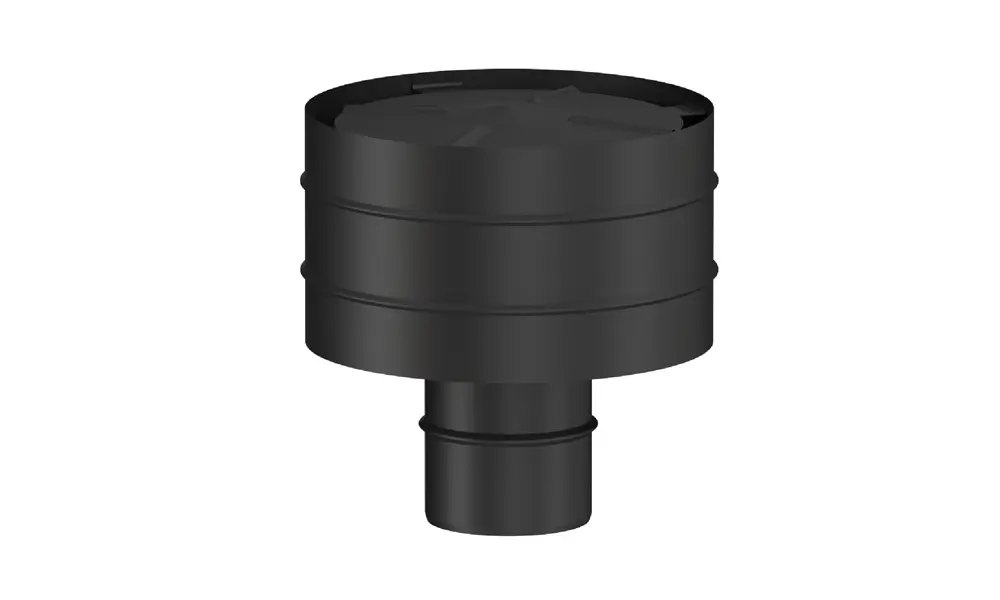

PSLXRKSS – Wind Cowl S
PSLXRKSS - Wind Cowl S[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
PSLXKS – Open Terminal
PSLXKS - Open Terminal[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
Accessories

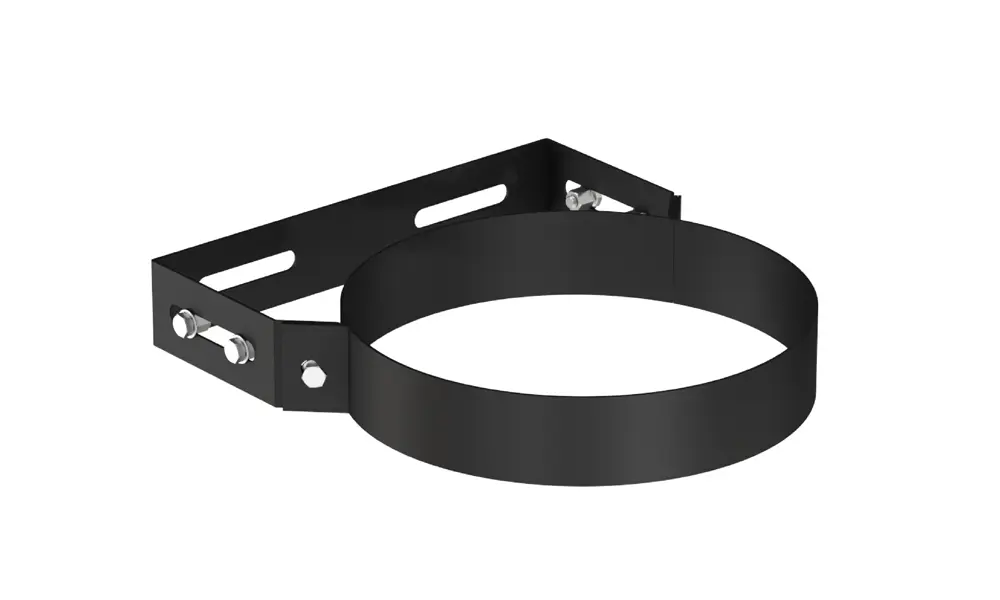

SLXDSKE – Wall Bracket Eko
SLXDSKE - Wall Bracket Eko[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

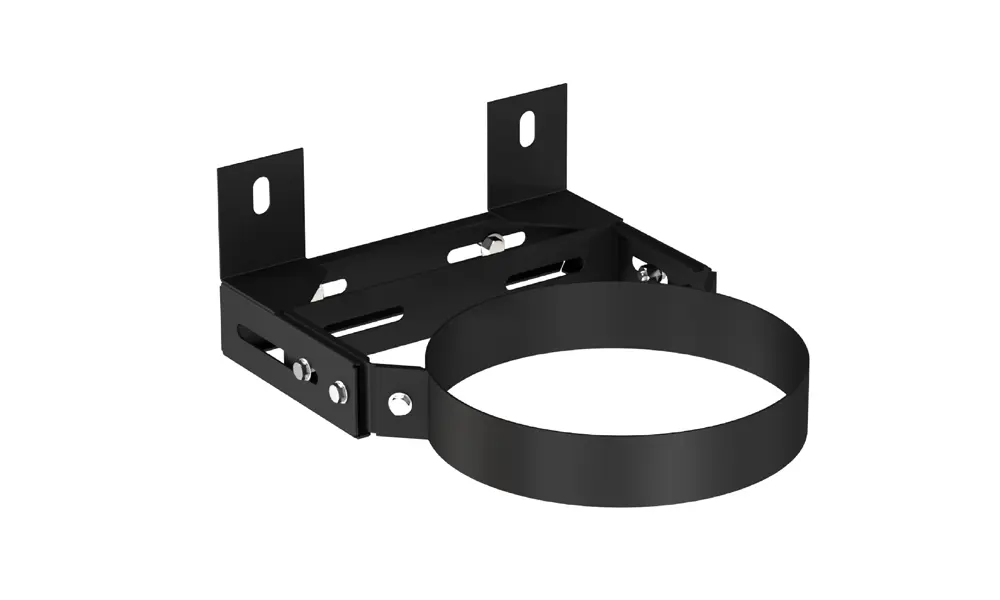

PAKSLXDSKE11 – Wall Bracket Eko 11
PAKSLXDSKE11 - Wall Bracket Eko 11[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

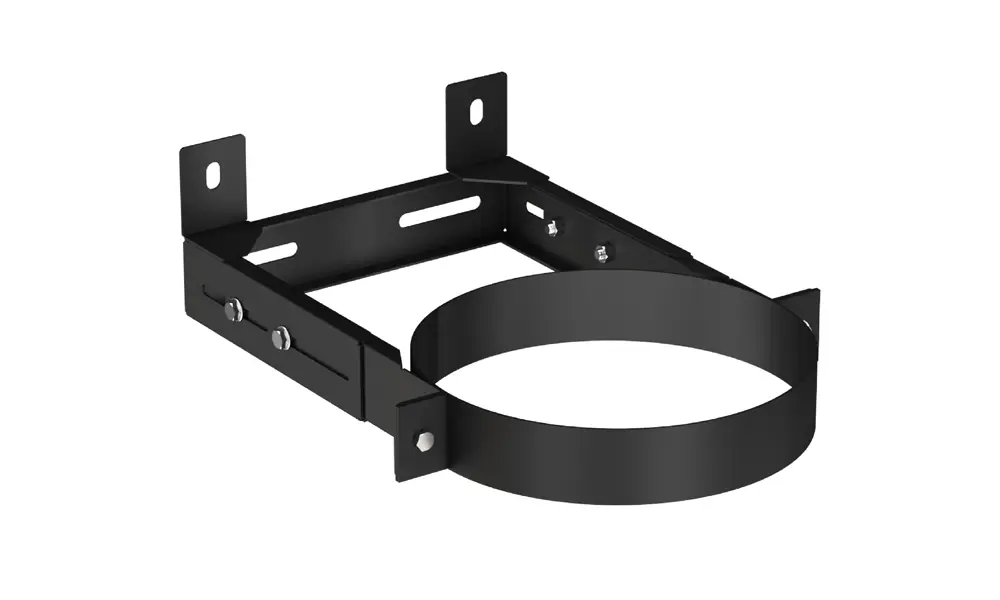

PAKSLXDSKE21 – Wall Bracket Eko 21
PAKSLXDSKE21 - Wall Bracket Eko 21[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

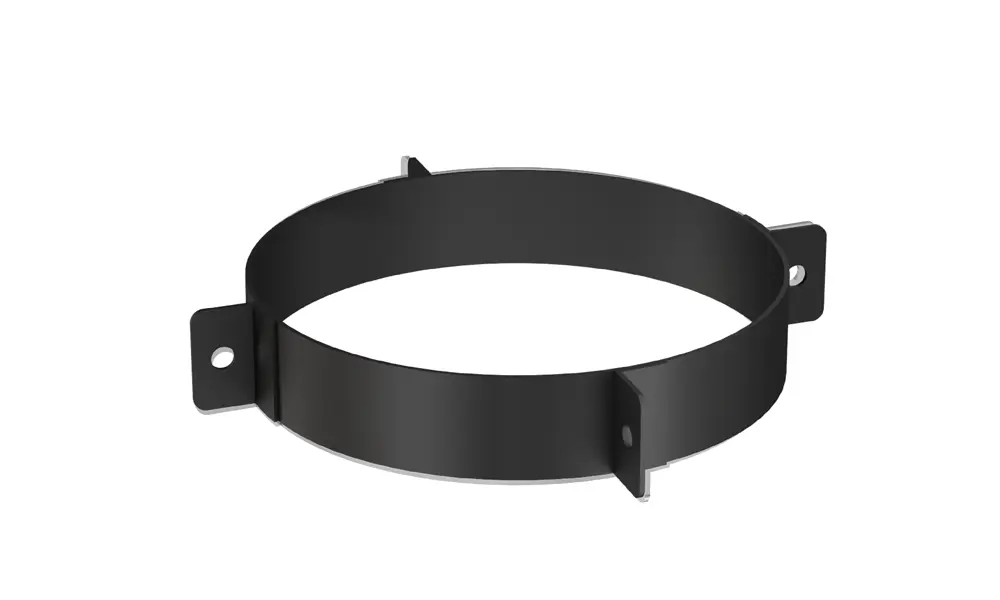

PAKSLXGK – Guy Wire Bracket
PAKSLXGK - Guy Wire Bracket[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

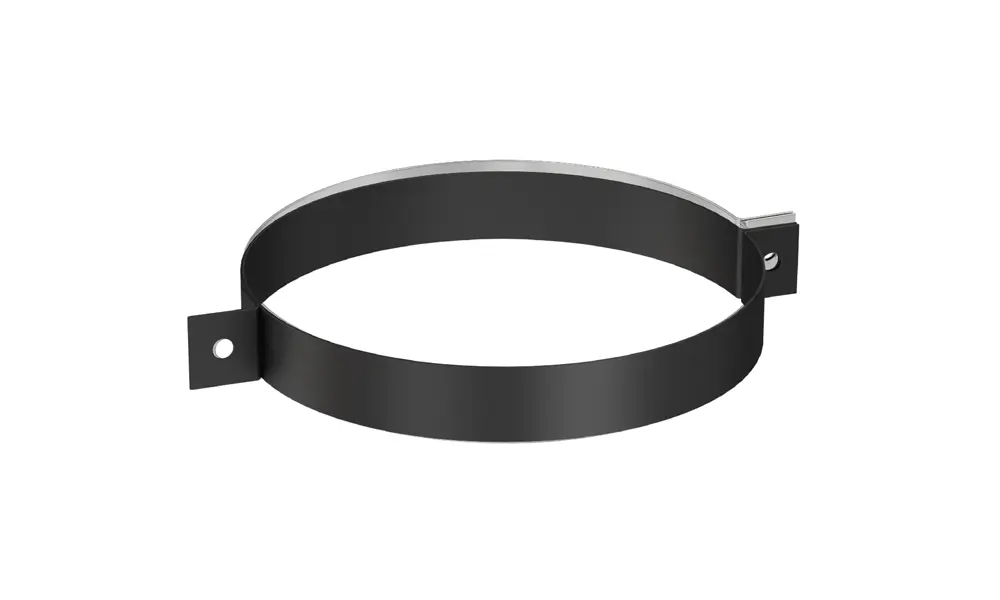

PAKSLXAK – Hold-Down Clamp
PAKSLXAK - Hold-Down Clamp[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

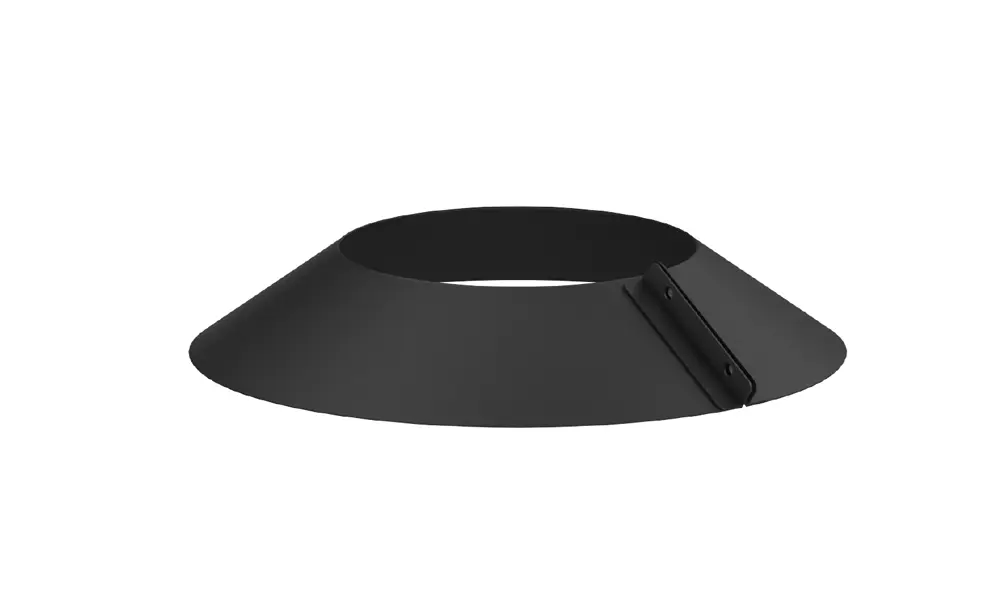

PAKSLXCOB – Storm Collar
PAKSLXCOB - Storm Collar[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

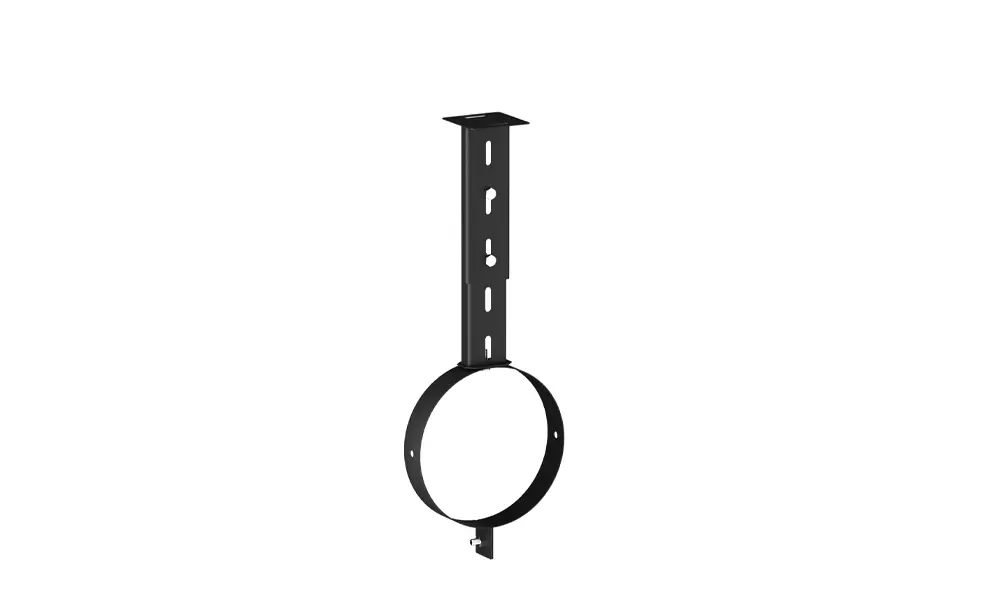

PAKSLXHT – Adjustable Support
PAKSLXHT - Adjustable Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

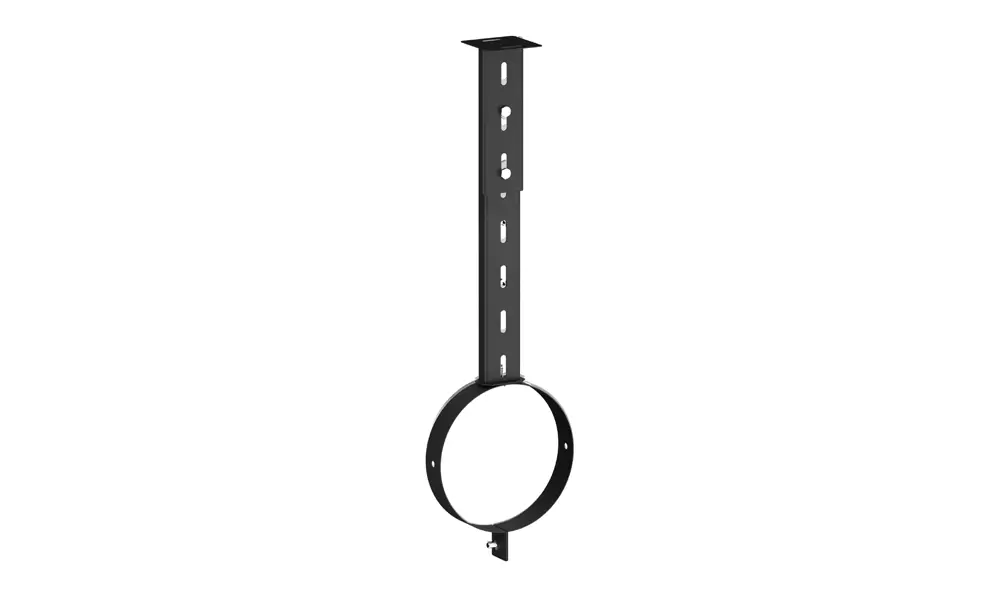

PAKSLXHTU – Long Adjustable Support
PAKSLXHTU - Long Adjustable Support[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

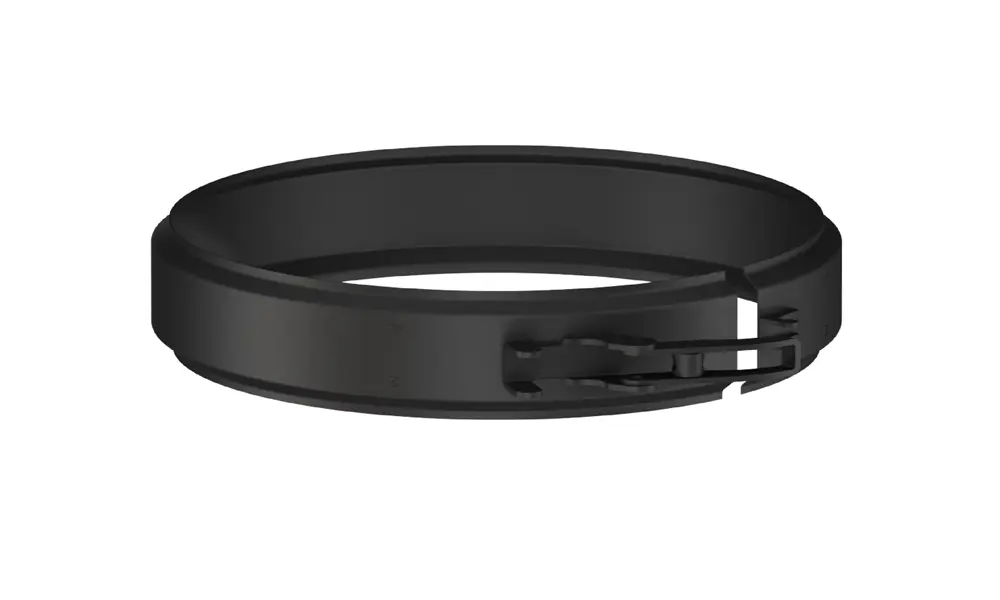

PAKSLXBK – Locking Band
PAKSLXBK - Locking Band[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

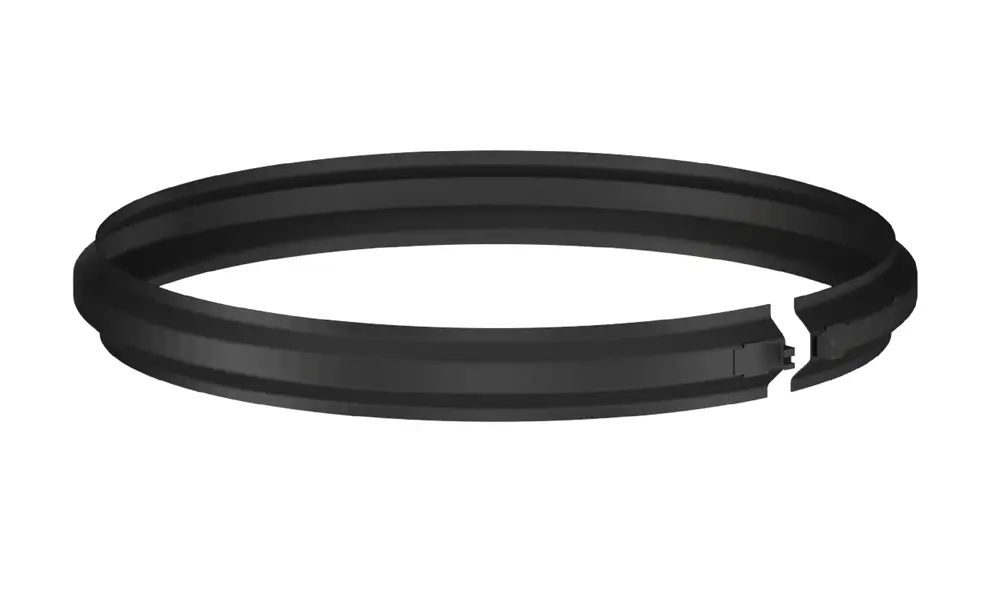

PAKSLXBKİ – Locking Band Nerraw
PAKSLXBKİ - Locking Band Nerraw[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

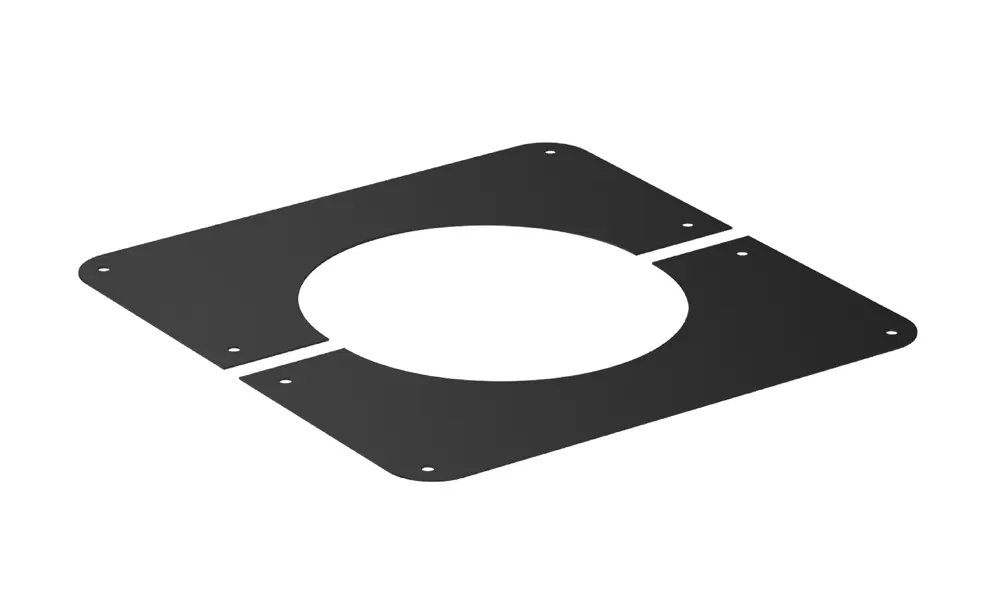

PAKSLXDK45 – Wall Plate 45°
PAKSLXDK45 - Wall Plate 45°[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

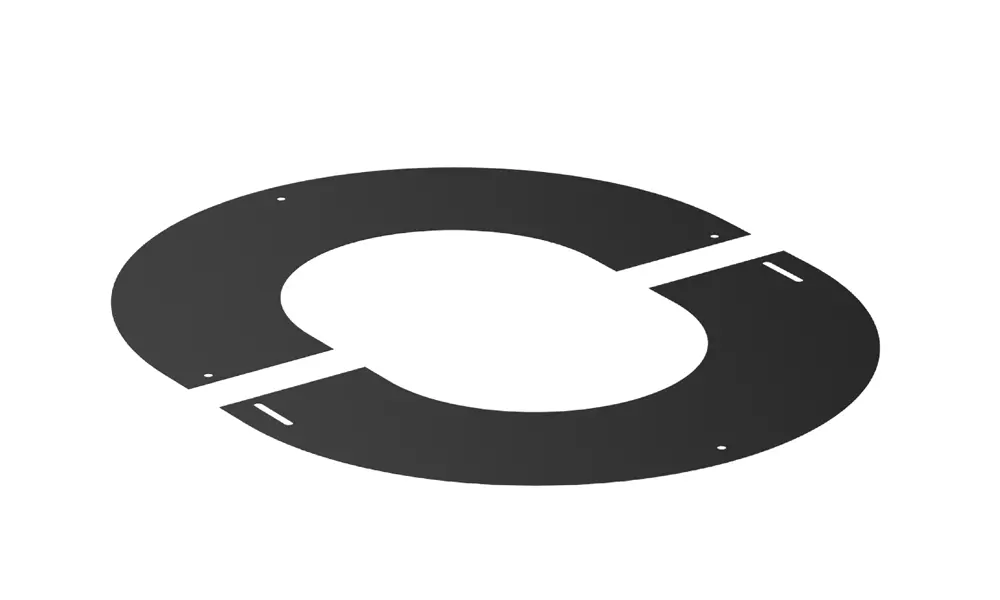

PAKSLXOK45 – Oval Wall Plate 45°
PAKSLXOK45 - Oval Wall Plate 45°[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...

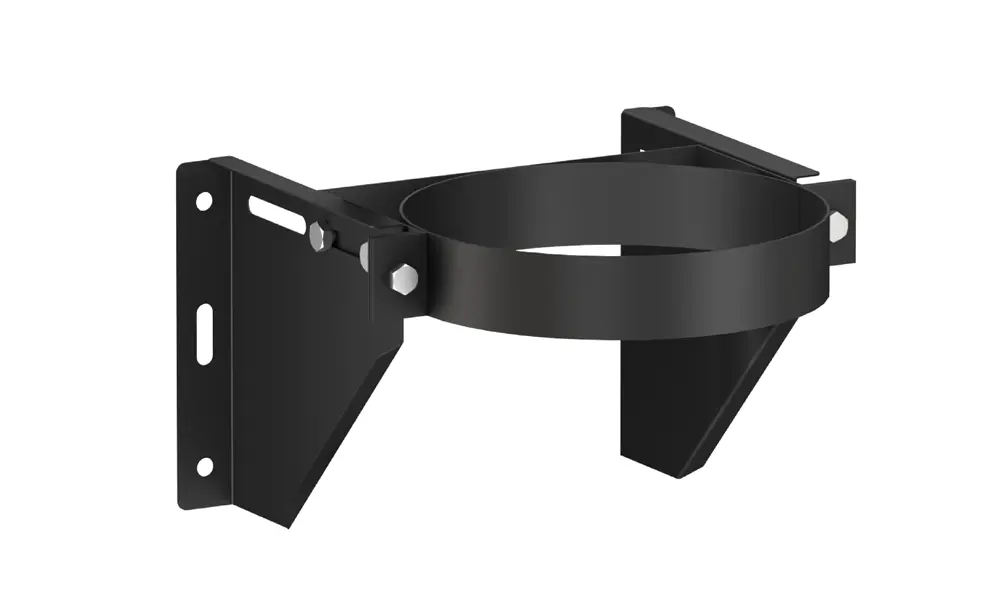

PAKSLXDSKT – Wall Bracket (T)
PAKSLXDSKT - Wall Bracket (T)[lwp_divi_breadcrumbs font_icon="E||divi||400" link_color="#78afde" _builder_version="4.27.4" _module_preset="default" module_text_align="center" module_text_color="#FFFFFF" module_alignment="center"...
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact

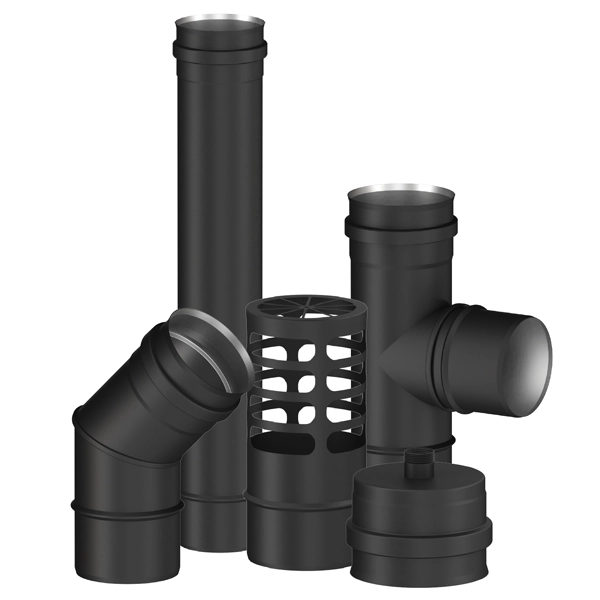

Solinox PL model is a single-walled pellet stove chimney system made from high-quality 316L (1.4404) or 304 (1.4301) stainless steel. Designed specifically for pellet stove chimney applications, it withstands operating temperatures up to 250°C. This pellet stove chimney system is ideal for wood pellet fuels, ensuring safety and efficiency. For a more refined look, the pellet stove chimney is optionally available with a Black (Matt) finish.
Advantages of Pellet Stove Chimney Systems
CE certified
Easy installation thanks to the perfect mounting connection system
No welding required in the field
Stainless steel
Sealed and gas impermeable materials
Usage Areas Of Pellet Stove Chimney Systems
Pellet Stoves
