PSLXD90 – 90º Elbow
Solinox Chimney Systems

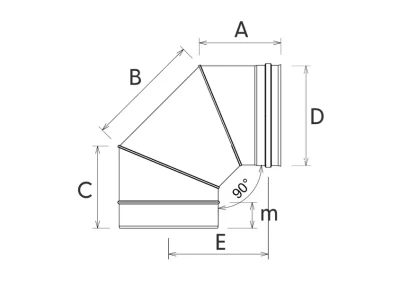

Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| A | 110 | 123 | 135 | 150 | 165 | 170 | 187 | 187 | 212 | 217 | 235 | 255 | 277 | 300 | 317 | 342 |
| B | 112 | 146 | 173 | 189 | 214 | 222 | 255 | 270 | 280 | 312 | 353 | 395 | 437 | 479 | 520 | 560 |
| C | 110 | 123 | 135 | 150 | 165 | 170 | 187 | 187 | 212 | 217 | 235 | 255 | 277 | 300 | 317 | 342 |
| m | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact
90º Elbow for Single Wall Chimney Systems
The PSLXD90 – 90º Elbow is a return module designed for applications where the chimney route needs to change direction by 90 degrees. As part of Single wall chimney systems, it provides a practical connection solution for layouts that require a defined directional transition. The product can be incorporated into different chimney configurations according to the technical requirements of the installation.
90º Elbow in Solinox Chimney Systems
Designed as a functional component within Solinox chimney systems, the PSLXD90 supports the creation of suitable chimney routes where a right-angle turn is required. Its 90-degree form allows the system direction to be adapted according to the installation area. When planning Single wall chimney systems, elbow modules play an important role in creating the required chimney configuration.
Application Areas of Single Wall Chimney Systems
The PSLXD90 can be used as a directional component in Single wall chimney systems where the chimney line cannot continue in a straight route. Different diameter options allow the component to be selected according to the dimensions and technical configuration of the system.
Key product features include:
- 90º elbow design
- Used as a return module in chimney systems
- Suitable for directional transitions in chimney routes
- Available in different diameter options
- Designed for integration with Solinox chimney systems
PSLXD90 for Solinox Chimney Systems
The PSLXD90 provides a straightforward solution for creating a 90-degree directional change within Solinox chimney systems. Its function-focused design makes it suitable for projects where chimney routing requires a right-angle transition. As a component of Single wall chimney systems, it can be evaluated together with other compatible Solinox chimney systems components to create a chimney layout suited to the installation requirements.
