SLXT90 – Tee 90º
Solinox Chimney Systems

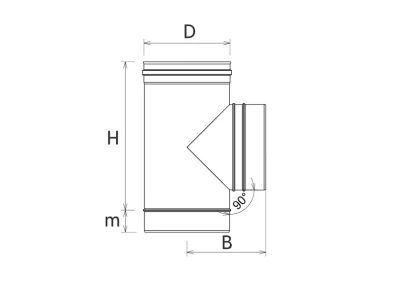

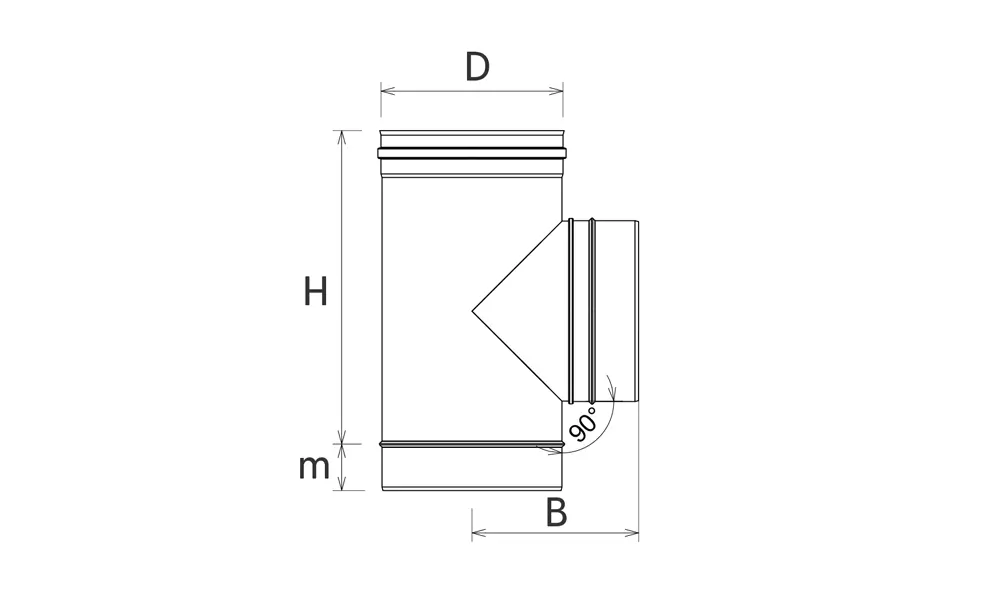

Technical Specifications
| D | 80 | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| H | 200 | 283 | 350 | 350 | 350 | 350 | 450 | 450 | 450 | 450 | 550 | 550 | 650 | 650 | 700 | 950 |
| B | 105 | 135 | 150 | 160 | 175 | 185 | 200 | 210 | 225 | 235 | 270 | 295 | 320 | 345 | 395 | 420 |
| m | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Solinox Product Catalog
Technical Module
Certificates
Installation Video
Can’t find what you’re looking for?
Contact
Discover the SLXT90 Tee for Single Wall Chimney Systems
The SLXT90 Tee 90º creates a defined right-angle branch in a single wall flue line. It gives designers a dedicated connection point where a branch must meet the main chimney route at 90º. Within Solinox Single Wall Chimney Systems, this module helps build a coordinated layout from compatible components.
- Creates a 90º branch connection to the main line.
- Supports a clear, modular arrangement of the flue route.
- Available in multiple diameters listed in the technical table.
Why Choose a 90º Tee Connection
A perpendicular branch can be the practical choice when equipment or a connecting duct is positioned beside the main flue. The SLXT90 Tee 90º provides the intended geometry in a single component. Its position and orientation can be planned with the adjoining pipes before installation begins.
- Helps connect a side branch where the project calls for 90º geometry.
- Offers a defined junction rather than an improvised site connection.
- Can be coordinated with other Solinox SW modules.
Applications in Single Wall Chimney Systems
SLXT90 can be used where a side connection joins a vertical or horizontal section of the planned flue route. The exact arrangement depends on the equipment location, flow direction and chimney design. Selecting the appropriate diameter keeps the branch consistent with the rest of the system.
- Main flue lines with a perpendicular branch.
- Equipment connections designed to enter the line at 90º.
- Modular layouts that require a dedicated tee component.
Plan the Connection with Confidence
For a dependable fit, the tee must match both the installation space and the connecting components. Review the SLXT90 technical dimensions before finalizing the layout, including the height and branch projection for the selected diameter. Install the complete assembly according to the project specification.
- Confirm the main line diameter and branch direction.
- Allow enough space for the tee and adjoining pipes.
- Use the size-specific technical table when specifying the product.
